4000kgs CE approved maintenance center used base plate two post car lift
| Item No. | 201 |
| CERT. | CE |
| Item Description | 2 post car lift |
| weight capacity | 4000kgs |
| Qty of cylinder | 2 |
| lock release system | 2 side manual lock release |
| Max lifting height | 1820mm |
| Minimum height | 100mm |
| Lifting time | ≤50S |
| Overall width | 3410mm |
| Inner width | 2784mm |
| Overall height | 2860mm |
| Arm type | 2 + 2 stages |
| Arm extension range | 768-1153mm |
| Power unit | steel shell Motor with steel oil tank |
| Motor voltage | 400V, 380V, 220V, as your request |
| Motor Power | 2.2KW |
| Package size | 2880*470*740mm |
| product weight | 610 kg |
| Accessory | 1.insert type toe with metal cover, 2. height extension (33mm & 127mm) *4sets, 3. tool tray & tool box |

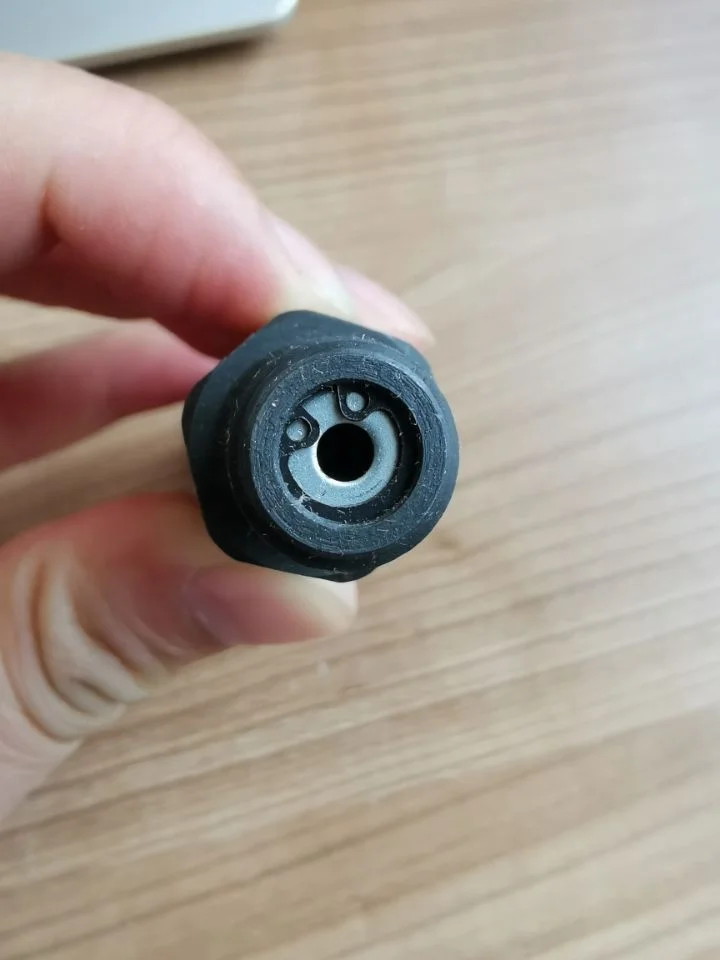

| safety accesory | 1. anti-burst valves |
product advantage,

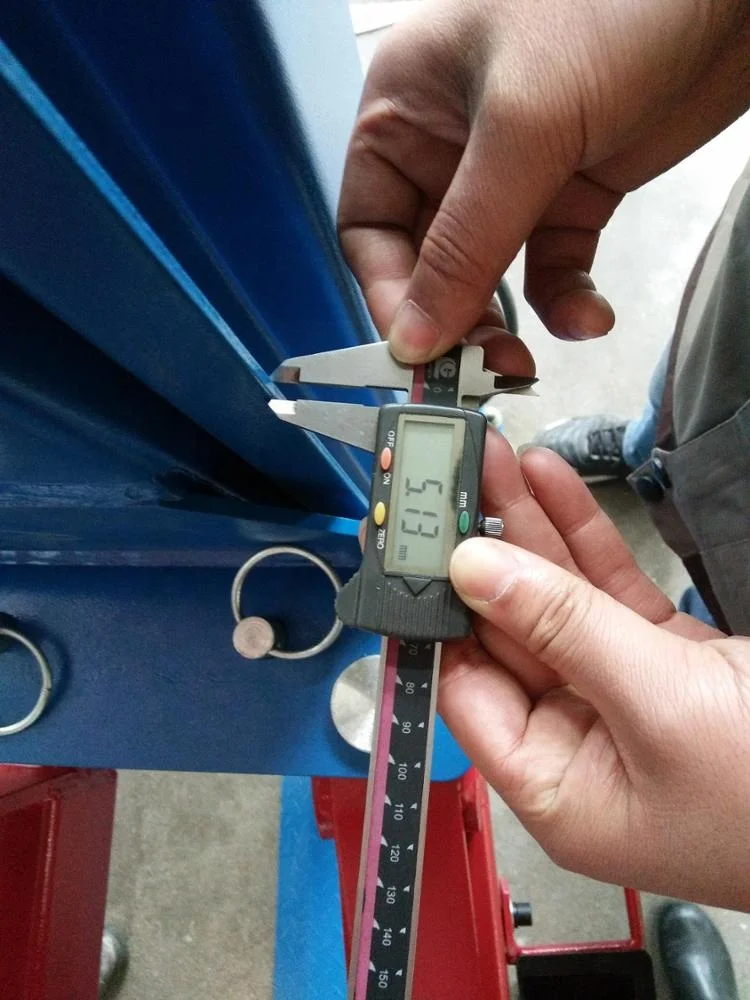

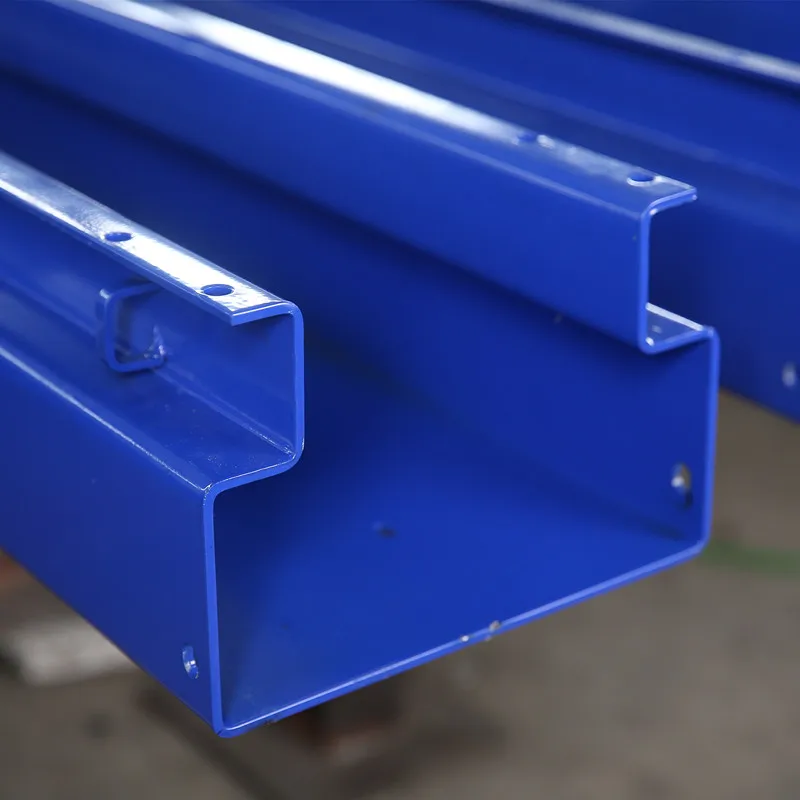

1) 8-bending column and thickness as 5mm before coating,

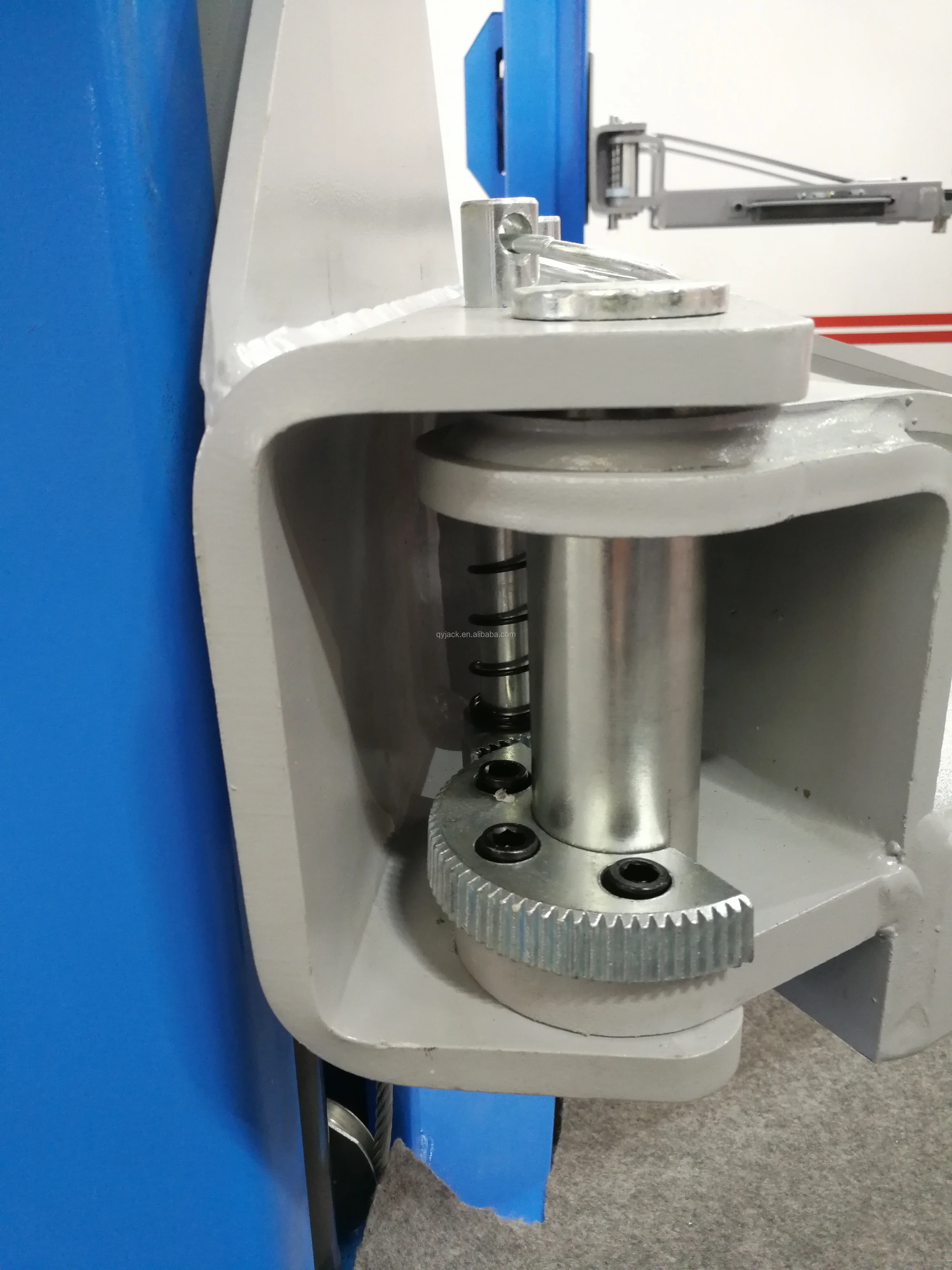

2) integral carriage for more stable and more capacity, thickness as 14mm.

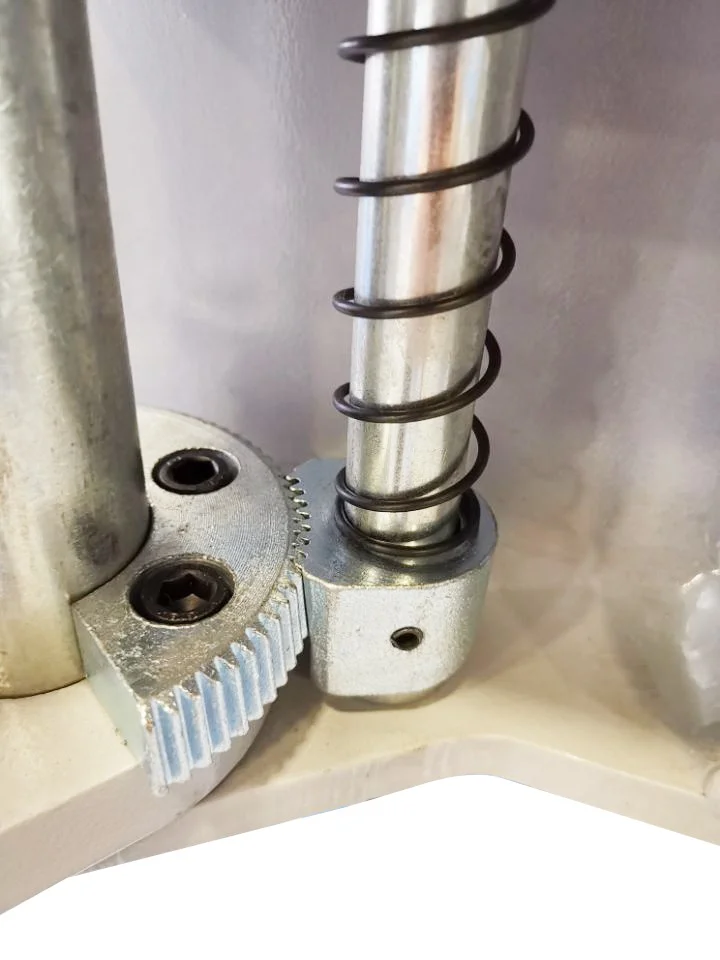

3) lock shaft diameter as 45mm, and tooth lock diameter as 22mm.

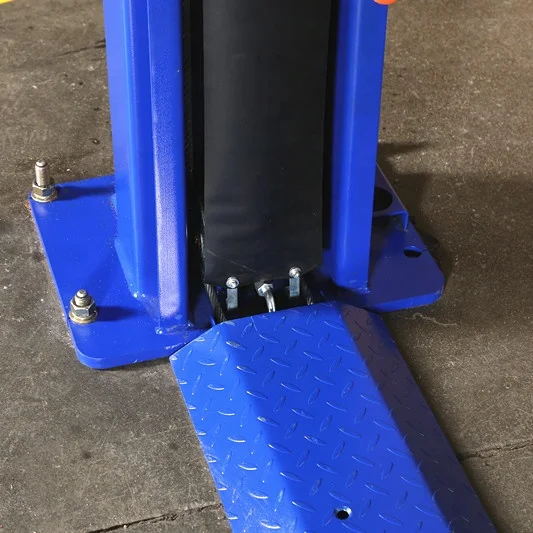

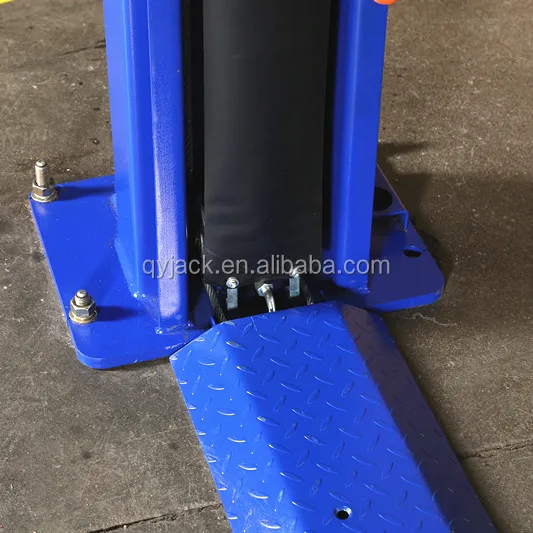

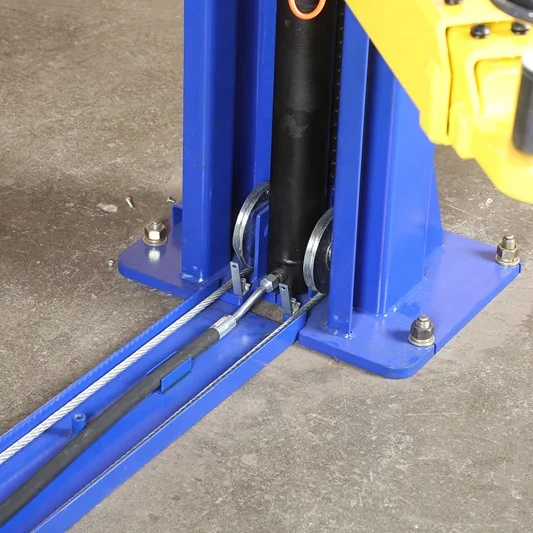

4) base plate including groove to protect the oil pipe and wire, and the channels for oil pipe and wire are separated.

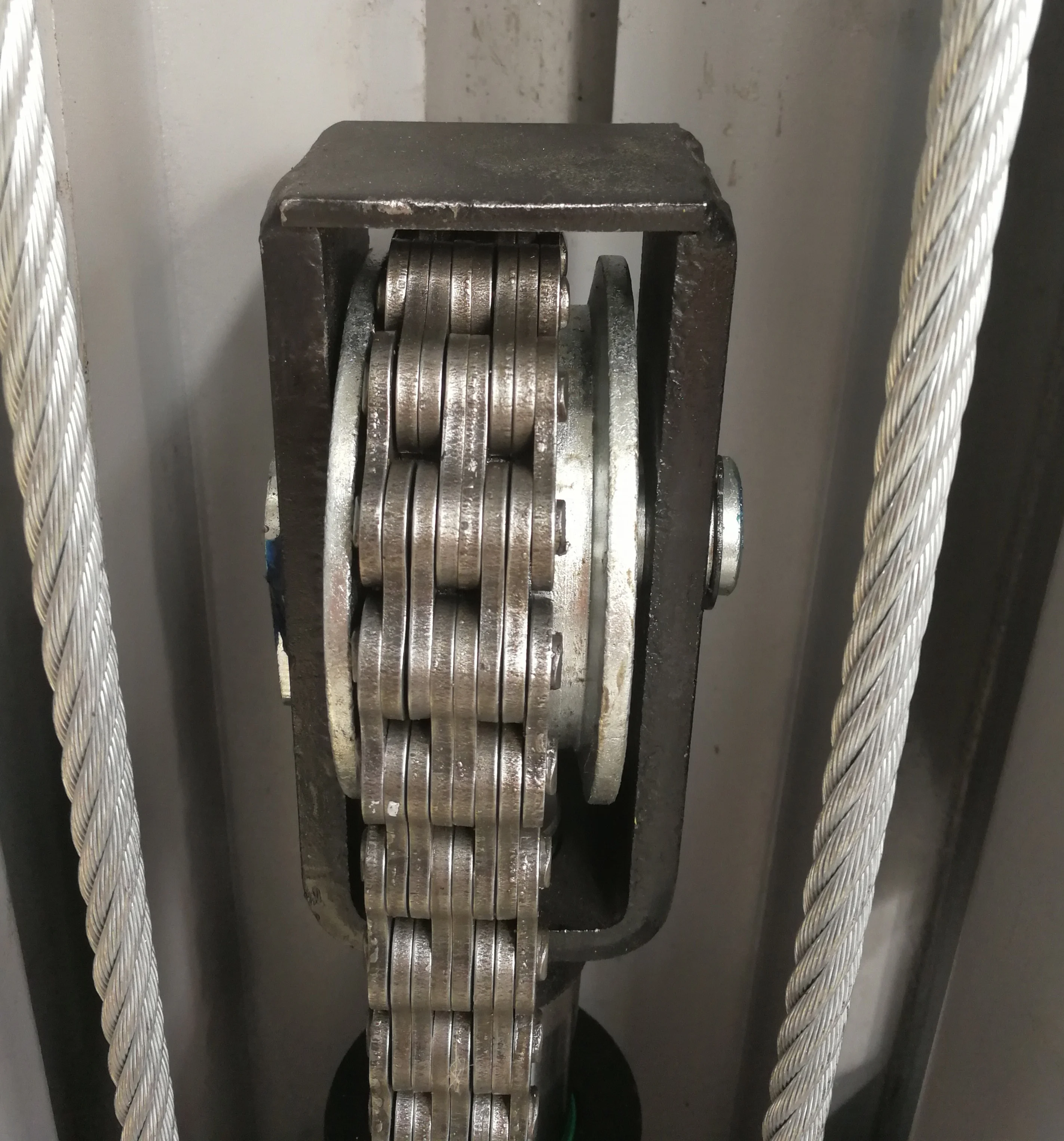

5) having protect for chain to avoid falling out.

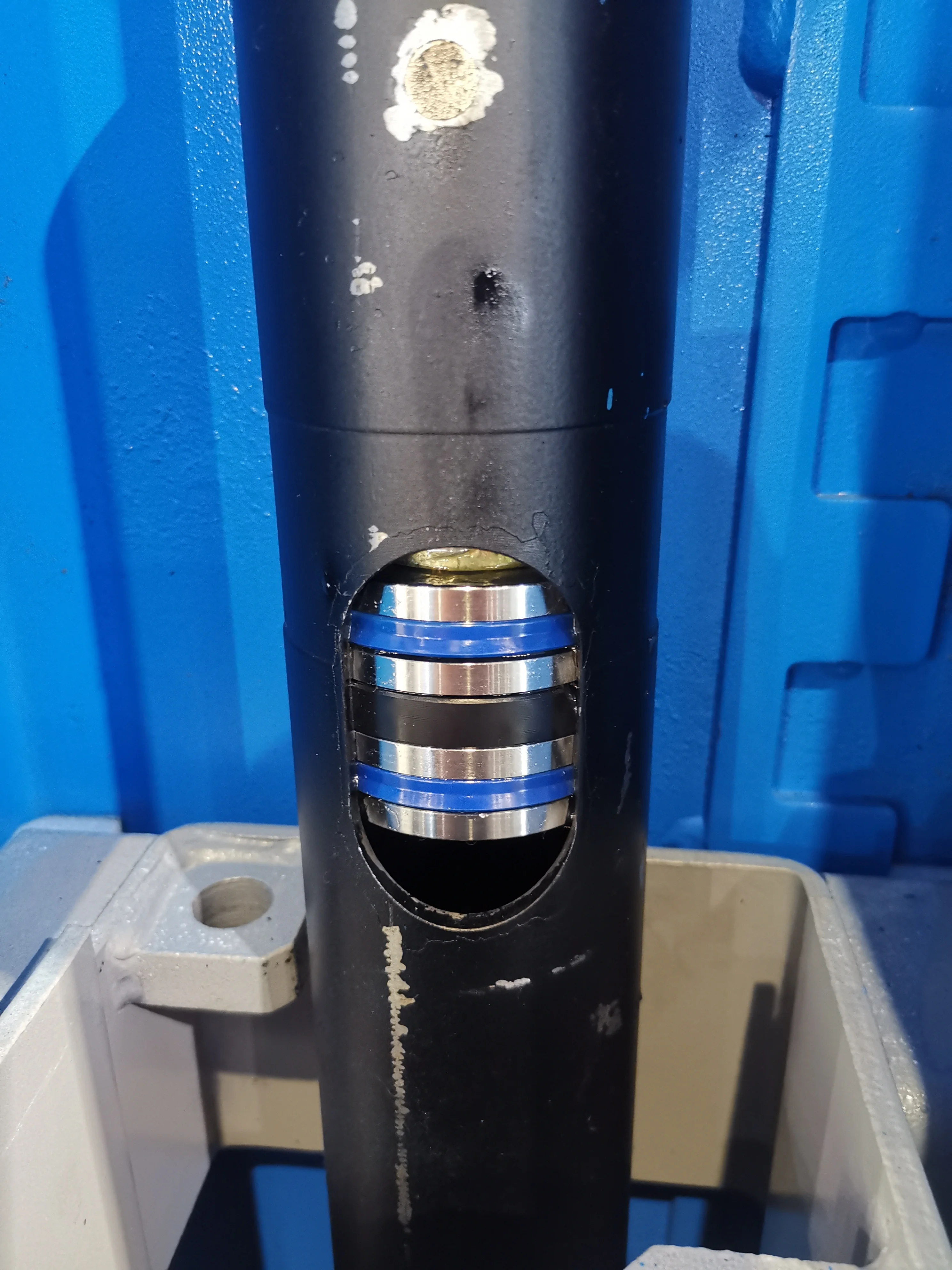

6) self-produced oil cylinders and having double oil sealings.

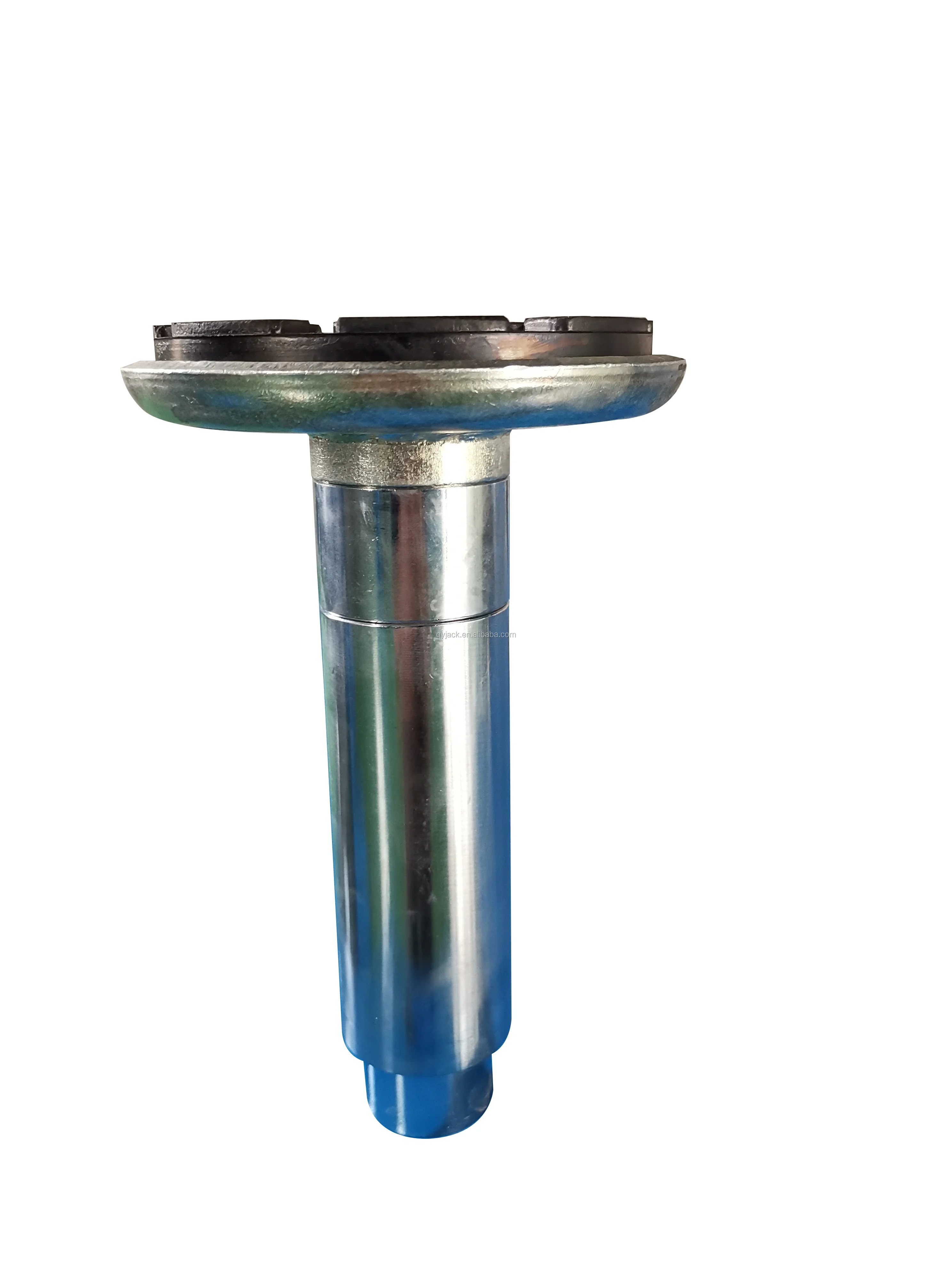

7) have two sizes of toe adapters. one is 33mm, the other is 127mm, which can be suitable for more types of vehicle.

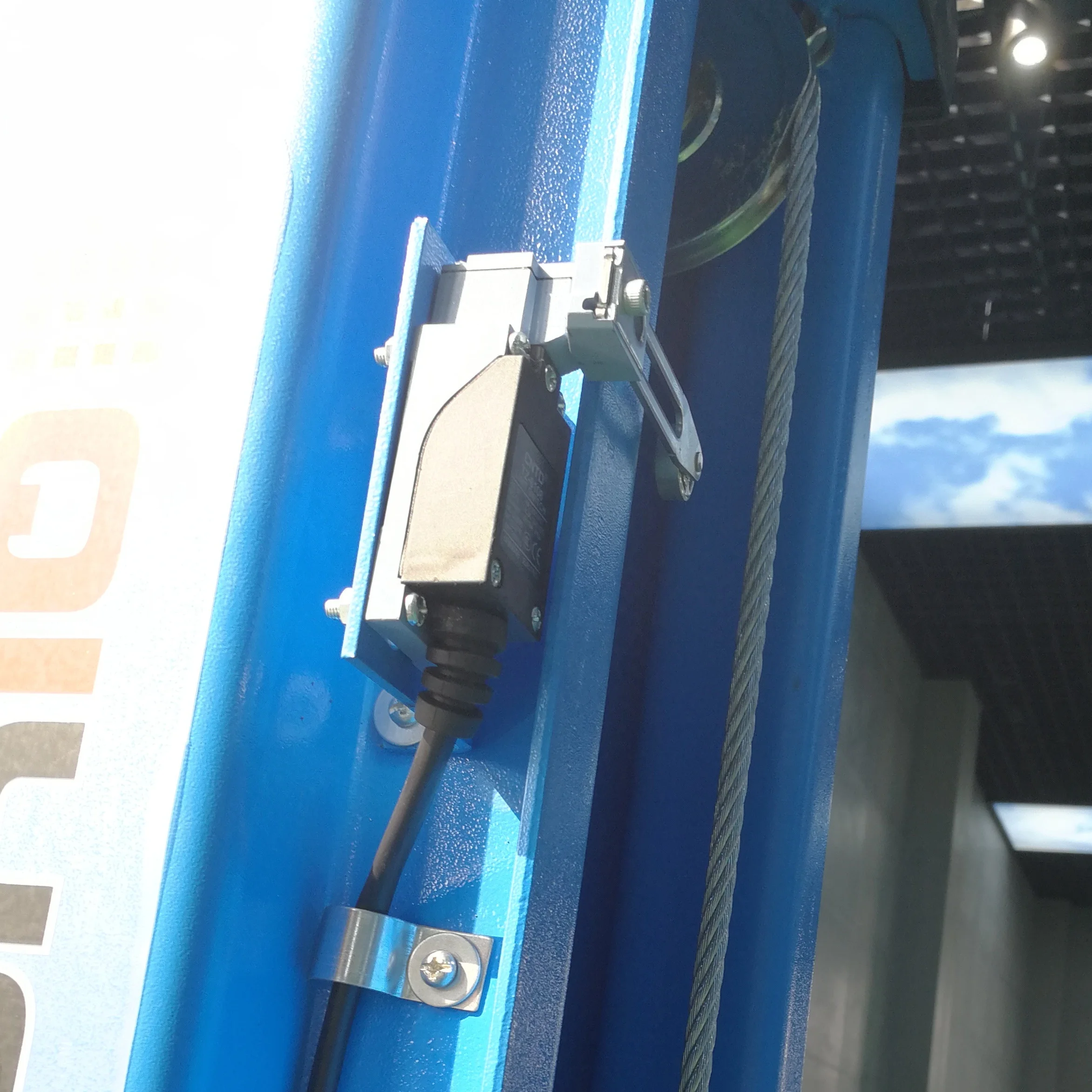

8) having top limit switch for security.

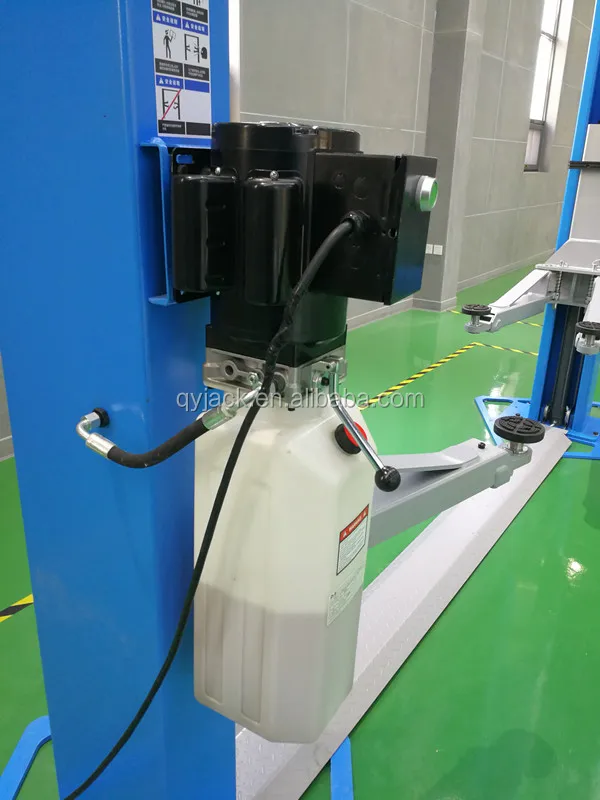

9) DELI/BUCHER brand power unit.
Packaging & Shipping
1pc/metal rack,
3 layers in the container,
leading time: 30days if order qty within 180pc,
1*20GP: 24PC,
1*40GP: 36PC.
Our Services
CE service
3rd party service
mixed loading service.
