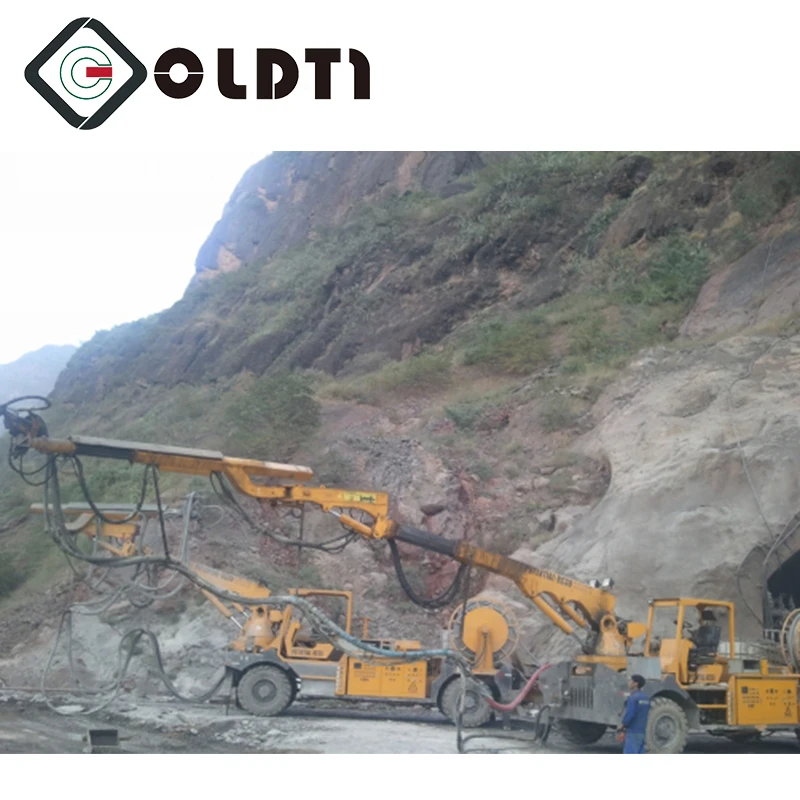

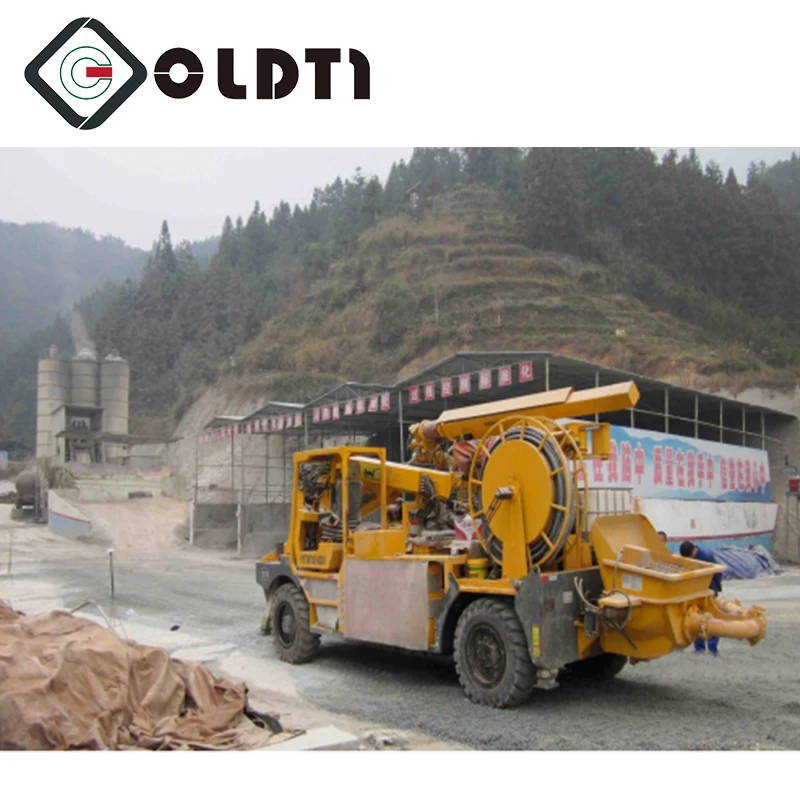

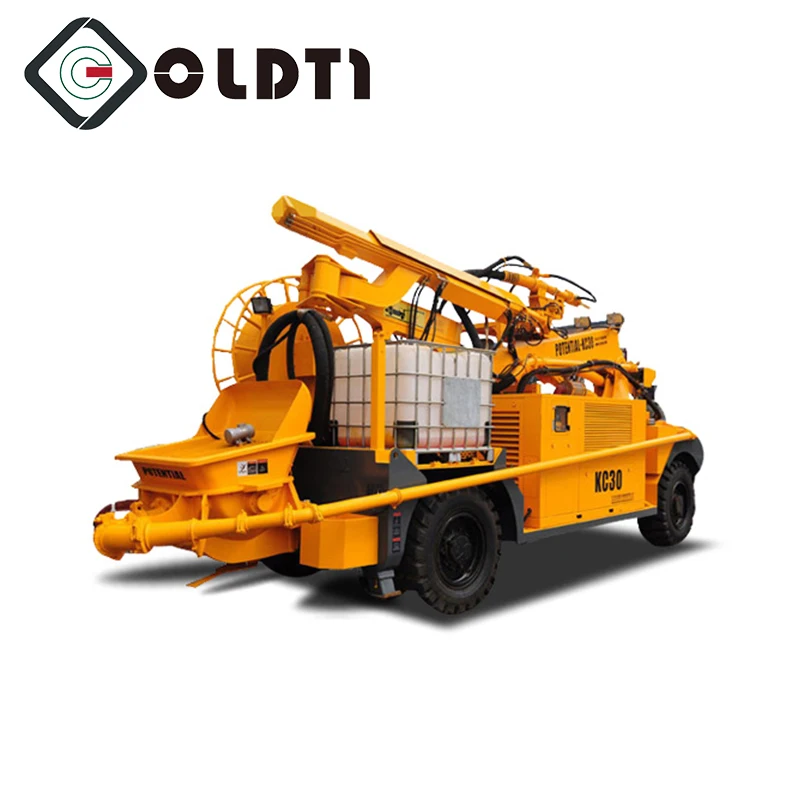

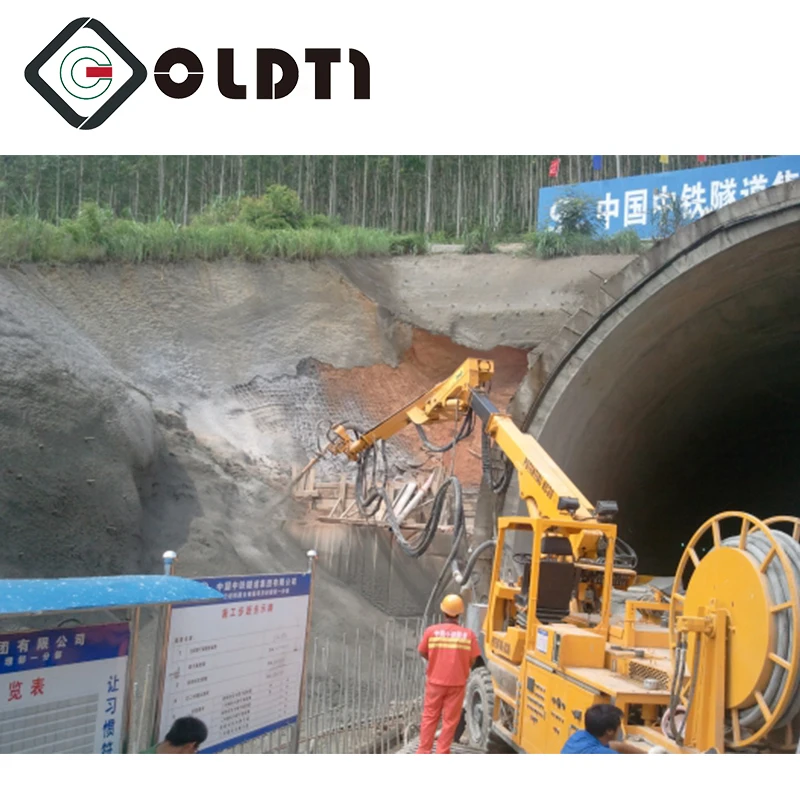

New VOSTOSUN 9 25m3/h concrete Shotcrete Robot KC3017 price
- Category: Shotcrete Machine >>>
- Supplier: Shanghai Vostosun Industrial Co. Ltd. [Shanghai China]Shanghai
Share on (62449620710):
Product Overview
Description
New VOSTOSUN 9-25m3/h concrete Shotcrete Robot KC3017 price
Application
| No. | Item | Data | ||
| 1 | Complete | Weight(T) | 17 | |
| machine | Travelling speed(km/h) | 0~18 | ||
| Grade ability(°) | 25 | |||
| Ground clearance(mm) | 400 | |||
| Steering | 4 wheel driving/steering/crab | |||
| Outside dimension(L×W×H)(mm) | 8265×2500×3200 | |||
| 2 | Pumping system | Theoretical pump capacity (m³/h) | 4~30 | |
| Filling height(mm) | <1200 | |||
| Max.aggregate size(mm) | ≤16 | |||
| Max. theory outlet pressure (MPa) | 7.5 | |||
| Pipe diameter(mm) | 125 | |||
| Hopper capacity(L) | 600 | |||
| 3 | Motor | Rated Power(kW/rpm) | 55/1480 | |
| Rated voltage(V) | three-phase/380(optional) | |||
| 4 | Engine | Mode | 4 cylinder liquid-cooled diesel engine | |
| Rated power(kW/rpm) | 82/2200 | |||
| Diesel tank volumn (L) | 120 | |||
| 5 | Air compressor | Mode | Screw type | |
| Rated Power((kW) | 75 | |||
| Max.wind flow(m³/min ) | 13.5 | |||
| Exhaust pressure(MPa) | 0~0.7 | |||
| 6 | Shotcrete Boom | Boom mode | foldable, rotate, telescopic | |
| Max.spary area | Upward(m) | 17 | ||
| Forward(m) | 15 | |||
| Downward(m) | 8 | |||
| Width(m) | 30 | |||
| Main boom rotate angle(°) | 270 | |||
| Main boom tilt angle(up/down)(°) | 60/23 | |||
| Main boom telescopic length(mm) | 2000 | |||
| Telescopic boom rotate angle(°) | (L/R)180/60 | |||
| Telescopic boom tilt angle(up/down)(°) | 30/62 | |||
| Telescopic boom stretch length(mm) | 2000 | |||
| Nozzle rotate(°) | 360 | |||
| Nozzle swing (°) | 240 | |||
| Nozzle brush(°) | 8x360 continuous | |||
| Nozzle diameter(°) | 80 | |||
| 7 | Additive | Flow rate(L/h) | 0~1200 | |
| system | Working pressure(MPa) | 1.2 | ||
| Tank volumn(L) | 1000 | |||
| 8 | Cleaning System | Flow rate(L/min) | 14 | |
| Working pressure(MPa) | 14 | |||
| Motor rated power(kW) | 4 | |||
| 9 | Electric System | Operate mode | wireless romote control | |
| Control mode | PLC + touchscreen display | |||
| 10 | Cable Reel | Cable length(m) | 100 | |
| Power Source(V/Hz) | 380/50(optional) | |||
| Electric current(A) | 400 | |||
