OEM/ODM Caravan Marine Use Sunpower Cell ETFE/PET Semi Flexible Solar Panel 20W 18V
- Category: >>>
- Supplier: Shenzhen Sunsun Solarenergy LimitedShenzhen Limited
Share on (62449644747):
Product Overview
Description
Product Information
1).Description
Water-proof,perfect to use on yacht,car,boat,snow mobile,golf-cart....etc
Light weight for easy carrying solar panel
High efficiency crystalline solar cell
2).Semi Flexible
Bending angle up to 30 degrees solar panel
Water-proof,perfact to use on yacht,car,boat,snow mobile,golf-cart....etc
Light weight for easy carrying solar panel
3).Standard Test Condition
Est each module at lOOOW/m2,AMl.5,25'C before packing solar panel
Water-proof,perfect to use on yacht,car,boat,snow mobile,golf-cart....etc
Light weight for easy carrying solar panel
High efficiency crystalline solar cell
2).Semi Flexible
Bending angle up to 30 degrees solar panel
Water-proof,perfact to use on yacht,car,boat,snow mobile,golf-cart....etc
Light weight for easy carrying solar panel
3).Standard Test Condition
Est each module at lOOOW/m2,AMl.5,25'C before packing solar panel
Model | SS-S20WP |
Maximum Power at STC (Pmax) | 20 W solar panel |
Optimum Operating Voltage (Vmp) | 19.80 V |
Optimum Operating Current (Imp) | 1.01A solar panel |
Open - Circuit Voltage (Voc) | 25.00V |
Short - Circuit Current (Isc) | 1.05A |
Cell Efficiency | 23.0% |
Operating Module Temperature | -20 °C to +65 °C |
Maximum System Voltage | 1000 V DC (IEC) / 600 V DC (UL) |
Maximum Series Fuse Rating | 20 A |
Power Tolerance | ±5 % |
Solar Cell | Sunpower |
No. of Cells | 36 |
Dimensions | 460 × 290× 2.8mm |
Weight | 0.45 kgs |
Front Glass | PET/ETFE solar panel |
Frame | N/A |
Junction Box | IP67 rated |
Output Cables | TUV (2Pfg1169:2007), UL 4703, UL 44 |
Optional 4.0 mm2,symmetical lengths(-)1000mm and (+)1000mm | |
Connectors | SOLAR MC4 integrated twist locking connectors |
Pls “Click Here ” to Get More Technical Details

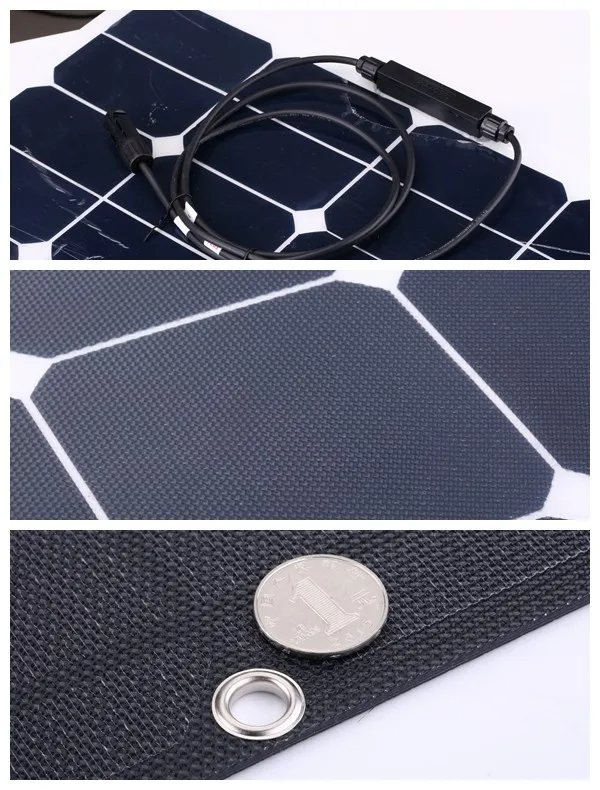

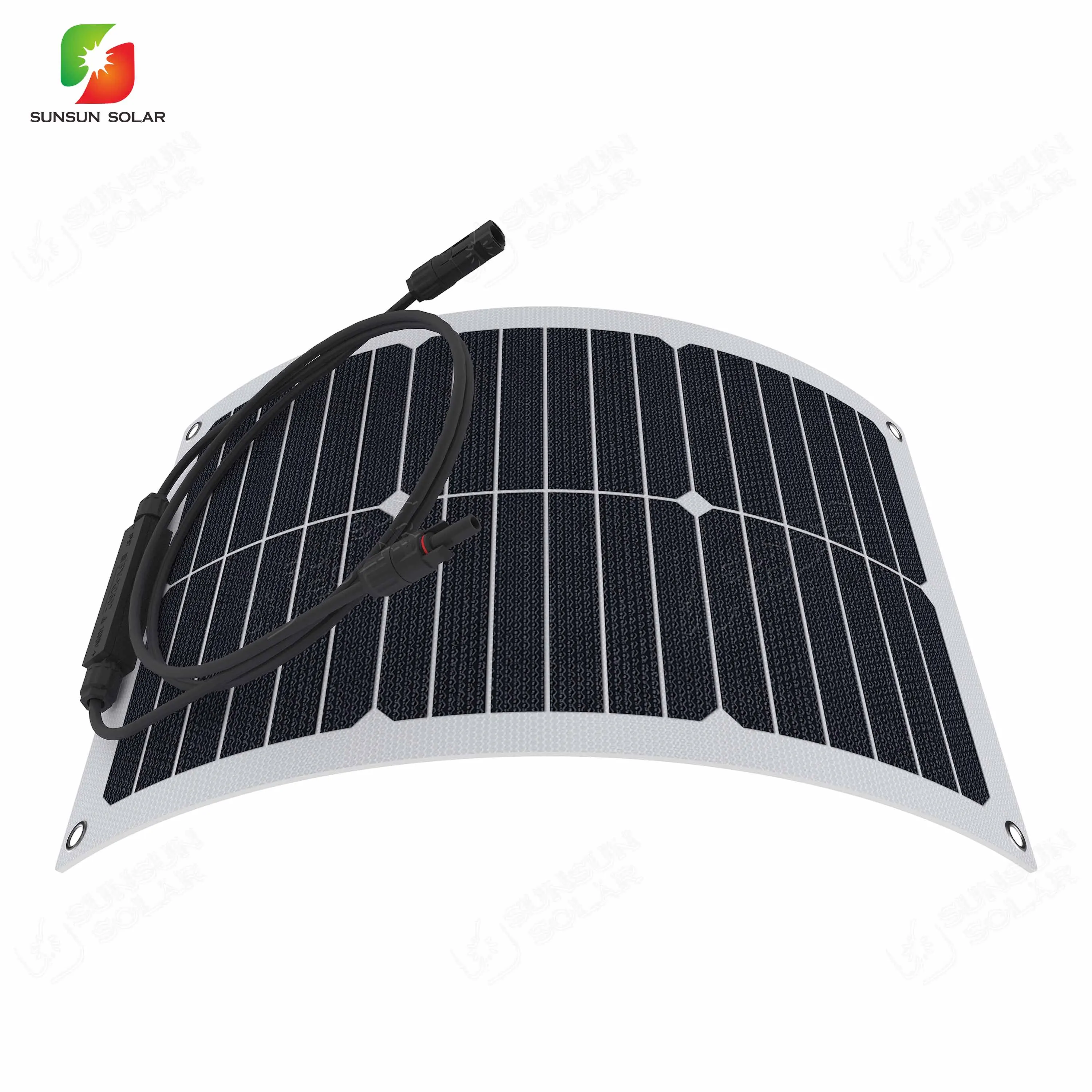

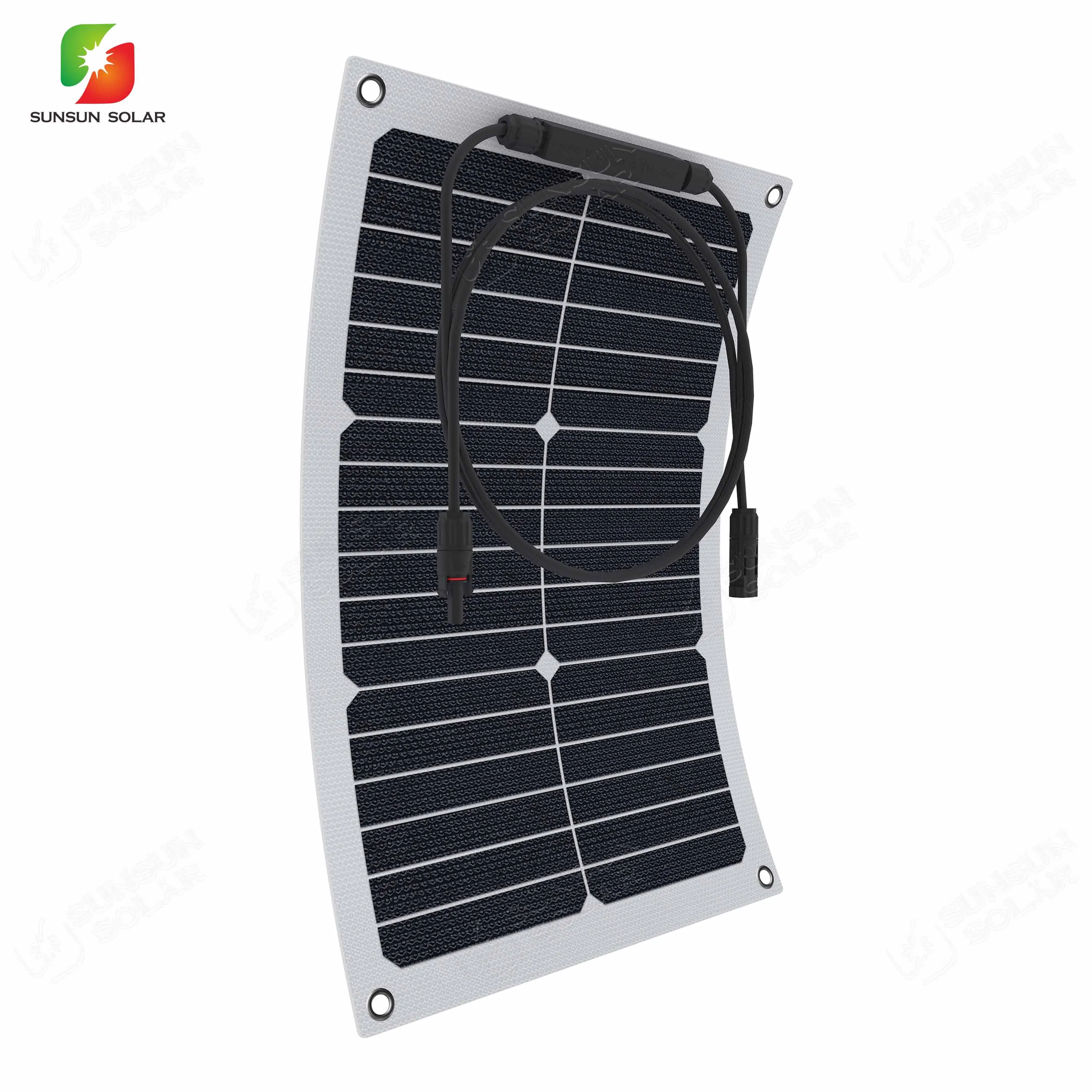

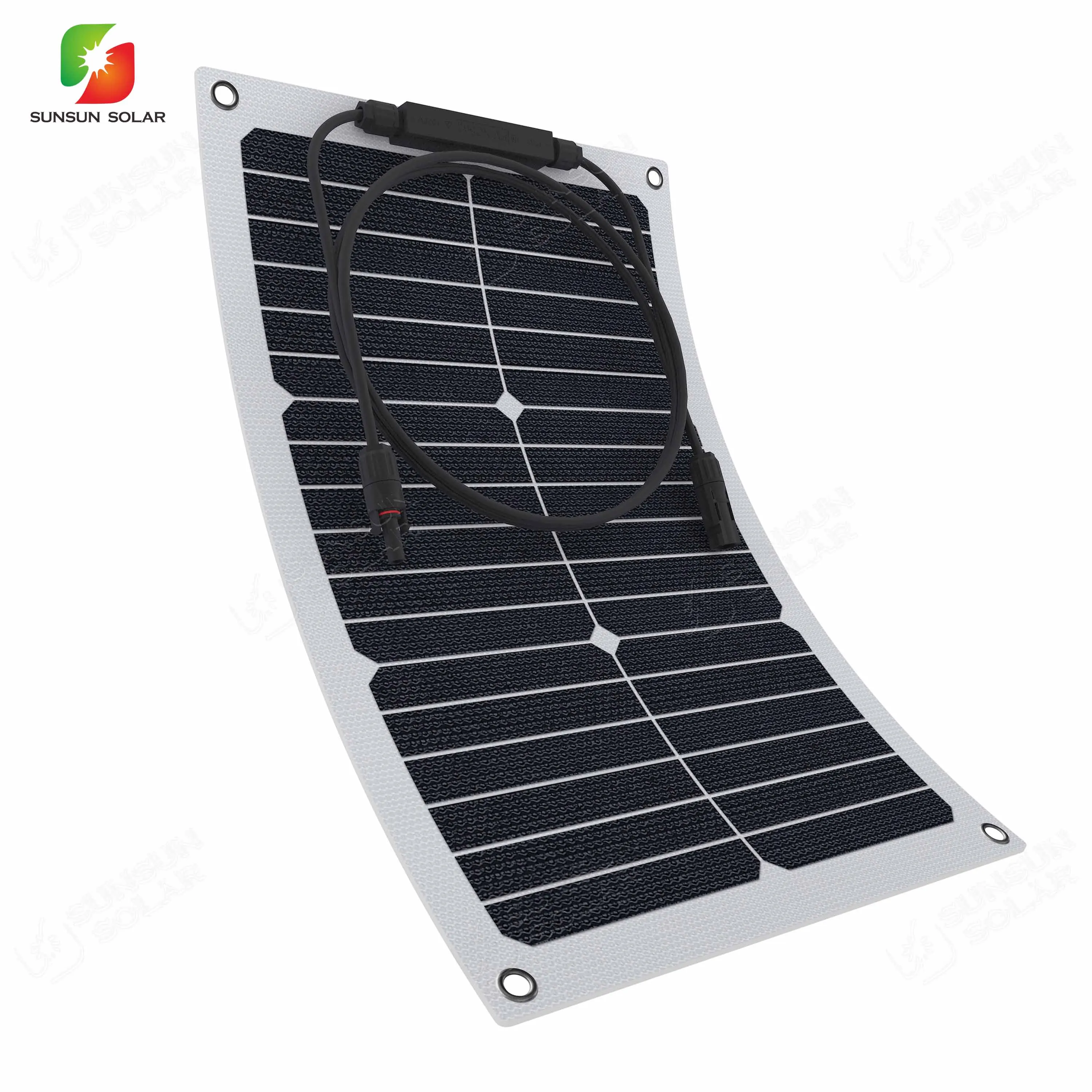

Product Display
