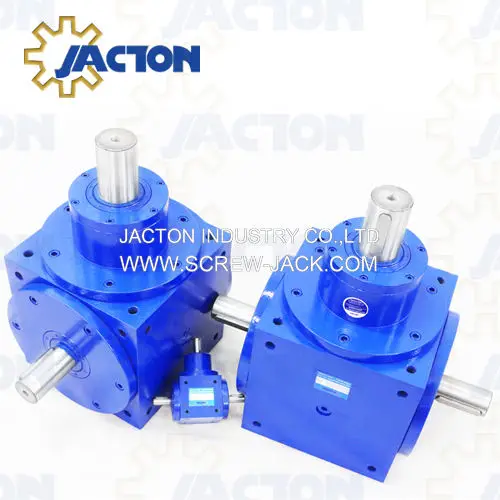

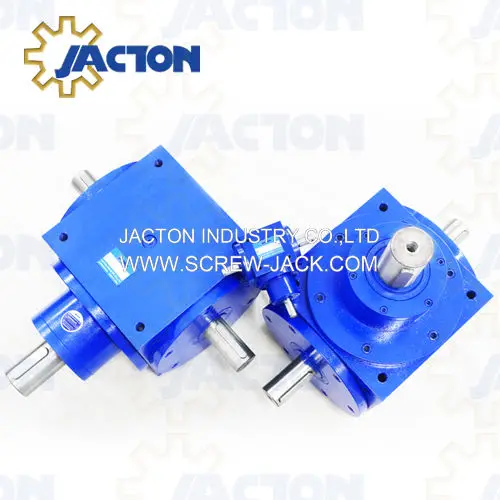

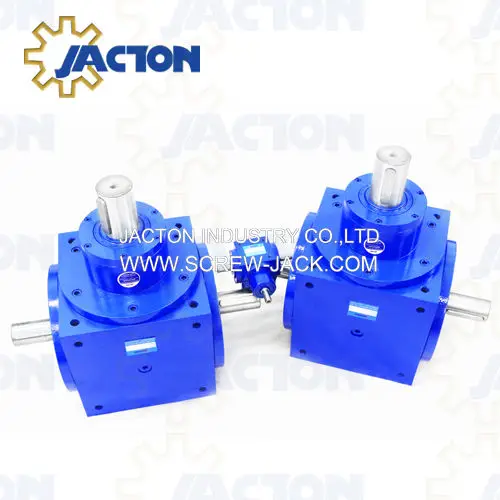

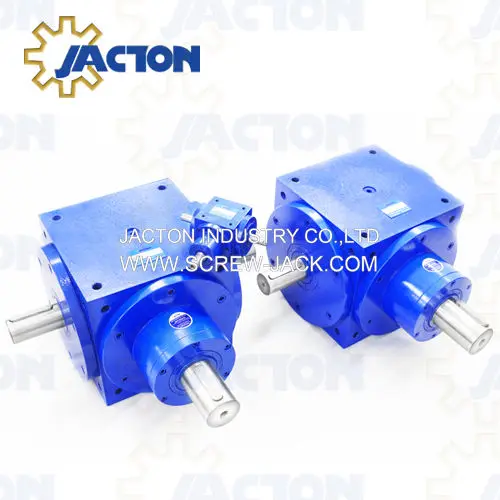

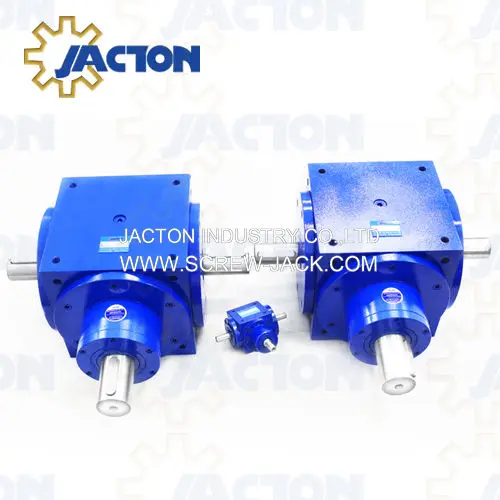

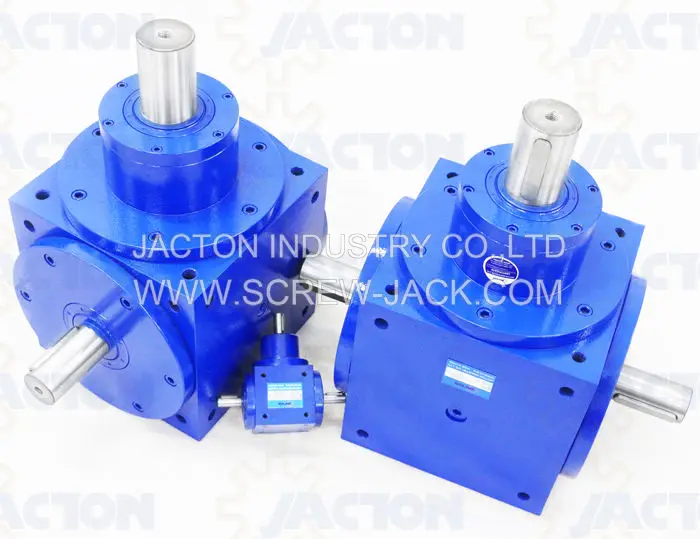

Miniature Right Angle Gearbox | Bevel Gear Box Assembly | Gear Drives
- Category: >>>
- Supplier: Dongguan Jacton Industry Co. Ltd.
Share on (62449713721):
Product Overview
Description
Micro Gearboxes are also known as reducers, gear reducers, speed reducers, gear drives, and gearmotors. Our bevel box miniature gear drives are application rated for the optimum balance of performance and cost. Torque can be balanced to meet your RPM and operating life requirements.
| Bevel Box Micro Gear Drive Features: |
* Structures: spiral bevel gears, housing, input & output shafts, bearings, seals
* Gearbox Dimensions: 65 mm*65 mm*65 mm square
* 1:1 Ratio
* Cast Iron Housing
* Horizontal Mount, Overhung Mount, Wall Mount
* Single Input & Single Output Shaft
* Single Input & Dual Output Shafts
* Shafts Configurations: 2-way, 3-way, 4-ways as standard
* Input and Output Shaft Dia.: 12 mm, 14mm as standard
* Left and Right Hand Output Shafts
* Clockwise & Counter Clockwise Rotation
* Lubrication: Grease
Important Note: The original actual pictures, videos, designs and moulds came from the audited manufacturer and supplier - Jacton Industry Co.,Ltd. Don't copy the pictures, videos, models, designs and drawing dimensions without JACTON permission.
Right Angle Gearbox Applications: Use right angle transmission gearboxes for any application that demands reliable transfer of speed or power. Our 90-degree gearmotors are used throughout dozens of industries and in thousands of applications, including: Blowers & Fans, Unloaders & Unscramblers, Bottle Capping, Electroplating Machinery, Folding Machines, Food Processing Equipment, Transfer Machines, Chemical Mixers, Recording Equipment.
Three-Way Right Angle Gearboxes feature one input shaft and two output shafts to provide an easy 90-degree turn of power transmission. This design allows for changes in axis rotation along with a smooth transfer of power with minimal backlash.
Finding a three-way gearbox that meets your performance requirements for size, load, and torque transmission is one challenge. Another is finding right angle power transmission devices with a design rugged enough to provide a long operating life. With many right-angle gearbox options available in the market, it can be comforting to know that you’ve found the right solution for your application.

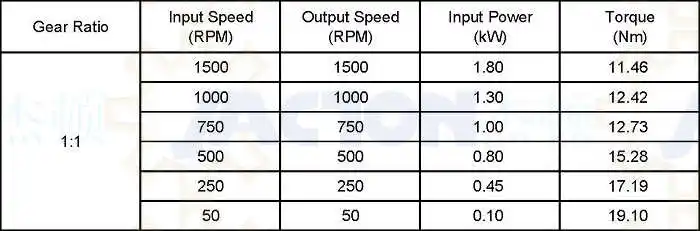

Specifications
| MODEL | JTP65 |

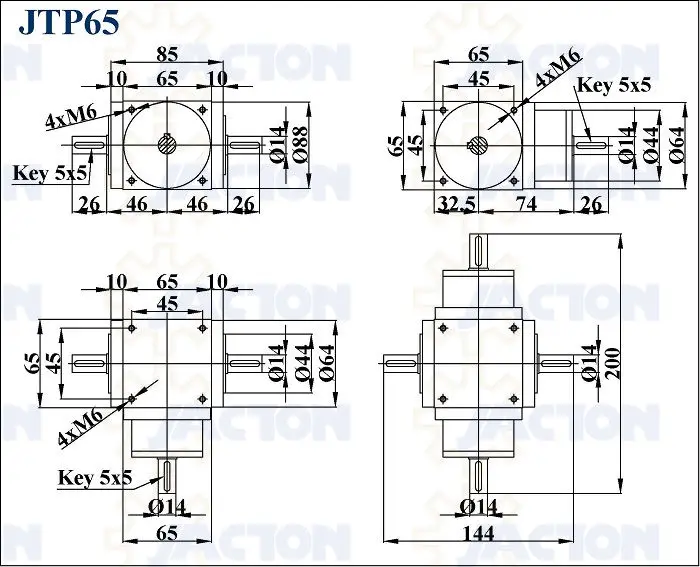

Drawing Dimensions
Packaging & Shipping
Shipping:
1. Ocean freight: seaport to seaport, price terms CIF, FOB, EXW, CFR etc.
2. Air freight: airport to airport, price terms EXW, CRF etc.
3. Air courier: DHL, FEDEX, UPS, TNT door to door shipment, price terms DDU, CPT etc.
Packing:
100% standard exporting plywood cases.
Note: International Exporting Standard Wooden Material with Free Fumigation.
Our Advantages
* One of the biggest orders with 1750 units screw jacks.
* Standard products with 2D Drawings(DXF, DWG, PDF) and 3D CAD Model(STEP).
* 100% quality assured with double quality inspections. Original Inspection Reports, Operation Manual, and Book Catalogue are put into the packages.
* 100% safety transportation with strong standard export plywood cases materials (free fumigation).
* International standard materials for all standard products.
* Custom design available, OEM service available, Free engineering advice and Customer label available.
Finished Projects
1. Theatrical solutions stage and orchestra platform lifts projects. Customers are from France, Australia, Netherlands, United Kingdom, Spain and Canada.
2. Hydroelectric power station projects and water conservancy projects. Customers are from Vietnam, Australia, Malaysia, Belgium, United States and United Kingdom.
3. Aircraft maintenance platforms and docking systems projects. Customers are from Singapore.
4. Solar panel tracking system projects. Customers are from Spain, India and Canada.
5. Bolted steel storage tanks and silos lifting solutions. Customers are from South Africa, United States, Mexico and Vietnam.
6. Dish antenna elevation and azimuth positioning projects. Customers are from Singapore, Malaysia and United States.
7. Railway wagon projects. Customers are from South Africa.
8. Beverage can production lines. Customers are from Netherlands, United States, Thailand and Indonesia.
9. Steel factories production lines. Customers are from United States.
10. Continuous PU sandwich panel production lines. Customers are from Thailand and United Kingdom.
Other Products
* Manual Screw Jacks.
* Electric Screw Jacks.
* Worm Gear Screw Jacks Series.
* Bevel Gear Screw Jack Series.
* Electric Cylinders Series.
* Spiral Bevel Gearboxes Series.
* Lifting Systems and Accessories.
* Electric Linear Actuators Series.
* Geared Motor and Gear Reducers Series.
Clients Countries
1. American Countries: United States, Mexico, Canada, Chile.
2. European Countries: Germany, France, United Kingdom, Italy, Spain, Poland, Romania, Netherlands, Belgium, Greece, Czech Republic, Portugal, Sweden, Hungary, Austria, Switzerland, Bulgaria, Denmark, Finland, Slovakia, Norway, Ireland, Georgia, Slovenia.
3. Asian Countries: Malaysia, Indonesia, Singapore, Philippines, Vietnam, Thailand, India, Israel.
4. Oceanian Countries: Australia, New Zealand.
5. African Countries: South Africa, Egypt.
Contact Information
JACTON INDUSTRY Co., Ltd (VAT No.: 9144190007026567X3) is one of the leading companies in the field of Screw Jacks(Mechanical Actuators), Bevel Gearboxes, Lifting Systems, Linear Actuators, Gearmotors and Speed Reducers. We are an audited professional manufacturer and supplier by SGS (Serial NO.: QIP-ASI192186) and BV (Serial NO.: MIC-ASR202862) organizations. We have a strict quality system, with senior engineers, experienced skilled workers and practiced sales teams, and consistently provide the customers with the best engineered solution for precision linear actuation, power transmission and mechanical jacking systems. Jacton Industry guarantees quality, reliability, performance and value for today′s demanding industrial applications.
