Product Overview
Description
Supply PS version rotary machine electroplating chrome-plated water rubber roller
Used in gravure printing machines,Industrial machine,packaging machines
- Roller for wide digital printing machine.
- Roller for paper milled machinery.
- Roller for textile machinery.
- Roller for plastic film machinery.
- Roller for plywood conveyor system.
- Roller for mine and filter industry
- Roller for paper milled machinery.
- Roller for textile machinery.
- Roller for plastic film machinery.
- Roller for plywood conveyor system.
- Roller for mine and filter industry
What is rubber roller ?
Structure of bearing and shaft head inside the rubber roller is very precise, and a slight difference will directly affect the use effect. If lubrication of bearing and shaft head is not very good, it's easy to cause wear and seriously affect the quality of rubber roller, which will affect product quality.
Rubber rollers are widely used in textile, printing and dyeing machinery (rolling roller, printing machine rubber roller, coating rubber roller, setting machine rubber roller etc.), paper making,Plastic printing, packaging, industrial, wood, glass, steel metallurgy, tobacco, transportation and other equipment
Decai Rubber Roller Specification | ||
Size | Dia:10MM-670MM; Length:50MM-8200MM According To Customer's Drawing | |
Material | NBR,Silicone,Rubber,Polyurethane,NR,PU FFPM,ETC,EPDM | |
Hardness | 18A-100D | |
Tolerance | 0.05mm | |
Color | yellow,Black, orange,green or custome required | |
Core Material | stainless steel,45#steel or aluminum | |
Application Machine | industrial machine, printing machine and packaging machines and so on | |
1.Ozone and Chemical resistance | ||
2.Anti-aging, good flexibility, good elasticity | ||
3.Excellent oil resistance | ||
4.Clean and healthy for many food and medical applications | ||
What are the silicone rubber materials?
1. NBR rubber roller:NBR rubber roller can be used as printing roller, food industry rubber roller, dyeing roller in textile printing in dustry and the soft rubber roller for contacting solvent and so on.
Note: The NBR has poor ozone resistance and the operation should be avoided in a high concentration ozone environment during processing.
3. Silicone roller:High temperature resistance which can reach 200-250 degrees, and good chemical resistance,but it has low tensile strength.Silicone roller can be used in fabric heat setting, plastic heat setting embossing, calendering, photocopying and so on.
5. Mirror roller:We generally adopt 45 # steel, alloy steel seamless pipe, precision forgings as the material.The surface of the roller finish degree can reach RA0.01. Mirror processing can ensure the roller surface flatness, balance, non-roundness, coaxial degree meet the customers’requirements.
Note: The NBR has poor ozone resistance and the operation should be avoided in a high concentration ozone environment during processing.
2. Neoprene roller:Suitable for the soft printing roller, gravure printing roller and so on.
3. Silicone roller:High temperature resistance which can reach 200-250 degrees, and good chemical resistance,but it has low tensile strength.Silicone roller can be used in fabric heat setting, plastic heat setting embossing, calendering, photocopying and so on.
4.Polyurethane rubber:It has outstanding tensile strength wear resistance and crack resistance and good resistance to a variety of solvents.
5. Mirror roller:We generally adopt 45 # steel, alloy steel seamless pipe, precision forgings as the material.The surface of the roller finish degree can reach RA0.01. Mirror processing can ensure the roller surface flatness, balance, non-roundness, coaxial degree meet the customers’requirements.
Detailed material description of our rubber rollers
1) Base Roller Material
We are using #45 steel , #201stainless steel #304stainless steel and 5# aluminum seamless pipe as the base roller.And we are adopting a reasonable thickness base roller according to customer’s drawing.Some manufacturers will reduce the thickness of the steel pipe in order to get the price advantage.Such roller can’t meet the standards.But we won’t do that.
We are using #45 steel , #201stainless steel #304stainless steel and 5# aluminum seamless pipe as the base roller.And we are adopting a reasonable thickness base roller according to customer’s drawing.Some manufacturers will reduce the thickness of the steel pipe in order to get the price advantage.Such roller can’t meet the standards.But we won’t do that.
2) Rubber Material
Our rubber are all imported from Germany or the US and then we mix them in our factory.The rubber coating technical we are using is winding technical. we cast the rubber on the base roller layer by layer and then vulcanize it to make the green rubber into mature rubber.While other manufacturers are using sheet coating technical,and the rubber is cold in processing and will cause adhesion problems easily.
Our rubber are all imported from Germany or the US and then we mix them in our factory.The rubber coating technical we are using is winding technical. we cast the rubber on the base roller layer by layer and then vulcanize it to make the green rubber into mature rubber.While other manufacturers are using sheet coating technical,and the rubber is cold in processing and will cause adhesion problems easily.
As an experienced custom rubber roller manufacturer in China, we supply various rollers for different field.
Rubber Rollers Cases Show
Rubber roller suitable for industry | ||
Industry | Name | |
Glue roller Dispensing roller Skew roller Silk roller Dyeing roller squeezing roller | ||
Winding roller Paint roller Extrusion roller Tension roller | ||
Pickling roller Laminating roller Cleaning roller Reversing roller Extrusion roller Conveying roller | ||
Stone roller Corner roller Winding roller Paint roller Extrusion roller Tension roller | ||
Ink ductor roller Intermediate roller Transfer roller Ink form roller Ink vibrator roller Water ductor roller squeezing roller spreading roller | ||
Rubber Roller Applicable Machine

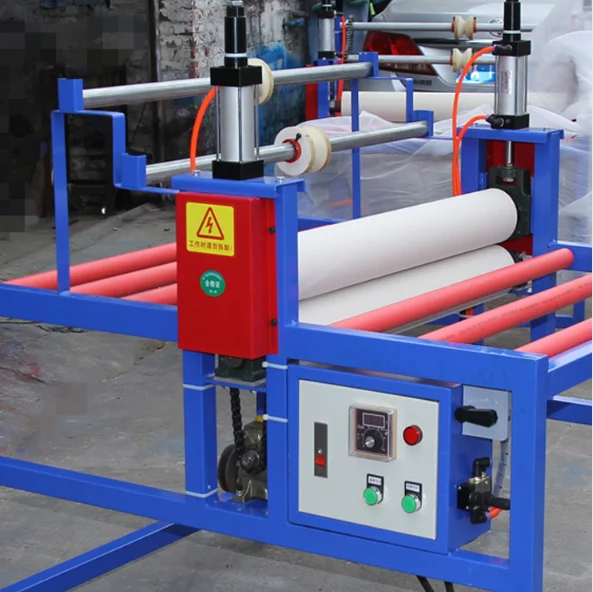

Rubber rollers are widely used for many places, such as Carton production line ,Packaging machine,Laminating machine,Coating machine,High speed cutting machine,Embossing machine,Hot stamping machine and so on.Other machines,Leather machine,Woodworking
machinery,Steel machinery,Glass machinery,Color coating machine etc
machinery,Steel machinery,Glass machinery,Color coating machine etc
Printing Roller Applicable Machine
Printing rollers are widely used in printing industry, such as Printing machine,Offset printing machine,Gravure printing machine,Flexo printing machine,Metal printing machine etc
Steel Roller Applicabel Machine
Steel roller is usually used in Iron and steel metallurgical industry
Step 1 :Hot charging technicals
Adopt hot charging technicals to install the shaft head, and then weld after contraction to ensure the quality of shaft installation.While other supplier are welding the shaft head directly.
Step 2 :Dynamic balancing
We will do 3 times of dynamic balancing test in the process of production of each rubber roller,which
will ensure the using effect.
In general,if it can be displayed within 10g on the dynamic balancing device, it is called dynamic balancing. But we can do less than 2g
Step 3:Testing by making small sample before mass production
We will make a small sample before the official production, after vulcanization, 24 hours later we will check the hardness, color,and Impurity situation. We will control the hardness tolerance within 3degree.
If it is not qualified we will change the formulated immediately and to make the sample again till all the data reach the customer’s request
Step 4:Quality control department
Using all-imported laser tester to ensure that the geometric size and the accuracy of the roller can
reach 0.01 mm
Q: Are you trading company or manufacturer ?
A: We are a factory integrating R & D, production and sales

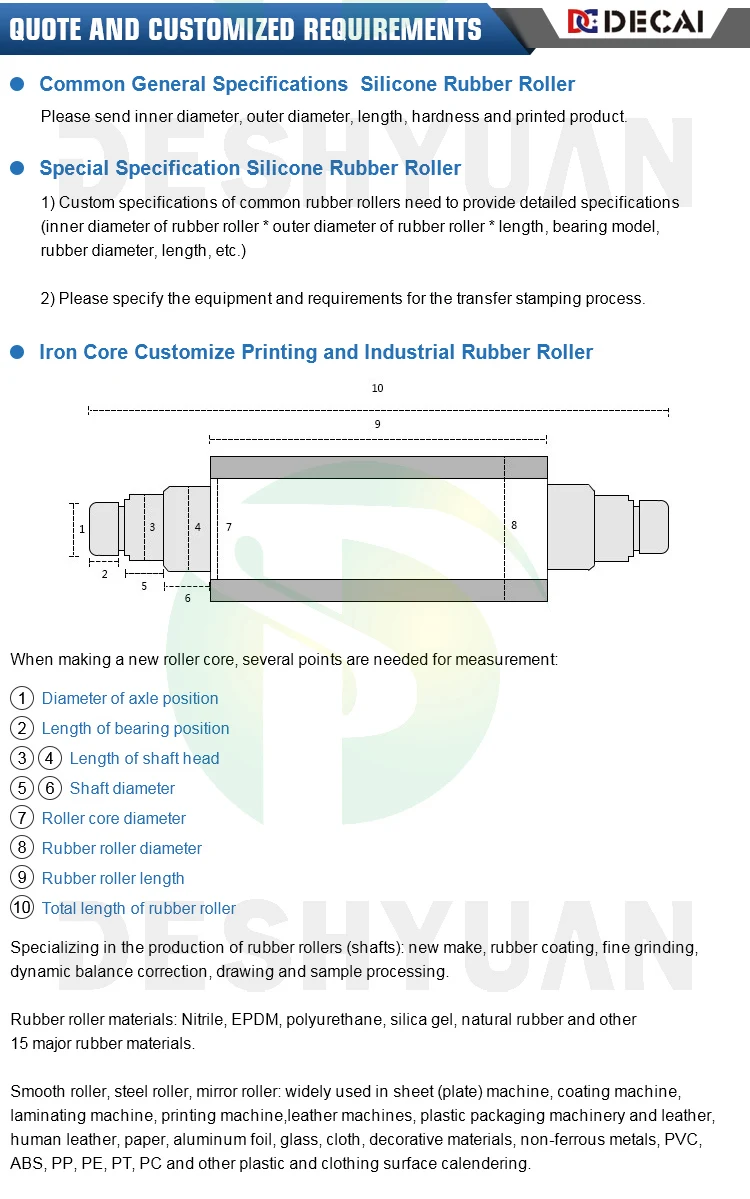

Q: How should I get a quote ?
1: Size Specification,such as inner dia,outer dia and length
2: Hardness :30-90 Shore A,
3: Let me know the model of your machine ?
4: What’s the quantity you need ?
5: Special rubber roller, drawings are required
2: Hardness :30-90 Shore A,
3: Let me know the model of your machine ?
4: What’s the quantity you need ?
5: Special rubber roller, drawings are required
Q:What’s the MQQ of roller ?
Around 7-10 days delivery for customized production n#5�
Q:What’s the MQQ of roller ?
Customized special roller based one size of rollers.
Small rollers:10-20pcs
Big rollers:1pcs accepted
Small rollers:10-20pcs
Big rollers:1pcs accepted
Q:How do you package the roller ?
Small rollers by carton
Big rollers by wooden case
Big rollers by wooden case
Q:What’s your payment method ?
A: By express or air or sea.
Q:What is mode of transport ?
A: By express or air or sea.
Q:Other Special Support ?
A: Trade Assurance Order By Alibaba
