40A DC/AC Intelligent SSR Solid State Relay
- Category: >>>
- Supplier: Shanghai Nature Beyond Electric Technology Co. Ltd.
Share on (62450285098):
Product Overview
Description
Specification
| Model | ISSR-10DA | ISSR-25DA | ISSR-40DA | ISSR-50DA | ISSR-60DA | ISSR-70DA | ISSR-80DA | ISSR-90DA | ISSR-100DA | ISSR-120DA |

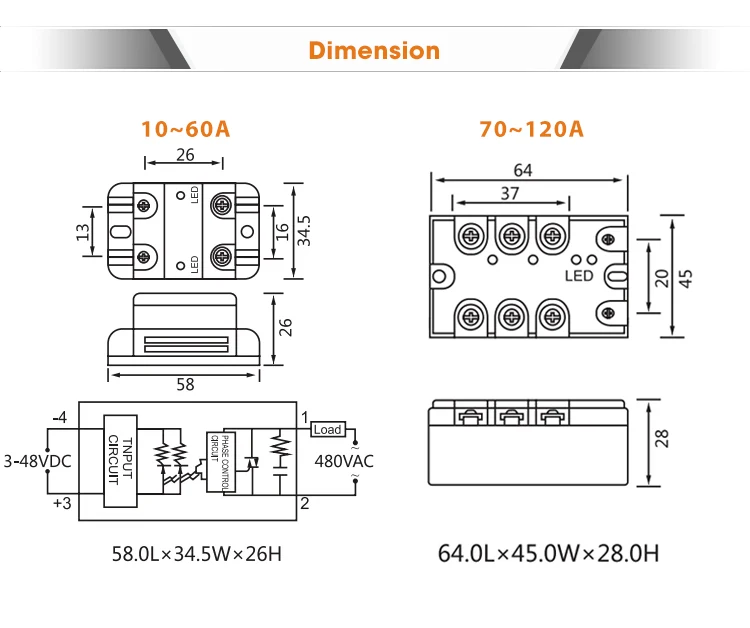

| Overall Dimension | 58.0L*34W*28H | |||||||||
| Load Current | 10A | 25A | 40A | 50A | 60A | 70A | 80A | 90A | 100A | 120A |
| Load Voltage | 24-600VAC | |||||||||
| Control Voltage | 2.3-48VDC | |||||||||
| Control Current | 3-20mADC | |||||||||
| On Voltage | ≤1.5VAC | |||||||||
| Off-state Leakage Current | ≤4mA | |||||||||
| Time Off | ≤10ms | |||||||||
| Dielectric Strength | 2500VAC | |||||||||
| Insulation Resistance | 100MΩ/500VDC | |||||||||
| Ambient Temperature | -25℃~+75℃ | |||||||||
| Mounting Methods | M4 fixed Bolt | |||||||||
| The work instructions | Double LED(Green:Working,Red:Breakdown) | |||||||||
| Weight | 65g | |||||||||
