Battery Capacity, Battery Voltage, AC Voltage, Load Power
Input
DC Voltage
12V/24V/48V
No Load Current
≦0.55A/6.6W
Efficiency
90%
Protection
Low pressure , Over pressure , Reverse connection
Enviroment
Working Temperature
0℃～+40℃
Working Humidity
20%-90% RH
The battery is campatible with
CE/ROHS/IEC
Packing
Material
Gift Box

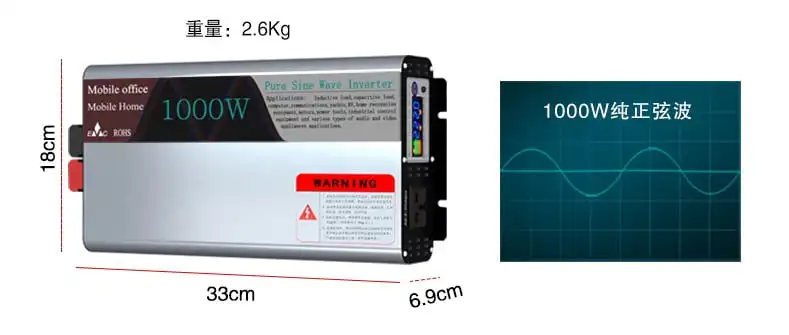

Dimensions
280*180*69MM
N.W / G.W
2.6 KG / 3.0 KG
Carton Weight / Dimensions
12.4 KG / 46*40*24.5CM
Carton Packing
4 PCS / Carton
OTHERS
Cooling
Thermostatically controlled cooling fan
Application
Home and Office appliances, Power tools and Portable equipment, Vehicle,Yacht and Solar power systems …etc.

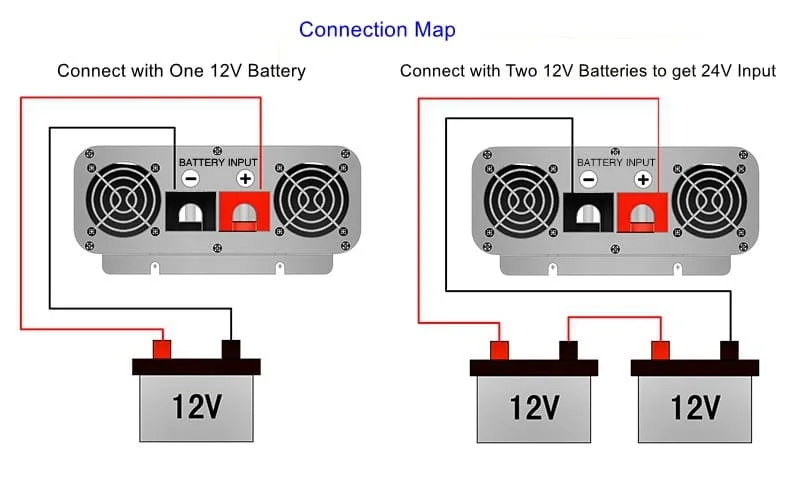

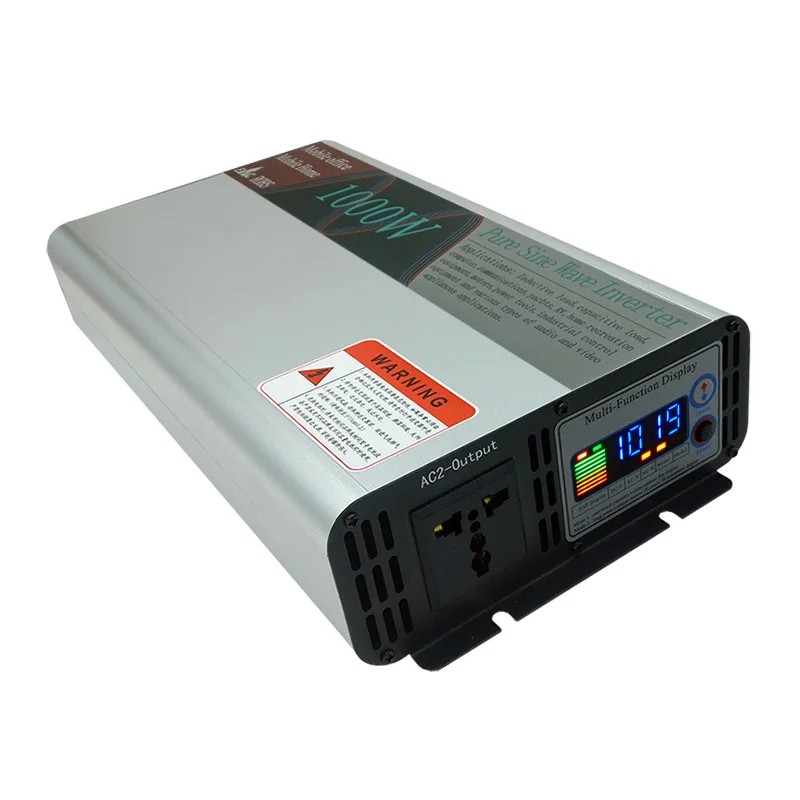

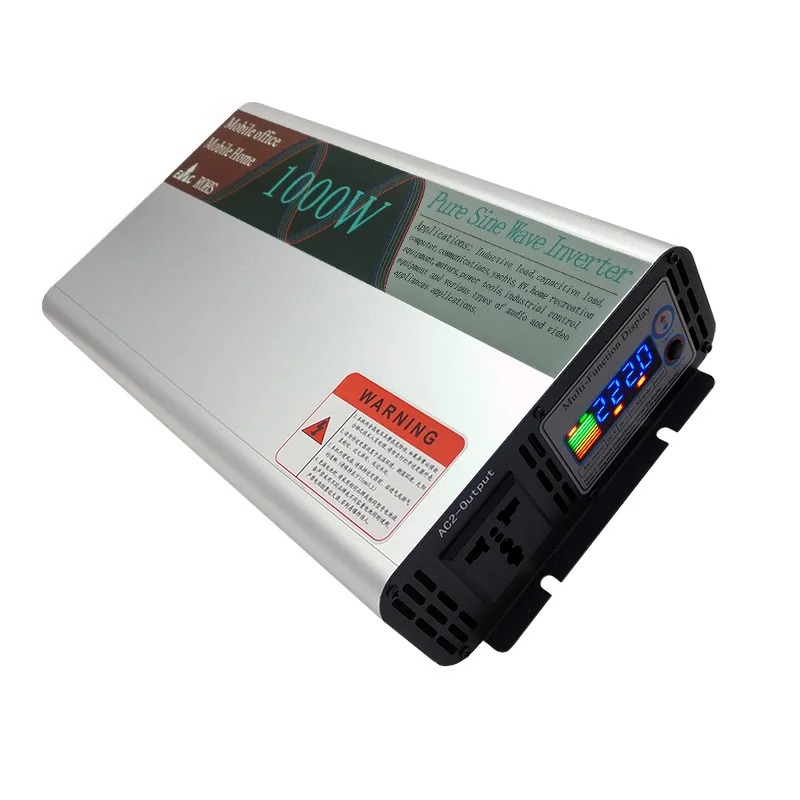

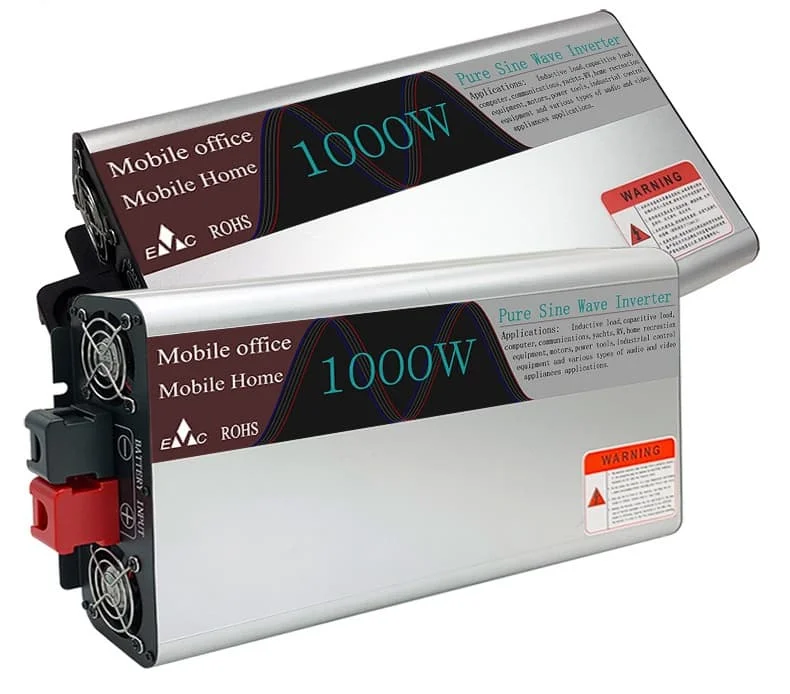

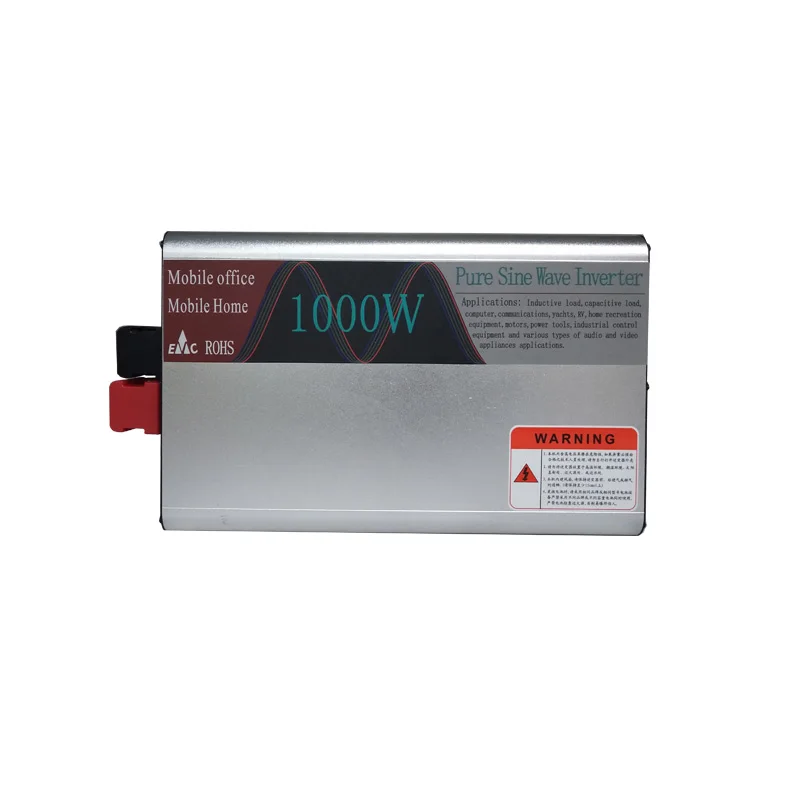

1000W Pure Sine Wave Power Inverter with Digital Display This Power Inverter exports true pure sine wave. 110V, 220V AC output is selectable, and 12V, 24V, 48V DC input is available aswell. It is equipped with necessary and useful LED screen, which is able to display battery capacity, input voltage, outputvoltage, and load power. You can let it display by manual mode or automatical cycle. It also has a power button, which can be easily powered off if you do not need it, to save energy. It also featured with an auto-controlled fan, to save energy and reduce noise. This Power Inverter is attached with alligator clips, let you connect battery safely and easily. It can work well with resistive loads, like the bulb, and capacitive loads, like an LED lamp, and inductive loads, like air conditioner, fridge and so on. We are sure that this pure sine wave power inverter could be your useful helper and problem solver, make your life more comfortable and enjoyable. You would love it!
6 protections of 1000W Pure Sine Wave Power Inverter with Digital Display:
1. Over Load Protection: When the connected load exceeds the power inverter rated power watts (W), the inverter will automatically shut down to stop the output. 2. Over Heat Protection: As the internal temperature of the power inverter or the ambient temperature is too high, the inverter output will automatically stop to ensure the safety of electrical equipment. 3. High-Voltage Protection: When the DC input voltage exceeds the normal range of the power inverter will automatically shut down to stop the output voltage is a too high note when there may be damage to the machine. 4. Low-Voltage Protection: When the battery or power supply voltage is too low, the power inverter will stop output automatic shutdown protection to protect the battery or power supply is not compromised. 5. Reverse Protection: When the car inverter link reverses to the battery, inverter fuse will be blown, without damaging the product itself, you need to replace the fuse. 6. Short Circuit Protection: When the load is connected severe short-circuit fault, the inverter will automatically shut down tostop the output.
1000W Pure Sine Wave Power Inverter with Digital Display pictures:

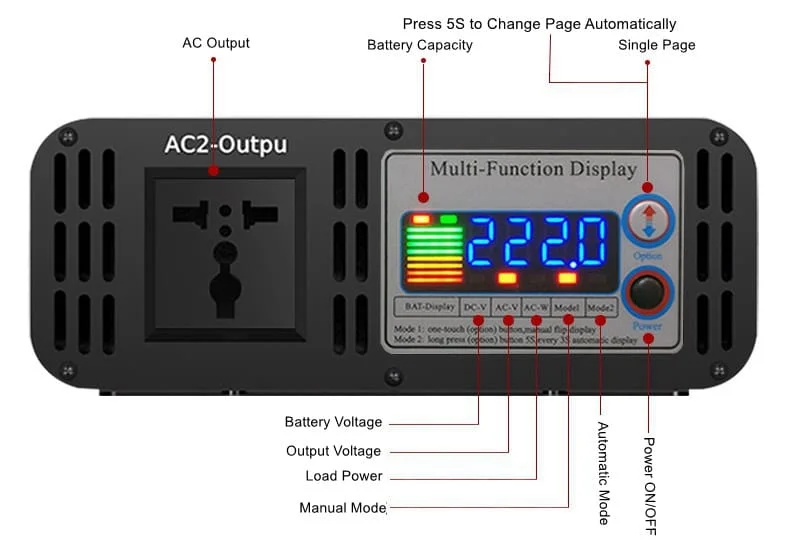

What does digital display of this pure sine wave power inverter? It can show load power, DC input voltage, AC output voltage, and battery capacity. The information is able to display by manual or auto as you like.

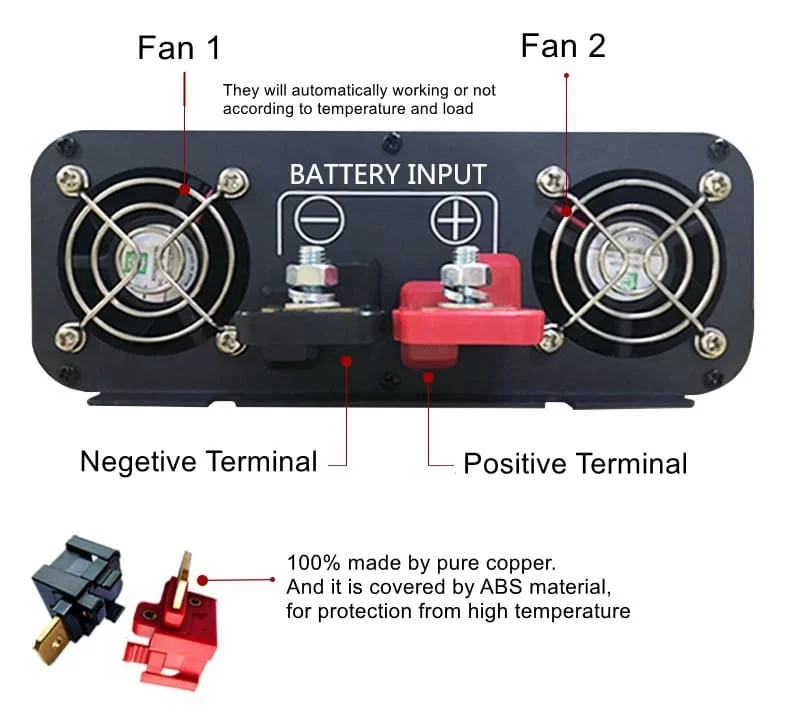

This pure sine wave power inverter is equipped with 100% pure copper terminals, designed for large DC current from the battery. It is also covered by ABS material, for protection from high temperature.

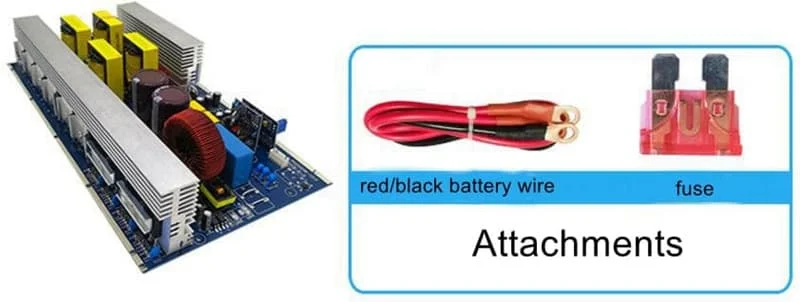

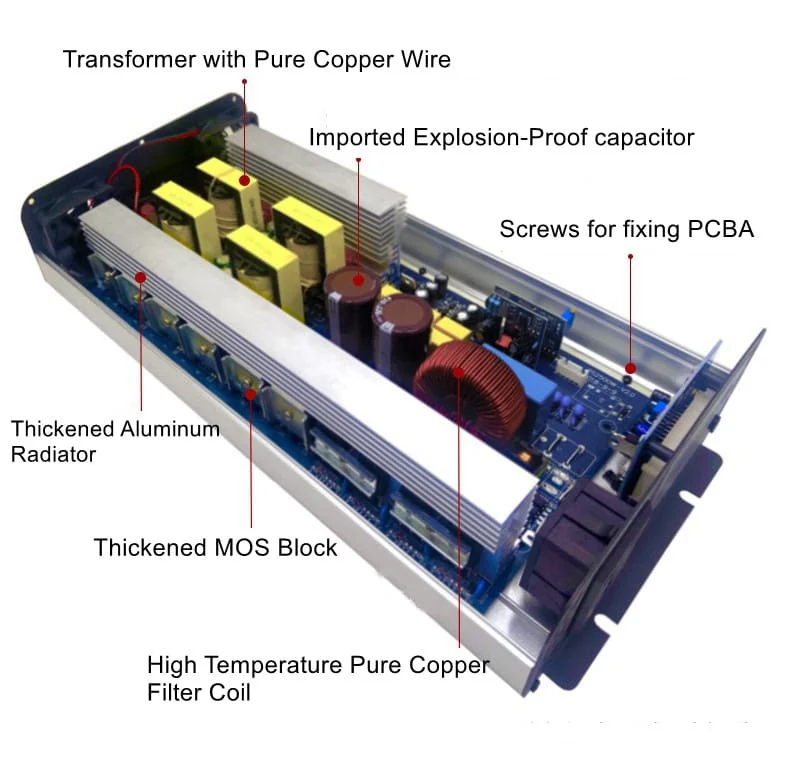

We design the motherboard of this pure sine wave inverter with isolation insulation, the transformer with pure copper wire, imported explosion-proof capacitor, thickened aluminum radiator, thickened MOS block and high-temperature pure copper filter coil, to emphasize quality and safety. It conforms to CE and RoHS. Its high-voltage holding test result Bat-PG:500VAC, Bat-AC:1.5KVAC, AC-FG:1.5KVAC. Its insulation resistance test results Bat-PG, AC-FG:100M Ohms/500VDC/25℃/70%RH. It is also vibration resistance.
