Manufacturer Name | Shandong Liangshan Tongya Automobile Co.,Ltd | | | |
Type: | Bulk cement tanker semi trailer | | | |
Model: | CTY9401GSS | | | |
Usage: | Transport bulk cement, coal ash, mineral powder,etc | | | |
MOQ | 1 unit | | | |
Tare Weight | 8 T | | | |
Loading capacity | 33 T | | | |
Total weight | 41 T | | | |
Dimension | 9000×2500*3700mm
(The final dimensions depend on the final design drawings) | | | |
Tanker capacity | 28m3 (28000L) | | | |

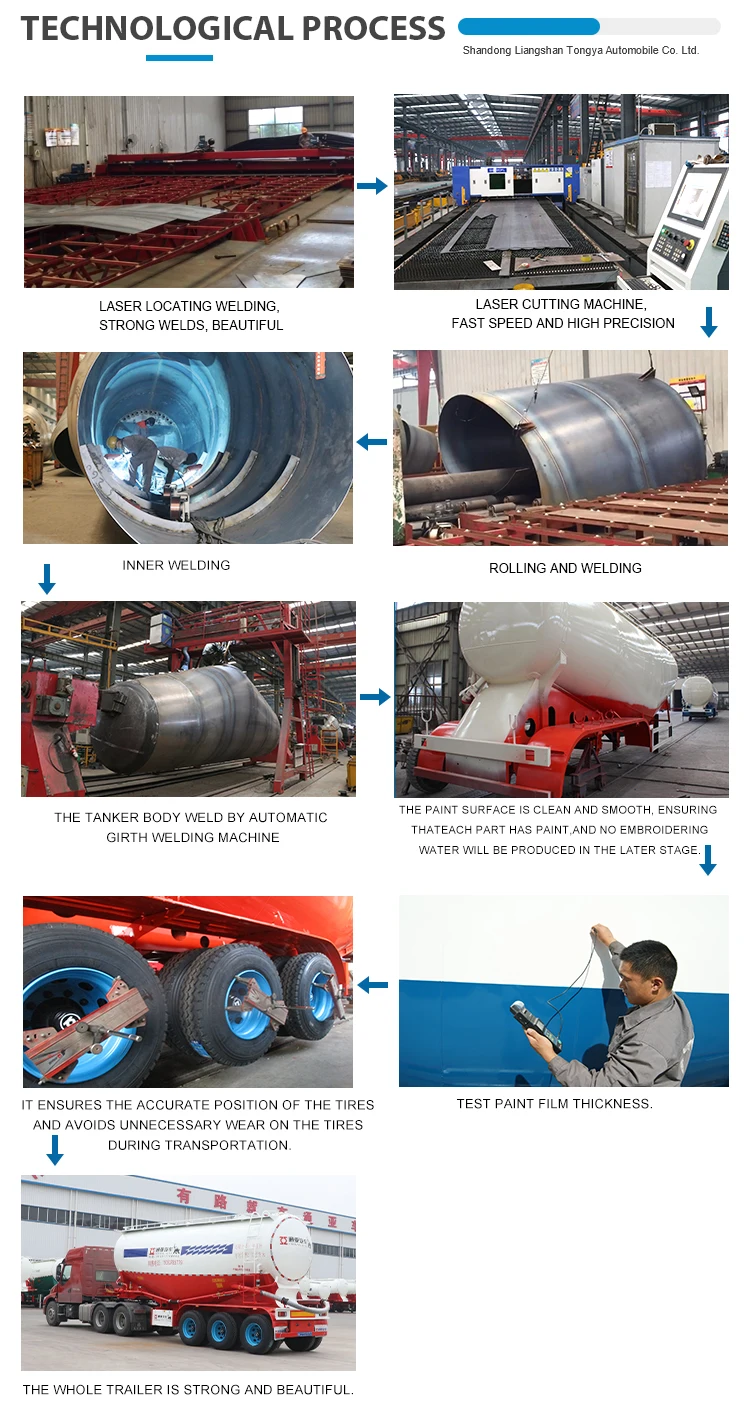

Design/welding technology | Heavy duty and extra durability designed;
welding by automatic Submerged-Arc processes. | | | |
Tanker body | The tanker body made of 4mm thickness steel, Q345 Steel | | | |
Bottom chassis | High strength Q345B steel | | | |
Tanker shape | “V” shape | | | |
Silo | 1 silo | | | |
Manhole: | 2 pieces, (Diameter is 500mm) | | | |
Discharge mouth | 4 inch Discharge mouth | | | |
Safety pressure valve | Standard | | | |
Discharge hose | 8m with Hose carries, the length is according to customer requirement | | | |
Air compressor | 10m3 double-cylinder air compressor, Bohai brand (Chinese famous brand) | | | |
Engine | Diesel Engine,Weichai 4100 engine (Chinese famous brand) | | | |
Rear ladder and handrail | With, as the photos shows | | | |
Retention volume | <0.3% | | | |

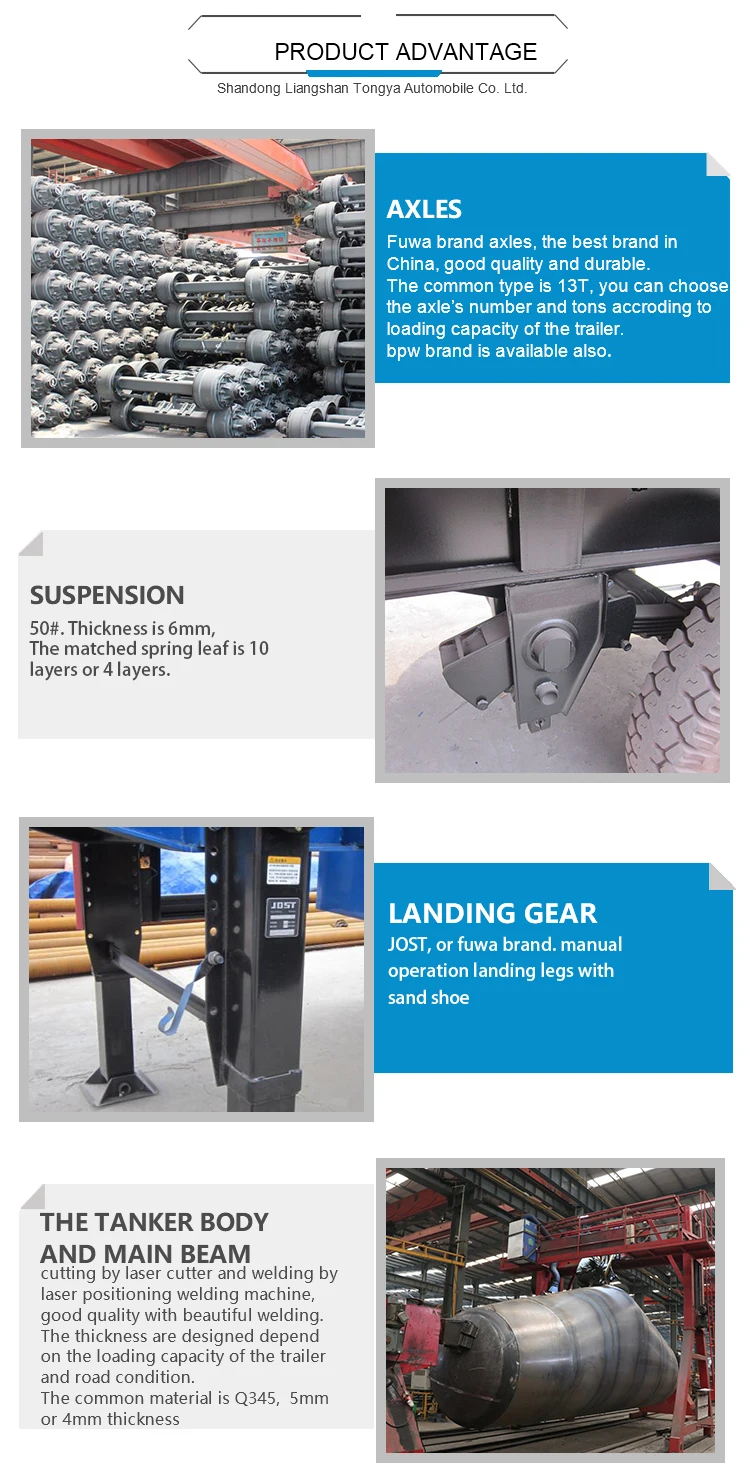

Axle | 2 axles *square axle with 13 tons capacity, FUWA brand (Chinese best brand) | | | |
King Pin | 2.00’’(50#) bolting king pin, JOST brand,German brand,made in China | | | |
Suspension | Heavy duty suspension with equalizers, American design (high-strength type) | | | |
Steel Spring | 10pcs leaf spring, 13mm thickness, 90mm width | | | |
Landing legs | JOST brand type, manual operation landing legs with sand shoe | | | |
Tire specs | 12R22.5, Triangle brand (Chinese famous brand) | | | |
