Машина для производства пищевых контейнеров из полистирола
- Category: Plastic Thermoforming Machines >>>
- Supplier: Longkou Fushi Packing Machinery Co. Ltd.
Share on (62450815706):
Product Overview
Description
Our Company
25-years factory
Exported to more than 60 countries
Have multiple CE and ISO certifications
Developed and manufactured according to customer needs
Click on the picture for more details on the factory
Products Details

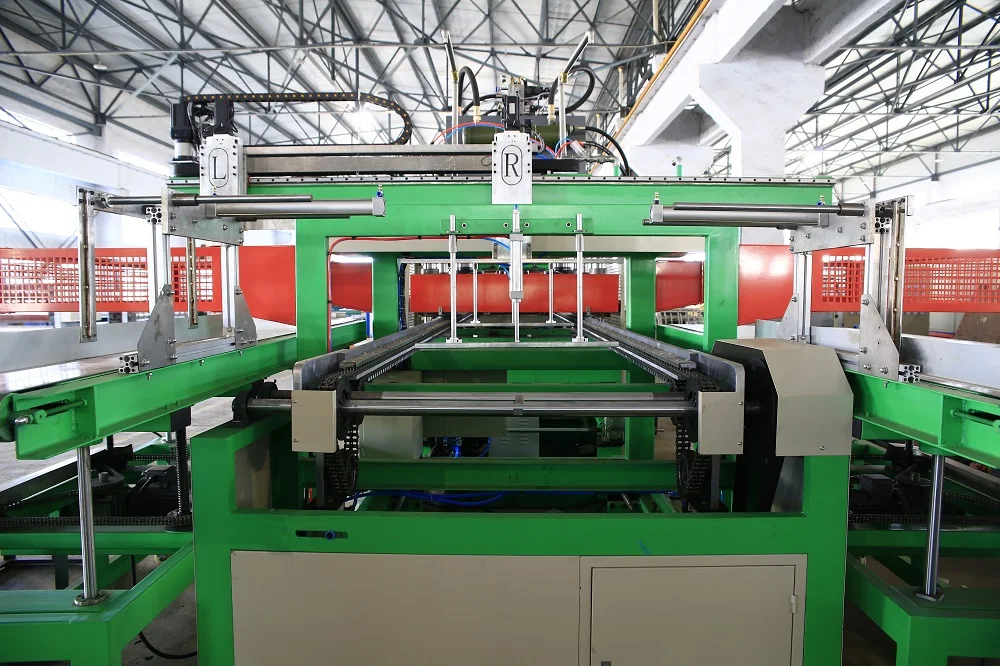

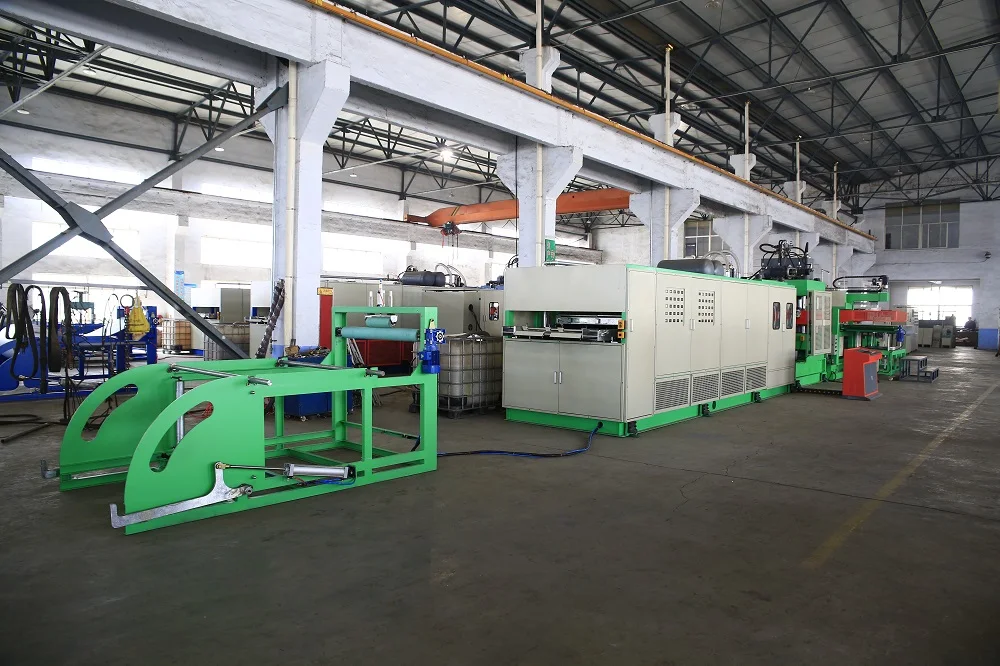

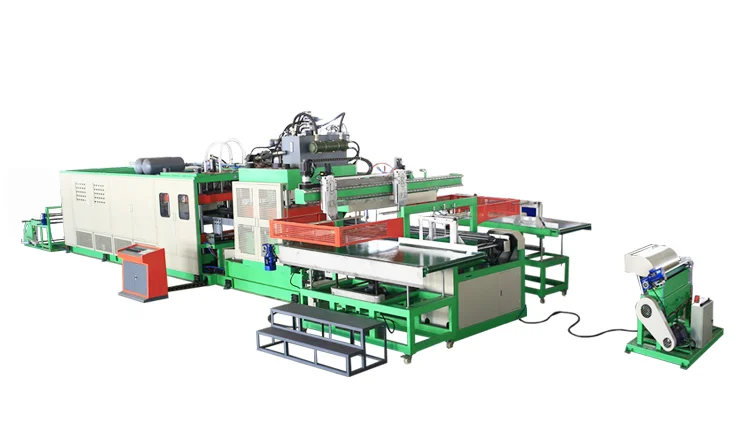

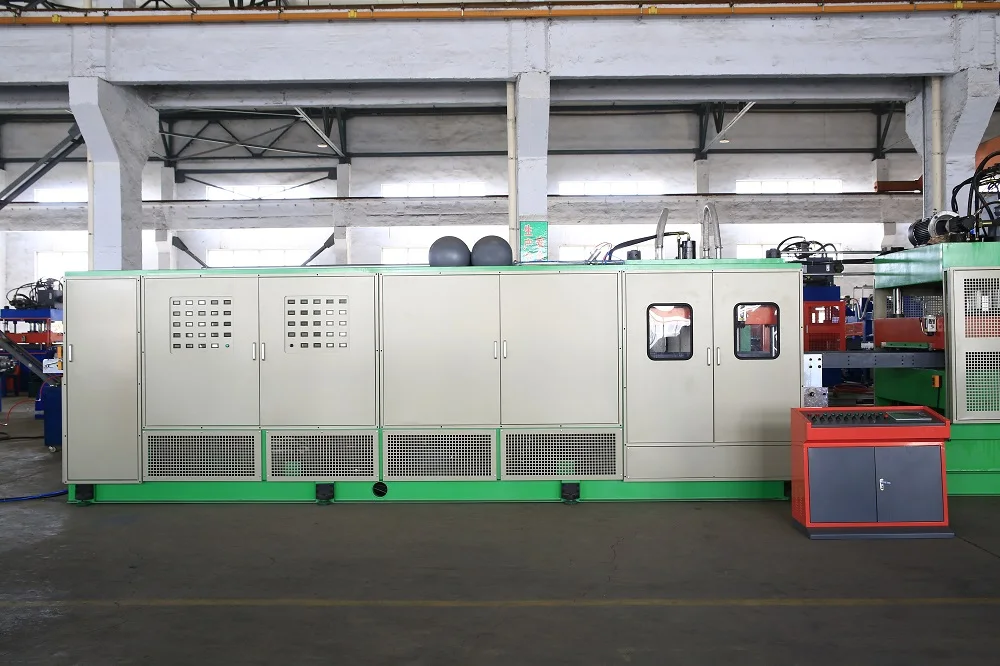

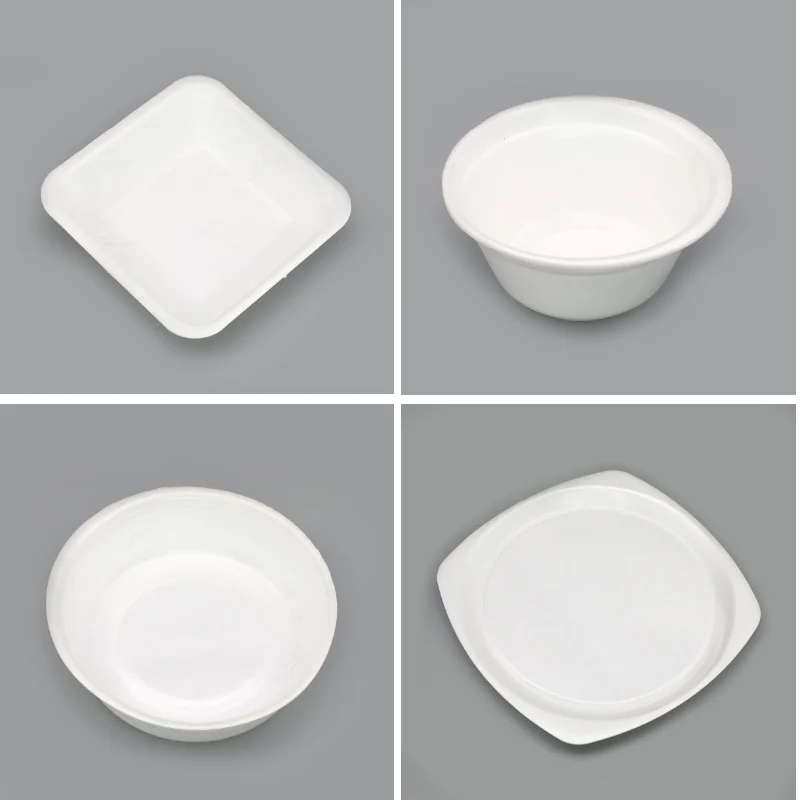

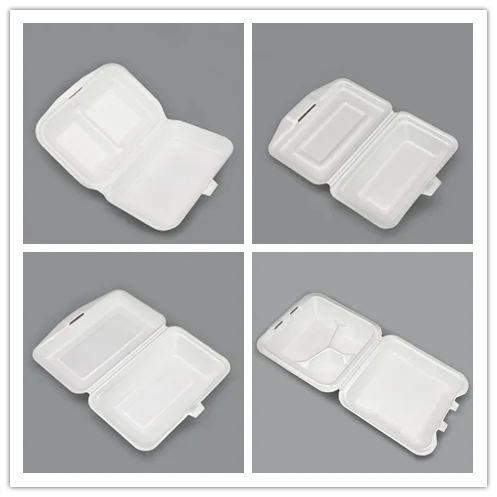

Fully Automatic Mechanical Arm Fast Food Container Machine
Get the price of the entire production line, please contact customer service
Model | |||
Forming area | 1100×1400(mm) | 1000×1200(mm) | |
Heating area | 1100×4400(mm) | 1100×2400(mm) | |
Forming Speed | 16-22 cycles/min | 12-15 cycles/min | |
Total Power | 200kw | 140kw | |
Forming Depth | 0-60mm | ||
Weight | 28T | 16T | |
Stacking Method | Add robotic arm + 11600 $ | Artificial | |

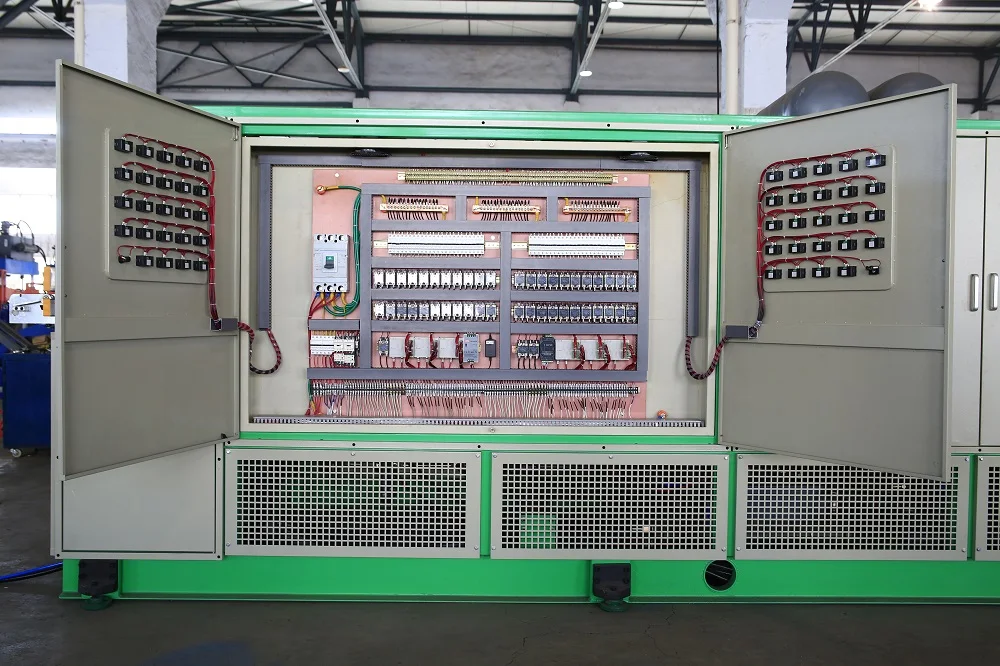

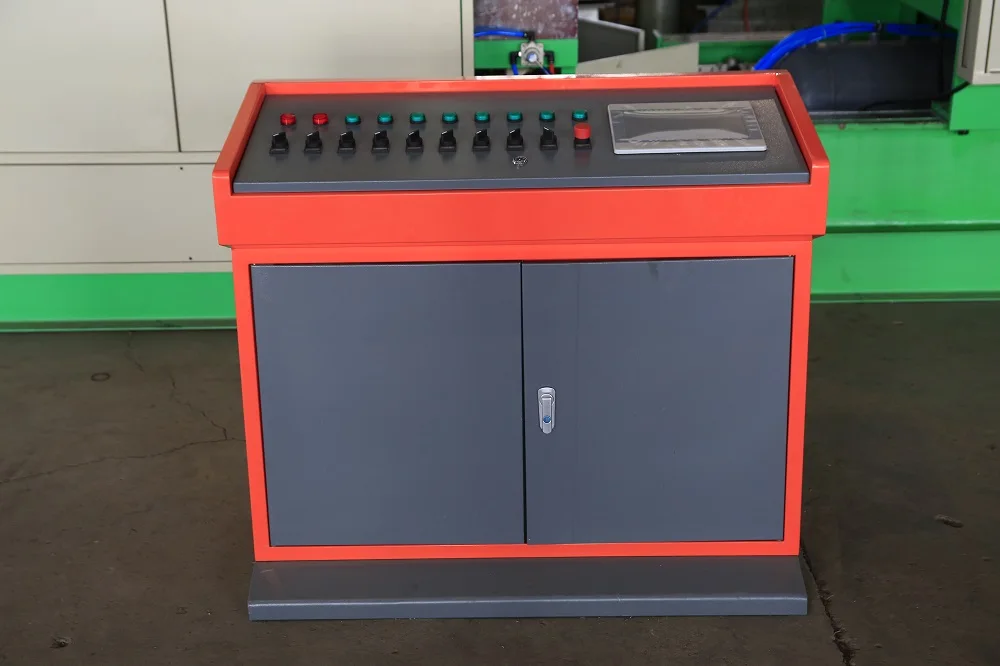

Control Method | PLC and Color Touch Screen | ||
Crusher | Have | None | |
Upgrade to Robotic Grab requires an additional 15,000 $

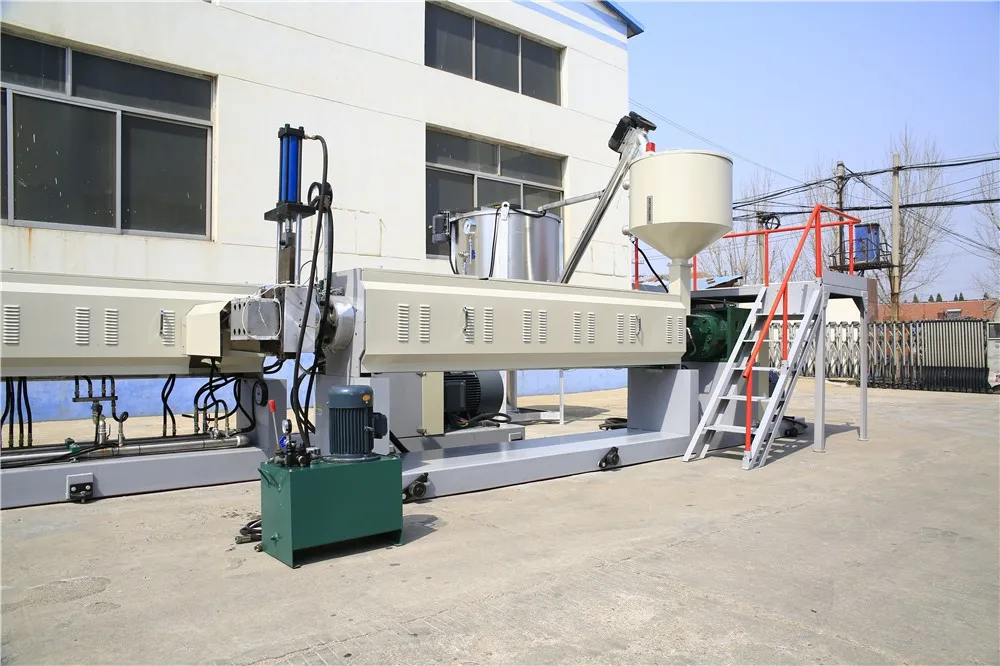

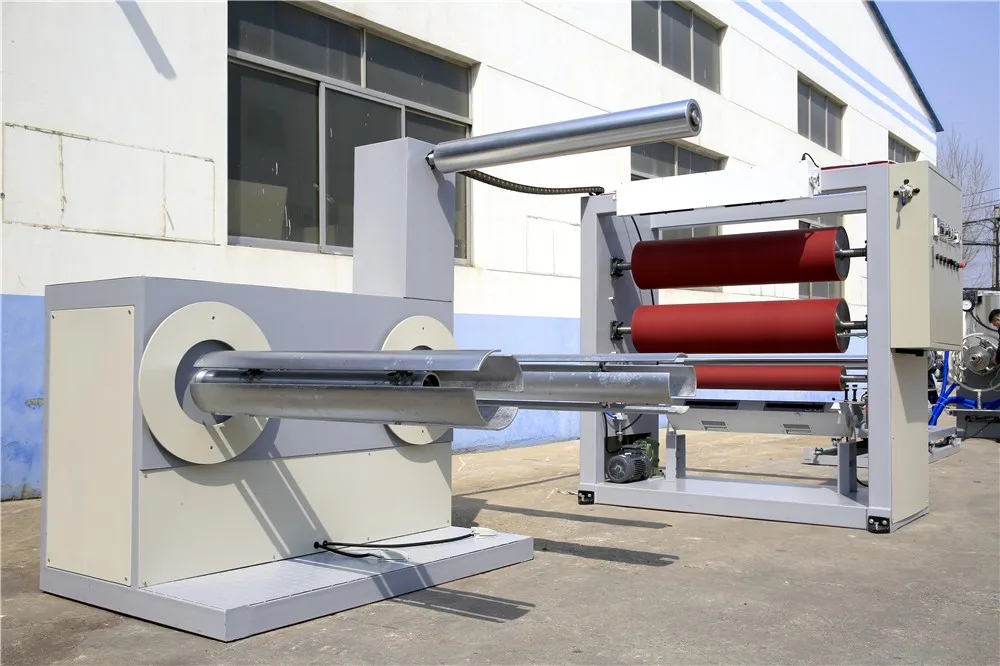

Support Machine
Modle | |||||||
Extruder | 75/90 | 105/120 | 110/130 | 120/135 | |||
Foaming Rate | 20-30 | ||||||
Product Width | 660mm | 660-1180mm | |||||
Cuting Mode | Single or Double Cutter | ||||||
Product Thickness | 1.0-3.0mm | 1.0-4.0mm | 2.0-4.5mm | 2.0-5.0mm | |||
Cooling Method | Air or Water Coold | ||||||
Output | 60-90 kg/h | 150-220 kg/h | 250-320 kg/h | 300-400 kg/h | |||
Install Capacity | 120kw | 200kw | 300kw | 400kw | |||
Dimensions | 20×10×2.8(m) | 24×10×2.8(m) | 26×10×3.2(m) | 30×10×3.2(m) | |||
Total Weight | 10T | 12T | 18T | 22T | |||

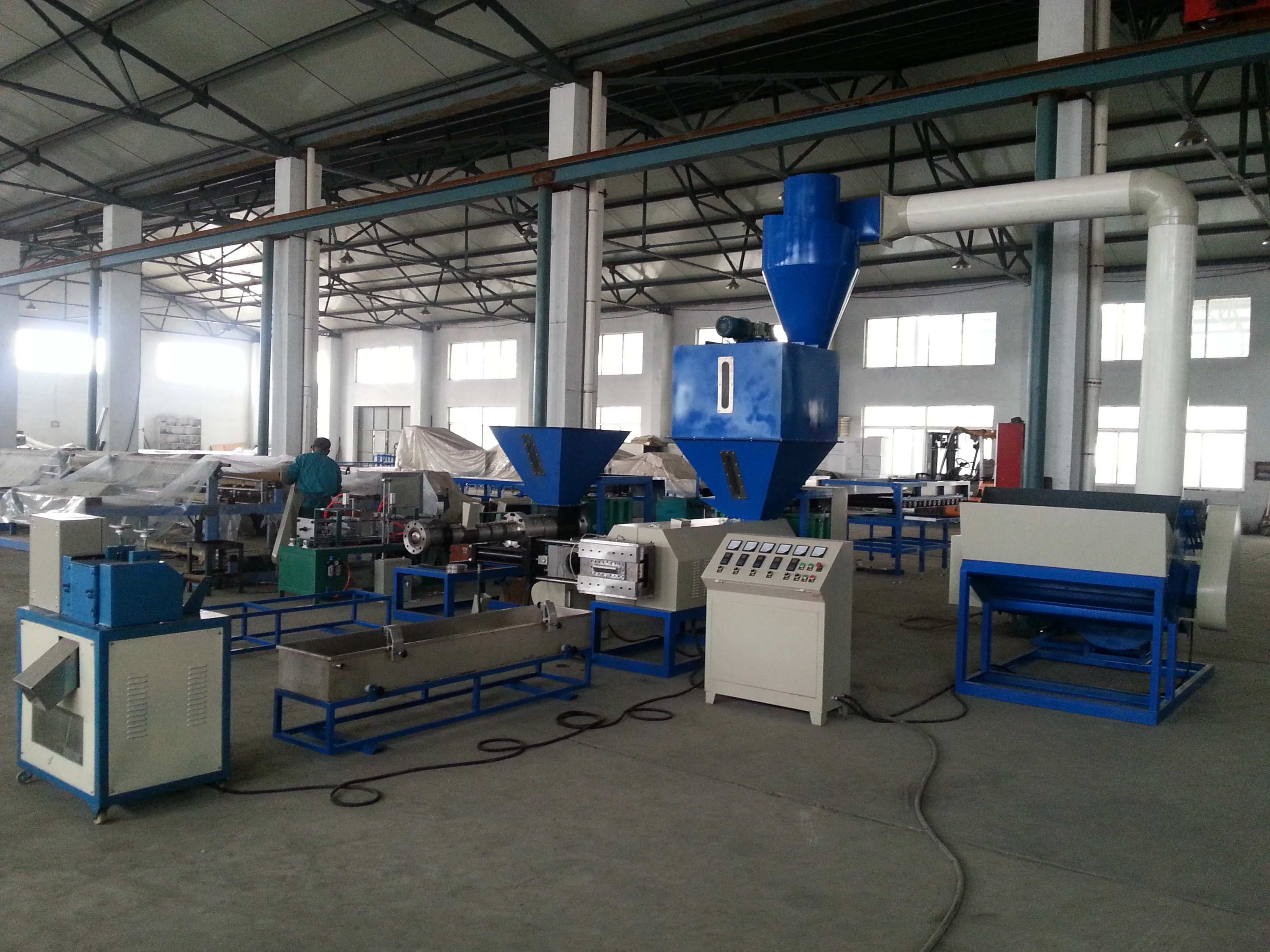

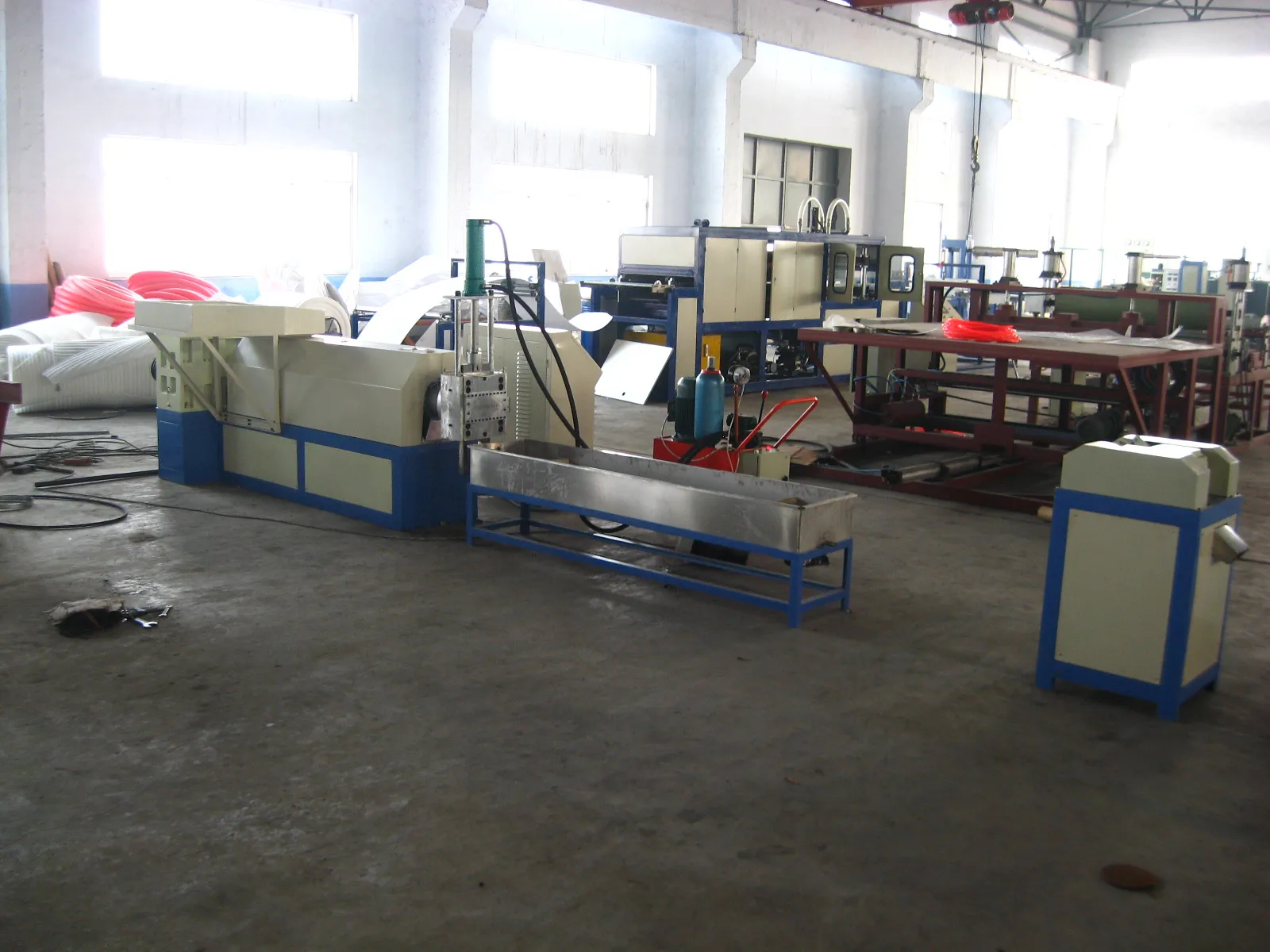

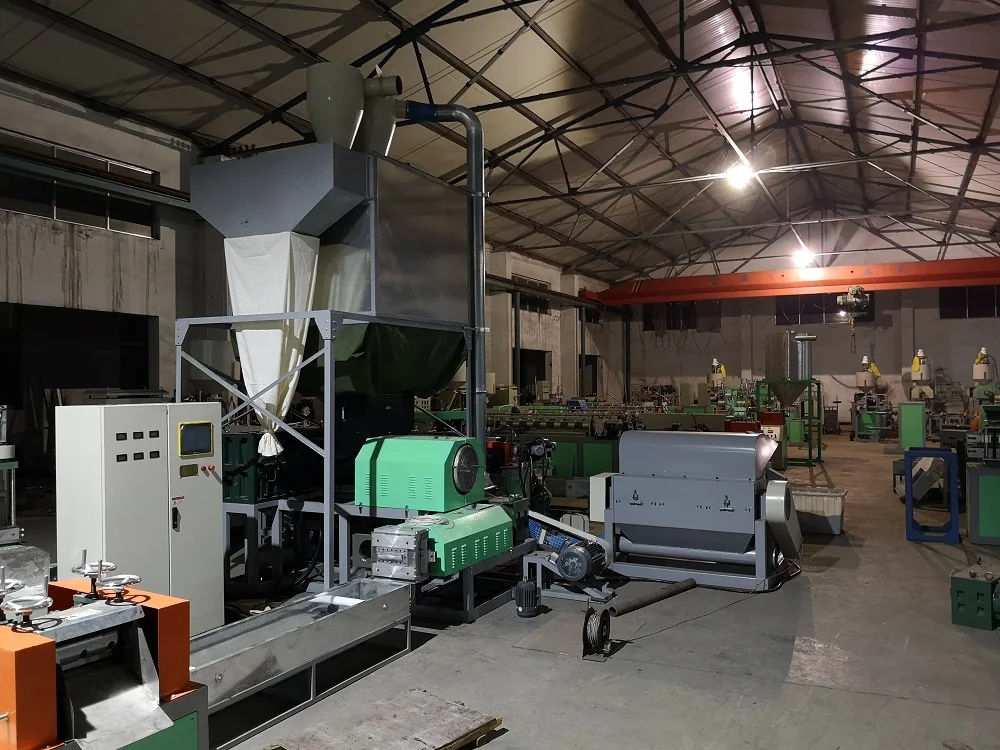

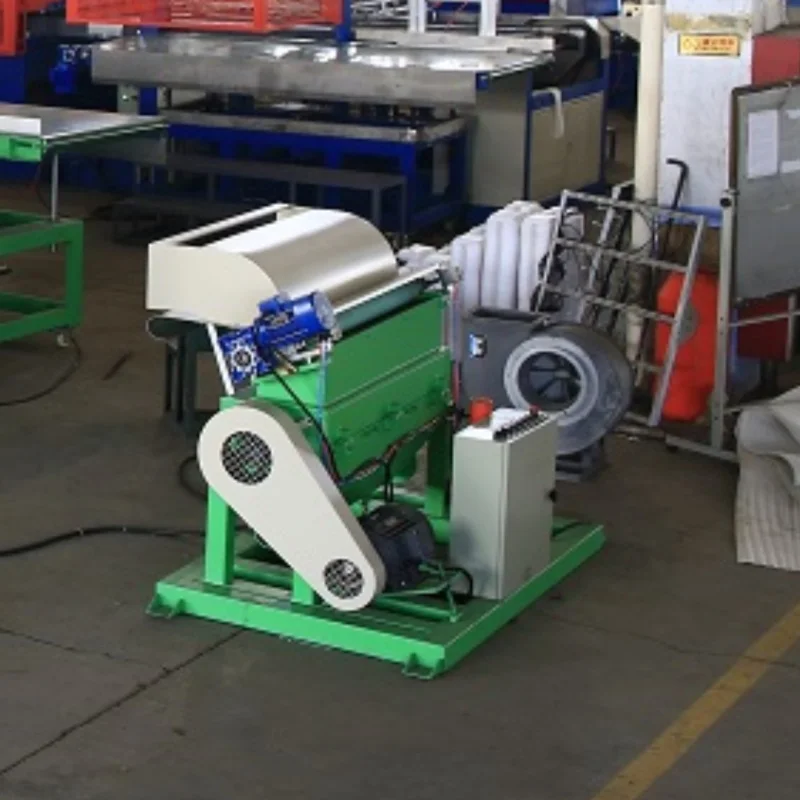

Recycling and Pelletizing Line
Model | |||
First-stage Screw Diameter | Φ120/220mm | Φ300mm | |
First Motor Power | 15kw | 22kw | |
Two-stage Screw Diameter | None | Φ150mm | |
Secondary Motor Power | None | 7.5kw | |
Pelletizer Power | 0.55kw | 1.5kw | |
Screen Changing Motor Power | 3kw | ||
Total Power | 45kw | 78kw | |
Number of Heating Zones | 4 | 5 | |
Output | 80-120kg/h | 150-200kg/h | |

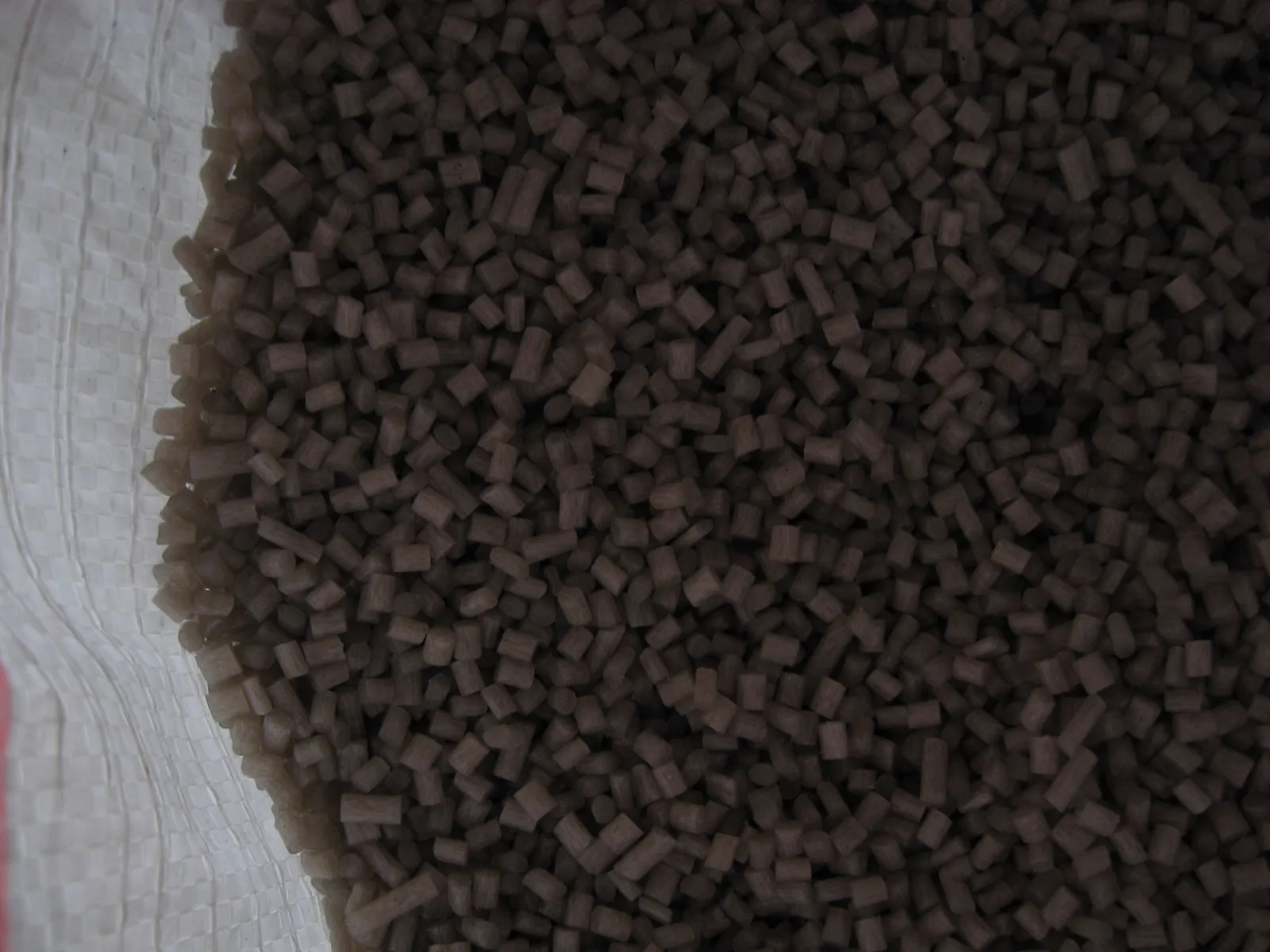

Applicable Materials | PS & PE foam scrap | ||
Certifications
FAQ
Q1: Why I choose your company?
Q6: About foam container mold
A6: Free one set of molds, you can purchase the rest of the molds from us.
You provide samples or design solutions, we can also design for you.
Determine price based on molding area: 1000mm × 1100mm (4500 $)/1100mm × 1450mm (6000 $)
A1: 1) We are one of the leading manufacturers of packing materials and related machinery.
2) Our company has made a foam machine for about 20 years with strong experience and advanced techniques.
3) Best Quality & Best Service with Competitive price. 1-year guarantee and lifetime maintenance.
4) We have CE certificate and ISO 9001.
5) We have a professional technical team and will supply 24 hours service.
Q2: What should we prepare for PS Foam Fast Food Container/Plate Production Line.
A2: You should prepare raw material(GPPS), workshop, water line, electric line, compressed air(if you need I can help you buy air compressor).We would supply the workshop layout drawing for you.
Q3: Where is your factory located? How can I visit there?
A3: Our factory is located in Longkou city, Shandong province, you can fly to Yantai PengLai Airport. When you confirm flight No. and time, please tell me then we will pick you up at the Airport.We are pleased to welcome domestic and overseas friendsto visit us and cooperate with us.
Q4: What machines are included in the foam container production line
A4: PS container forming machine + PS extruder + PS recycling machine
Q4: What machines are included in the foam container production line
A4: PS container forming machine + PS extruder + PS recycling machine
Q5: Calculation of output
A5: Number of containers with mold layout × molding module per minute × machine running time = output
- How many mold containers can be set for a set of molds: Determined by the spread area of the sample you provided or designed, planning within the range of the molding area
-Molding modulus per minute:
FS-YTA1100 × 1400 （16-22 cycles / min）
FS-YTA1000 × 1200 （12-15 cycles / min）
Make your own decision according to your actual production requirements
- How many mold containers can be set for a set of molds: Determined by the spread area of the sample you provided or designed, planning within the range of the molding area
-Molding modulus per minute:
FS-YTA1100 × 1400 （16-22 cycles / min）
FS-YTA1000 × 1200 （12-15 cycles / min）
Make your own decision according to your actual production requirements
Q6: About foam container mold
A6: Free one set of molds, you can purchase the rest of the molds from us.
You provide samples or design solutions, we can also design for you.
Determine price based on molding area: 1000mm × 1100mm (4500 $)/1100mm × 1450mm (6000 $)

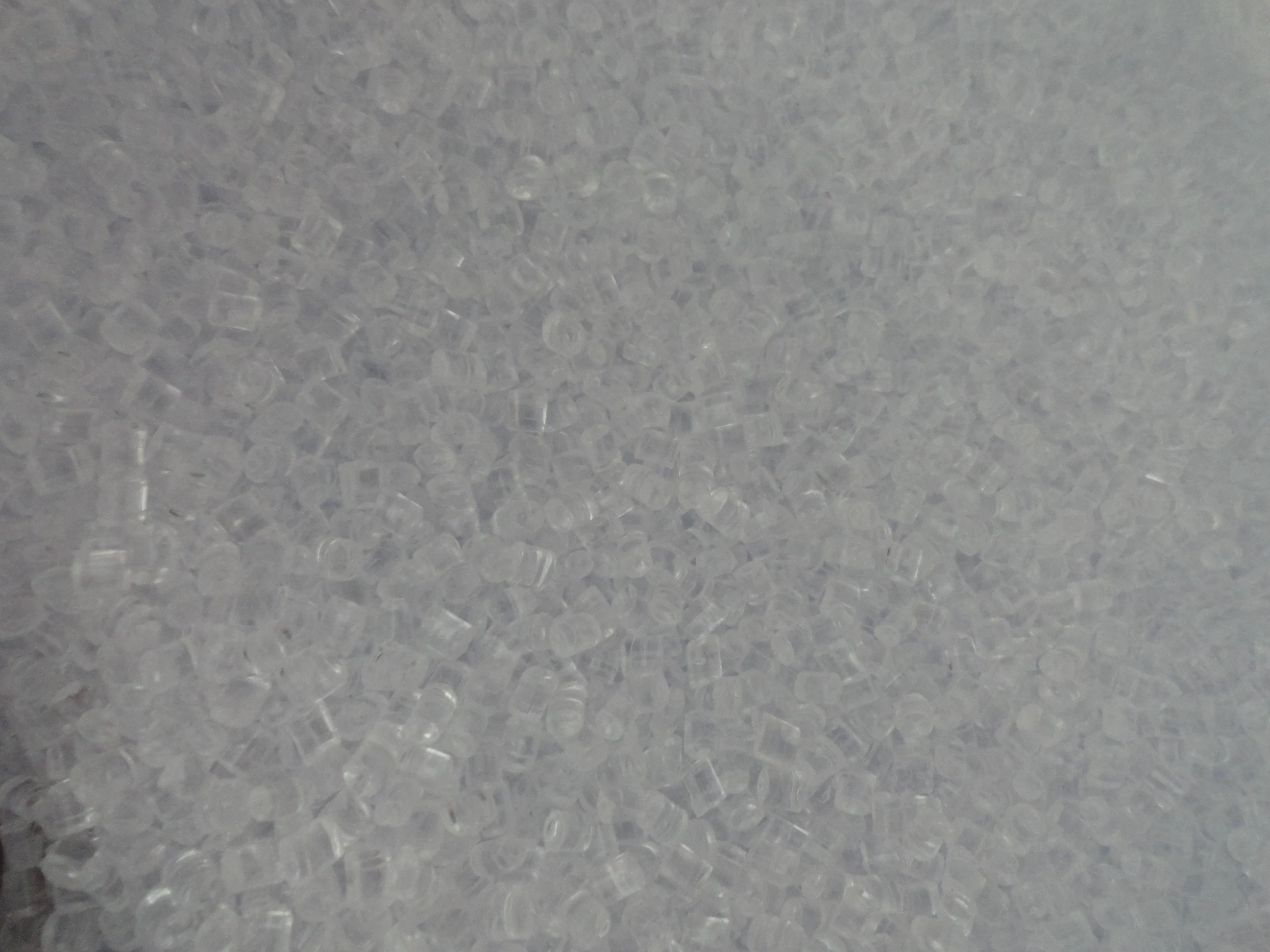

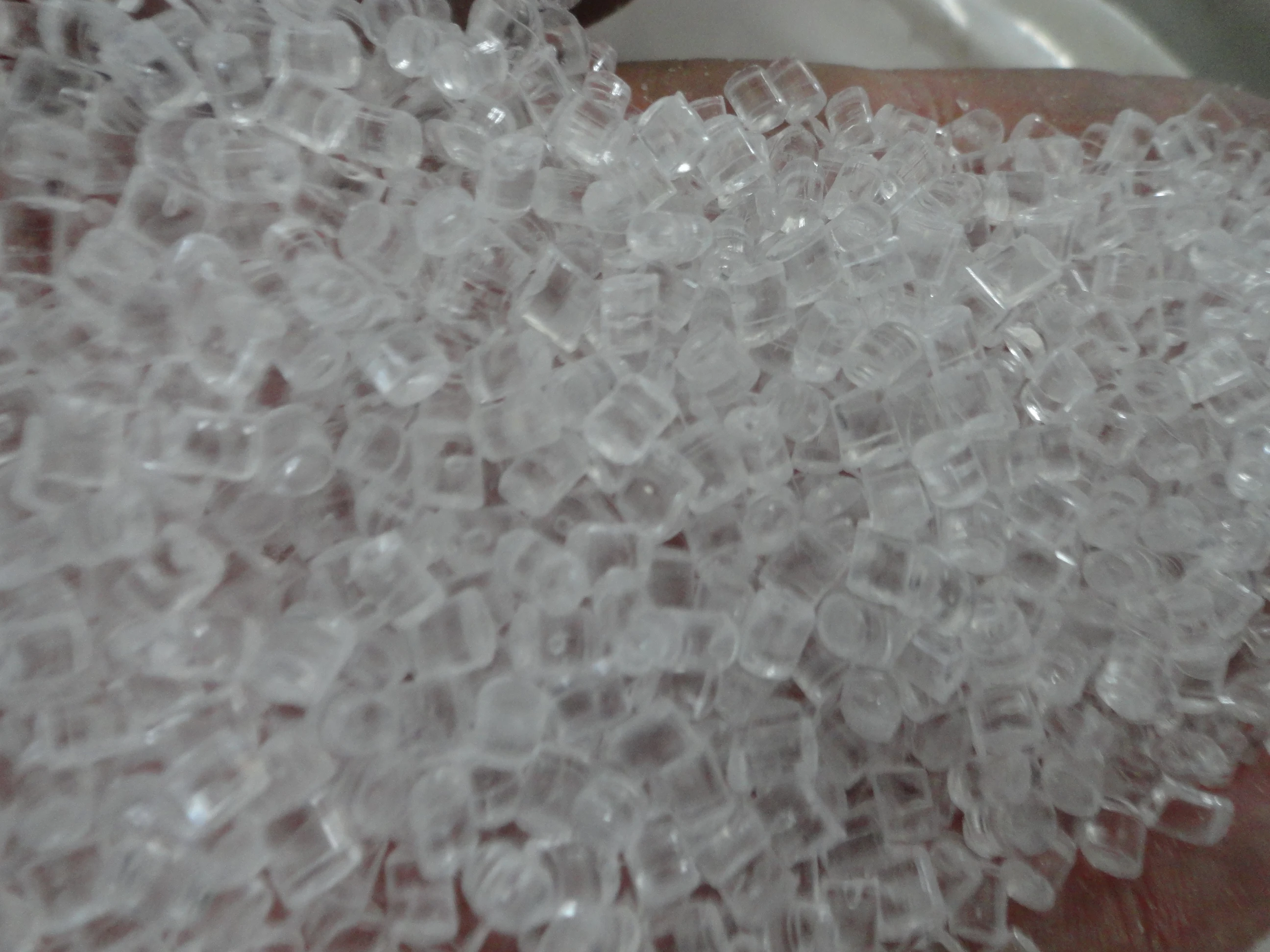

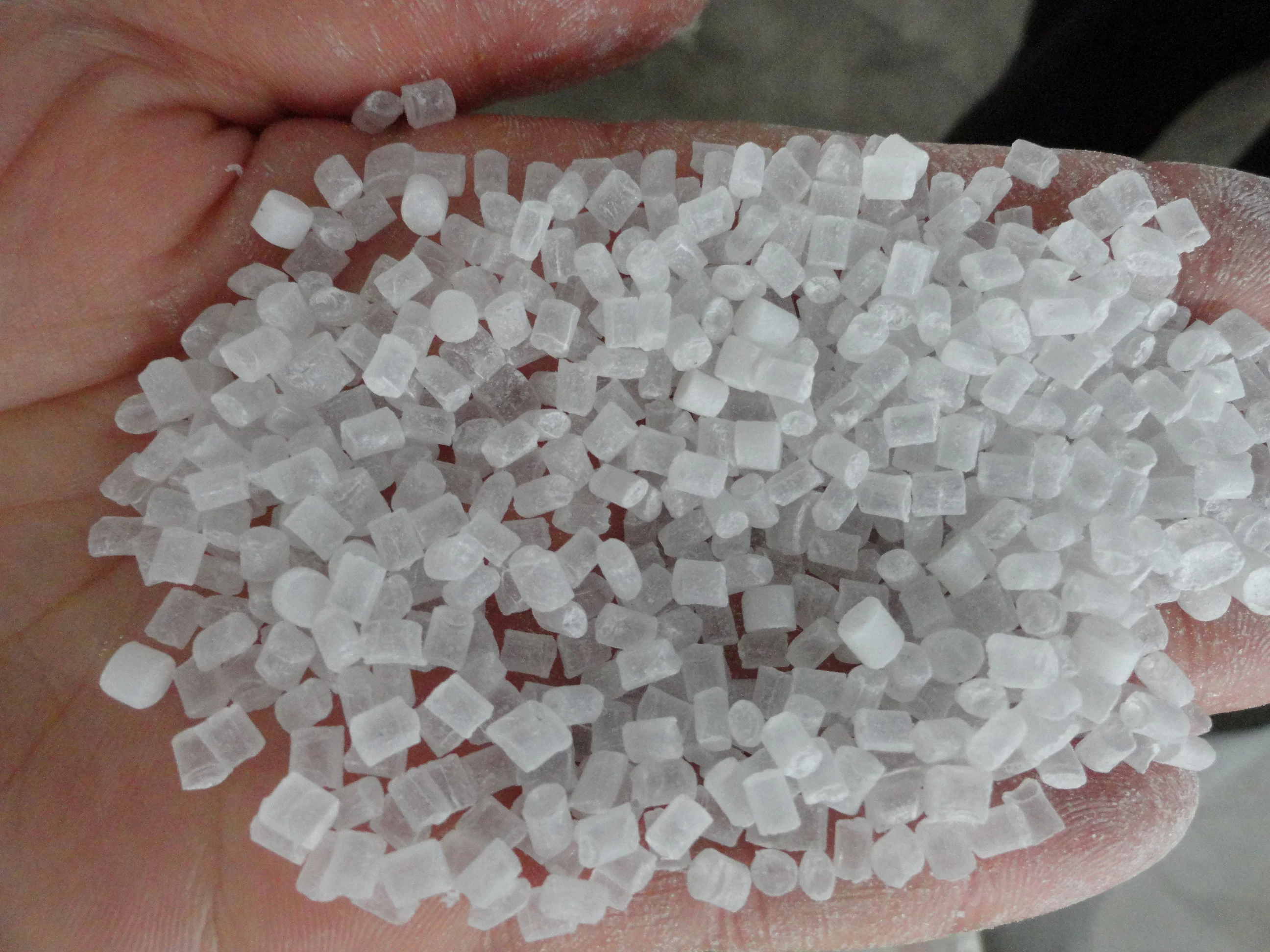

Q7: About raw materials
A7: We can purchase for you or provide suppliers to you for your own purchase.
GPPS Price fluctuates between 1300 $ -1750 $ (1Ton)
-Plastic additives for making lunch boxes (add when extruder produces PS sheet):
Talc powder can be purchased locally at the production plant
-Plastic additives for making lunch boxes (add when extruder produces PS sheet):
Talc powder can be purchased locally at the production plant
Q8: How many workers are needed
A8: PS extruder requires 2 workers
FS-CX110 × 140 (robot grab) requires 2 workers
FS-CX100 × 120 (without robot) requires 4 workers
In the same shift, PS extruder and bento box machine work at the same time, an additional manager
PS extruder + FS-CX110 × 140 (4 workers + 1 manager = 5)
FS-CX110 × 140 (robot grab) requires 2 workers
FS-CX100 × 120 (without robot) requires 4 workers
In the same shift, PS extruder and bento box machine work at the same time, an additional manager
PS extruder + FS-CX110 × 140 (4 workers + 1 manager = 5)
