Copper Wire Granulator And Separator Recycling Machine Wire Peeling Machine

Copper wire granulator and separator recycling machine wire peeling machine

Waste wire recycling equipment

Waste wire recycling equipment introduction:

Waste wire recycling equipment is used for the separation and recycling of copper and plastic from used wire and cable, which can apply to all kinds of waste wire, cable, copper wire, aluminum wire, communication wire, living wire, electrical cable, waste wire, wool wire, automobile circuit wire, etc. the recovery rate of scrap copper is more than 99.0%, which is a very good one to get rich.

Waste wire recycling equipment use:

1. Waste wire recycling equipment is Mainly used for Crushing scrap copper wire, and then separate copper and plastic from it. This machine belong to a kind of environmental protection machine. It adopts dry separation, which solves the problems in the method of incineration and copper extraction, and can improve the the quality of recycled copper, recycle plastics while solving the problem of environmental pollution

2. The machine uses pre-crushing and fine crushing to crush the material, and separates the metal materials by gravity. It is widely used in waste wires, such as thin wires, flower wires, single-branches, multi-branches, fire wires, plug wires, wool wires, computer wire, circuit line, communication line, miscellaneous wire, cable, optical cable, small copper wire, copper-plastic cable, waste electronic waste, electronic circuit board and other copper-containing raw materials. Waste wire recycling equipment can completely separate copper and plastic, and the recovery rate of scrap copper is more than 99.0%, which is a new type of environmental protection machinery.

Waste wire recycling equipment components:

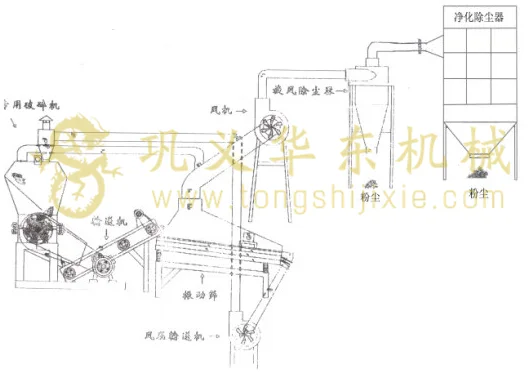

This machine is mainly composed of primary crusher, secondary crusher, gravity airflow sorting machine, fan, pipeline, spiral hoist, cyclone dust collector, purification dust collector and other components.

Waste wire recycling equipment Operating principle:

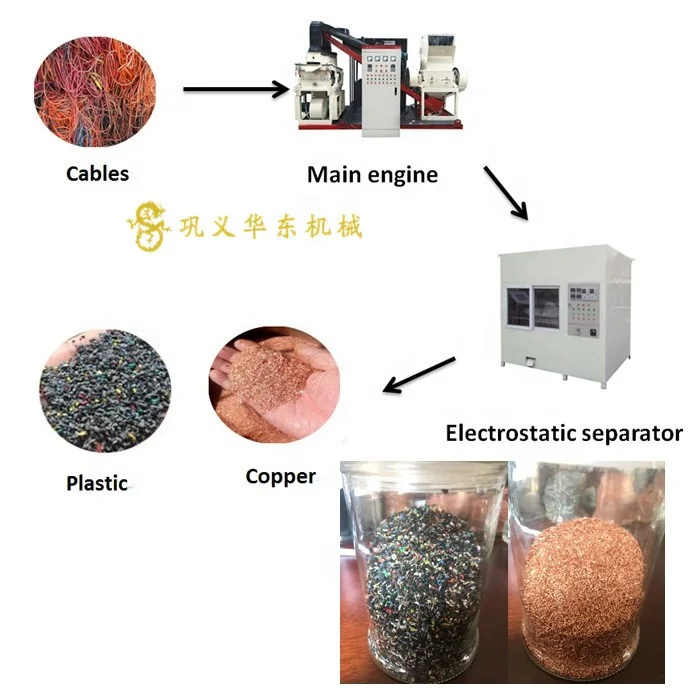

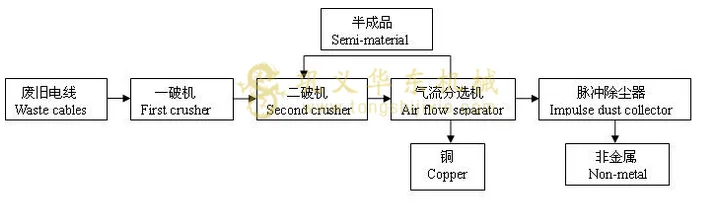

The cable is thrown to the crusher by the conveyor, crushed to less than 3CM at a time, and then sent to the pulverizer by the conveyor. After high-speed tearing, friction and cutting, the raw materials are pulverized into fine particles of less than 3-8MM, and then passed through the specific gas flow to vibrate and sort out clean, high-purity copper, plastic, etc. (using the difference in specific gravity and particle size after material crushing), the dust removal device will be responsible for dust collection during production.

Waste wire recycling equipment feature:

1.Various sizes of wire groups can be directly put into production without manual disassembly or peeling treatment, which greatly reduce manpower.

2. The overall structure of the equipment is convenient for transportation, installation and commissioning. It can be produced after the power supply, with good stability and high output.

3. This production line successfully solve the environmental pollution caused by incineration of copper and pulverized copper, and improve the quality of copper recovery. And plastics can be recycled for comprehensive utilization purposes.

4.The equipment has low price, less investment, and the small land occupation, which is suitable for investment customers in various stages.

Waste wire recycling equipment parameters:
