CA6261 manual lathe machines with bench lathe machine price LT6250C CA6250 big bore 105mm for metal Chinese manufacture
- Category: >>>
- Supplier: Shandong Tsinfa CNC Equipment Co. Ltd.
Share on (62451170635):
Product Overview
Description
Recommend Products
Products Description
Application
Manual engine lathe(gap bed lathe machine), as a versatile horizontal lathe machine, is widely used in the batch processing of variety of shaft and disk part, like the turning inner and outer cylindrical surface, conical surface and other rotating surfaces,turning various metric, imperial, modulus and pitch thread, drilling and pulling oil groove, etc. One of the most important industrial machine tools.
Main Feature
1. The surface guide of the bedways is quenched by supersonic frequency and grinded precisely.
2. The headstock gears are quenched and grinded to ensure gear strength to reduce noise.
3. 66 metric, British threads and 33 modulus, pitch threads can be machined without the use of changeful-gears.
4. Large flat surface headstock structure, optional headstock clutch mechanism.
2. The headstock gears are quenched and grinded to ensure gear strength to reduce noise.
3. 66 metric, British threads and 33 modulus, pitch threads can be machined without the use of changeful-gears.
4. Large flat surface headstock structure, optional headstock clutch mechanism.
Product Paramenters
Model | LT6240 | LT6250 | LT6266 | LT6280 | |||
Specifications | LT6240B | LT6250B | LT6266B | LT6280B | |||
LT6250C | LT6266C | LT6280C | |||||
Max .Swing over bed | 400mm | 500mm | 660mm | 800mm | |||
Max .Swing over cross slide | 210mm | 300mm | 400mm | 540mm | |||
Max .Swing over gap | 630mm | 720mm | 880mm | 1020mm | |||
Effective gap length | 210mm | 210mm | 210mm | 210mm | |||
Max .length of work piece | 750/1000/1500/2000/2200/3000/4000mm | ||||||
Width of bed | 400mm | ||||||
Section of turning tool | 25×25mm | ||||||
spindle speed | 16-1400rpm(24steps) | ||||||
hole through spindle | 52mm 、(80mm)、[105mm] | ||||||
spindle taper | No.6(MT6)(Φ90 1:20)[Φ113:20] | ||||||
No. of feed | 64kinds(64 kinds)(for each) | ||||||
range of metric threads | (1-192mm)44kinds (44 kinds) | ||||||
range of inch threads | (2-24tpi)21kinds (21kinds) | ||||||
range of module threads | 0.25-48(39kinds)(module 39 kinds) | ||||||
range of diametral pitc threads | 1-96DP(37kinds)(37 kinds) | ||||||
Max. tailstock spindle travel | 150mm | ||||||
tailstock spindle diameter | 75mm | ||||||
taper of tailstock spindle center hole | NO.5 (MT5) | ||||||
Main motor | 7.5 kw | ||||||
Packing dimensions | |||||||
Overall dimensions for 750mm | 2550×1140×1750 | 2550×1140×1750 | 2550×1140×1750 | 2550×1140×1750 | |||
Overall dimensions for 1000mm | 2700×1140×1750 | 2700×1140×1750 | 2700×1140×1750 | 2700×1140×1750 | |||
Overall dimensions for 1500mm | 3200×1140×1750 | 3200×1140×1750 | 3200×1140×1750 | 3200×1140×1750 | |||
Overall dimensions for 2000mm | 3700×1140×1750 | 3700×1140×1750 | 3700×1140×1750 | 3700×1140×1750 | |||
Overall dimensions for 2200mm | 4030×1140×1750 | 4030×1140×1750 | 4030×1140×1750 | 4030×1140×1750 | |||
Overall dimensions for 3000mm | 4800×1140×1750 | 4800×1140×1750 | 4800×1140×1750 | 4800×1140×1750 | |||
Overall dimensions for 4000mm | 5680×1140×1700 | 5680×1140×1700 | 5680×1140×1700 | 5680×1140×1700 | |||
Weight(kg) | G.W. N.W. | G.W .N.W. | G.W. N.W. | G.W. N.W. | |||
Overall dimensions for 750mm | 2100 1990 | 2170 2060 | 2380 2260 | 2520 2400 | |||
Overall dimensions for 1000mm | 2190 2070 | 2260 2140 | 2570 2450 | 2720 2560 | |||
Overall dimensions for 1500mm | 2350 2220 | 2420 2290 | 2810 2640 | 2980 2800 | |||
Overall dimensions for 2000mm | 2720 2570 | 2790 2640 | 3050 2880 | 3260 3087 | |||
Overall dimensions for 2200mm | 2800 2600 | 2940 2790 | 3390 3180 | 3490 3287 | |||
Overall dimensions for 3000mm | 3300 3200 | 3450 3300 | 3930 3687 | 4220 3887 | |||
Overall dimensions for 4000mm | 3500 3400 | 3750 3600 | 4580 4200 | 4850 4500 | |||

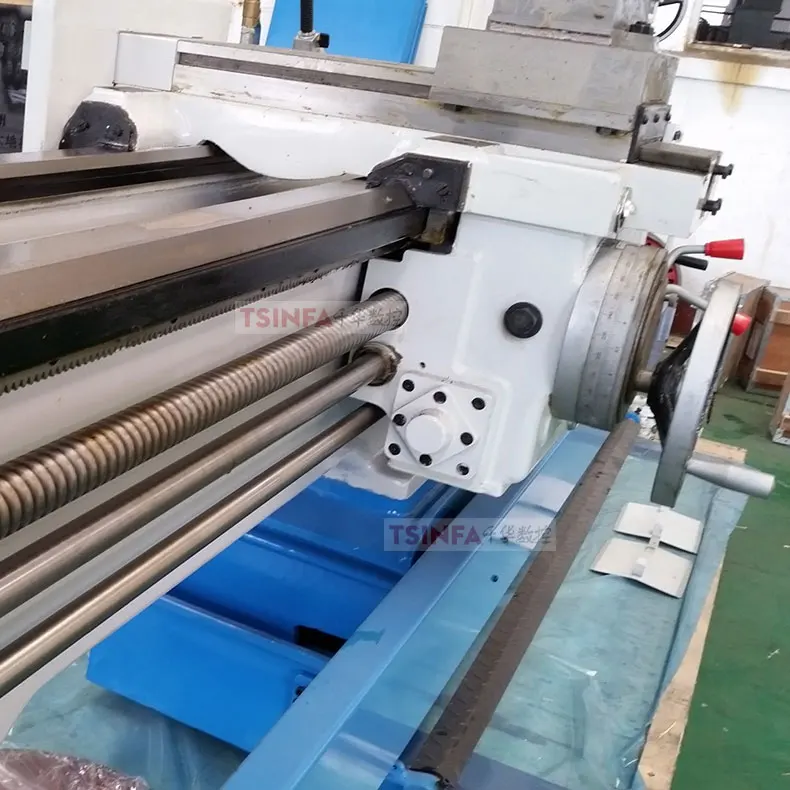

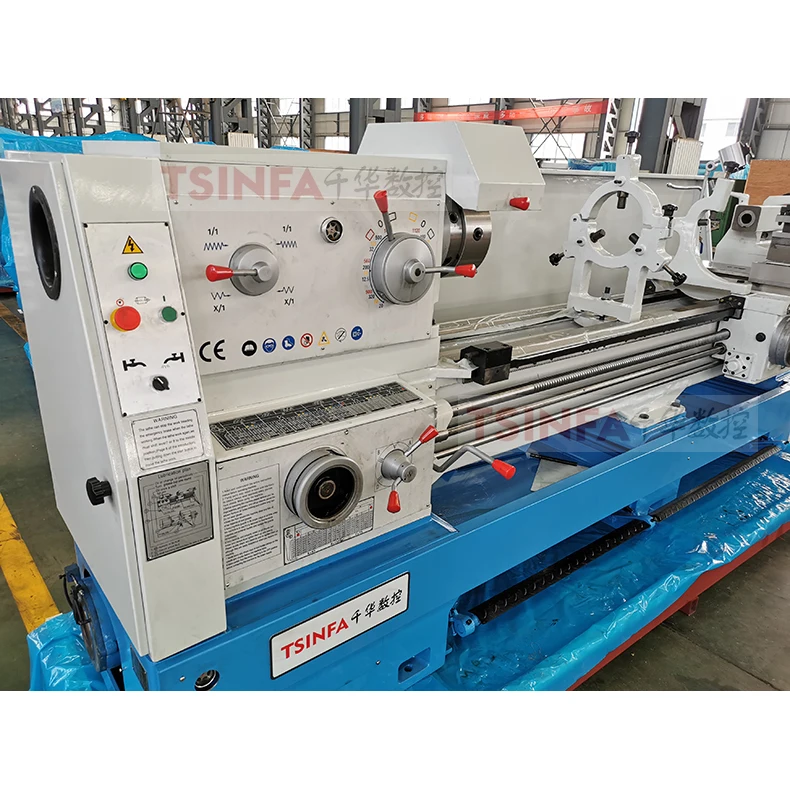

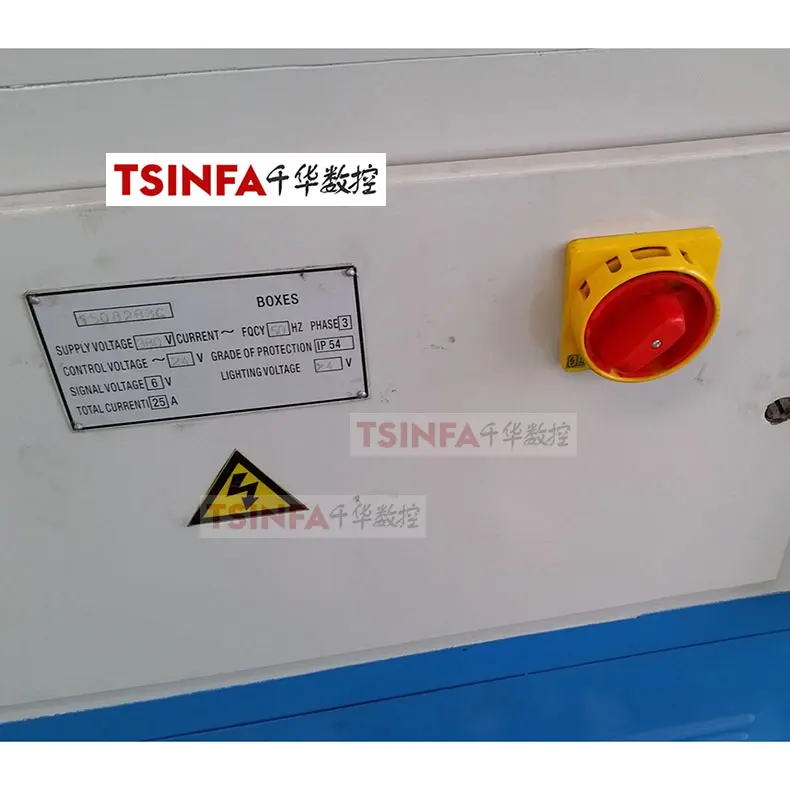

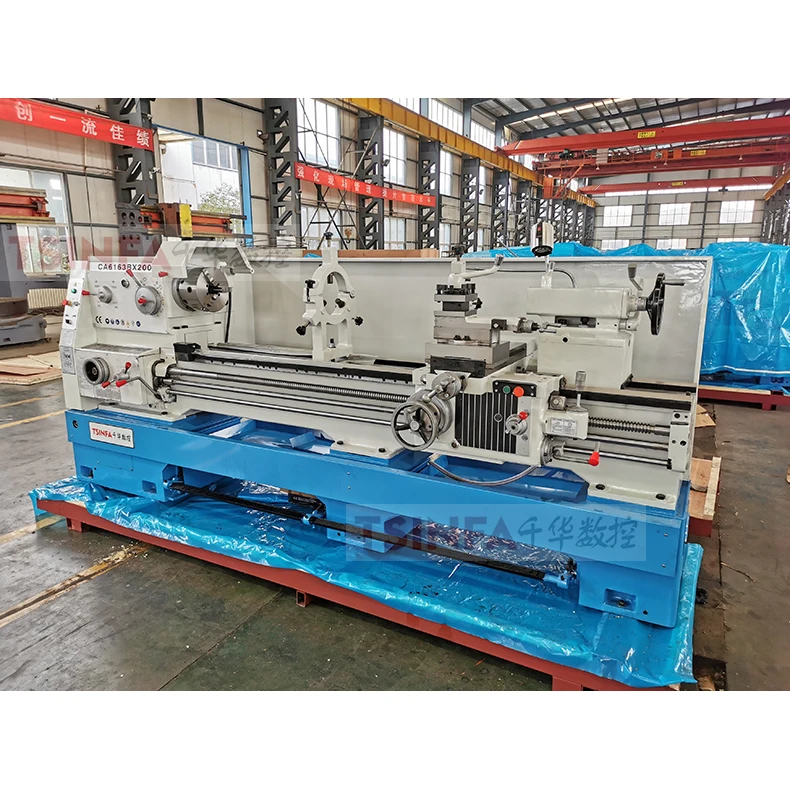

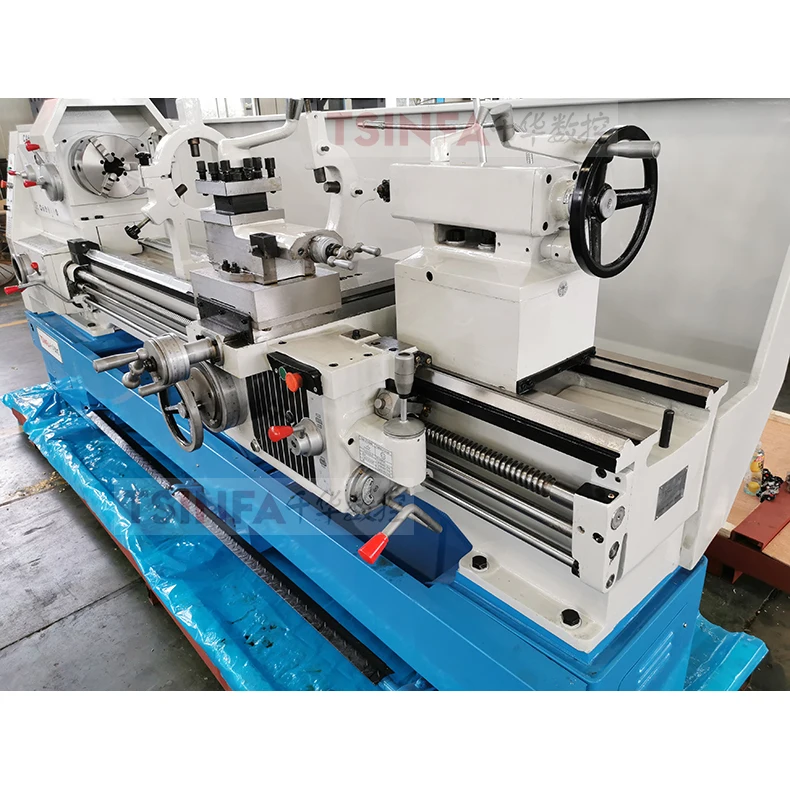

Details Images
333

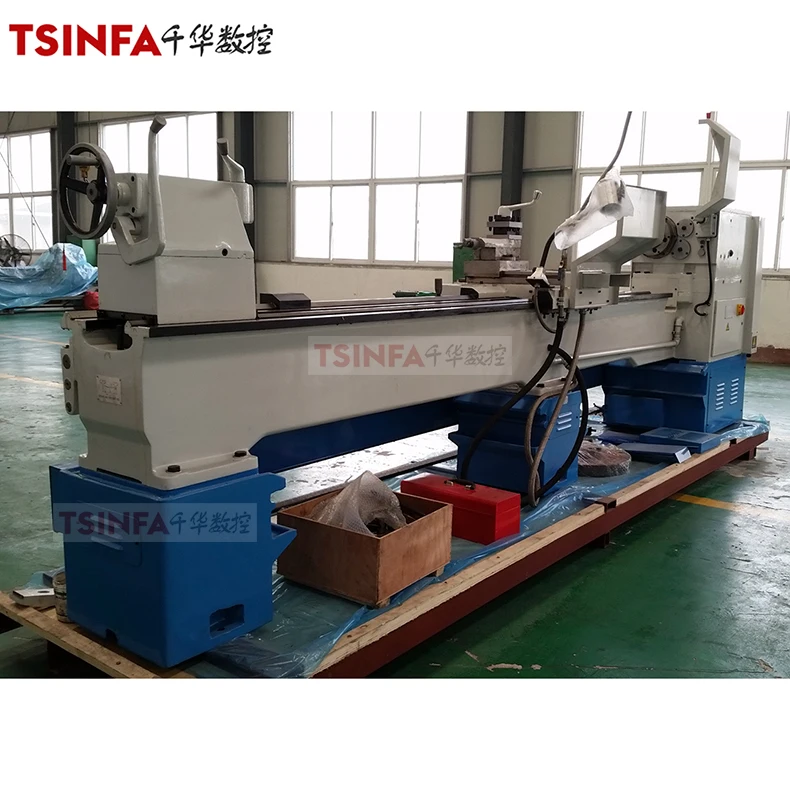

Product packaging
Company Profile
Shandong Tsinfa CNC Equipment Co., Ltd specializes in high-end manufacturing and sales of CNC machine tools, machinery and
agricultural machinery equipment design and research and development. the company under the jurisdiction of Industrial Park D
Area, Tengzhou Shandong province.Our products cover precision CNC cylindrical grinding machines, face cylindrical grinders, CNC
lathes, three-axis CNC machining centers, four-axis CNC machining centers, five-axis CNC machining centers, CNC Slotting machines,
radial drilling machines, CNC cutting machines, boring machines, and ordinary lathes. Universal milling machine, agricultural
mechanization equipment and so on. .
Our mission is to lead in innovation as a machine tool supplier. Supply machine tools with the features of energy-saving,
high-efficient and appropriate. To satisfy requirement for customer and to provide convenience for user, to create value for
society and to seek happiness for employees are our pursuits. Driving customer success and value creation is the key of TSINFA, we
stick to giving top priority to the interest of customers by innovation of product’s design and processing technology.
agricultural machinery equipment design and research and development. the company under the jurisdiction of Industrial Park D
Area, Tengzhou Shandong province.Our products cover precision CNC cylindrical grinding machines, face cylindrical grinders, CNC
lathes, three-axis CNC machining centers, four-axis CNC machining centers, five-axis CNC machining centers, CNC Slotting machines,
radial drilling machines, CNC cutting machines, boring machines, and ordinary lathes. Universal milling machine, agricultural
mechanization equipment and so on. .
Our mission is to lead in innovation as a machine tool supplier. Supply machine tools with the features of energy-saving,
high-efficient and appropriate. To satisfy requirement for customer and to provide convenience for user, to create value for
society and to seek happiness for employees are our pursuits. Driving customer success and value creation is the key of TSINFA, we
stick to giving top priority to the interest of customers by innovation of product’s design and processing technology.
Our Team
We are a team that pursues quality and strives to constantly surpass ourselves. Each member is also a close partner, growing and developing together with the company. We respect the opportunities and challenges of each cooperation, keep improving and strive for perfection. Our sales team is fully responsible for every customer, and the after-sales team goes abroad to provide guidance and service for customers. The team adheres to the dedicated and professional design service thinking, so that customers can create greater economic benefits by calling our products.
Certifications
FAQ
Q:Your company's delivery time?
A:Universal milling machine is batch production, goods can be sent within 10-50days.
If your order more than 100 sets please contact our support team for confirmation.
Q:Your payment?
A:We usually accpet T/T (30% in advance and 70% before shipment) and L/C at sight.
Q:How do we get the training for the machines?
A:You can send your people to our factory and we will offer traing free of charge.
Q:How about the quality?
A:First we choose best material for the processing.
Being and after processing, we will inspect the finished parts by professional quality inspector.
Q:Your after-sales service?
A:1. Technician available for training and installation at customer’s company
2. 1 Year warrantee. We will sent damage fo the machine parts(non-human factors)for free.
3. Internet service by sending emails and videos, communicating online or calling.
A:Universal milling machine is batch production, goods can be sent within 10-50days.
If your order more than 100 sets please contact our support team for confirmation.
Q:Your payment?
A:We usually accpet T/T (30% in advance and 70% before shipment) and L/C at sight.
Q:How do we get the training for the machines?
A:You can send your people to our factory and we will offer traing free of charge.
Q:How about the quality?
A:First we choose best material for the processing.
Being and after processing, we will inspect the finished parts by professional quality inspector.
Q:Your after-sales service?
A:1. Technician available for training and installation at customer’s company
2. 1 Year warrantee. We will sent damage fo the machine parts(non-human factors)for free.
3. Internet service by sending emails and videos, communicating online or calling.
