Ceramic Wear Lining Rubber Back Ceramic Liner

Product Overview

Description



We will be your reliable partner and supplier.

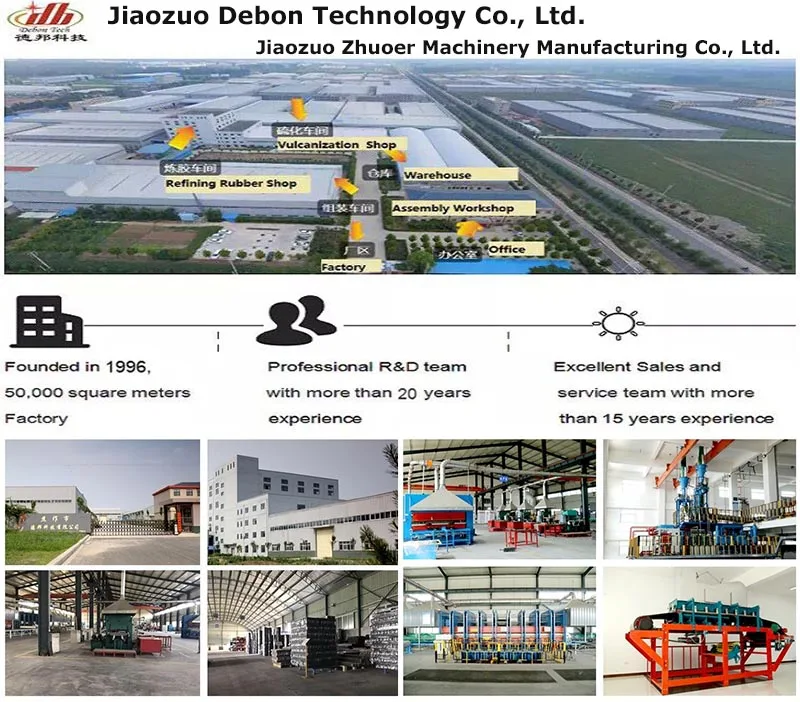

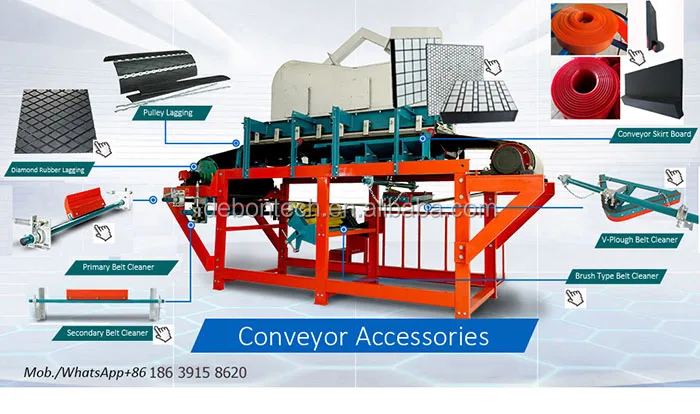

1. Over 20 years experience in wear products and conveyor accessories.
2. Over 10 years experience in exporting, UK, France, Chile, Canada, USA, Finland, Australia, Russia, Indonesia, Thailand, etc.
3. SGS audited supplier.
4. ISO9001:2015 certified factory.
5. Strict QC/QA makes sure high quality and consistency.

95% Al2o3 Ceramic rubber lining plate for mining



Ceramic Wear Lining Rubber Back Ceramic Liner

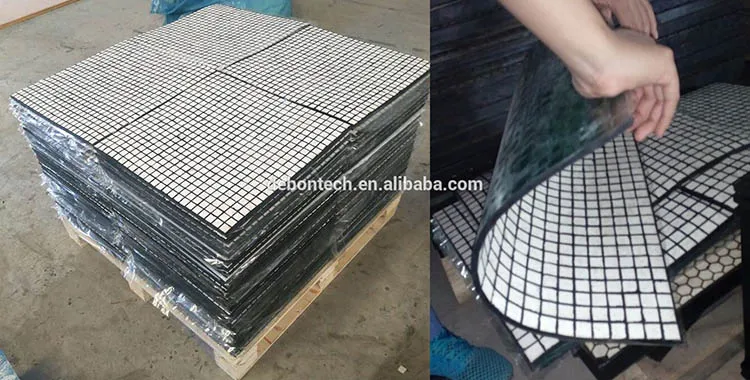

Composited ceramic rubber lining plate is embedding high alumina ceramics into rubber via vulcanization, rubber cusion prevents ceramic tiles from breaking. The ceramics provide excellent resistance to wear, while the elasticity of rubber effectively reduce impact forces. This combination of ceramic and rubber well solved the problem of the wear and impact issue.







Specification of Ceramic Wear Lining Rubber Back Composited Liner:

Specification ( L×W×T)	Thickness Details
300*300*12mm	6mm ceramic+6mm rubber
250*250*15mm	10mm ceramic+5mm rubber
250*300*16mm	12mm ceramic+4mm rubber
500*500*15mm	10mm ceramic+5mm rubber
500*400*20mm	12mm ceramic+8mm rubber
500*500*30mm	20mm ceramic+10mm rubber
300*300*63mm	50mm ceramic+13mm rubber
500*500*63mm	50mm ceramic+13mm rubber



Please contact me for details specification or customized parameters









ceramic rubber lining plate has good feature of wear resistance, offer abrasion and impact resistant protection to prolong service life, easy installation and replacement, saving power consumption and reducing noise, etc. ceramic rubber lining will better protect your facilities.

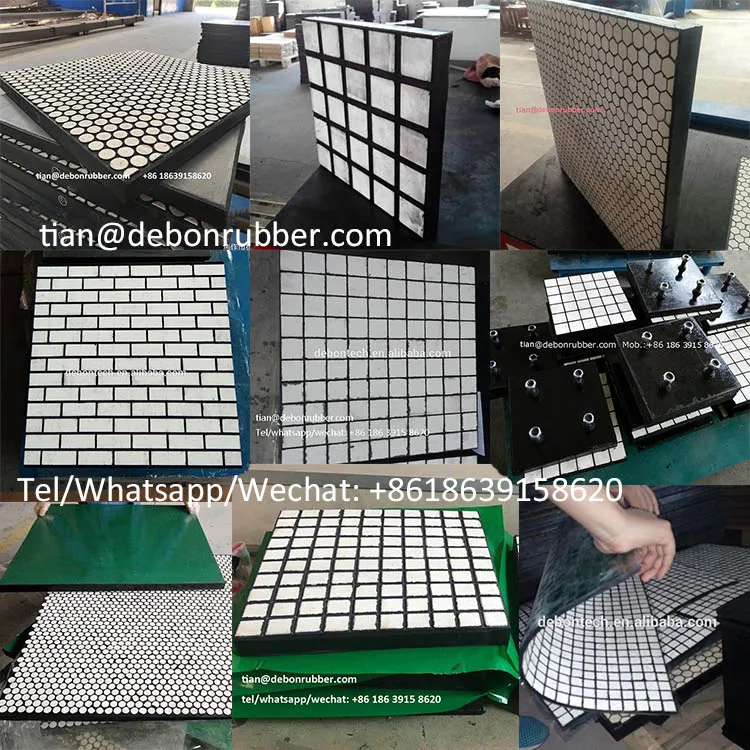

Structure of Ceramic Wear Lining Rubber Back Composited Liner:

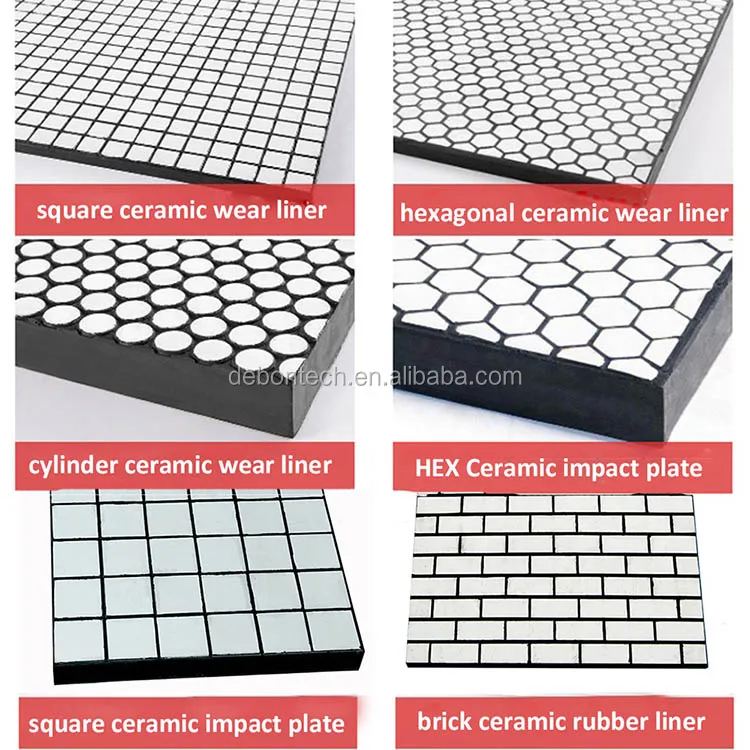

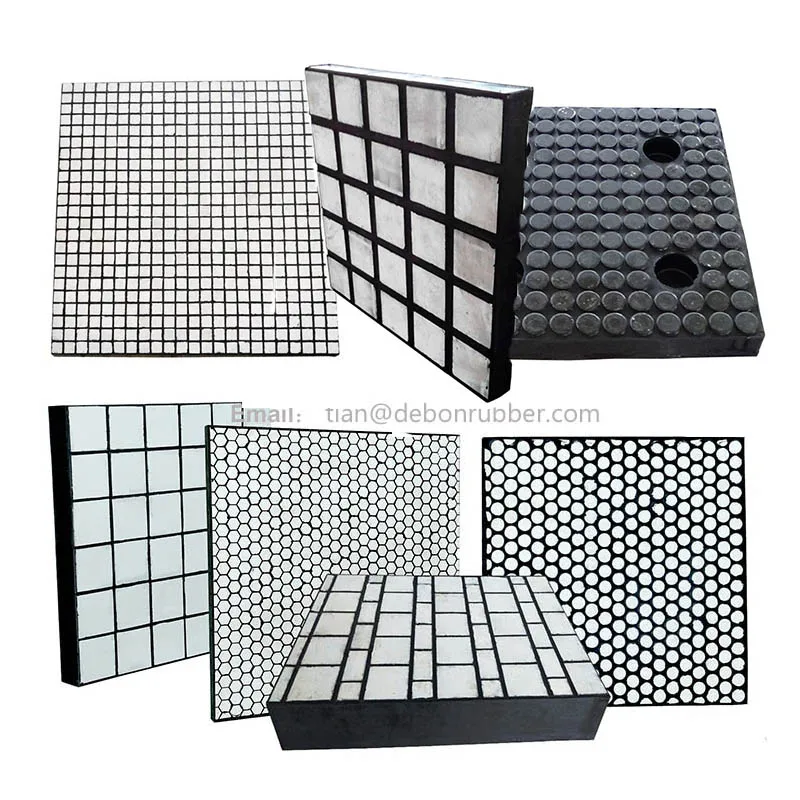

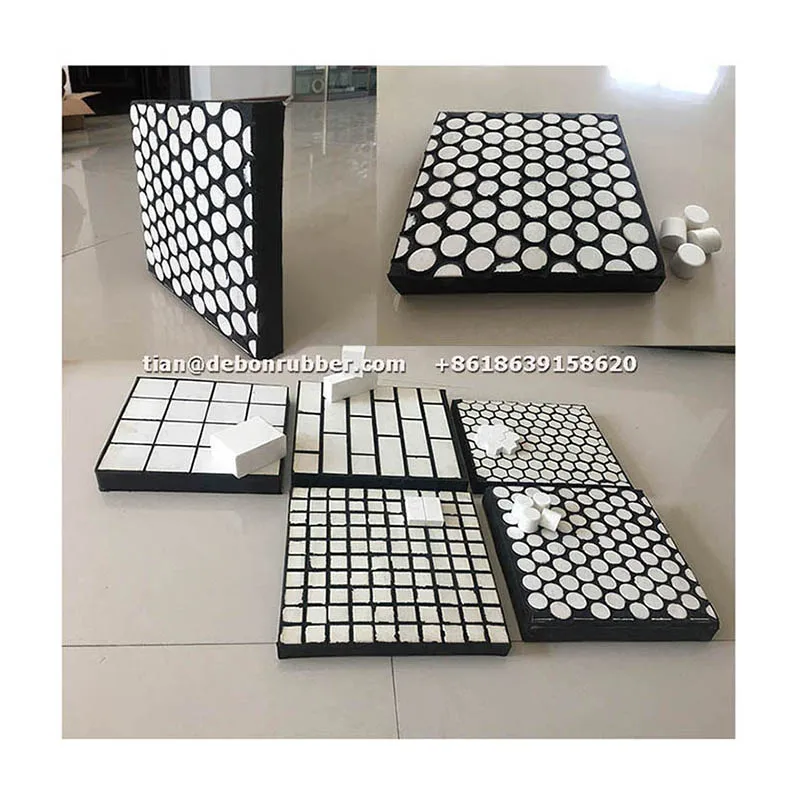

• High Alumina Ceramic: 92% & 95% Ceramics. Available with square, rectangular, cylindrical or hexagonal, brick, etc.


• Cushion Rubber: Superior rubber impact absorbing.


• Connection: cn bonding layer adhesive(cold glue adhesive) and bolt-on or weld-on.

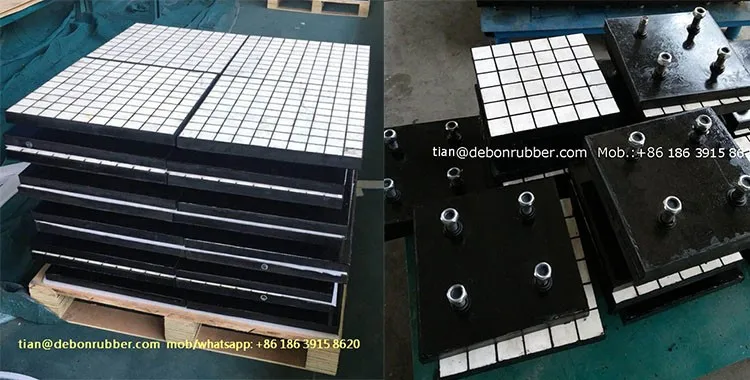

weld-on studs 95% Al2o3 Ceramic rubber wear lining:



CN bonding adhesive 95% Al2o3 Ceramic rubber wear lining plate:



Feature and Benefits of Ceramic Wear Lining Rubber Back Composited Liner:

1. excellent impact resistant

2. excellent wear resistant

3. excellent sound noise solution

4. extend the service life of equipment

5. cost effective

6. reduce maintance and downtime

7. customization accept

8. rich experiences and strict QC ensures high quality

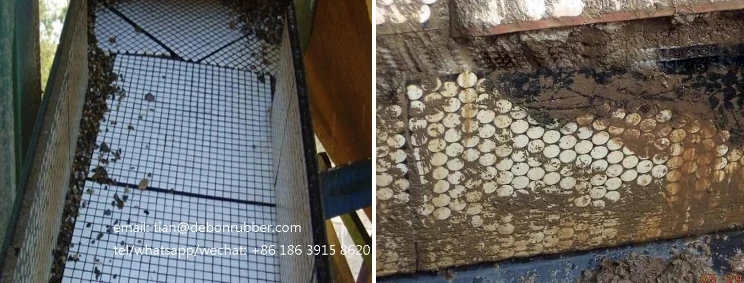

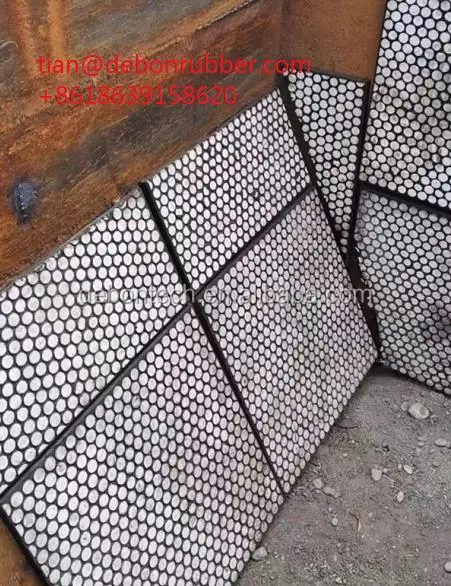

Application of Ceramic Wear Lining Rubber Back Composited Liner:

Typical equipment to be lined includes:

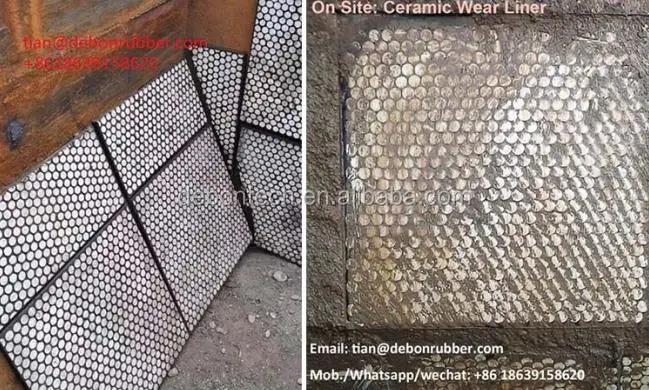

Chutes, Pipes and tanks, Hopper, Deflector, Bin, Feeder, Cyclones, Launders, reflectors and impact plate, Screen beams and components, Mill feed chutes, Sumps and underpans, Grain handling and processing equipment, stackers and reclaimers.







Ceramic Rubber Lining Plates are widely used for serious abrasive environments, such as chute linings, cyclone linings, processing piping lining, hopper lining or silo lining, screen equipment linings in the industries including ,but not limited to:
♦ Coal Preparation Plants
♦ Coal Fired Power Stations
♦ Mineral Processing Plants
♦ Cement Plants
♦ Chemical Plants
♦ Steel & Iron Plants
