Product Overview
Description
Zhejiang Guotao Filter Material Technology Co.,Ltd manufacture filter for air conditioner with 30 years`s expierence.
We do pre-filter,medium filter and hepa filter made of material such as metal,carbon,cotton,synthetic fiber and fiberglass paper.
Products structure:
Panel frame: Aluminum,Galvanized steel,plastic
Filter material:
Meltblown fiber, composite fabric, activated carbon fabric.

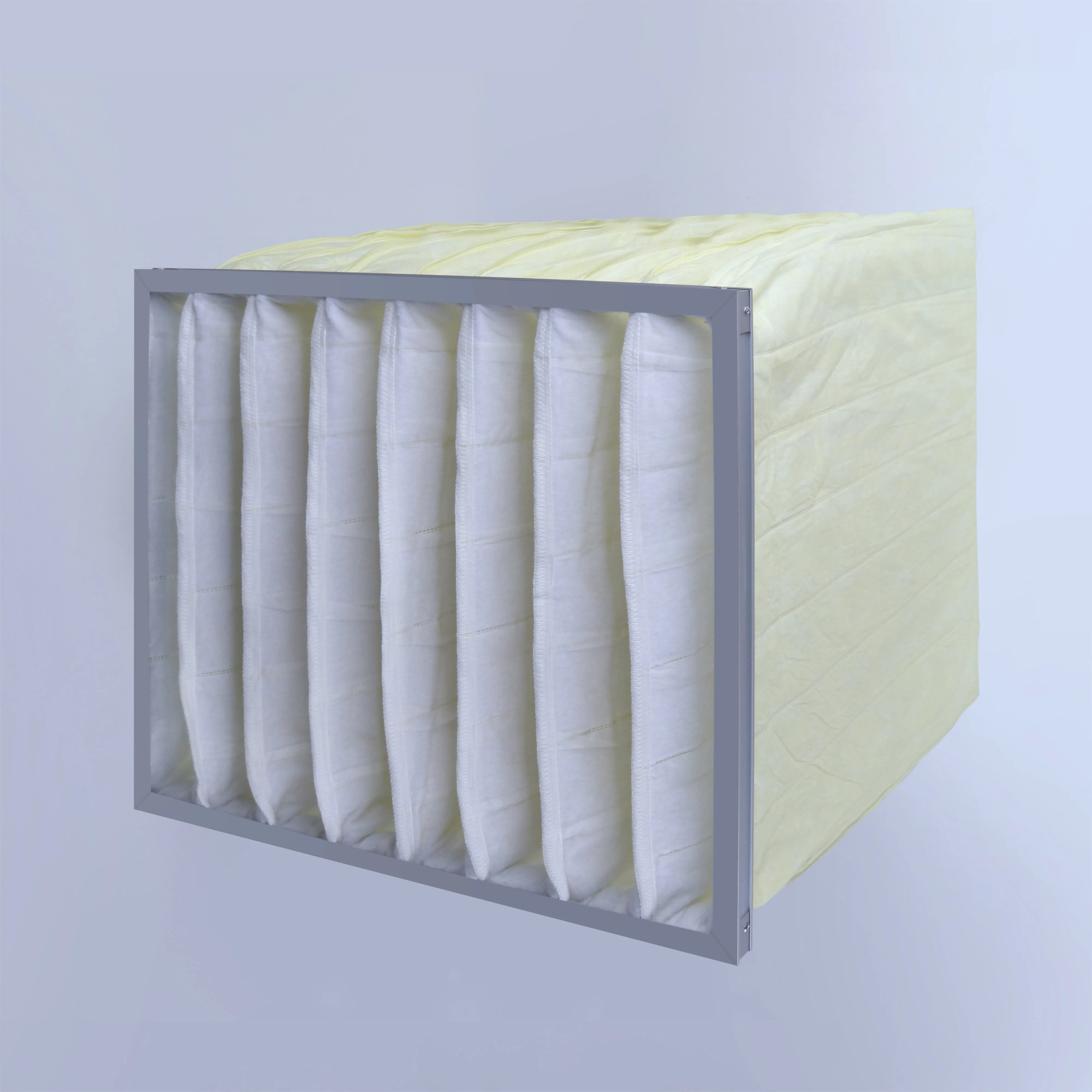

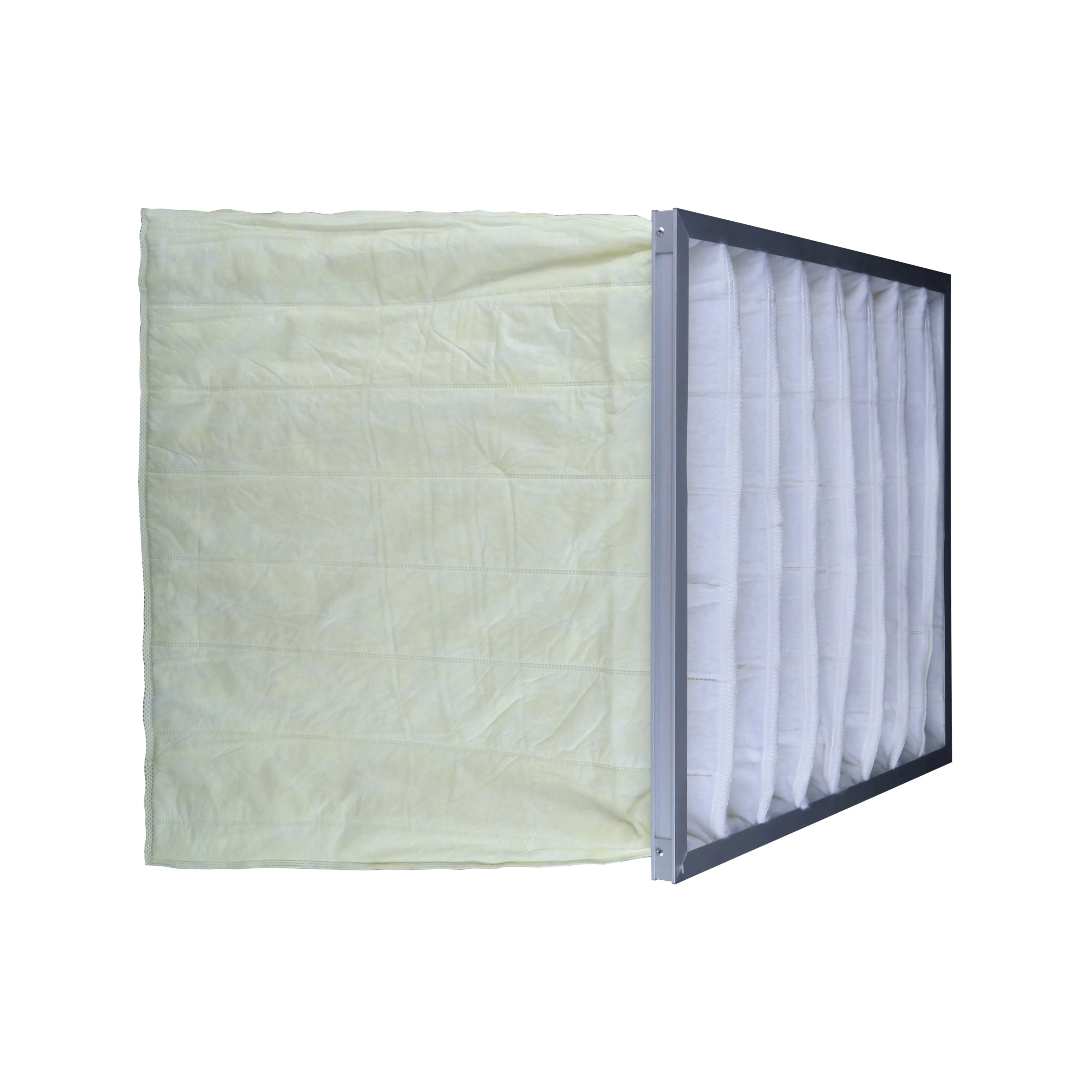

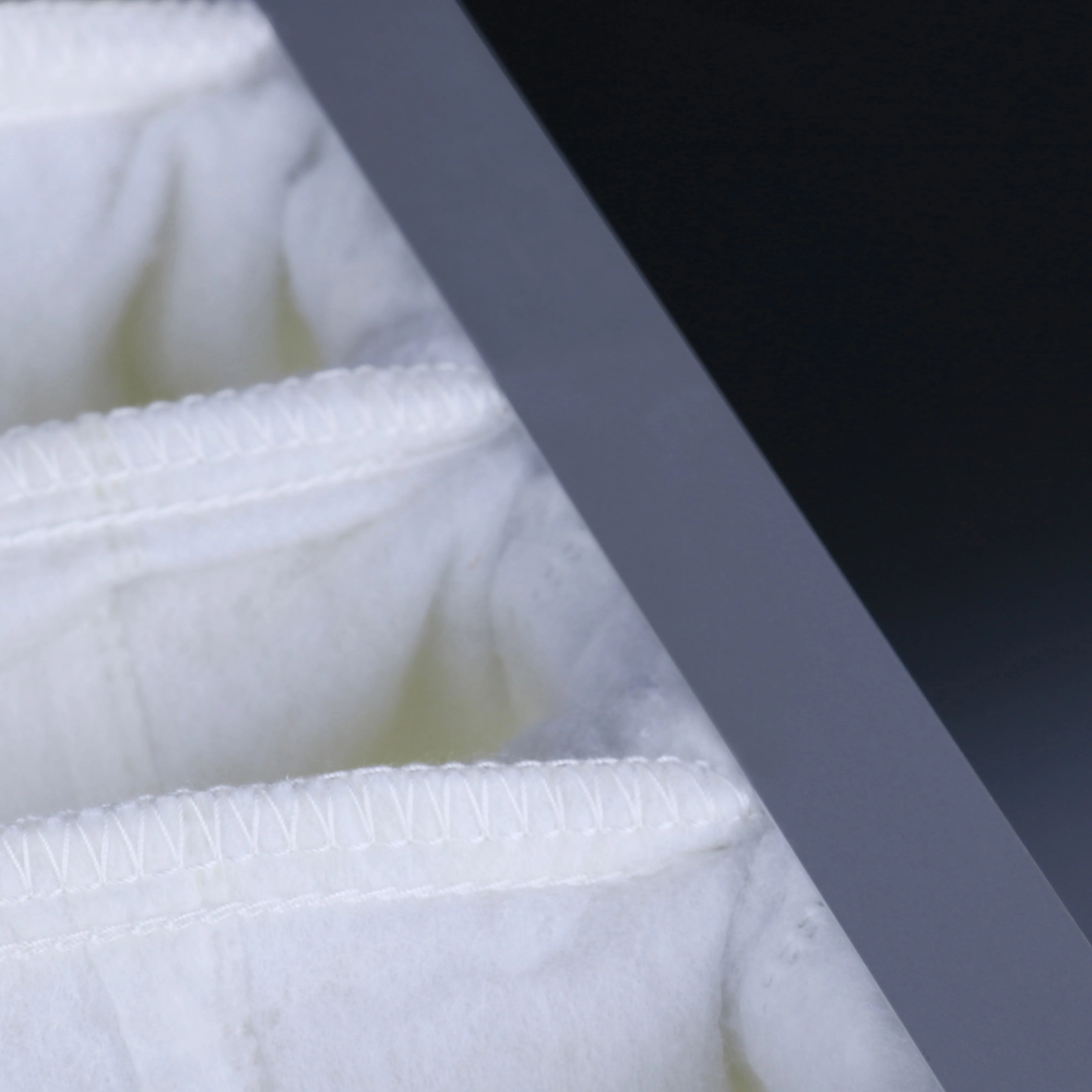

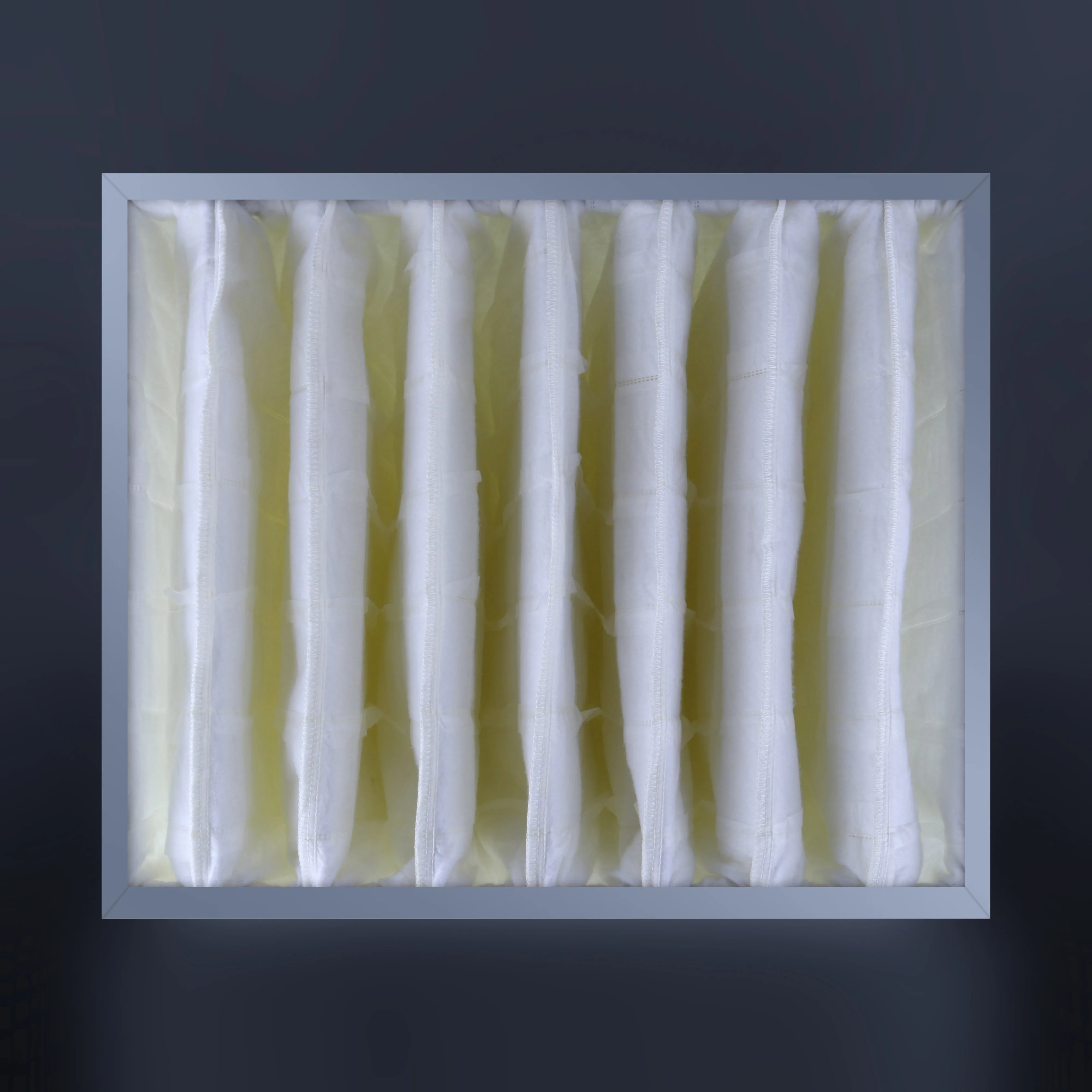

V-shaped bag filter
Dimension:L*W*H*Pocket no.* efficiency (20 or 25 mm thickness flange)
Feature:
Large effective filtration area, large dust collecting capacity and long service life;
Replaced the filter bag quickly and easily and reduced the cost of running costs greatly;
Efficiency:
F5(orange): Counting average efficiency 40-60%
F6(Green): Counting average efficiency 60-80%
F7(Pink): Counting average efficiency 80-90%
F8(Yellow): Counting average efficiency 90-95%
F9(White): Counting average efficiency > 95%
Max. working temperature: <700C
Specification and technical parameters
Efficiency | (mm) Dimension W*H*T |
No. |
Initial resistance under different airflow | |||||
Pa | m3/h | Pa | m3/h | Pa | m3/h | |||
G4-F9 | 595x595x600 | 8 | 25 | 2300 | 50 | 3500 | 85 | 4500 |
595x595x600 | 6 | 25 | 2100 | 50 | 3200 | 85 | 4300 | |
495x595x600 | 6 | 25 | 2000 | 50 | 3000 | 85 | 4200 | |
295x595x600 | 3 | 25 | 1100 | 50 | 1800 | 85 | 2300 | |
Application:Master filter for commercial and industrial ventilation and air conditioning systems; clean room fresh air system.
1)Paper panel disposable AC pre-filter
2)Aluminum panel AC pre-filter

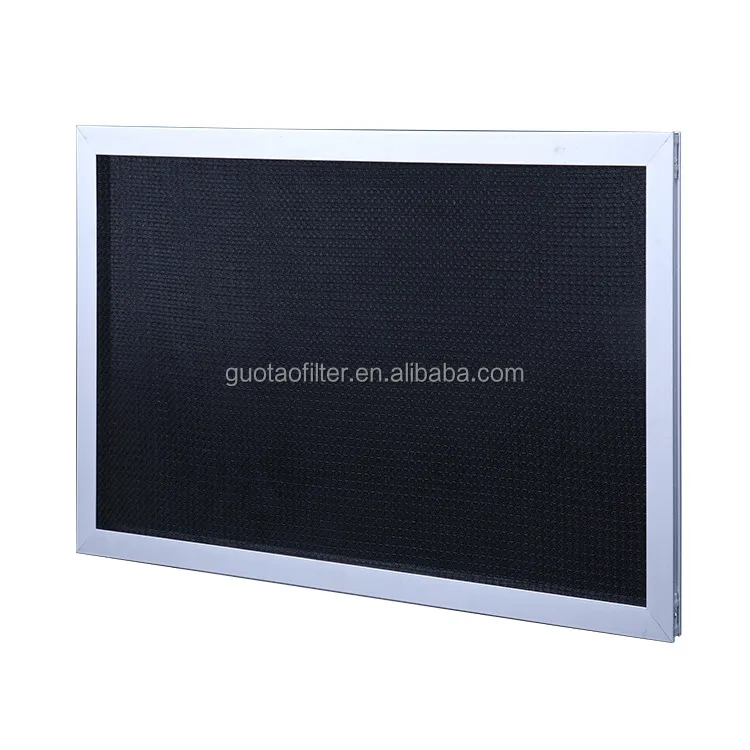

3)Honeycomb nylon mesh AC pre-filter

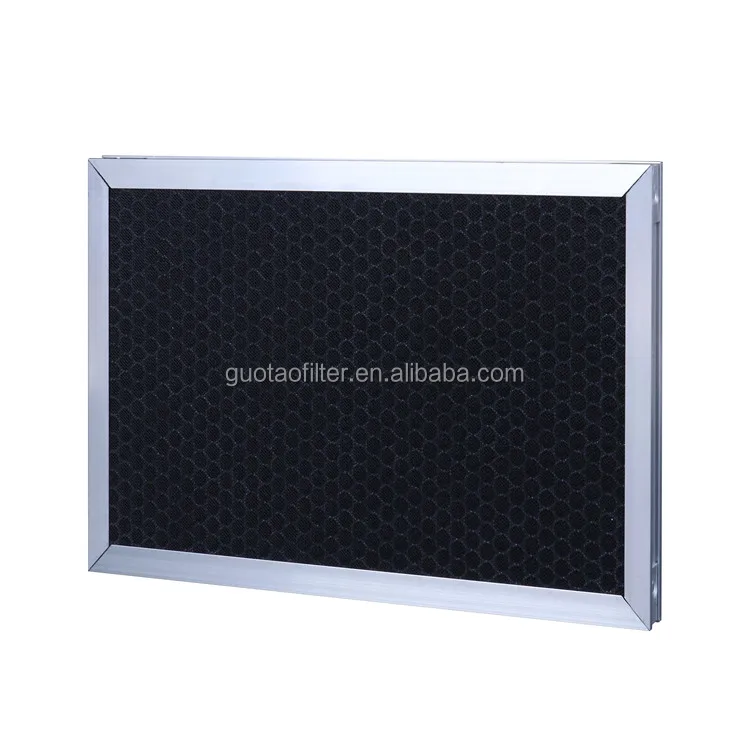

4)Activated carbon filter
5)Bag filter

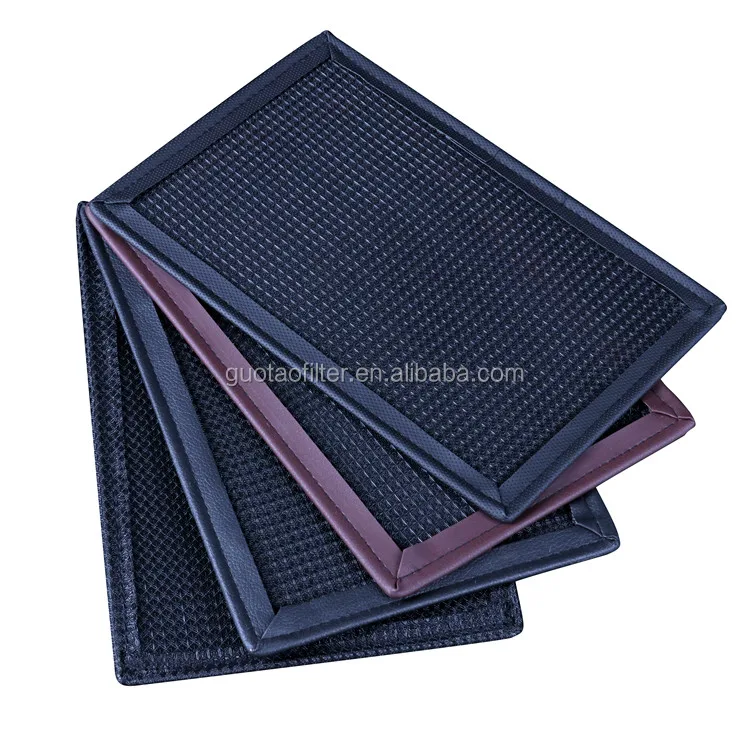

6)Nylon mesh pads
7)Normal temperature Hepa filter with no compartment

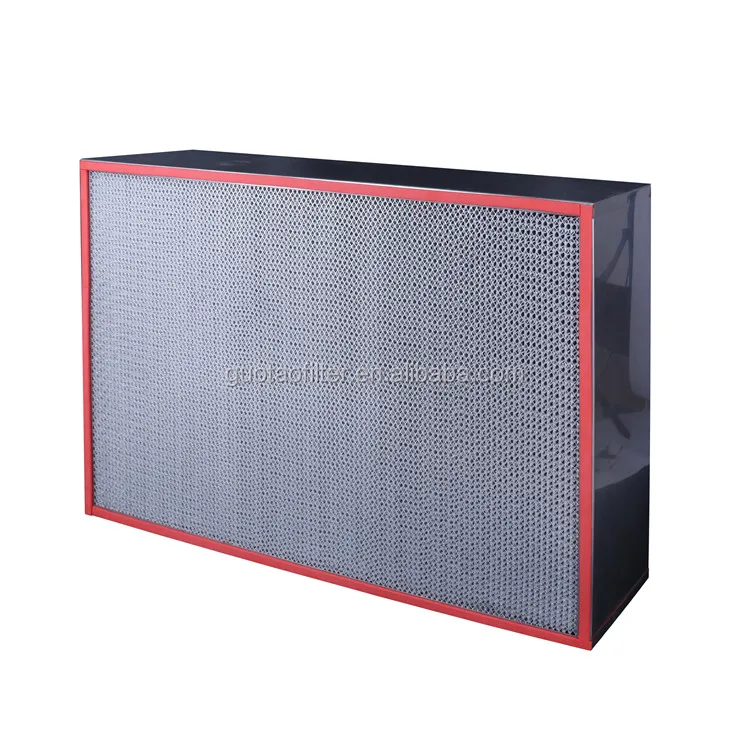

8)High temperature Hepa filter with Aluminum foil compartment

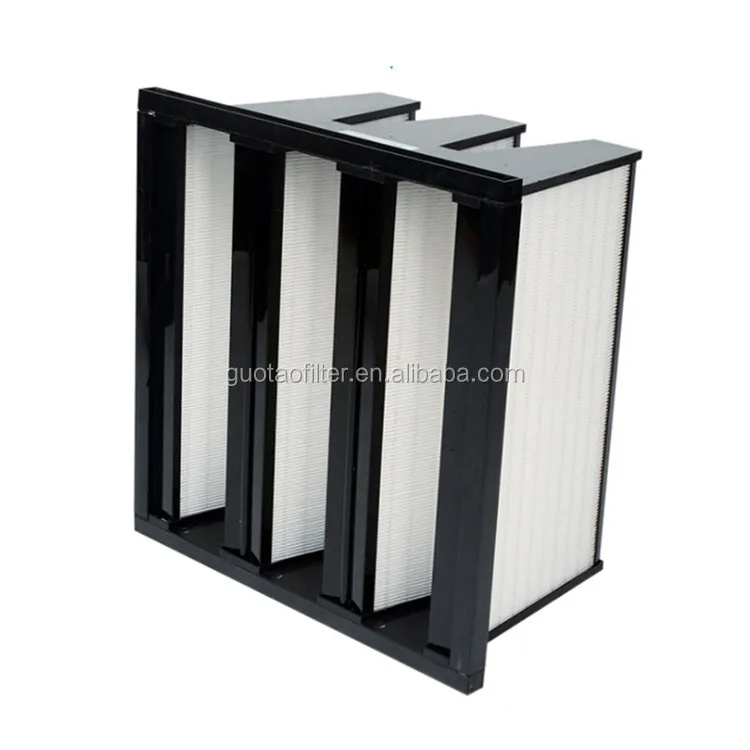

9)W type Hepa filter

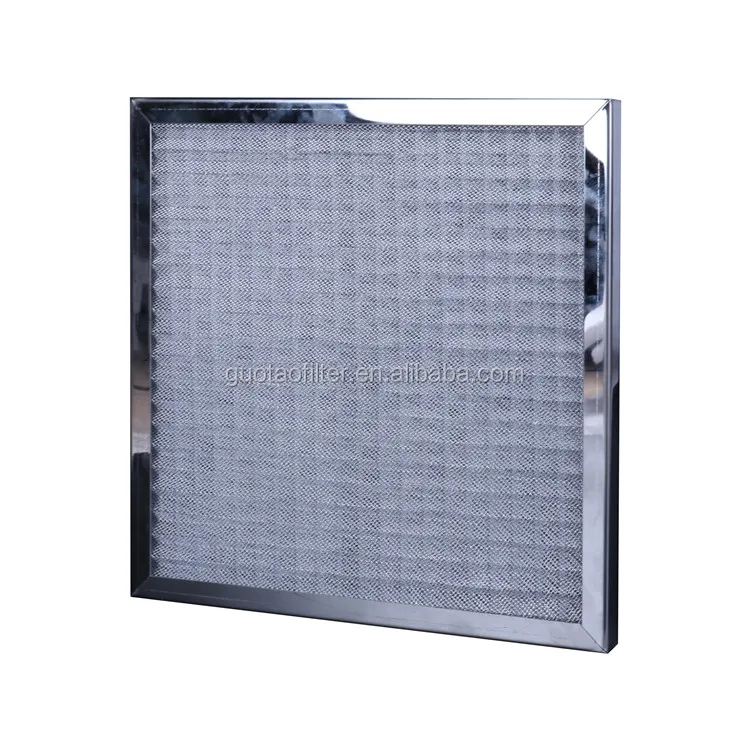

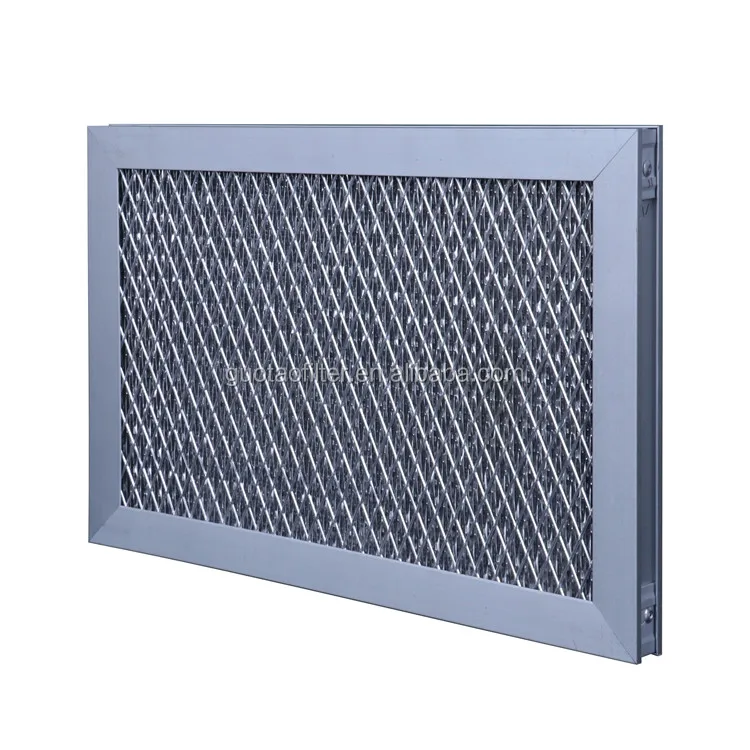

11)Washable permanent Aluminum wire mesh filter
12)Washable permanent Aluminum foil filter

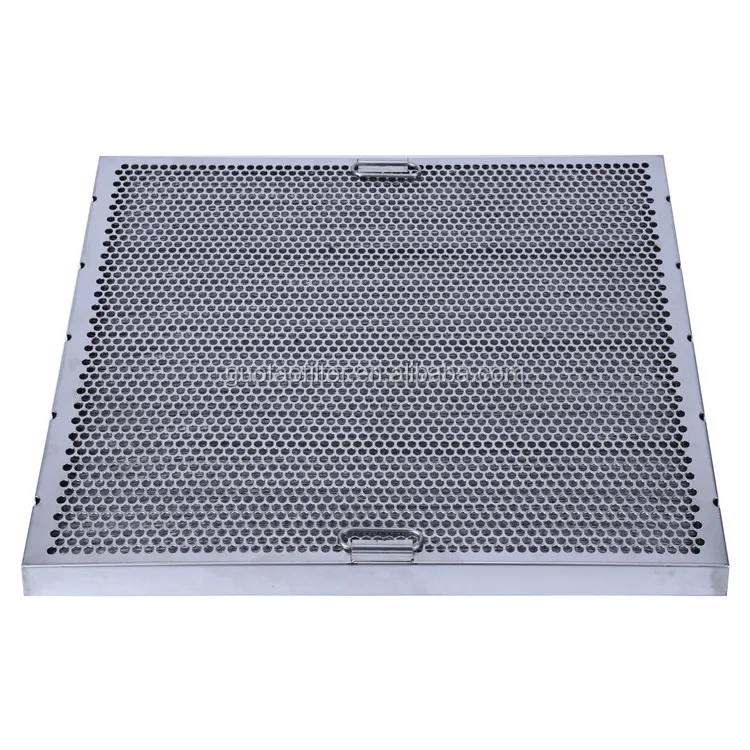

10)Washable permanent stainless steel 304 oil mist filter

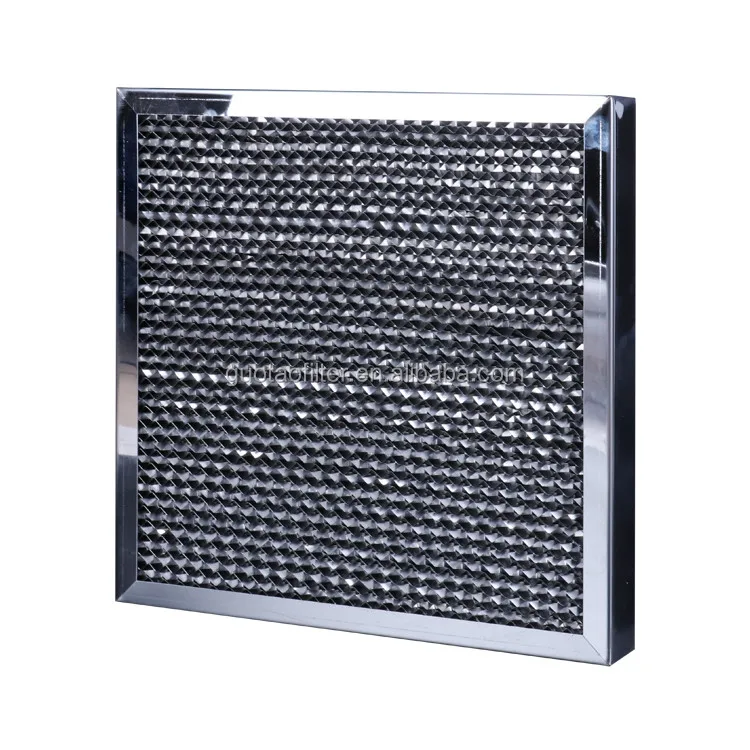

13)Washable permanent metal honeycomb filter
14)Washable permanent stainless steel winding wire filter
The data to air conditioning filter from Guotao:
Desc. | Pre-filter,Medium filter,Hepa filter,Oil mist filter |
Panel frame | Galvanized,Aluminium,SS304,Paper board |
Size to panel frame | Thickness:0.8~2.0mm; Width:10~25mm. |
Filtering material | Synthetic fiber,Paper,Cotton,Carbon, Aluminum wire mesh,Aluminum foil,SS304 wire mesh. |
Protecting coated | Aluminum,SS304. |
Protecting type | No,single side or double sides . |
Dimension to filter | TBA less than 2000mm for length or width ,height from 10mm to 300mm |
Type | Pleated,Flat |
Packing:
PP bag,Carton,Plywood case,Pallet for your choice.
Shipping:
by land,by sea,by air,by courier for your choice.
