Vibrating screen used for sand making crushing plant

Product Overview

Description

Vibrating screen

Ⅰ.Application:

Applied material:
pebble, limestone, granite, basalt, diabase, andesite, etc
Applied material:
Since it has such features as reliable structure, strong exciting force, high screening efficiency, low vibration noise, long service life, convenient repair and safe use, circular vibrating screen is widely used for the product classification in mine, building material, transportation, energy and chemistry.

Ⅱ. Working principle:

Motor drives the V-belt to make the eccentric block rotate in high speed, so that producing large centrifugal force to make exciter produce the amplitude in circular motion, the materials on the screen surface will be throwing motion continuously under the function of exciter, during the process of materials contacting with the screen surface, final products will be classified.

Ⅲ. Advantage:

1.Sieving high frequency, small amplitude, high efficiency.
2.high efficiency, large capacity, the moisture content of the material requirements low.
3.With eccentric block as exciting force, strong exciting force.

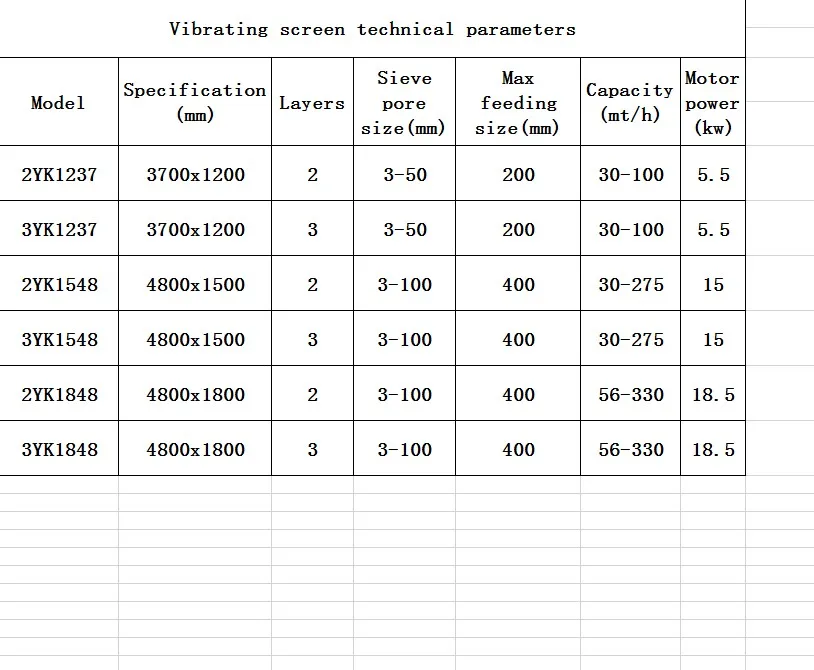

Specification:
