Customized Compact Automatic Powder Coating Line For metal processing Plant

Product Overview

Description

Customized Compact Automatic Powder Coating Line For metal processing Plant





1.BRIEF INTRODUCTION

   This Customized Compact automatic powder coating line is mainly designed for the metal processing plant that can complete the small output and hard by manual operating workpiece, it can reduce the worker cost and save power and has the good effect of powder coating. What's more, it is also designed for the limited space of work plant.Our this system has been exported to mid-east countries and south-east countries, with the technology imported from europ and domestic, more and more lines

are established in China.Our goal is go all over the world.

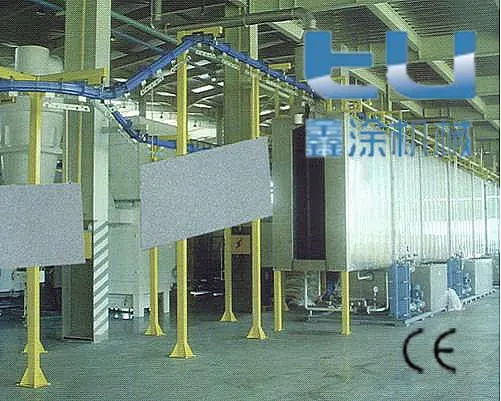

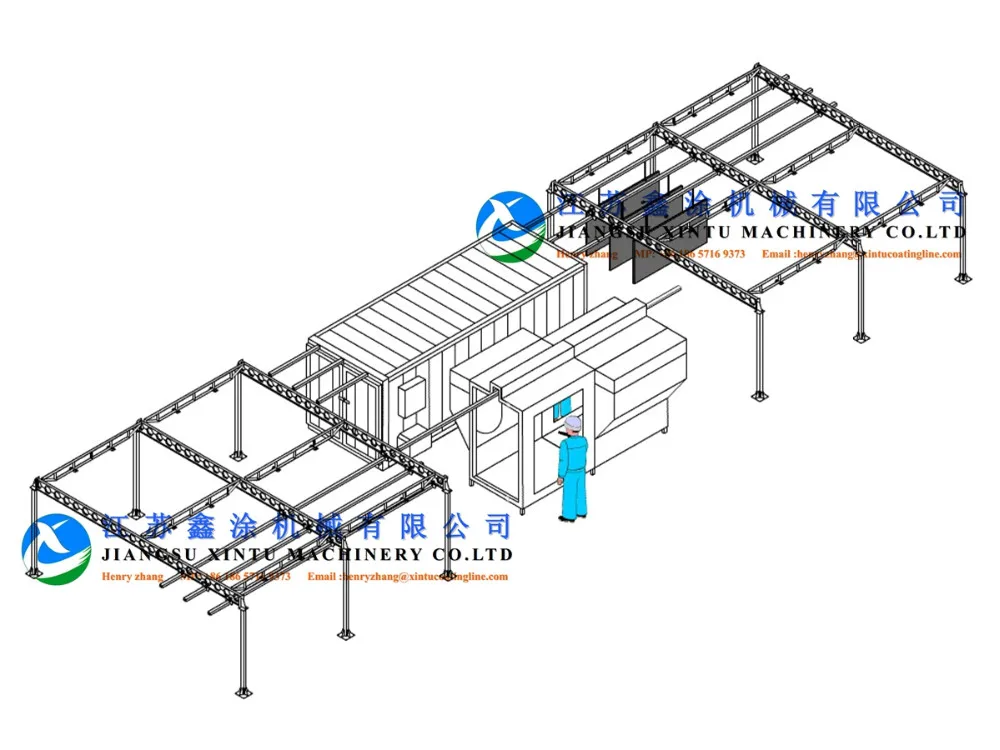

2.COMPONENTS OF THIS LINE AND PROCESS

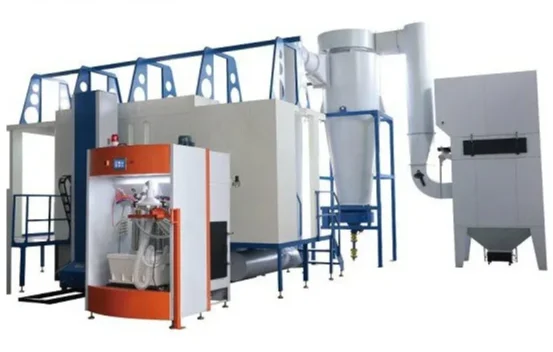

1.powder coating system

2.powder curing system

3.conveyor system

4.control system

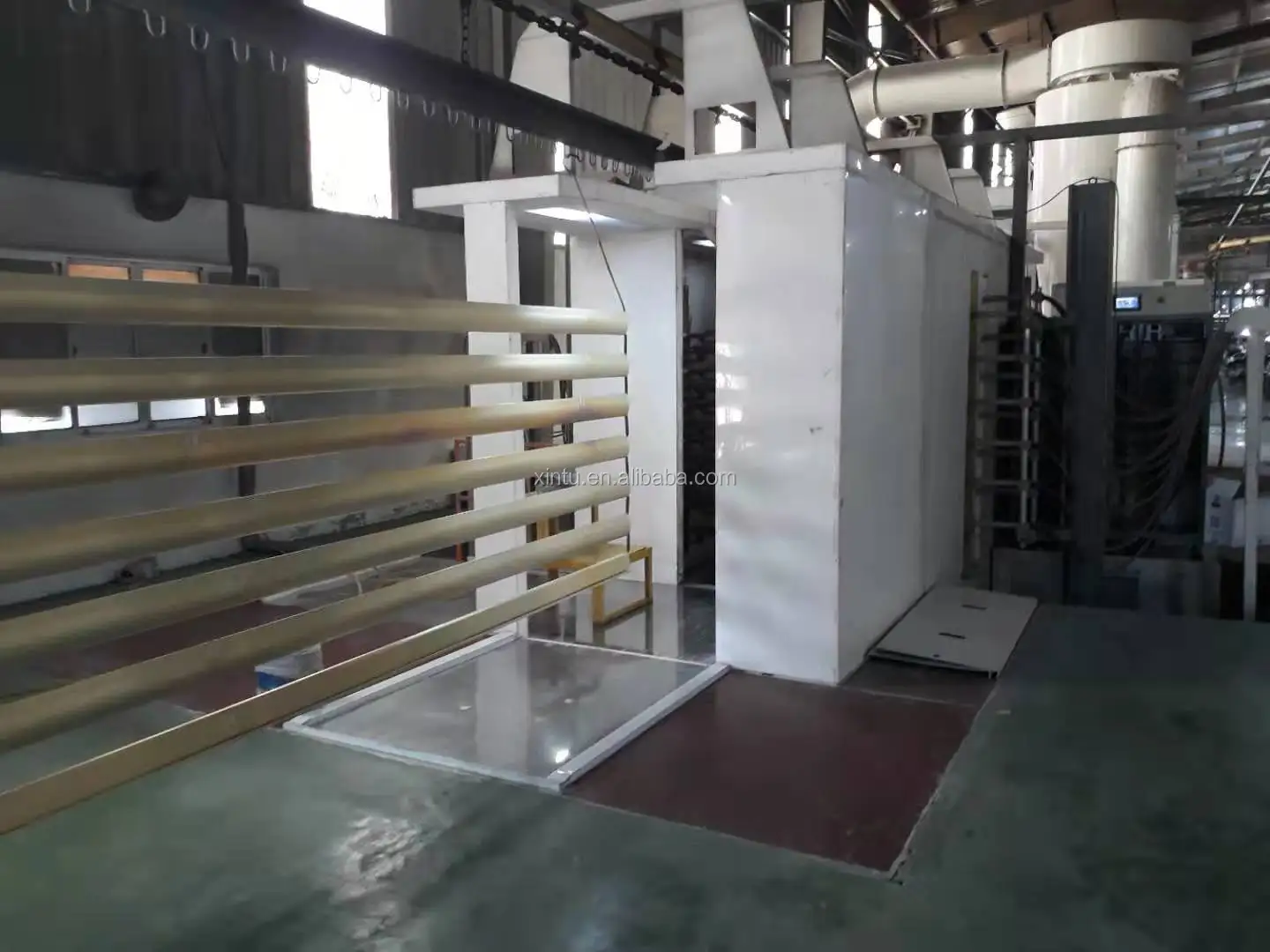

The workpiece be loaded on the conveyor system and will be conveyed into the powder coating booth where the powder coating reciprocator spray the powder which is supplied by the powder center or huge fluidized power hopper onto the workpiece.

After that, the workpiece will be sent into the curing oven, the oven is setted the temperature(180-220°C)in advance and will help the powder stick onto the workpiece stablely.









3.DETAILED DATA OF POWDER PAINTING LINE



3.1POWDER COATING SYSTEM

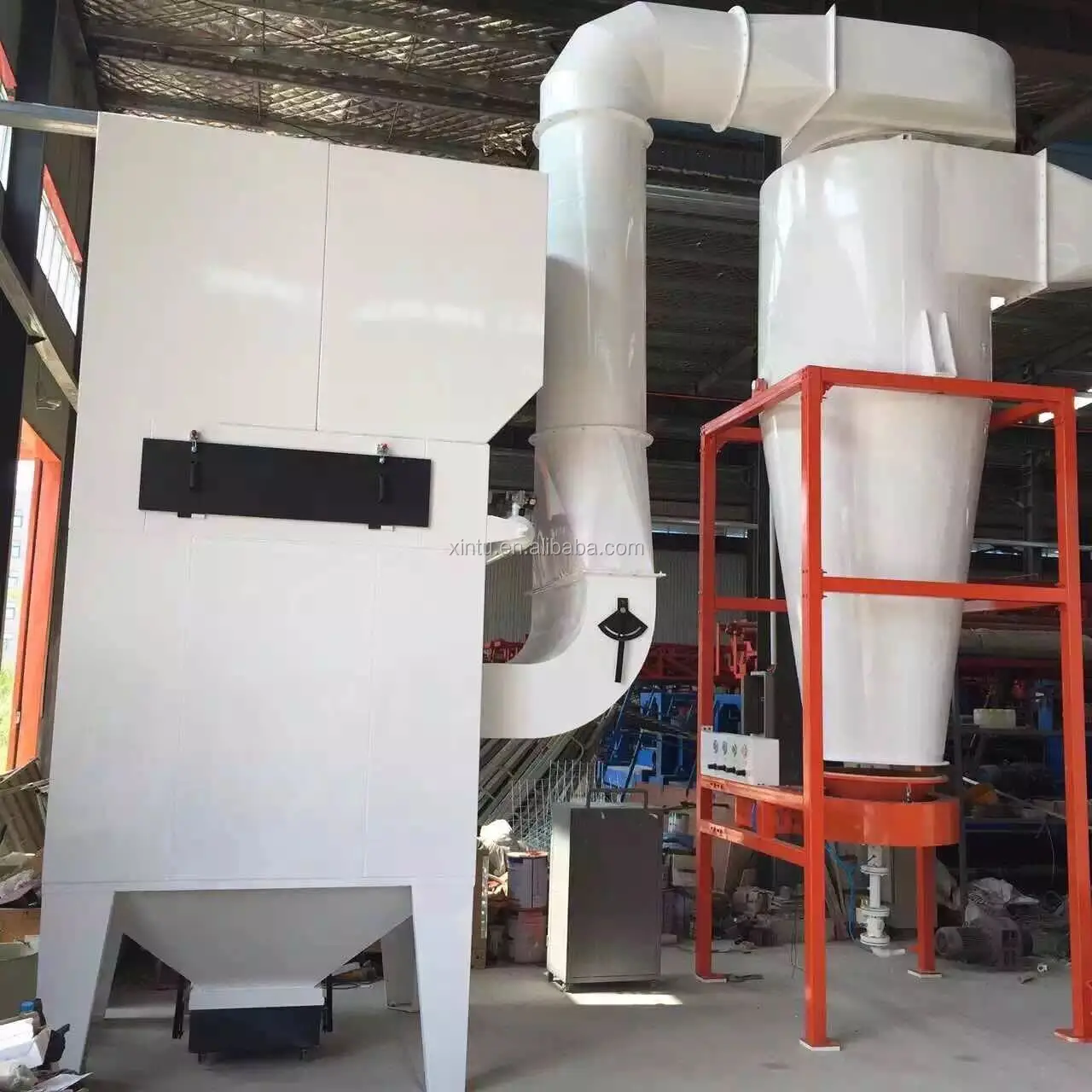

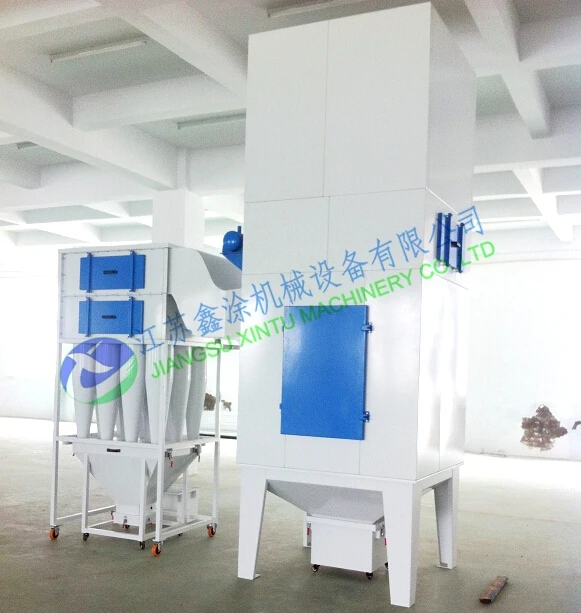

Material:cold-rolled sheet/stainless steel/PP (PP is the best because of it has anti-static fuction) powder painting gun reciprocator: press button/touch screen (automatic robot is available) fan:nanfang(famous brand) control system:imported european brand recycle system:filter/multi-pipe cyclone/mono-cyclone three systems recycle rate:over 95% powder supply system:customized filter cleaning system:pulse/rotating fan are both OK for us











3.2POWDER CURING SYSTEM

Material inner:galvanized sheet/Stainless Steel outsider:powder coated cold-rolled sheet Rook wool:120/150mm heating resource:LPG/NATURAL GAS/PETROL OIL/ELECTRIC BURNER:ITALY RIELLO FAN:NANFANG/NUOFANG TEMPERATURE CONTROL: TIME CONTROL/ALARM BELL/SENSOR temperature fluctuation:less than 5°C









3.3.CONVEYOR SYSTEM

The conveyor system includes retainer, track,chain,tensioner,hanger,fueler,controller and so on. Retainer:carterpilla,bull back type, crawler type load limiting. track:straight rail,round rail, chain:150/240/250/300mm, tensioner:spring tensioner seat/hammer type tensioner seat hanger:many different kinds according to your workpiece Fueler:automatic/manual Controller:TAIWAN BRAND OR CHINA BRAND

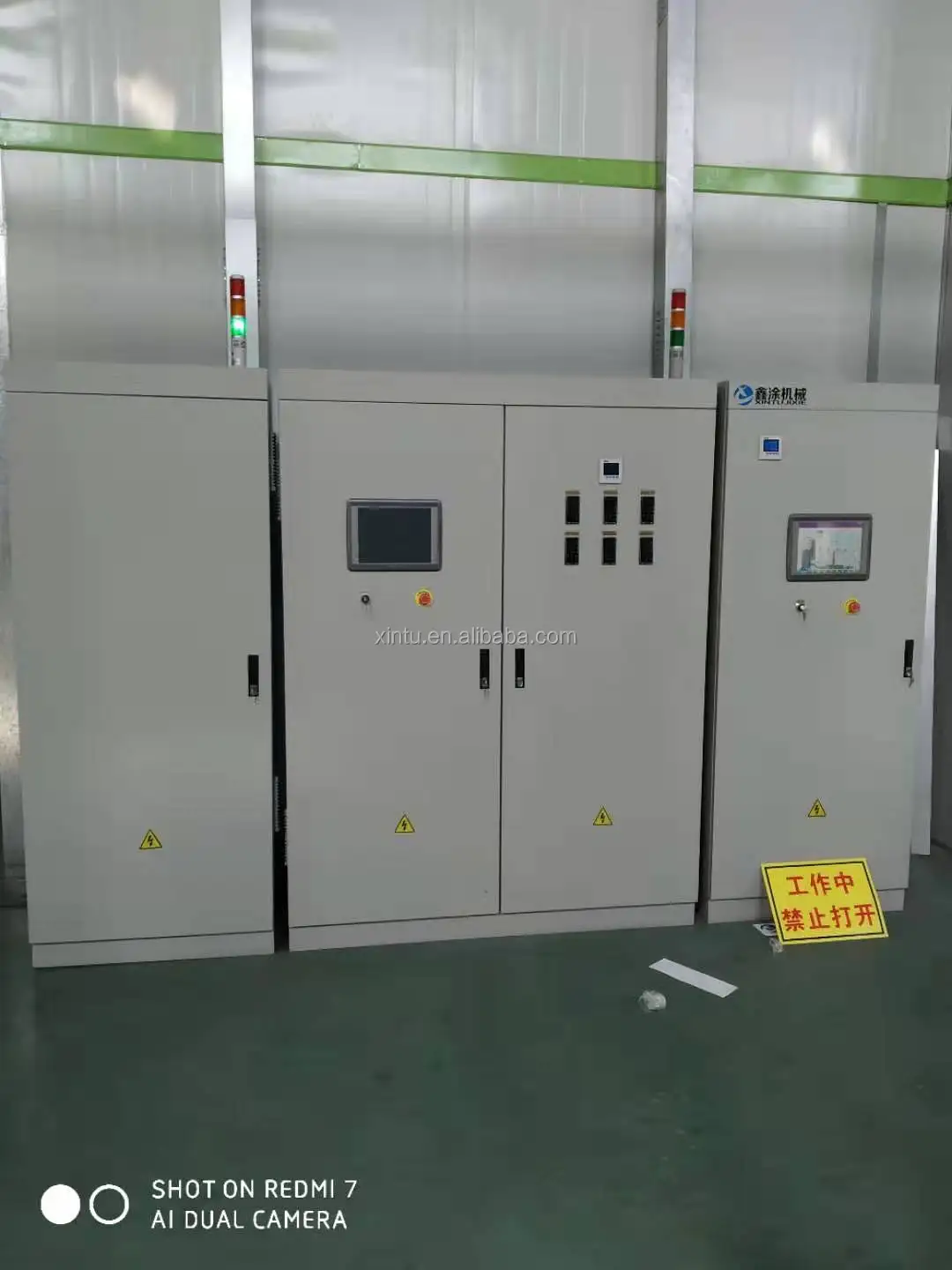

3.4CONTROL SYSTEM

BRAND:XINTU(OUR NEW INVENTED CONTROL SYSTEM) CONTROL PANEL:INTERFACE WEINVIEW BRAND(CUSTOMIZED IS OK) SWITCH:DELIXI(WORLD FAMOUS CHINESE BRAND)(telemecanique is ok) INVERER:MITSUBISHI

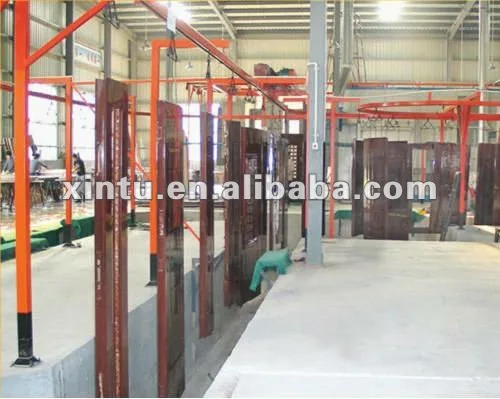

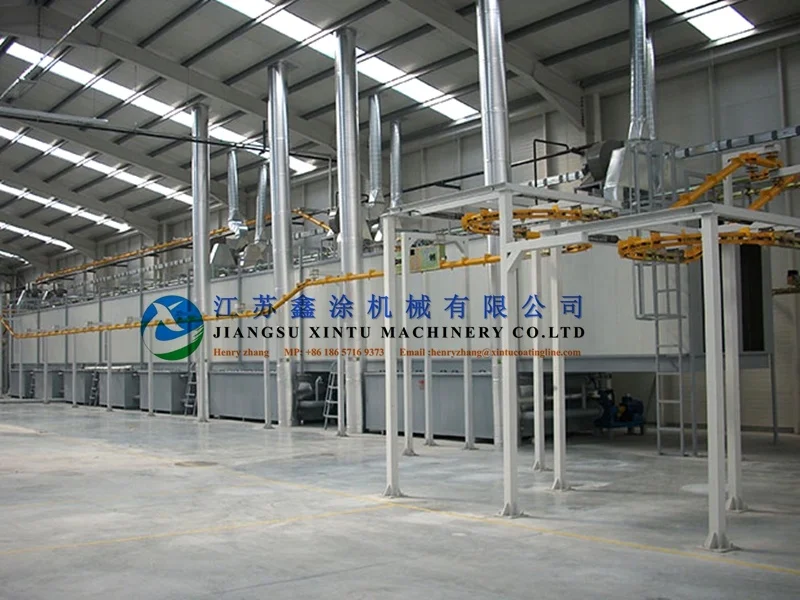

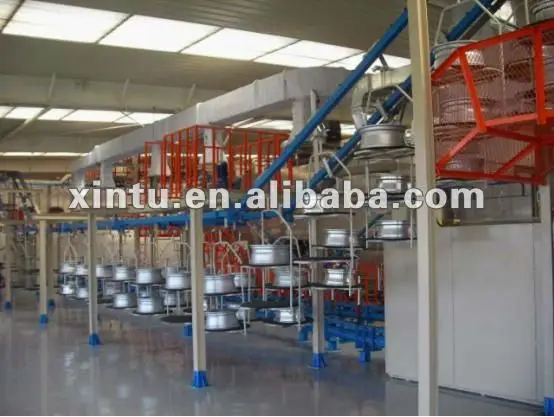

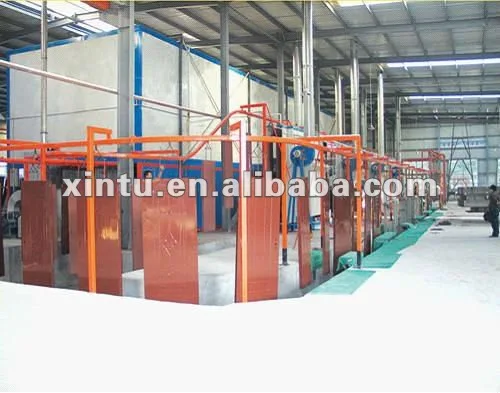

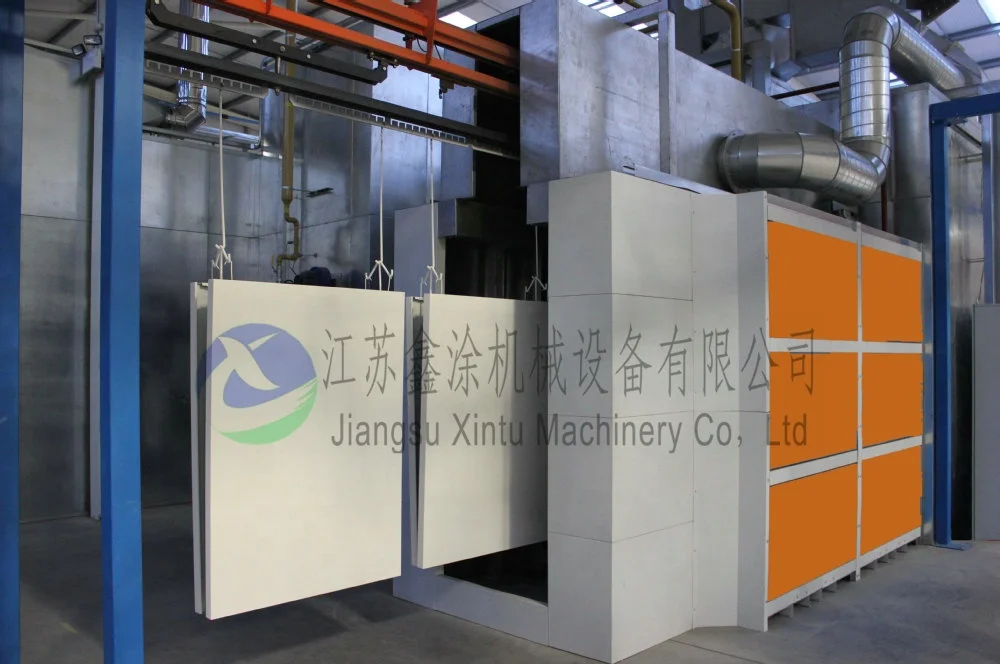

4.ENGINEER CASE





5.DELIVERY AND AFTERSALE SERVICE

  5.1DELIVERY:by sea to your nearest seaport with lowest shipping charges

  5.2 AFTERSALE SERVICE:engineers are available to serve machinery overseas with one year warranty

  5.3 We actively find local customers to be our agent in your local market.

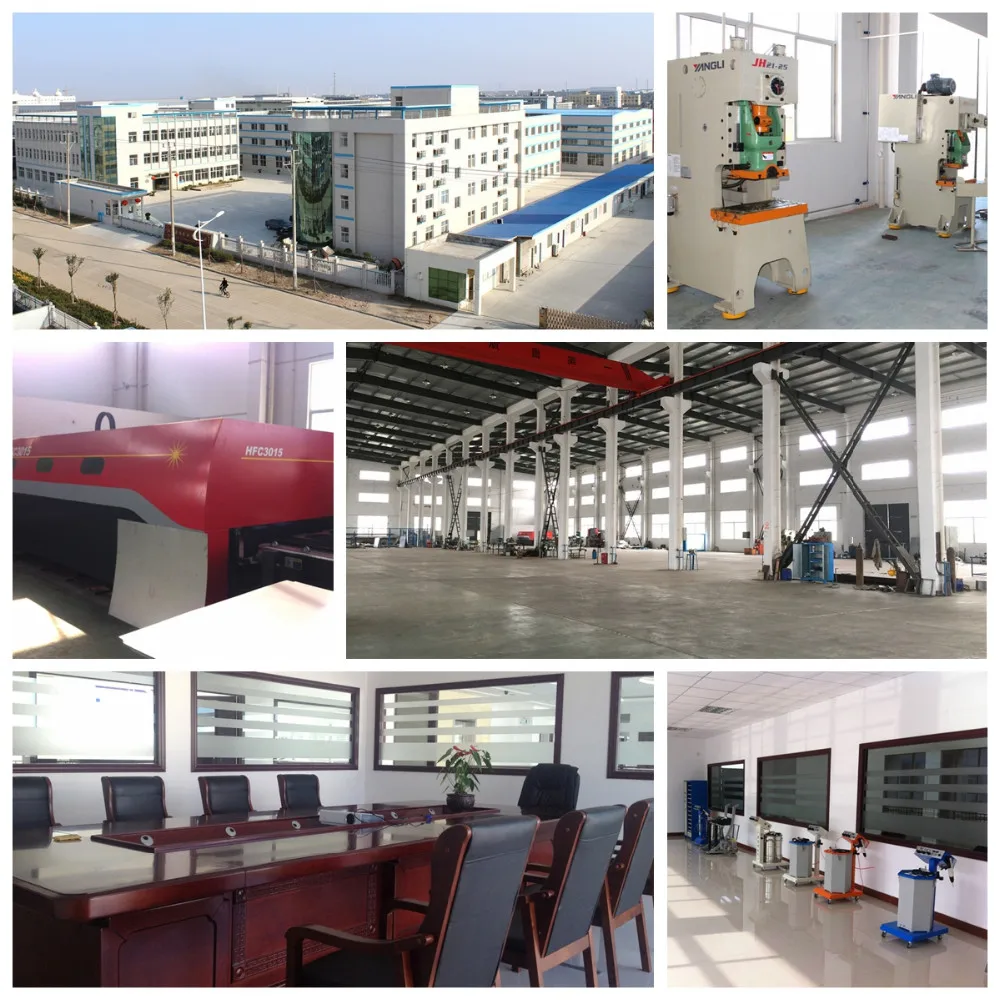

 OUR COMPANY







Jiangsu Xintu Machinery Co., Ltd is one of the leading Manufacturers in powder coating equipment or total line and flocking machines.

  Our company found in 2011, with the factory in Jiangsu province nearby Shanghai city. it would take up a considerable 25,000square meters.
   Almost 15 years experience in offering a wide variety products such as powder coating equipment, flocking machine and their accessories, also if customers have a specific request can according to clients parameters to customized machine or line.
   We have developed steady business relationship with clients from all over the world such as North America, Europe, middle East, Southeast Asia and so on.
   We have experienced and skilled workers, QC team and QA system,also have ISO9001,CE,SGS certification.100%quality checking and tests before shipment.
   We will offer you the most competitive price and best service!
