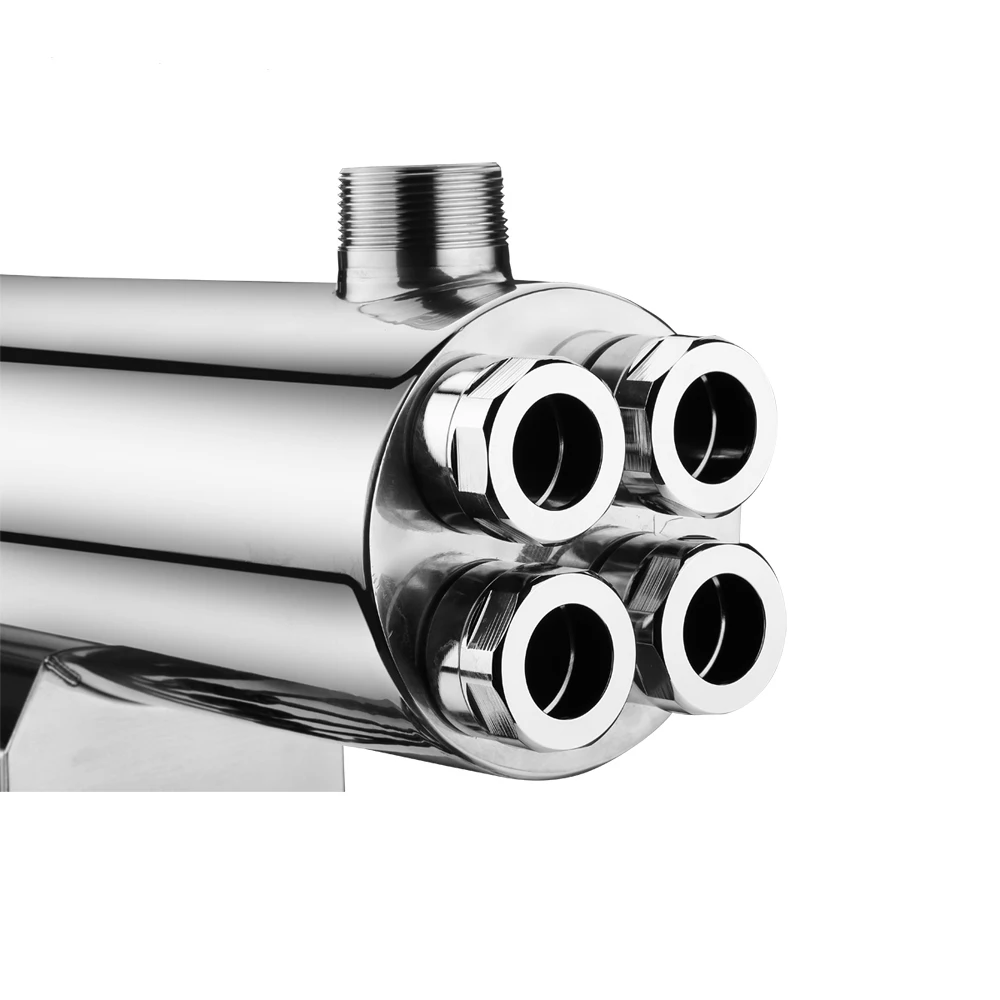

Water Treatment Machine 96GPM 440W 254nm Stainless Steel Water Purification System For Water Storage Tank
- Category: >>>
- Supplier: Jiangyin Feiyang Instrument Co. Ltd.
Share on (62451576369):
Product Overview
Description
Water Treatment Machine 96GPM 440W 254nm Stainless Steel Water Purification System For Water Storage Tank
Product Description
UV Sterilizer Introduction:
A UV Sterilizer is a germicidal filtration device that uses UV Sterilization to filter the water resulting in clarification, lower
disease pathogens, and improved Redox in your aquarium or pond.
A correctly installed and well designed UV Sterilizer can kill most suspended bacteria and many viruses in the water column, while not affecting bacterial colonies in filter media and substrate. As well a UV Sterilizer/Clarifier can clear green water in aquariums or ponds. It also improves the Redox Balance in an aquarium or pond which improves the fish ability to fight disease. A UV sterilizer aids in the control of parasites such as Ich or Cryptocaryon by improving immune function and at very low flows (under 8-12 gph per watt) can more directly aid in parasite control of parasites in the water column
A UV Sterilizer is a germicidal filtration device that uses UV Sterilization to filter the water resulting in clarification, lower
disease pathogens, and improved Redox in your aquarium or pond.
A correctly installed and well designed UV Sterilizer can kill most suspended bacteria and many viruses in the water column, while not affecting bacterial colonies in filter media and substrate. As well a UV Sterilizer/Clarifier can clear green water in aquariums or ponds. It also improves the Redox Balance in an aquarium or pond which improves the fish ability to fight disease. A UV sterilizer aids in the control of parasites such as Ich or Cryptocaryon by improving immune function and at very low flows (under 8-12 gph per watt) can more directly aid in parasite control of parasites in the water column
Technical Specification
UV Sterilizer Work:
A pump pushes the water through the UV Sterilizer at a specific flow rate, where the water will come in contact with the UV
producing light either directly or indirectly via a quartz sleeve. then the UV Light sterilizes the water, and it is returned to
your tank or pond.
A pump pushes the water through the UV Sterilizer at a specific flow rate, where the water will come in contact with the UV
producing light either directly or indirectly via a quartz sleeve. then the UV Light sterilizes the water, and it is returned to
your tank or pond.
Product Name | Specification Inlet/Outlet | Lamp Quantity | Flow Rate | Package |
PHY-110W | 950*φ108, 1"male/flange | 2 | 24GPM（5.4M³/Hr) | 103.5x21x41.5cm/1pc |
PHY-165W | 950*φ133, 1.5"male/flange | 3 | 36GPM（8.1M³/Hr) | |
PHY-220W | 950*φ133, 2"male/flange | 4 | 48GPM（10.9M³/Hr) | |
PHY-330W | 950*φ168, 2"male/flange | 6 | 72GPM（16.3M³/Hr) | 109*35*67cm/1pc |
PHY-440W | 950*φ219mm, 3"male/flange | 8 | 96GPM（21.8M³/Hr) | 109*42*77cm/1pc |
PHY-550W | 950*φ273mm, 4"male/flange | 10 | 120GPM（27.2M³/Hr) | 109*49*83cm/1pc |
PHY-660W | 950*φ273mm, 4"male/flange | 12 | 144GPM（32.7M³/Hr) | |
PHYC-110W | 950*φ108mm, 1"male/flange | 2 | 24GPM（5.4M³/Hr) | 103.5x21x41.5cm/1pc carton 19kg |
PHYC-165W | 950*φ133mm, 1.5"male/flange | 3 | 36GPM（8.1M³/Hr) | |
PHYC-220W | 950*φ133mm, 2"male/flange | 4 | 48GPM（10.9M³/Hr) | |
PHYC-330W | 950*φ168mm, 2"male/flange | 6 | 72GPM（16.3M³/Hr) | 109*35*67cm/35kg/1pc wooden case |
PHYC-440W | 950*φ219mm, 3"male/flange | 8 | 96GPM（21.8M³/Hr) | 109*42*77cm/48kg/1pc wooden case |
PHYC-550W | 950*φ273mm, 4"male/flange | 10 | 120GPM（27.2M³/Hr) | 109*49*83cm/69kg/1pc wooden case |
PHYC-660W | 950*φ273mm, 4"male/flange | 12 | 144GPM（32.7M³/Hr) |
You can choose from a variety of styles.
Support custom thread size, flange size, control box or inlet and outlet position.
Material choice: 304SS/316SS, the lamp can choose Philips lamp..

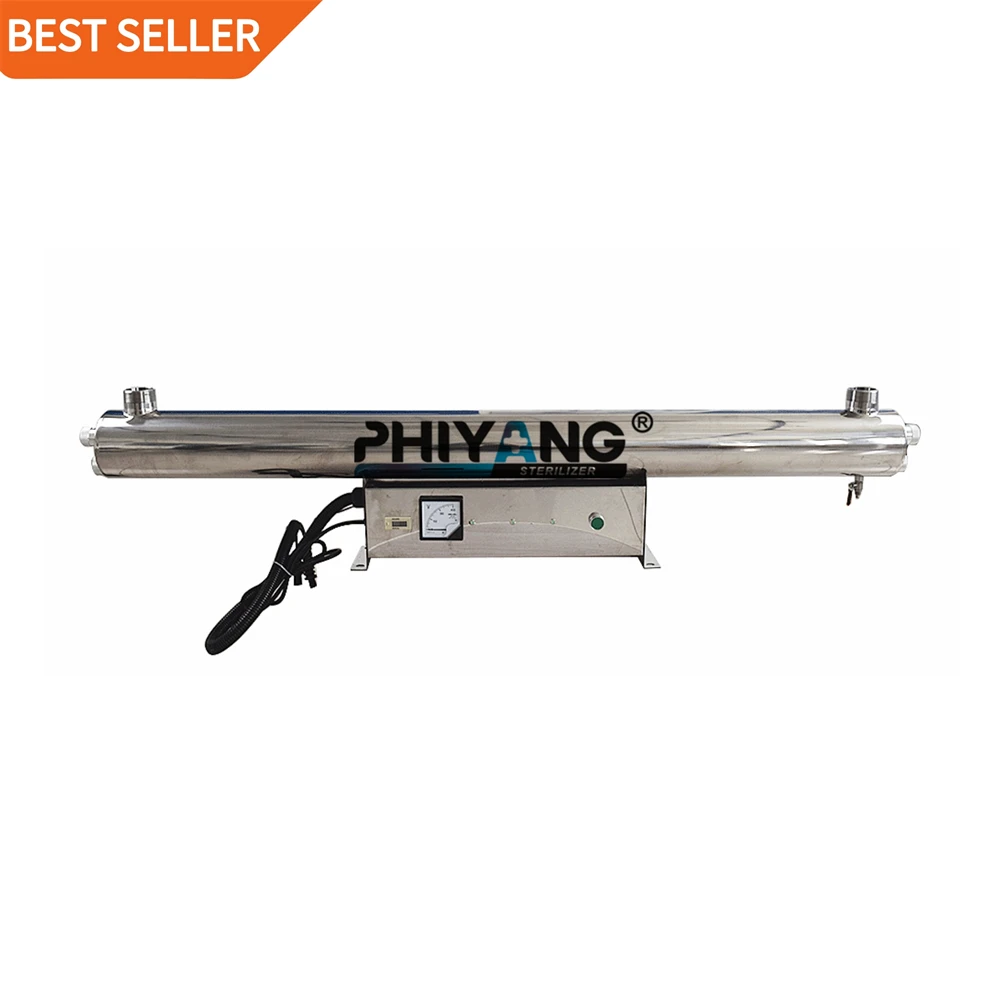

Threaded inlet and outlet with control box.
（The ballast with control box is built in. The control box has voltmeter and timer, control switch, fault indicator.）

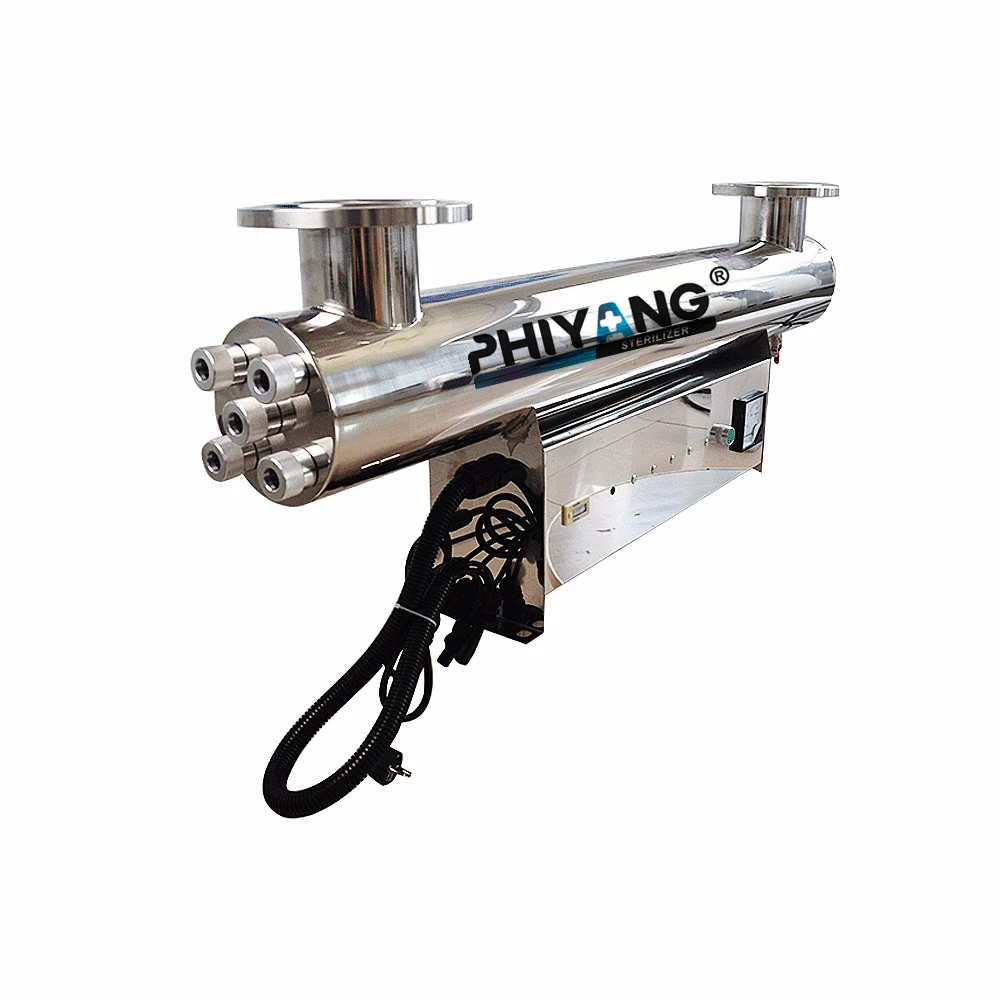

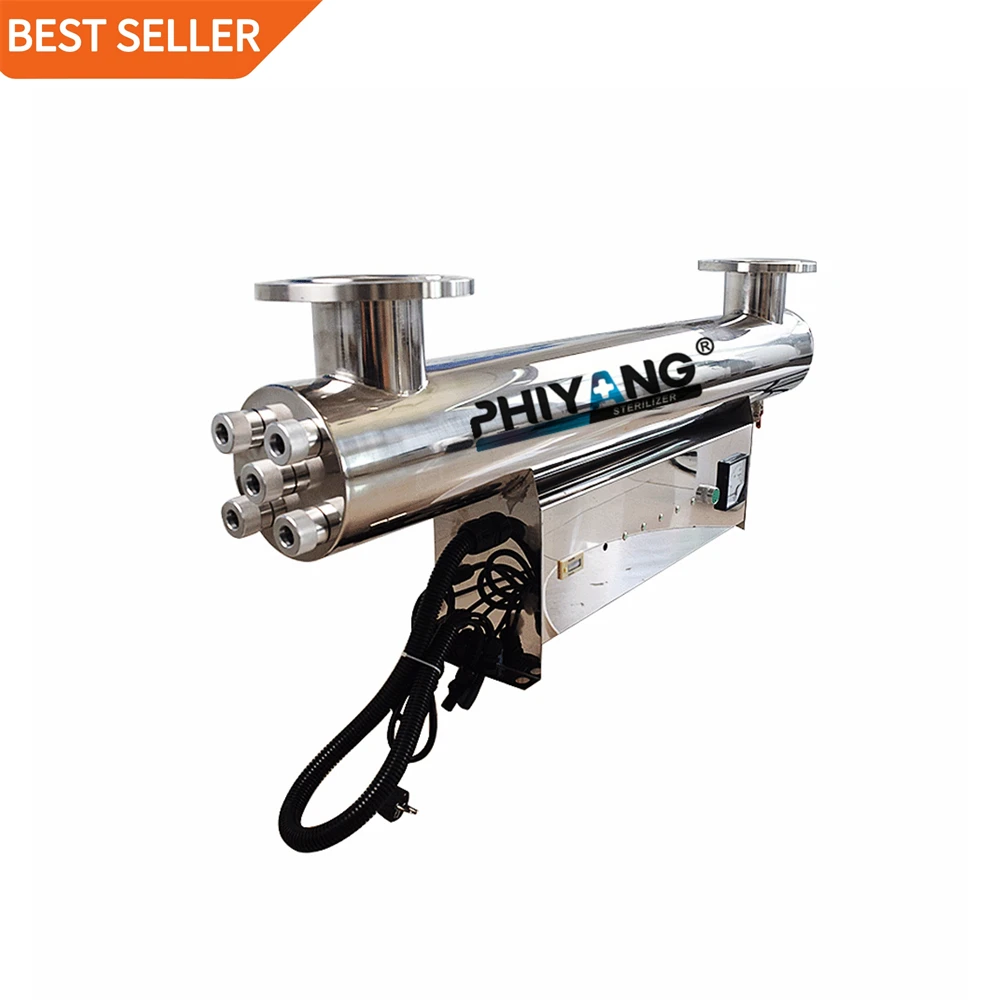

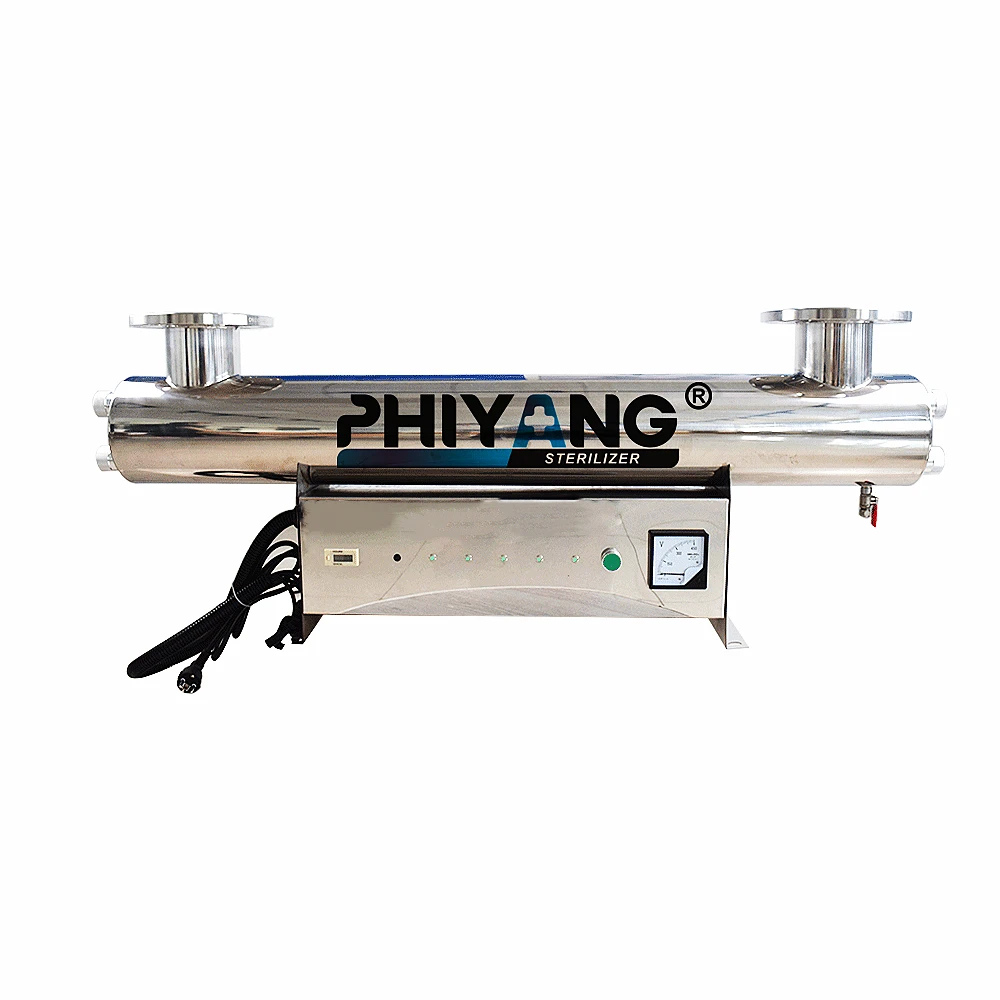

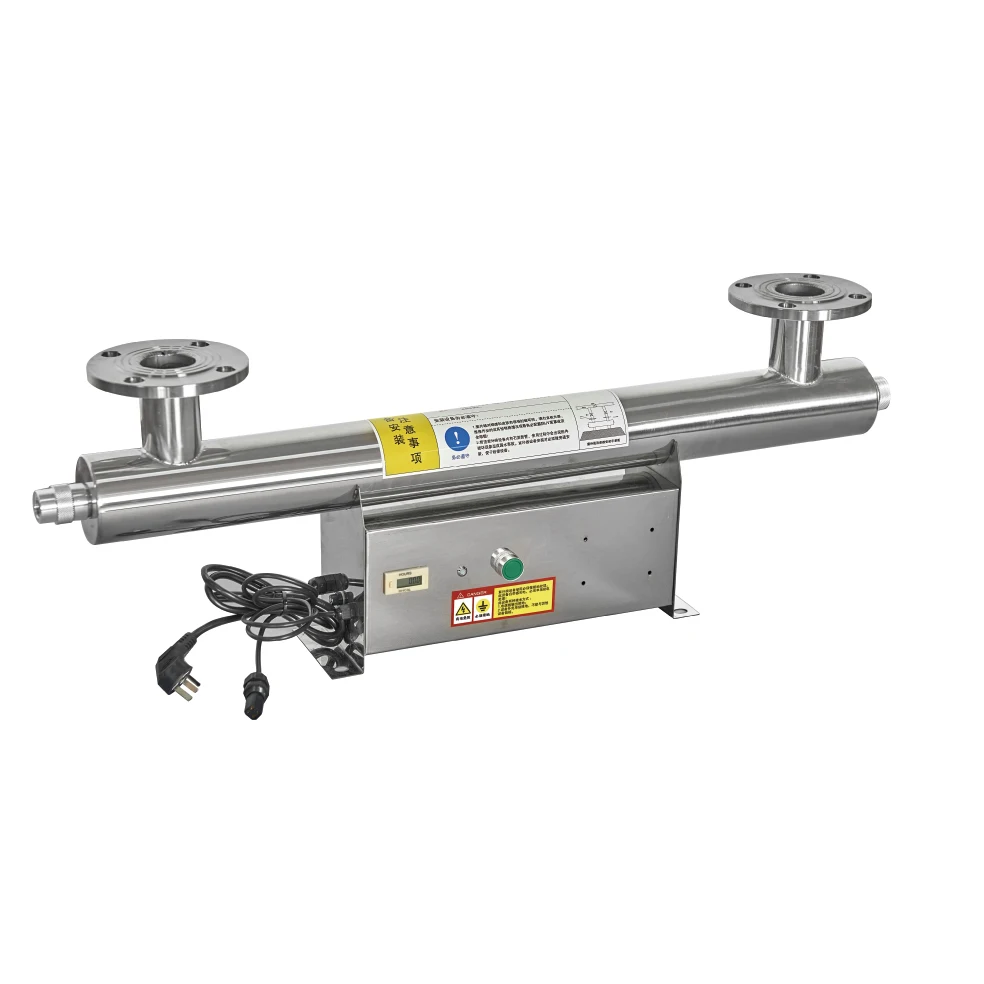

Flange inlet and outlet with control box
（The ballast with control box is built in. The control box has voltmeter and timer, control switch, fault indicator）

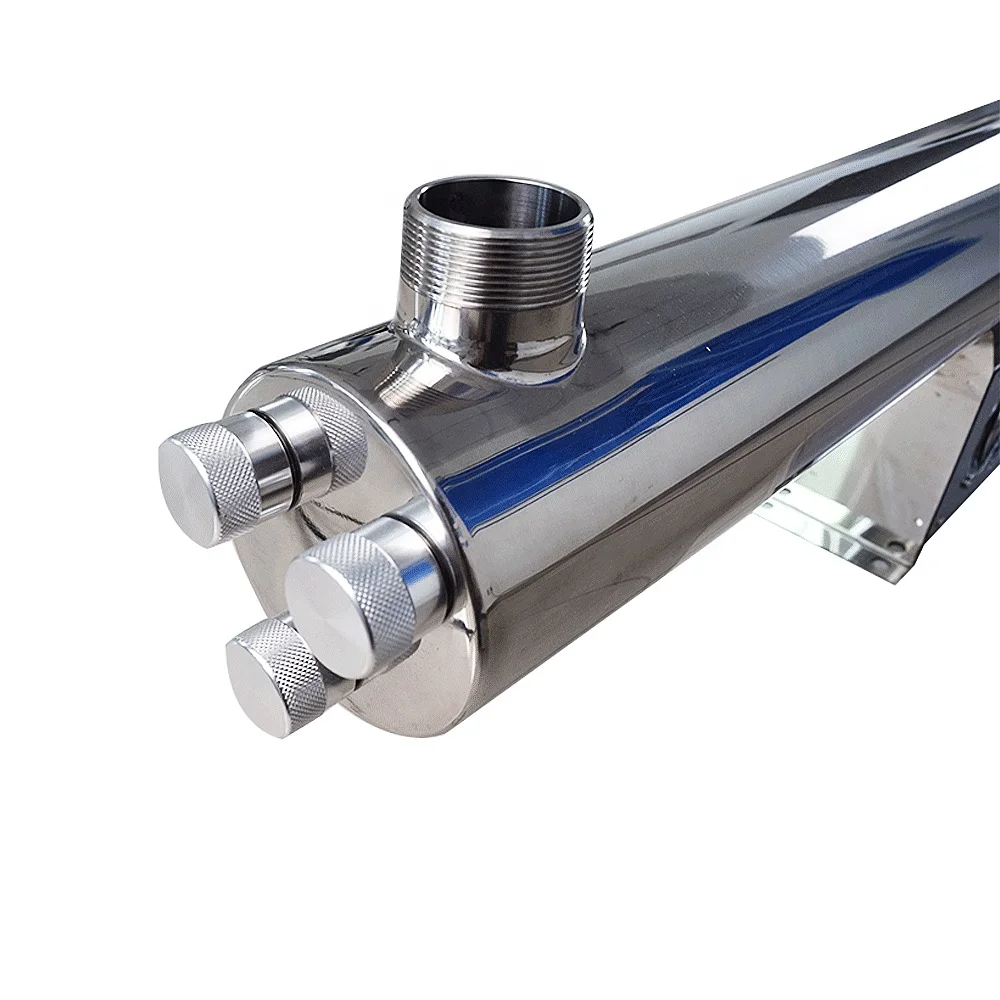

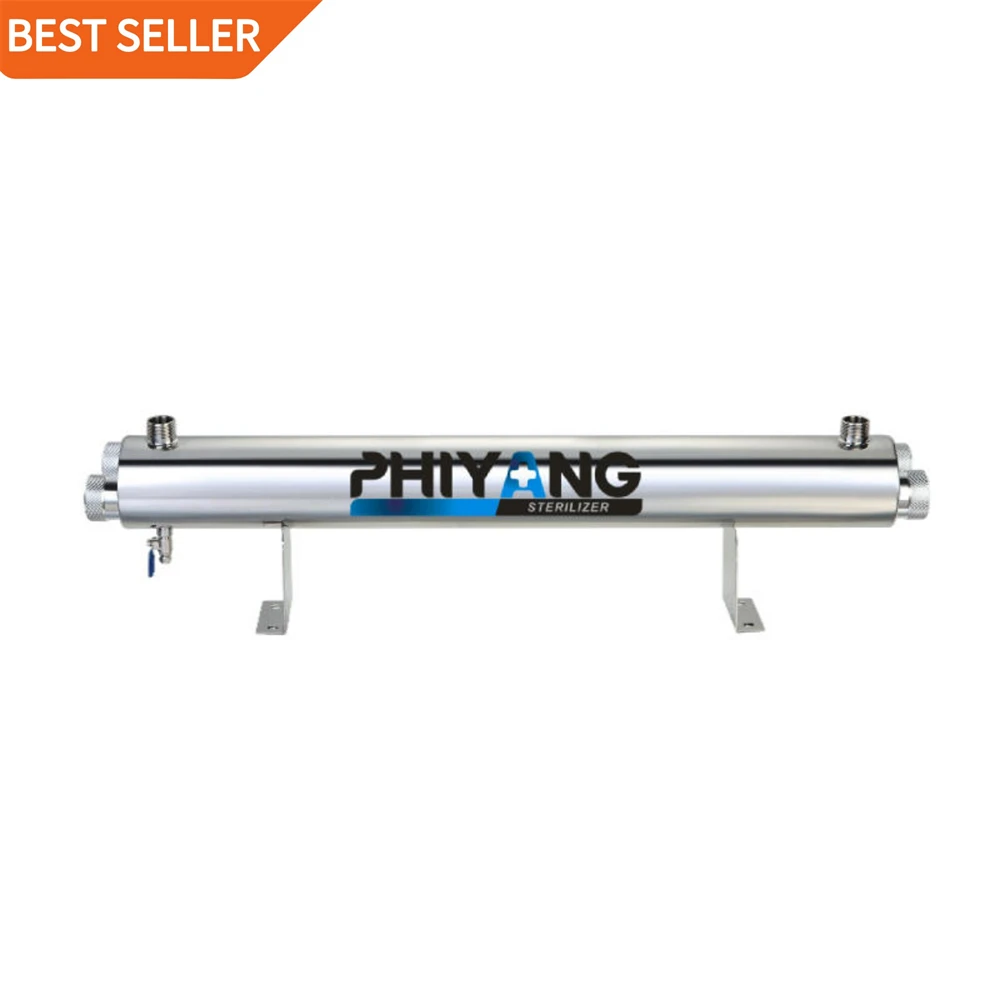

Threaded inlet and outlet without control box/optional flange inlet and outlet.
Without the control box, the ballast is exposed. No other features.
Position selection of control box/inlet and outlet
