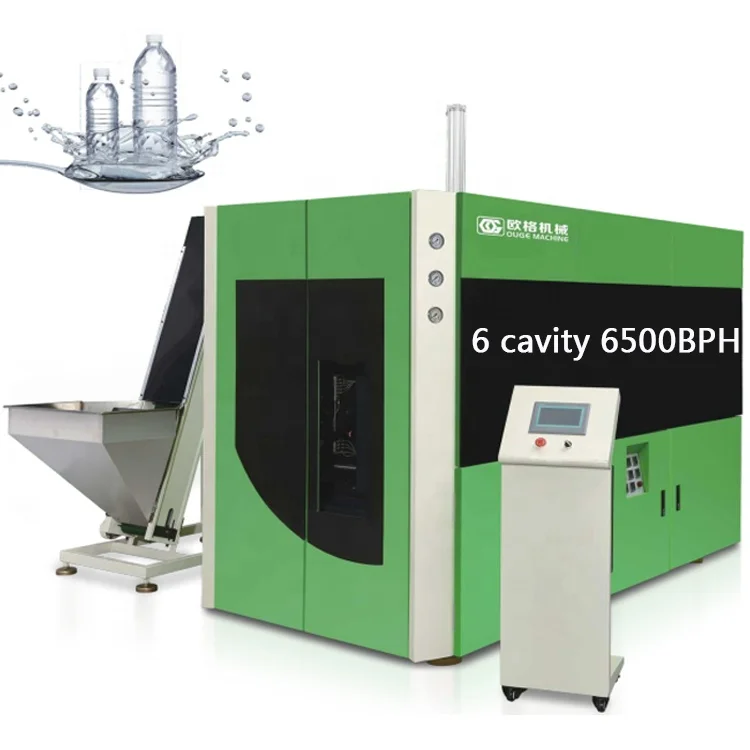

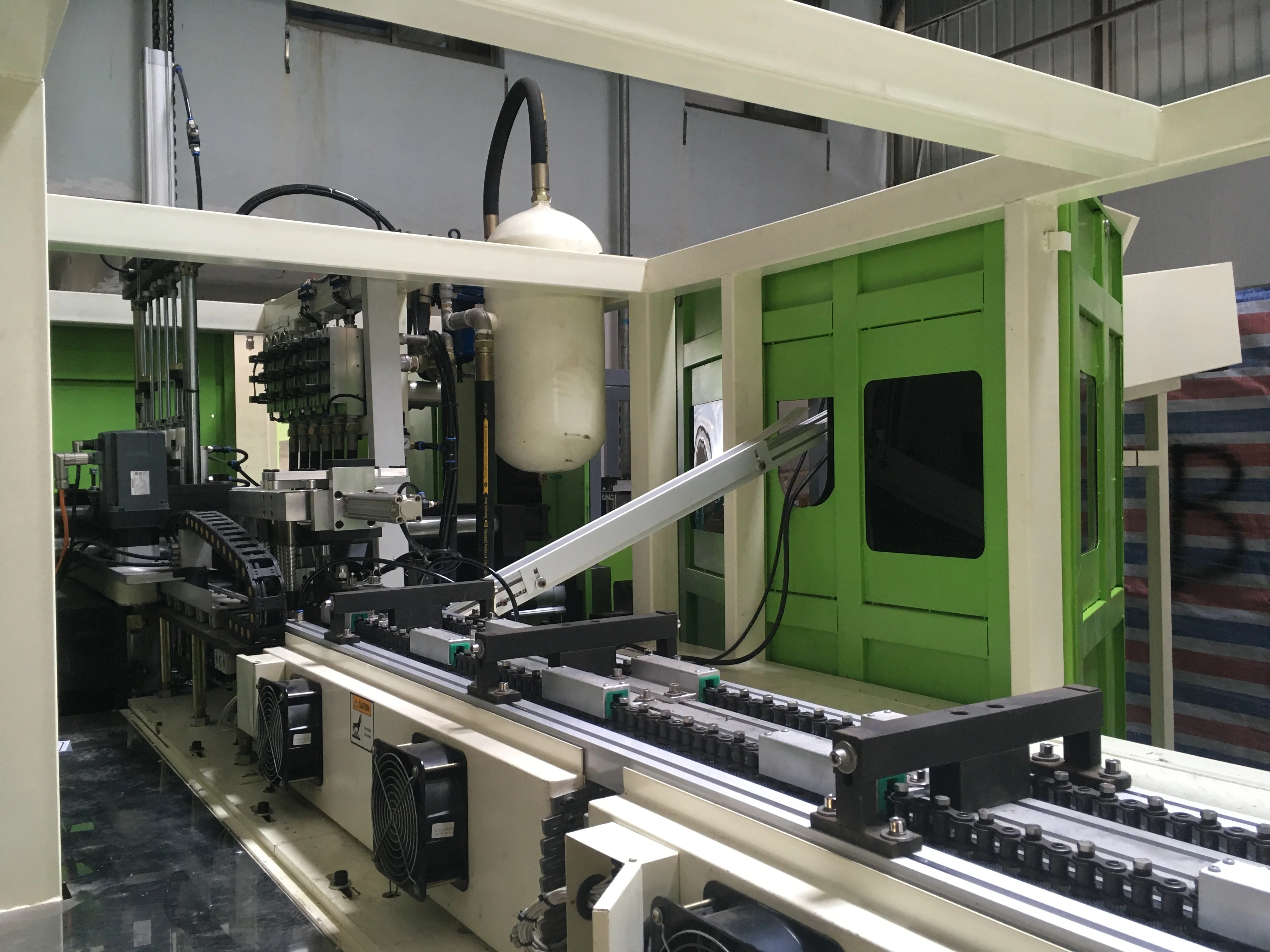

automatic Injection Stretch Blow Molding Machine
- Category: >>>
- Supplier: Taizhou Huangyan Ouge Machine Mould Co. Ltd.
Share on (62451627115):
Product Overview
Description
Product Description
Product Application
Full-automatic Servo Moter Blow Moulding Machine is suitable for producing PET bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle, hot fill bottle etc. Beverage bottle, medicine bottle etc.
ITEM | 单位 | OGB-6S | |||||
瓶型规格 PRODUCT | 理论产量 | Theoretical output | Pcs/h | 6500 | |||
容积 | Max.volume | L | 1.5 | ||||
最大高度 | Max. height | mm | 360 | ||||
最大直径 | Max. diameter | mm | 105 | ||||
成型组规格 MOULD | 模穴数 | Number of cavities | / | 6 | |||
模板尺寸 | Mould plate dimension(LxH) | mm | 840x360 | ||||
模厚 | Mould thickness | mm | 198 | ||||
开模行程 | Mould opening stroke | mm | 110 | ||||
电力规格 ELECTRICAL | 电源 | Power | / | 220-380v/50-60hz | |||
总功率 | Total power | KW | 35 | ||||
加热功率 | Heating power | KW | 32 | ||||
空压机规格 AIR SYSTEM | 动作压力 | Operation Pressure | Mpa | 0.8-1.0 | |||
动作耗气量 | Action Air Consuming | m3/min | 1.6 | ||||
吹气压力 | Blowing Pressure | Mpa | 2.6-4.0 | ||||
吹气耗气量 | Blowing Air Consuming | m3/min | 4.8 | ||||
机器规格 MACHINE | 吹瓶机主机尺寸 | Main body dimension(LxWxH) | M | 3.9x1.9x2.0 | |||
吹瓶机主机重量 | Main body weight | KG | 3200 | ||||
瓶胚输送机尺寸 | Preform Autoloader （LxWxH） | M | 2.1x1.9x2.4 | ||||
瓶胚输送机重量 | Preform Autoloader weight | KG | 300 | ||||
Products Show
Our Company
About us
Ouge company is located in the East China Sea coast, the famous "mould hometown"---- Huangyan Taizhou,Zhejiang. Specializes in the production of PET automatic and semi-automatic blowing machines, preform moulds and bottle moulds. It consists of many professional engineers with rich experience in the PET industry and high-quality staff. The main products include: PET automatic and semi-automatic blowing machines, all kinds of moulds for carbonated beverage bottles, juice bottles, alcohol drinks bottles, and cosmetic containers, PMMA lamps, PP infusion bottles, edible oil bottles, etc. Over the past several years, Ouge has always been devoting its utmost efforts to improving the technology, researching the market and developing new products to suit for all customer needs.
Packing & Delivery
Packing Details : wooden case &plastic packaging
Delivery Details : 45 days after receive the deposit
