OEM/ODM Dali Gateway Triac Circuit For Dimming Control System
- Category: >>>
- Supplier: Okystar Technology Co. Ltd.
Share on (62451669962):
Product Overview
Description
Automatic Dimming System Introduction
okystar won the title of Alibaba's major customer
Products Description
>>4 channels of dimming
>>120 to 277 Volt 50/60 Hz operation
>>4 channels of air-gap relay
>>Override input
>>DC-Net communications
>>Setup via front panel or software
>>Programmable functionality via DIN-CP1
>>12M wide DIN rail mounting
>>120 to 277 Volt 50/60 Hz operation
>>4 channels of air-gap relay
>>Override input
>>DC-Net communications
>>Setup via front panel or software
>>Programmable functionality via DIN-CP1
>>12M wide DIN rail mounting
Product Features

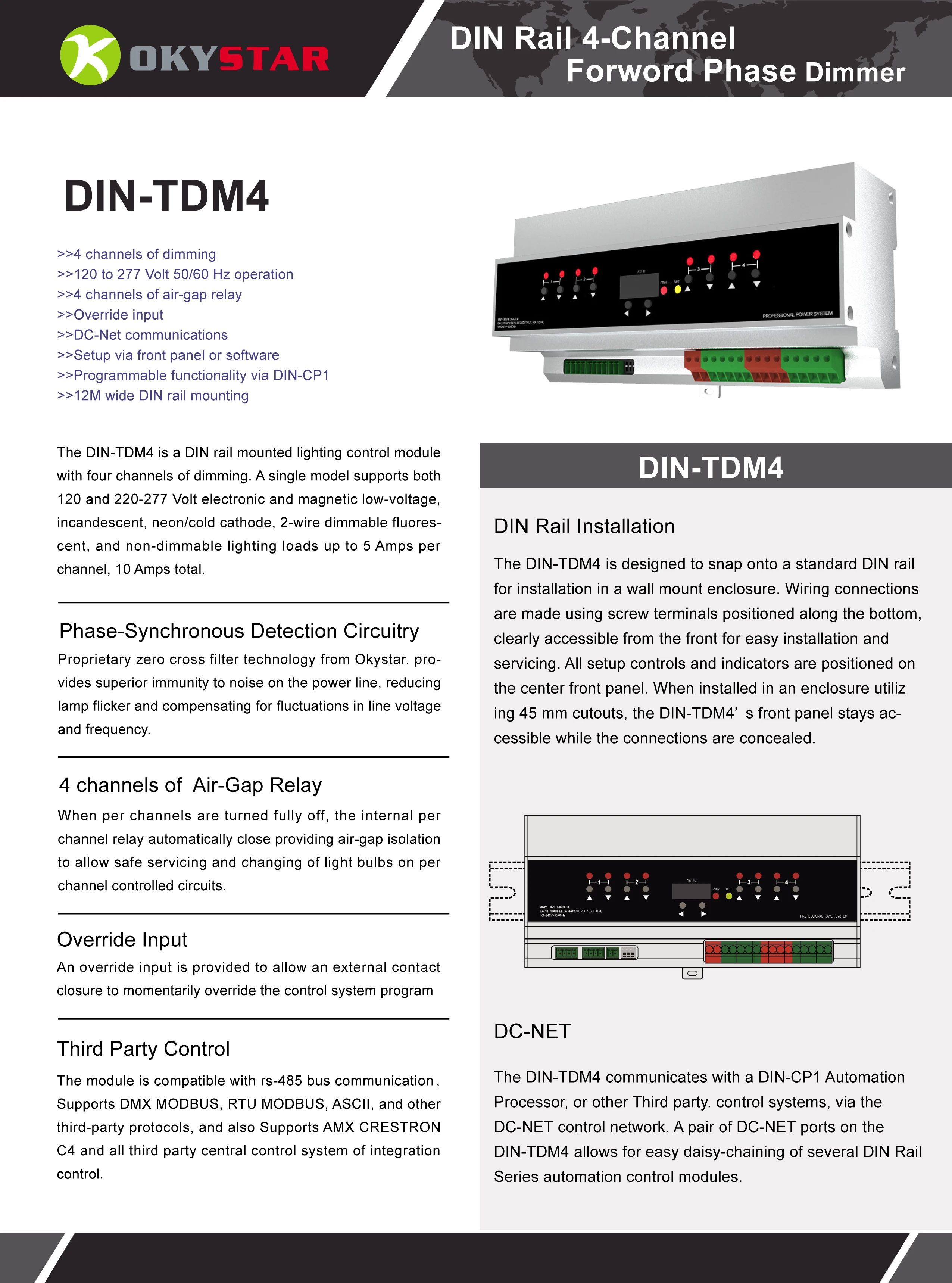

The DIN-TDM4 is a DIN rail mounted lighting control module with four channels of dimming. A single model supports both
120 and 220-277 Volt electronic and magnetic low-voltage, incandescent, neon/cold cathode, 2-wire dimmable fluores
cent, and non-dimmable lighting loads up to 5 Amps per channel, 10 Amp
120 and 220-277 Volt electronic and magnetic low-voltage, incandescent, neon/cold cathode, 2-wire dimmable fluores
cent, and non-dimmable lighting loads up to 5 Amps per channel, 10 Amp
Phase-Synchronous Detection Circuitry
Proprietary zero cross filter technology from Okystar. provides superior immunity to noise on the power line, reducing
Proprietary zero cross filter technology from Okystar. provides superior immunity to noise on the power line, reducing
lamp flicker and compensating for fluctuations in line voltage and frequency.
Product Specifications
Dimmer Channels | 4 |
Load Types | Leading edge ELV, Incandescent, Neon/Cold Cathode, Magnetic Low Voltage, Dimmable 2 Wire Fluorescent, & Non-Dim Lighting |
Maximum Per Channel | 5 Amps @ 120 to 240 Volts AC, 50/60 Hz 600 Watts @ 120 Volts AC; 1150 Watts @ 230 Volts AC; 1200 Watts @ 240 Volts AC ; 1385 Watts @ 277 Volts AC |
Module Total | 10 Amps @ 120 to 277 Volts AC, 50/60 Hz; 1200 Watts @ 120 Volts AC;2300 Watts @ 230 Volts AC; 2400 Watts @ 240 Volts AC;2770 Watts @ 277 Volts AC |
LIVE | (2) Captive screw terminals[1], Red;Line power input |
NEUTRAL | (5) Captive screw terminals, Green |

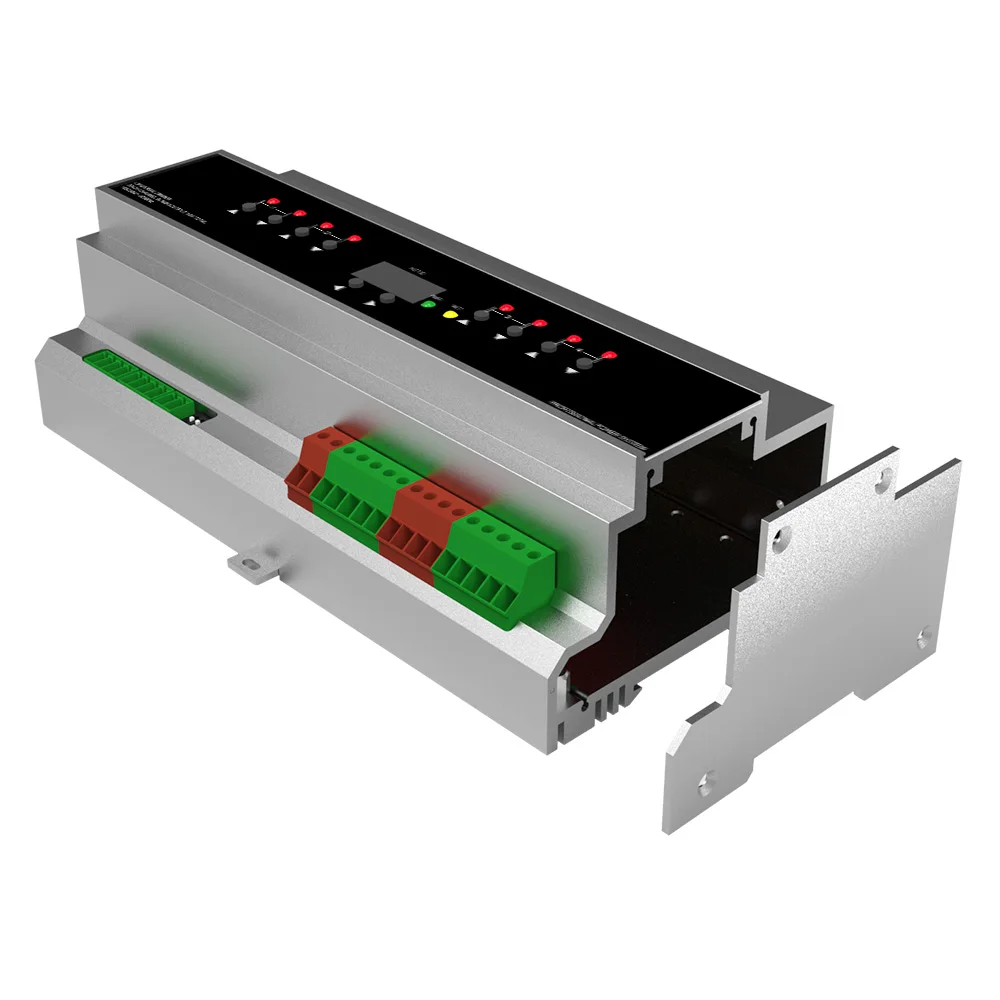

Product Photo
Our Company
Okystar Technology Co., Ltd is subsidiary of Okystar Technology Group Co., Ltd, which holds 4 subsidiary companies and more than 100 skilled workers,5. technicians.Okystar Tech Co.,Ltd was built in 2004.We mainly manufacture and export lighting control system including DALI, 0-10V, Leading / Trailing Edge Dimmer, Programmable Touch Panel and etc.
After 10 years development, our company has grown into a large high-tech group corporation integrated industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules. Now we launch new lighting control system module which will keep our competitiveness in the market.
After 10 years development, our company has grown into a large high-tech group corporation integrated industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules. Now we launch new lighting control system module which will keep our competitiveness in the market.
Exhibition
FAQ
1.Can you make customer design please?
Yes., we can. Okystar have 6-8 engineers team.
We can make new design according to your request.
2.Can you make our logo in the package please?
Yes. We can. Such as printing your logo.
3.How about your quality of products?
Less than 2% repairing rate within one year.
Our QC team has 3 members who test quality before shipping.
4.What is warranty of your products?
Refunds within 3 months,2 years warranty replacement or repairment for free.
5.Are you a manufacturer?
Yes, we are. Our factory and office are in Shenzhen, welcome to visit us at any time.
Yes., we can. Okystar have 6-8 engineers team.
We can make new design according to your request.
2.Can you make our logo in the package please?
Yes. We can. Such as printing your logo.
3.How about your quality of products?
Less than 2% repairing rate within one year.
Our QC team has 3 members who test quality before shipping.
4.What is warranty of your products?
Refunds within 3 months,2 years warranty replacement or repairment for free.
5.Are you a manufacturer?
Yes, we are. Our factory and office are in Shenzhen, welcome to visit us at any time.
