Cs6266c lathe 3000mm/4000mm long Z axis travel high stability Normal CNC or not turning machine price spindle bore 105mm LT6266C
- Category: >>>
- Supplier: Shandong Tsinfa CNC Equipment Co. Ltd.
Share on (62451696019):
Product Overview
Description
Related Products
Product Description

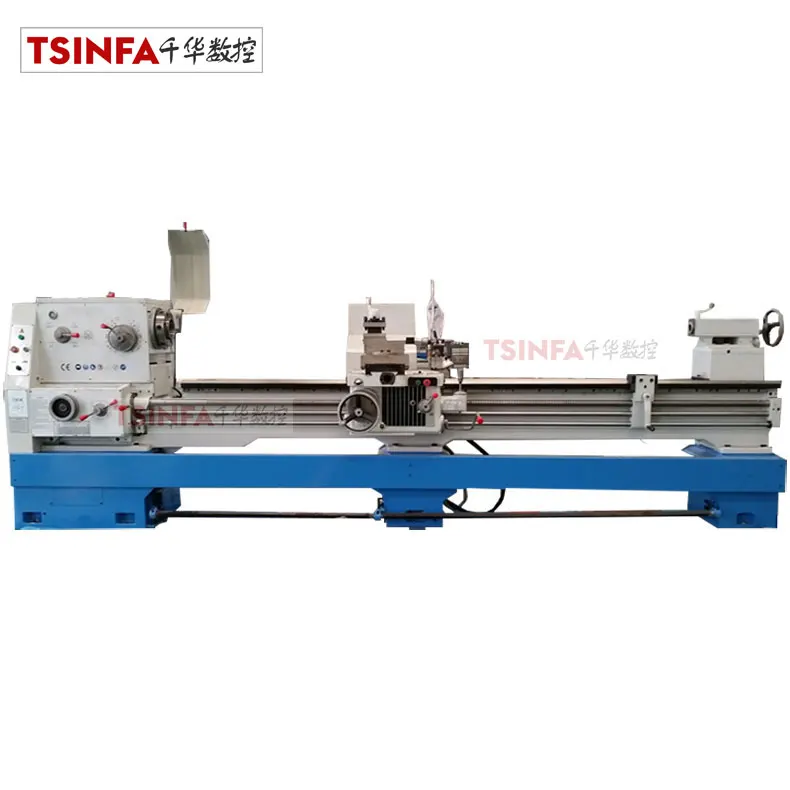

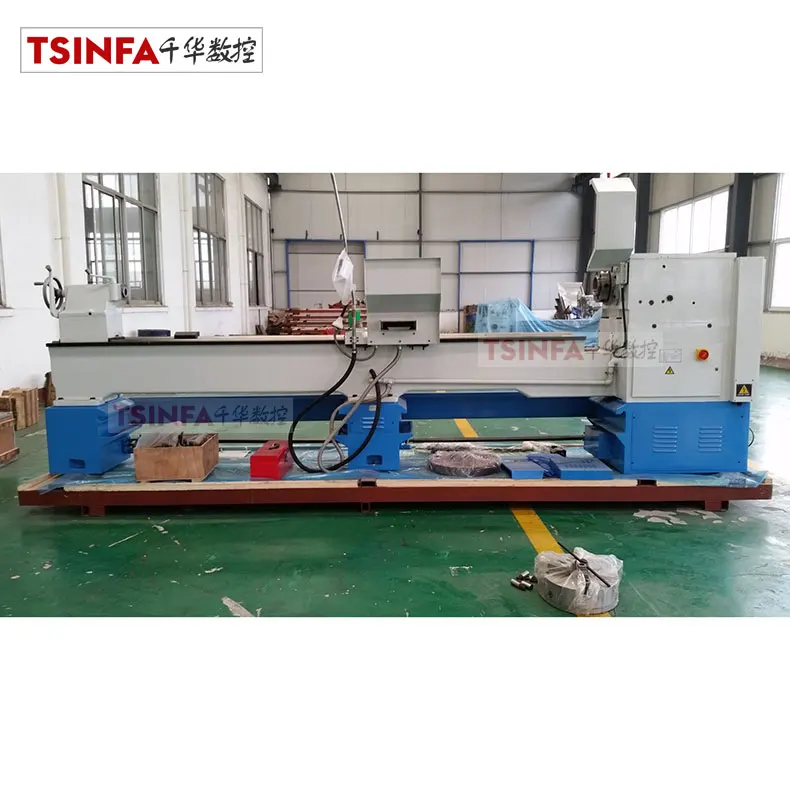

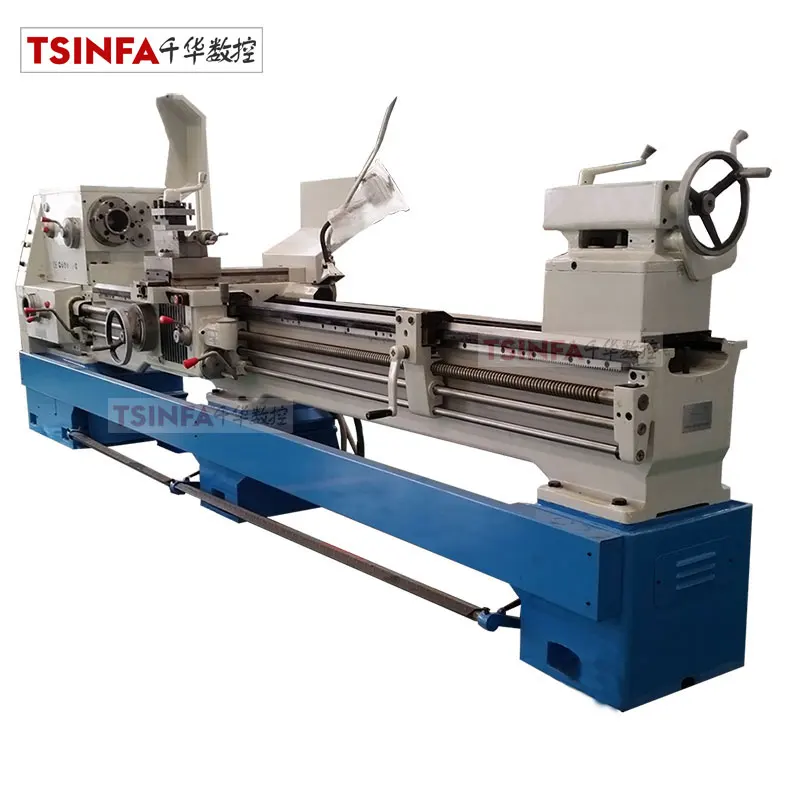

LT61 (2) 66 series general horizontal lathe is suitable for turning internal and external cylindrical surfaces, conical surfaces and other rotating surfaces, turning all kinds of metric, British, modulus and diametral pitch threads, and can drill holes and pull oil grooves, etc. it is a universal horizontal lathe, widely applicable to the batch processing of all kinds of shaft and disk parts.
The lathe bed of this series is wider than that of general lathe. The guide rail width is 400mm, which has high rigidity. The guide rail surface is hardened by medium frequency, durable and wear-resistant.
The operation of the machine tool is flexible and centralized, and the slide plate is equipped with a fast moving mechanism. Using single handle visual operation, pleasant.
The structural rigidity and transmission rigidity of the machine tool are higher than that of the general lathe, and the power utilization rate is high, so it is suitable for strong cutting.
Before leaving the factory, the machine tool shall be inspected in strict accordance with the inspection procedure, and the powerful cutting test shall be conducted to ensure that the machine tool has good accuracy stability and processing reliability.
The lathe bed of this series is wider than that of general lathe. The guide rail width is 400mm, which has high rigidity. The guide rail surface is hardened by medium frequency, durable and wear-resistant.
The operation of the machine tool is flexible and centralized, and the slide plate is equipped with a fast moving mechanism. Using single handle visual operation, pleasant.
The structural rigidity and transmission rigidity of the machine tool are higher than that of the general lathe, and the power utilization rate is high, so it is suitable for strong cutting.
Before leaving the factory, the machine tool shall be inspected in strict accordance with the inspection procedure, and the powerful cutting test shall be conducted to ensure that the machine tool has good accuracy stability and processing reliability.
Main Feature
1. The machine is made of high-strength cast iron with special materials of copper and chromium. The width of the guide rail of the lathe bed is 400mm and the quenching depth of the guide rail of the lathe bed is 4mm, which effectively improves the wear resistance and stability of the machine tool.

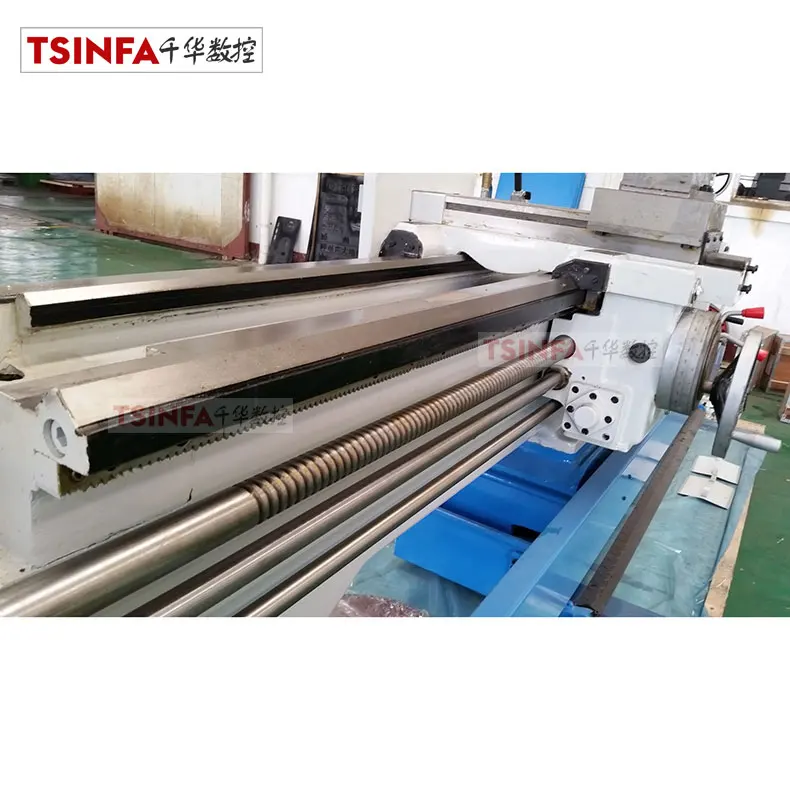

2. Domestic brand lead screw is adopted for machine tool, and high-quality bronze alloy is adopted for thread mother to ensure

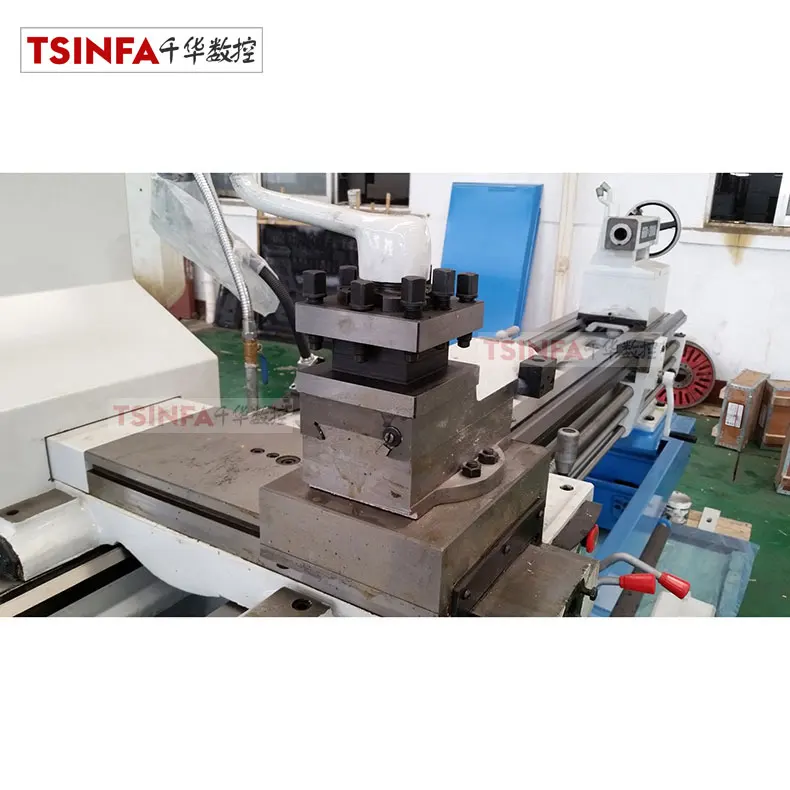

wear resistance and accuracy retention. The machine tool adopts a four position high-strength tool holder with a handle size of3. The head box and bed, tailstock, pallet and other joint surfaces of the machine tool are manually scraped and grinded. The machine has been strictly tested to effectively ensure the accuracy and stability of the machine tool.
4. The main shaft of the machine tool adopts Wafangdian Bearing, the through hole of the main shaft is φ 52 / 80/105 mm, and the gear
of the machine tool adopts precision grinding, which effectively improves the hardness of the gear and reduces the noise of the
machine tool.
of the machine tool adopts precision grinding, which effectively improves the hardness of the gear and reduces the noise of the
machine tool.
5. Cycloidal pump is used for circulating forced lubrication of Machine Tool Headstock lubrication. In view of the hot weather in South China, the cleanliness and heat dissipation characteristics of headstock are ensured, and the service life of bearings and gears is effectively extended.

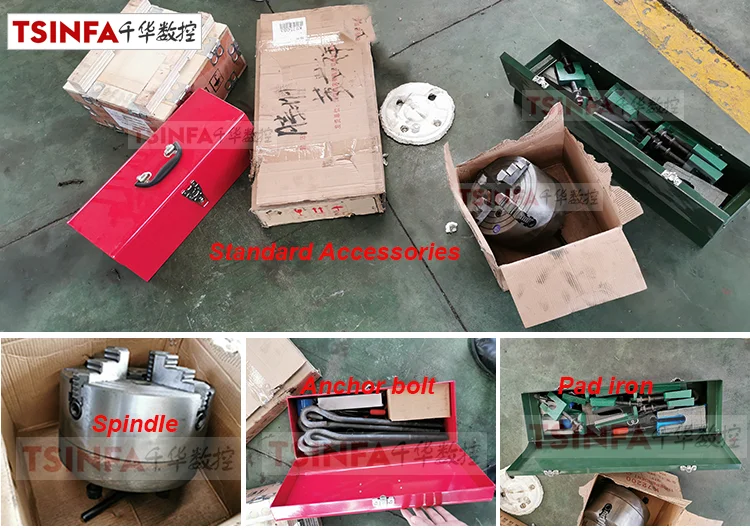

Product Paramenters

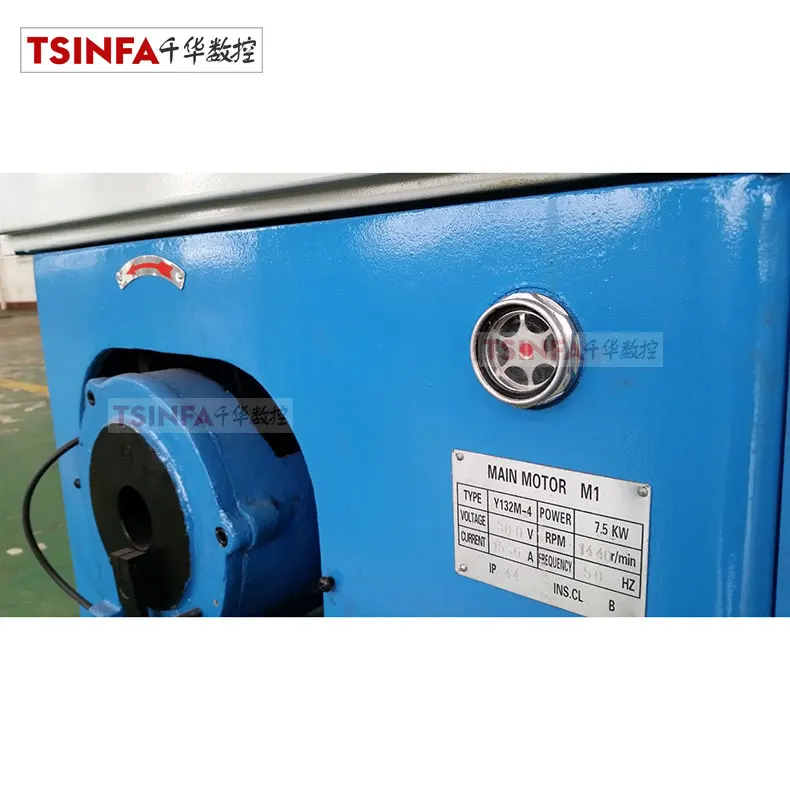

Model | LT6240 | LT6250 | LT6261 | LT6266 | LT6280 | ||||||||
Specification | LT6240B | LT6250B | LT6261B | LT6266B | LT6280B | ||||||||
LT6250C | LT6261C | LT6266C | LT6280C | ||||||||||
Max .Swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm | ||||||||
Max .Swing over cross slide | 210mm | 300mm | 370mm | 400mm | 540mm | ||||||||
Max .Swing over gap | 630mm | 720mm | 830mm | 880mm | 1020mm | ||||||||
Effective gap length | 210mm | 210mm | 210mm | 210mm | 210mm | ||||||||
Max .length of work piece | 750/1000/1500/2000/2200/3000/4000mm | ||||||||||||
Width of bed | 400mm | ||||||||||||
Section of turning tool | 25×25mm | ||||||||||||
Spindle | spindle speed | 16-1400rpm(24steps) | |||||||||||
hole through spindle | 52mm 、(80mm)、[105mm] | ||||||||||||
spindle taper | No.6(MT6)(Φ90 1:20)[Φ113:20] | ||||||||||||
Feed | No. of feed | 64kinds(64 kinds)(for each) | |||||||||||
range of metric threads | (1-192mm)44kinds (44 kinds) | ||||||||||||
range of inch threads | (2-24tpi)21kinds (21kinds) | ||||||||||||
range of module threads | 0.25-48(39kinds)(module 39 kinds) | ||||||||||||
range of diametral pitc threads | 1-96DP(37kinds)(37 kinds) | ||||||||||||
Tailstock | Max. tailstock spindle travel | 150mm | |||||||||||
tailstock spindle diameter | 75mm | ||||||||||||
taper of tailstock spindle center hole | NO.5 (MT5) | ||||||||||||
Main motor | 7.5KW(10HP) | ||||||||||||
Packing dimensions | Overall dimensions for 750mm | 2550×1140×1750 | 2550×1140×1750 | 2550×1140×1750 | 2550×1140×1750 | 2550×1140×1750 | |||||||
（L×W×H mm） | Overall dimensions for 1000mm | 2700×1140×1750 | 2700×1140×1750 | 2700×1140×1750 | 2700×1140×1750 | 2700×1140×1750 | |||||||
Overall dimensions for 1500mm | 3200×1140×1750 | 3200×1140×1750 | 3200×1140×1750 | 3200×1140×1750 | 3200×1140×1750 | ||||||||
Overall dimensions for 2000mm | 3700×1140×1750 | 3700×1140×1750 | 3700×1140×1750 | 3700×1140×1750 | 3700×1140×1750 | ||||||||
Overall dimensions for 2200mm | 4030×1140×1750 | 4030×1140×1750 | 4030×1140×1750 | 4030×1140×1750 | 4030×1140×1750 | ||||||||
Overall dimensions for 3000mm | 4800×1140×1750 | 4800×1140×1750 | 4800×1140×1750 | 4800×1140×1750 | 4800×1140×1750 | ||||||||
Overall dimensions for 4000mm | 5680×1140×1700 | 5680×1140×1700 | 5680×1140×1700 | 5680×1140×1700 | 5680×1140×1700 | ||||||||
Weight(kg) | Length | G.W. N.W. | G.W .N.W. | G.W. N.W. | G.W. N.W. | G.W. N.W. | |||||||
Overall dimensions for 750mm | 2100 1990 | 2170 2060 | 2300 2180 | 2380 2260 | 2520 2400 | ||||||||
Overall dimensions for 1000mm | 2190 2070 | 2260 2140 | 2380 2250 | 2570 2450 | 2720 2560 | ||||||||
Overall dimensions for 1500mm | 2350 2220 | 2420 2290 | 2577 2437 | 2810 2640 | 2980 2800 | ||||||||
Overall dimensions for 2000mm | 2720 2570 | 2790 2640 | 2940 2787 | 3050 2880 | 3260 3087 | ||||||||
Overall dimensions for 2200mm | 2800 2600 | 2940 2790 | 3120 2970 | 3390 3180 | 3490 3287 | ||||||||
Overall dimensions for 3000mm | 3300 3200 | 3450 3300 | 3600 3450 | 3930 3687 | 4220 3887 | ||||||||
Overall dimensions for 4000mm | 3500 3400 | 3750 3600 | 3950 3800 | 4580 4200 | 4850 4500 | ||||||||
