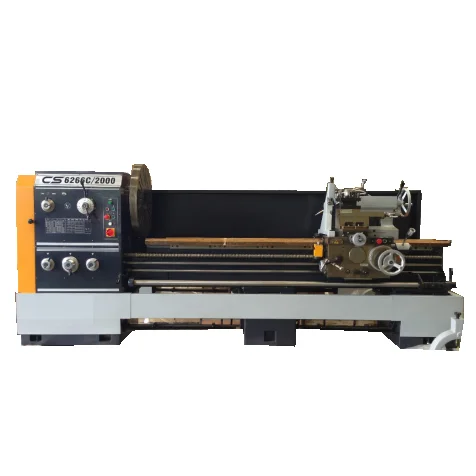

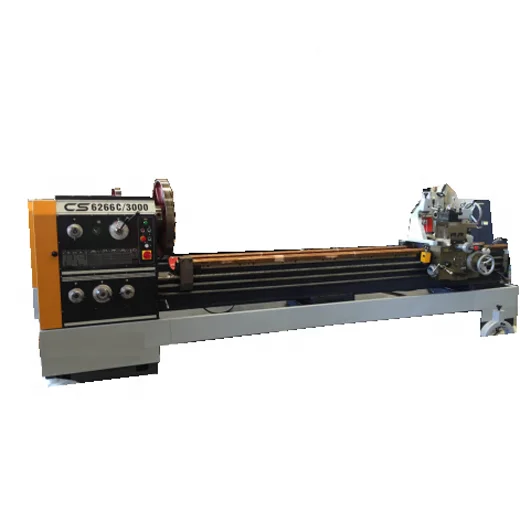

Universal Precision Gap Bed Lathe CS6266C/1000/1500/2000/3000MM
- Category: >>>
- Supplier: Anhui Chizhou Household Machine Tool Co. Ltd.
Share on (62451705644):
Product Overview
Description
Product Description
INTRODUCTION:
-Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
-Threading Inch, Metric, Module and D.P.;
-Perform drilling, boring and groove broaching;
-Machine all kinds of flat stocks and those in irregular shapes;
-Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
-Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
-There are hand brake and foot brake for users to choose;
-These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
-Threading Inch, Metric, Module and D.P.;
-Perform drilling, boring and groove broaching;
-Machine all kinds of flat stocks and those in irregular shapes;
-Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
-Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
-There are hand brake and foot brake for users to choose;
-These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
SPECIFICATIONS | Unit | CS6266C | ||
Capacity | Max swing over bed | mm | Φ660 | |
Max swing in gap | mm | Φ870 | ||
Effective length in gap | mm | 240 | ||
Max swing over slide | mm | Φ420 | ||
Max workpiece length | mm | 1000/1500/2000/3000 | ||
Spindle | Spindle thru-hole | mm | Φ105 | |
Spindle nose | ISO 702/Ⅱ No.8 cam-lock type | |||
Spindle speed | r/min | 12 step 32-1600 | ||
Spindle motor | kW | 7.5 | ||
Tailstock | Quill dia./travel | mm | φ75/150 | |
Taper of center | MT | 5 | ||
Tool post | Number of station/ | 4/25X25 | ||
Tool section | ||||
Feed | Max X-axis travel | mm | 310 | |
Max Z-axis travel | m/min | 145 | ||
X-axis feed | mm/r | 65 sorts 0.063-2.52 | ||
Z-axis feed Z-axis feed | mm/r | 65 sorts 0.027-1.07 | ||
Metric thread | mm | 22 sorts 1-14 | ||
Inch thread | t.p.i | 25 sorts 28-2 | ||
Module thread | πmm | 18 sorts 0.5-7 | ||
DP thread | t.p.i. π | 24 sorts 56-4 | ||
Others | Coolant pump motor | kW | 0.06 | |
Machine length | mm | 2632/3132/3632/4632 | ||
Machine width | mm | 975 | ||
Machine height | mm | 1270 | ||
Machine weight | kg | 2200/2400/2600/2800 | ||
Detailed Images
Standard accessories
3-jaw chuck and adapter, 4-jaw chuck and adapter, 4-station tool post, stead rest , follow rest, face plate, drive plate, foot brake , led light, general tools, packing within wooden case.
Options accessories
Living center
2-axes DRO (SINO)
Germany QCTP
Thread chasing dial
2-axes DRO (SINO)
Germany QCTP
Thread chasing dial
Packing & Delivery
Packaging | ||
Size | 2800×1150×1880MM | |
Weight | N.W./G.W. 2600/28000KGS | |
Packaging Details | The normal package is plywooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Certifications
Our Work Shop
We In Fairs
Our Service
OEM APPROVED
* LOGO OEM accept.
* Packing design OEM accept
* Even machine design OEM accept.
Our team Service
* Professional team,perfect pre-sale and after-sale service.
* Engineers available to service machinery overseas.
* Good English speakers from sale department,can handle your suggestion
