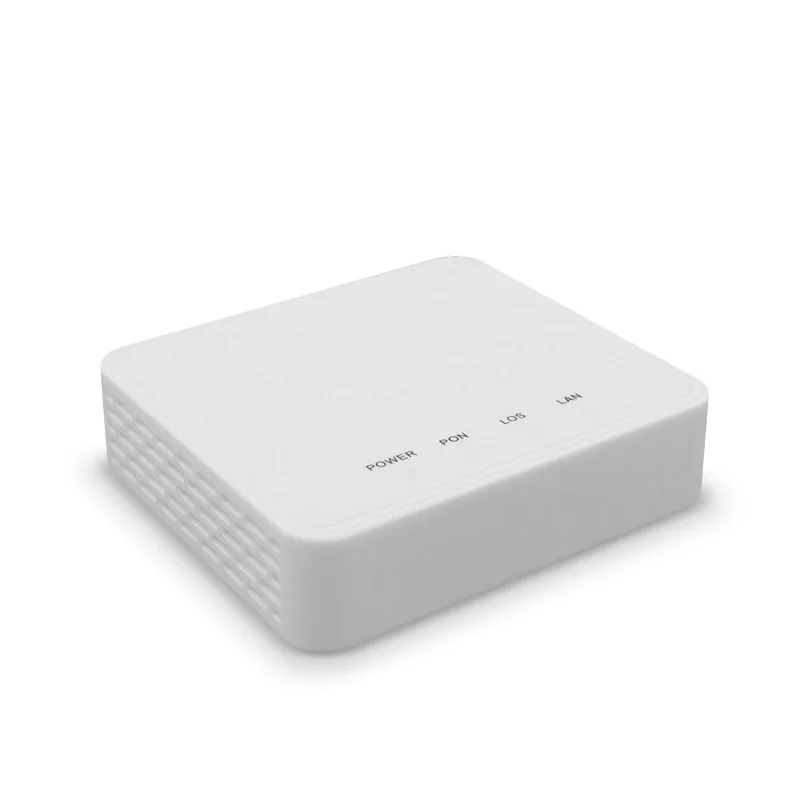

FTTH Optic Fiber Modem 1GE Port 1 PON RJ45 port ONU GPON 1GE GEPON ONT

Chipset

ZX279125 ARM Cotex A9 CPU/600MHz

RAM

Built-in SDRAM 32MB memory, up to 166MHz clock rate

Built-in 16KB I-Cache, 16KB D-Cache

FLASH

SPI 8MB (up to 16MB)

Protocol standard

ITU-T G.984.1/2/3/4

RFOutput Power

Transmitting optical power: 1~+4dBm

RX Sensitivity

Receiving sensitivity: ≤-28dBm

GPON mode

2.5G GPON Access function.Down: 2.488Gbps.Up: 1.244Gbps. Down:2.5Gbps/Up: 1.25Gbps

EPON Mode

1.25G EPON Access function,Up/ down: 1.25Gbps

External storage

Support U disk and TF expansion

Antenna

2*5dbi Non-detachable omnidirectional antenna

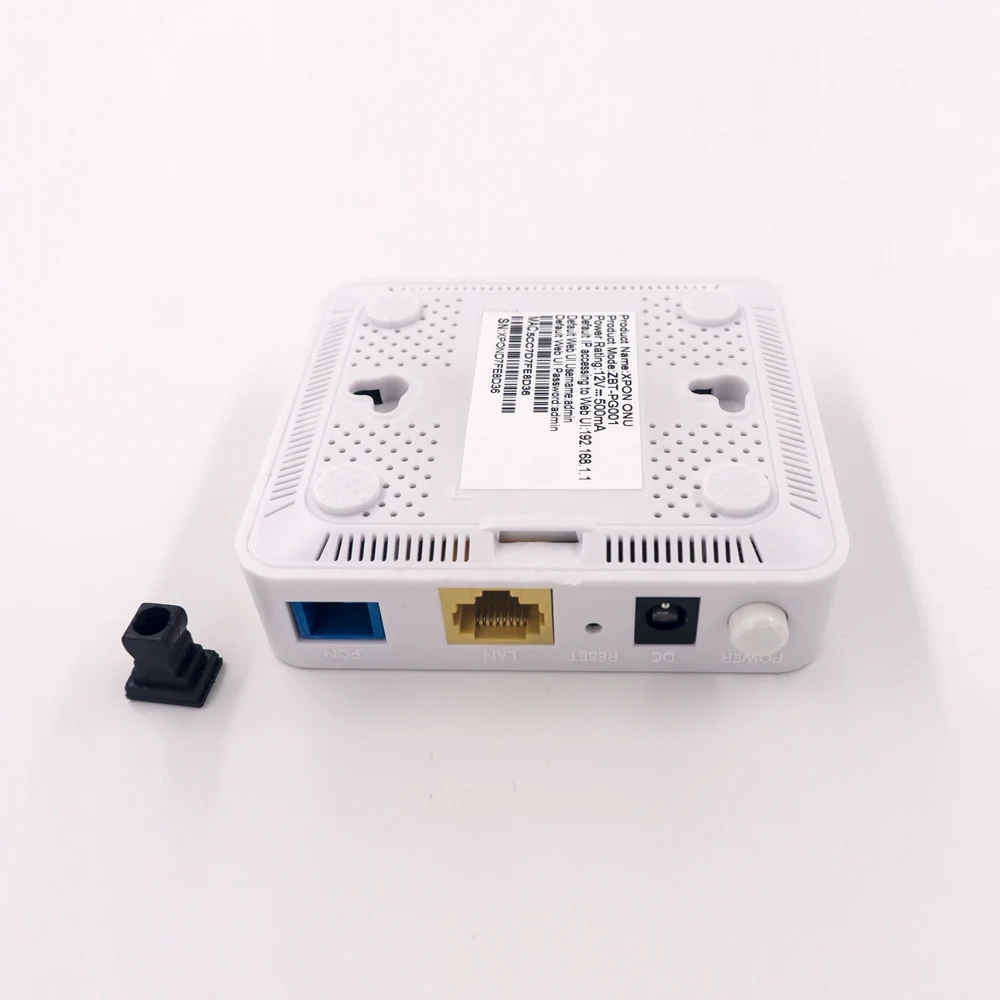

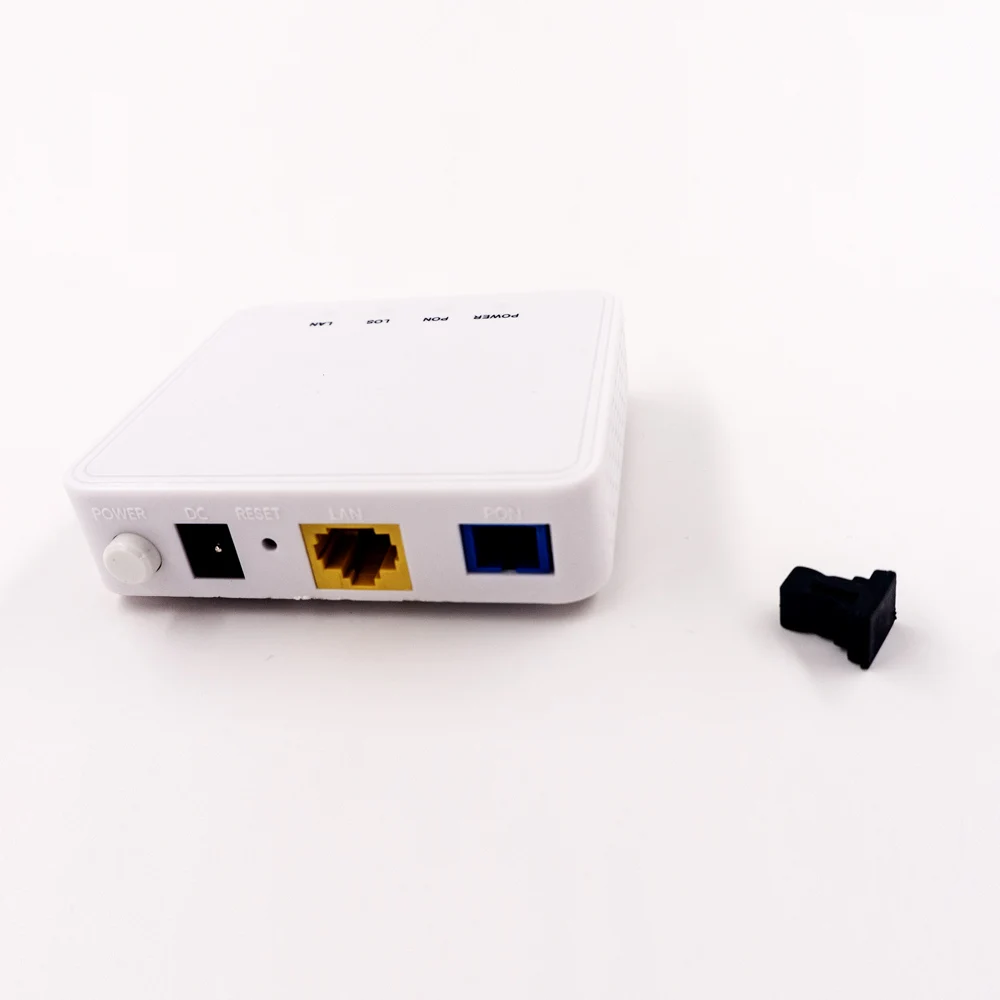

Interface

1*PON(optical fiber)interface,1*1000M Automatic adaptation to Ethernet interface

LED

POWER/PON/LOS/LAN

Button

1*Reset,

Power Adapter

DC 12/0.5A

Product maximum power consumption

< 3W

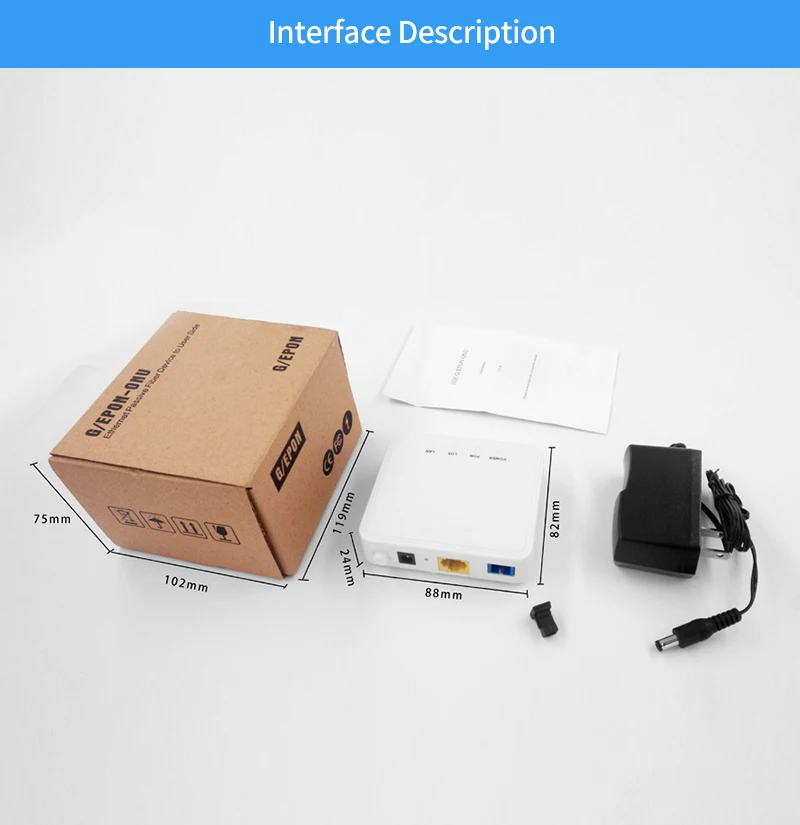

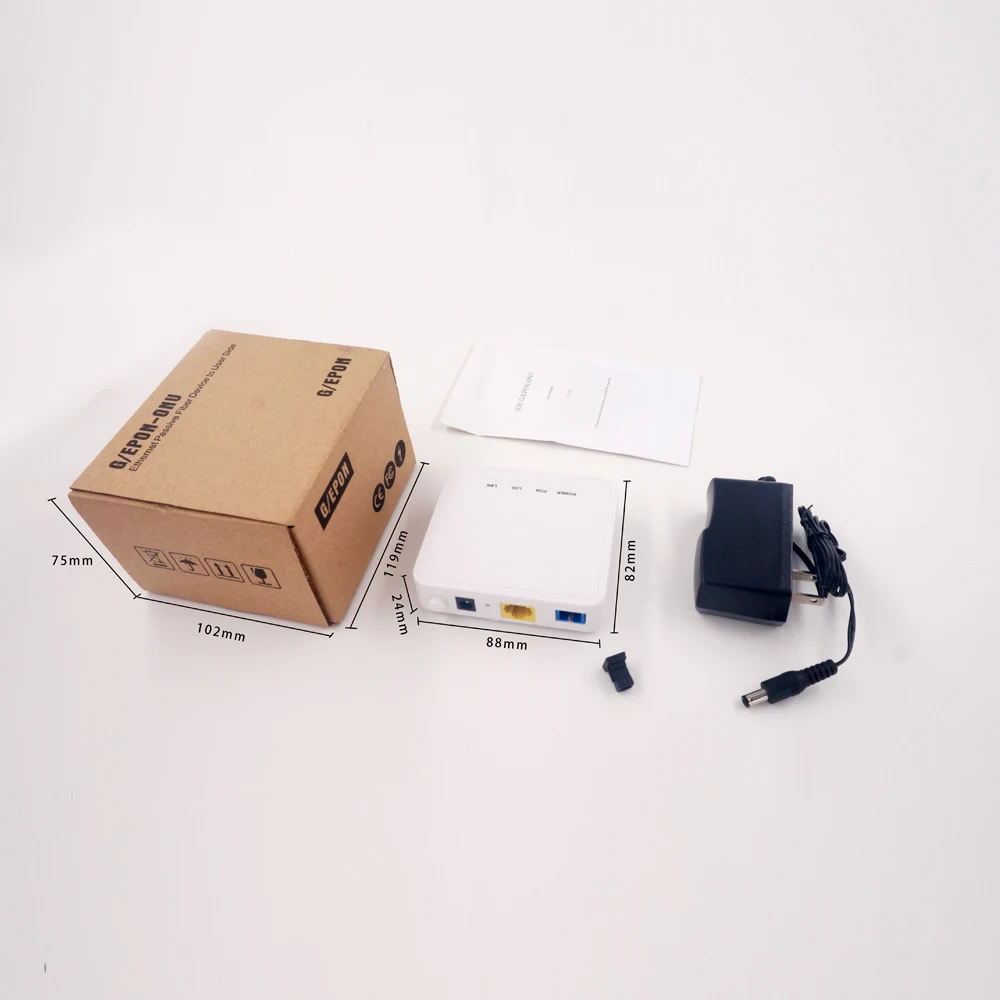

Size

90mm(L)×80mm(W)×25mm(H)

Working environment

Operating temperature:0℃ - 60℃;
Storage temperature:-40℃- 70℃;

Working humidity:10% - 95%RH Non-condensing
Storage humidity:5% - 95%RH Non-condensing

Certification

3C,FCC,CE.
