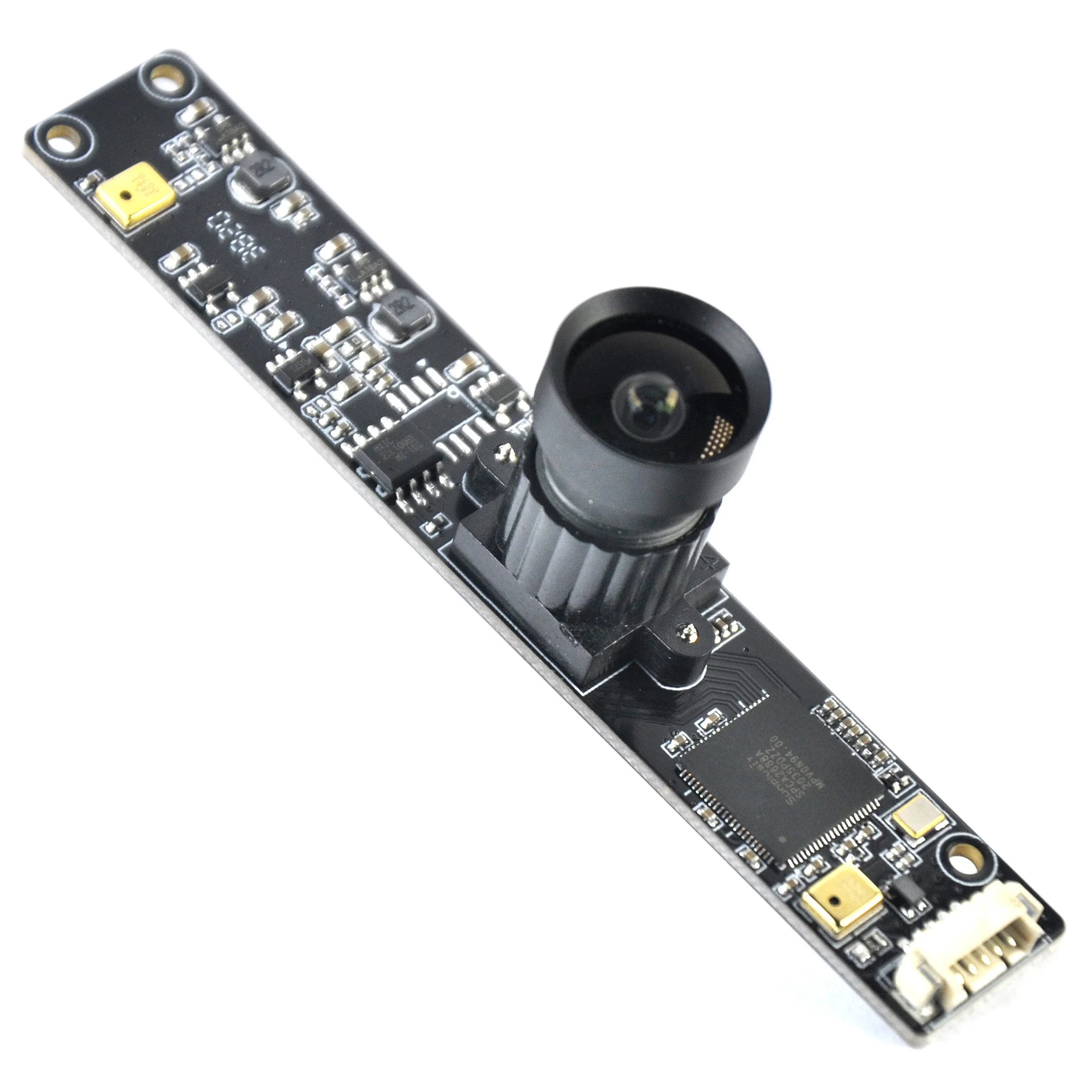

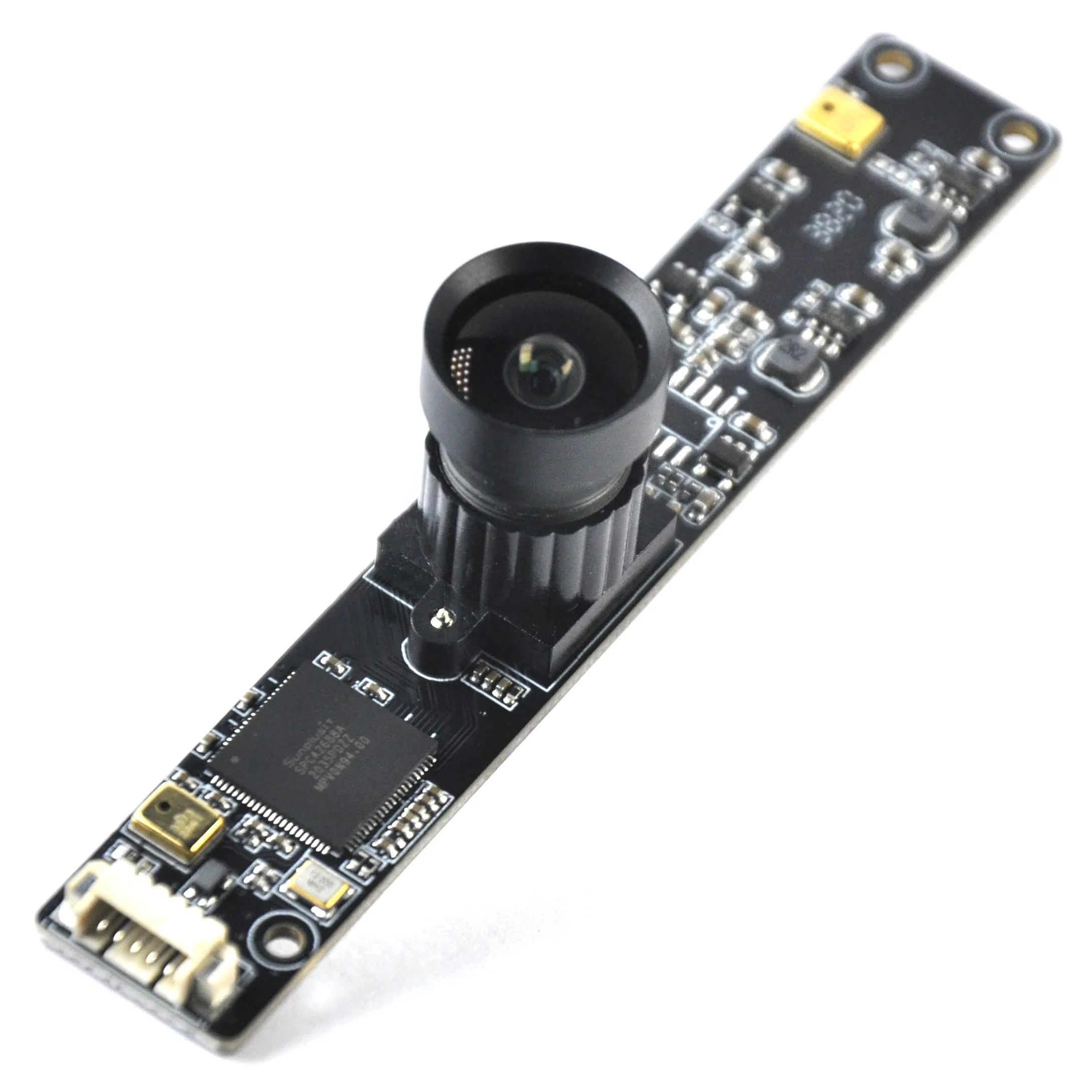

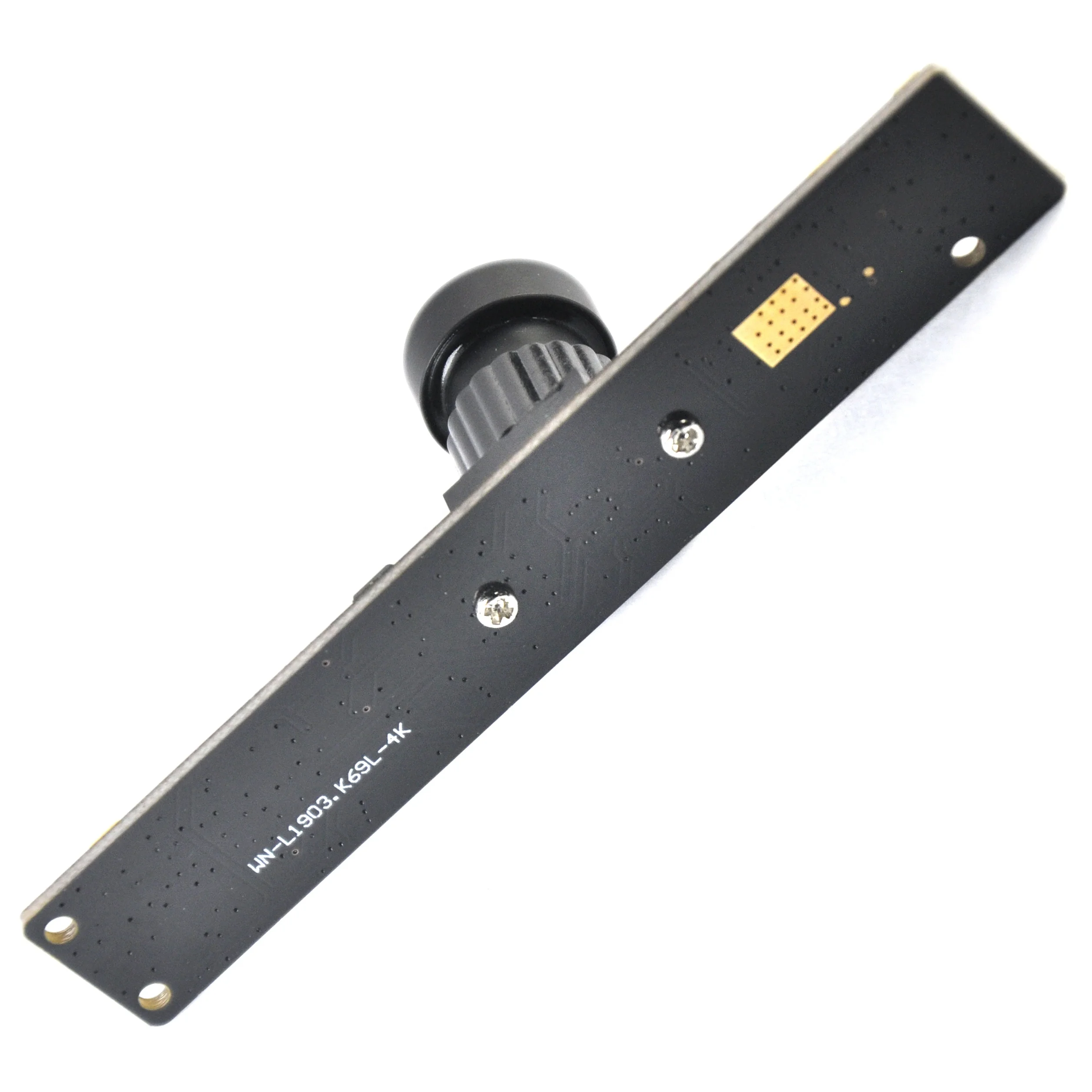

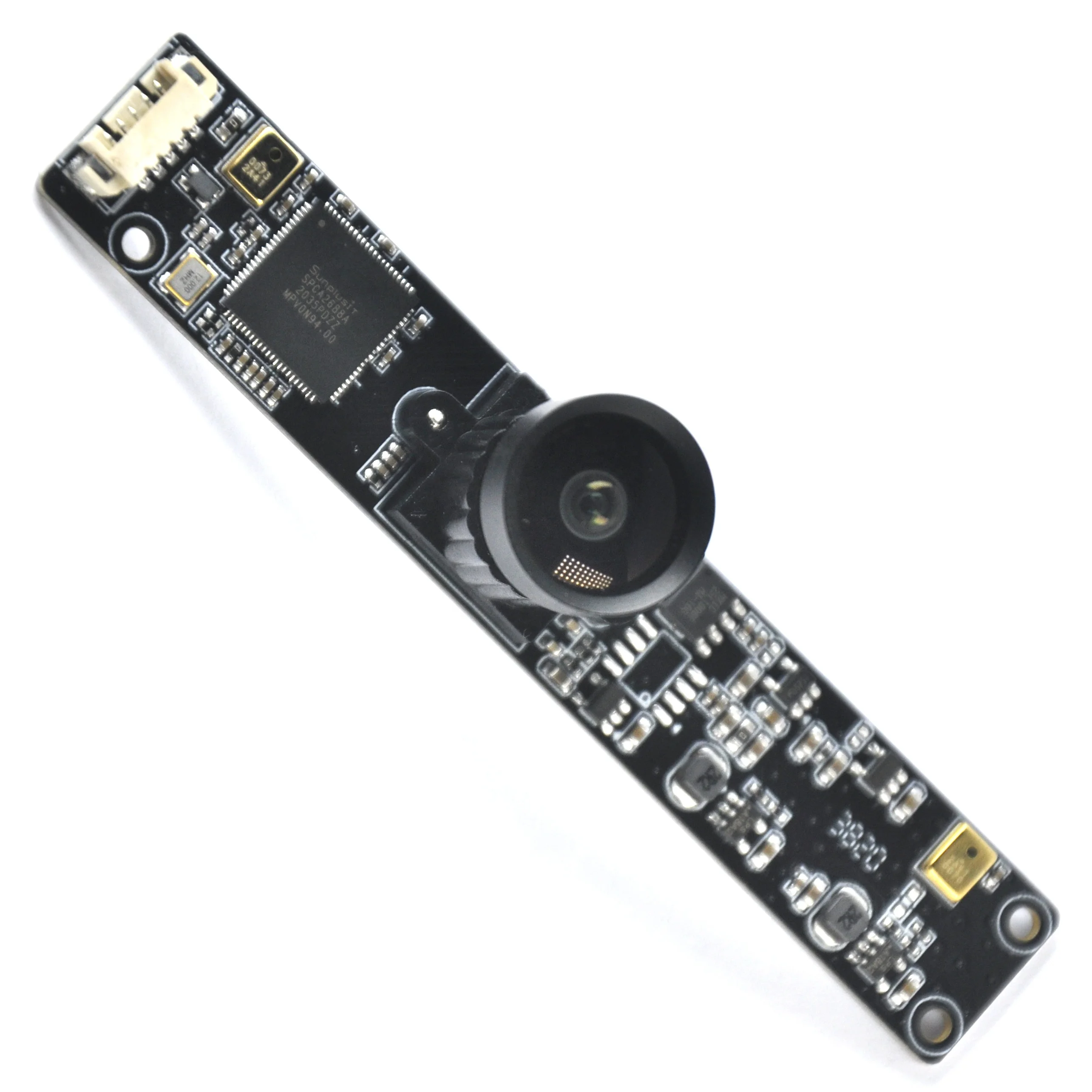

Factory Supply 4K USB 8MPcamera module with IMX317 Sensor Wide FOV Digital Mic for Video Conference Machine Vision
- Category: >>>
- Supplier: Shenzhen Weinan Electronics Co. Ltd.
Share on (62451737271):
Product Overview
Description

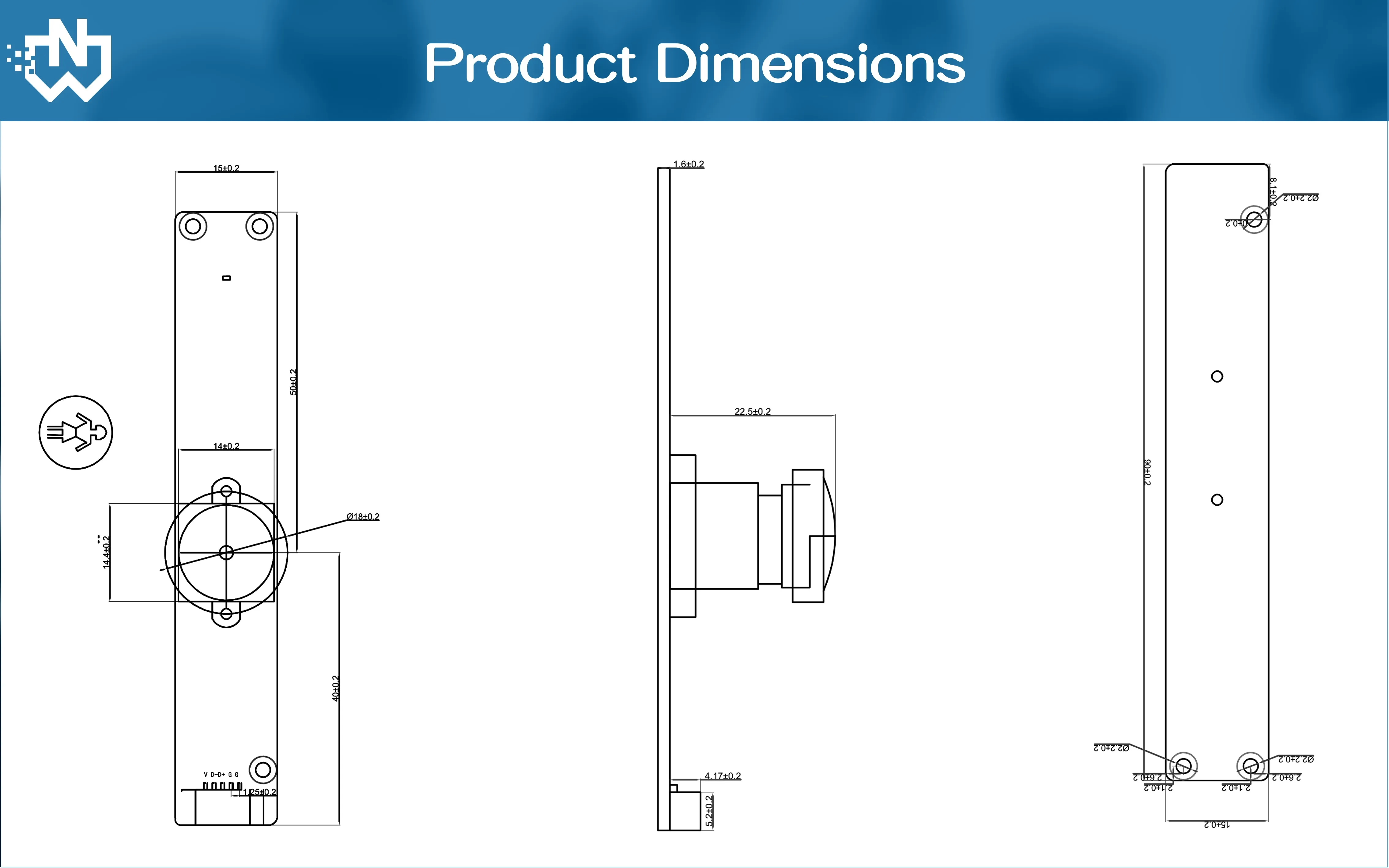

Module Size | 90*15mm |
Sensor | 1/2.5 Inch CMOS IMX317 |
Pixel Size | 1.62umX1.62um |
Resolution | 4K 3840 H x 2160 V |
Output Format | MJPEG, YUV2 |
FOV | 95 Degree without Distortion, or TBD |
Lens | EFL: 3.4mm F/NO: 2.0 |
Focus Type | FF/ MF |
Shutter Type | Electronic Rolling shutter |
Audio Input | Digital One-way Audio |
Dynamic Range | Up to 69dB |
Output and Power Supply | High Speed USB2.0 |
Interface | 5 PIN 1.25MM Socket |
Controllable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure |
Supported OS | Windows, Android, Linux, Wince, Mac OS |
Cable Length | Default 1.0 Meter USB Cable |
Format | Resolution | Frame Rate (USB2.0) |
3840x2160(4K) | 30FPS | |
2952x1944 | 30FPS | |
2560x1440 | 30FPS | |
1920x1080 (1080P) | 30FPS | |
1280x720 (720P) | 30FPS | |
640x480 (VGA) | 30FPS | |
3840x2160(4K) | 2FPS | |
2560x1440 | 2FPS | |
1920x1080 (1080P) | 5FPS | |
1280x720 (720P) | 10FPS | |
640X480 (VGA) | 30FPS |
Pin No. | Signal Name | Description |
1 | VCC | 5V Power |
2 | DM | USB2.0 Data+ |
3 | DP | USB2.0 Data- |
4 | GND | GND |
5 | GND | GND |
Operating Voltage | USB DC +5V Supply |
Operating Current | 260mA |
Operating Temperature | -20℃ ~ 60℃ |
Storage Temperature | -20℃ ~ 105℃ |
Humidity | 80 ~85% |
Weinan Electronics camera modules have a wide range of applications like ATM Machine, kiosk, automatic vending machine, robot, sanner, virtual reality, medical equipment, machinery equipment, POS equipment, smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, tablet external, on-the-spot law enforcement, recognition algorithm attendance machine, simple security system, teaching system, interactive system, credit card machine, attendance machine, voting system, high speed video shooting device, exam system, driving learning system, industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, medical auxiliary equipment, etc.
