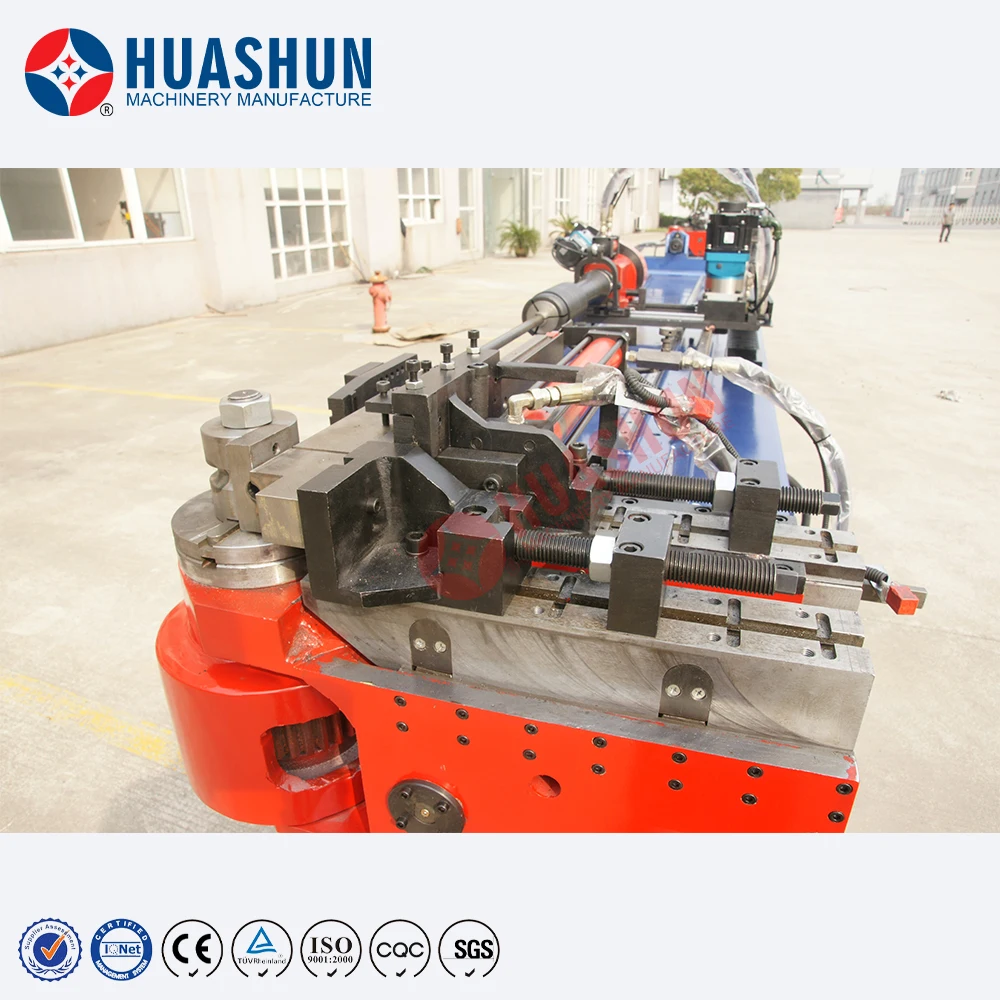

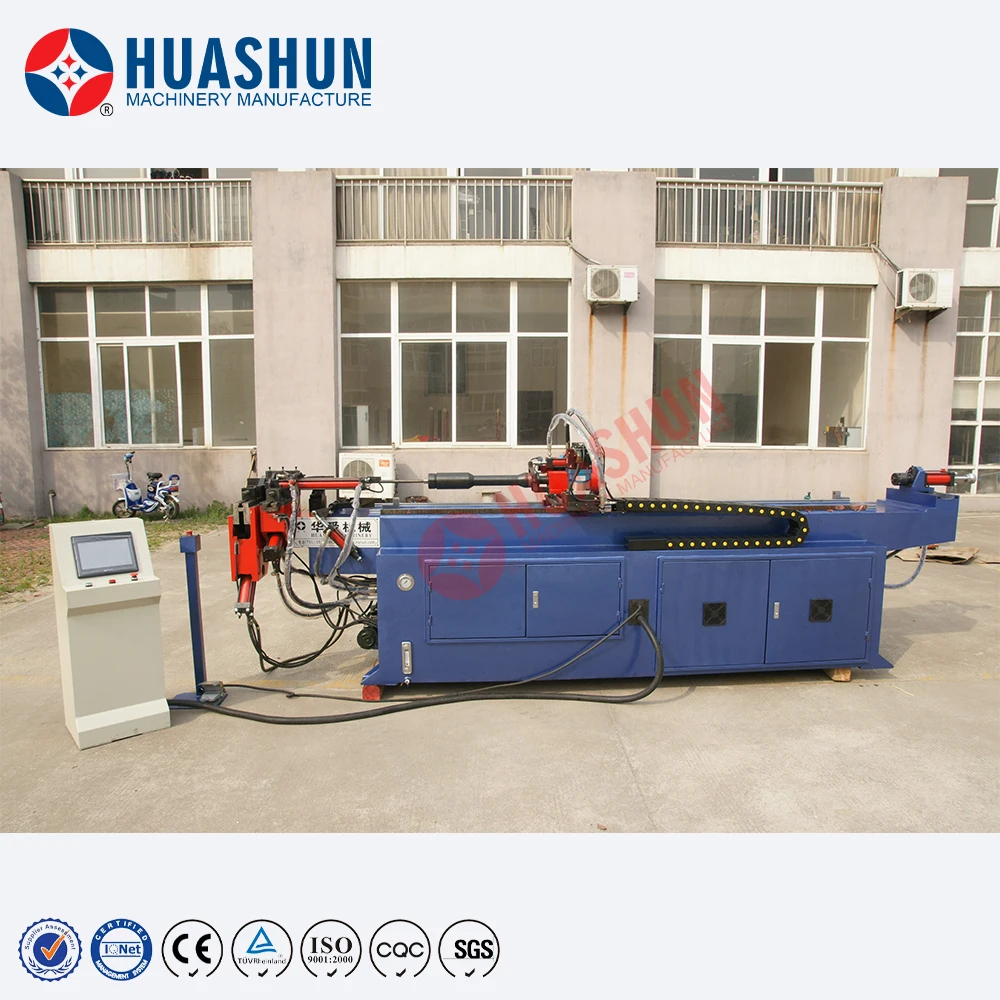

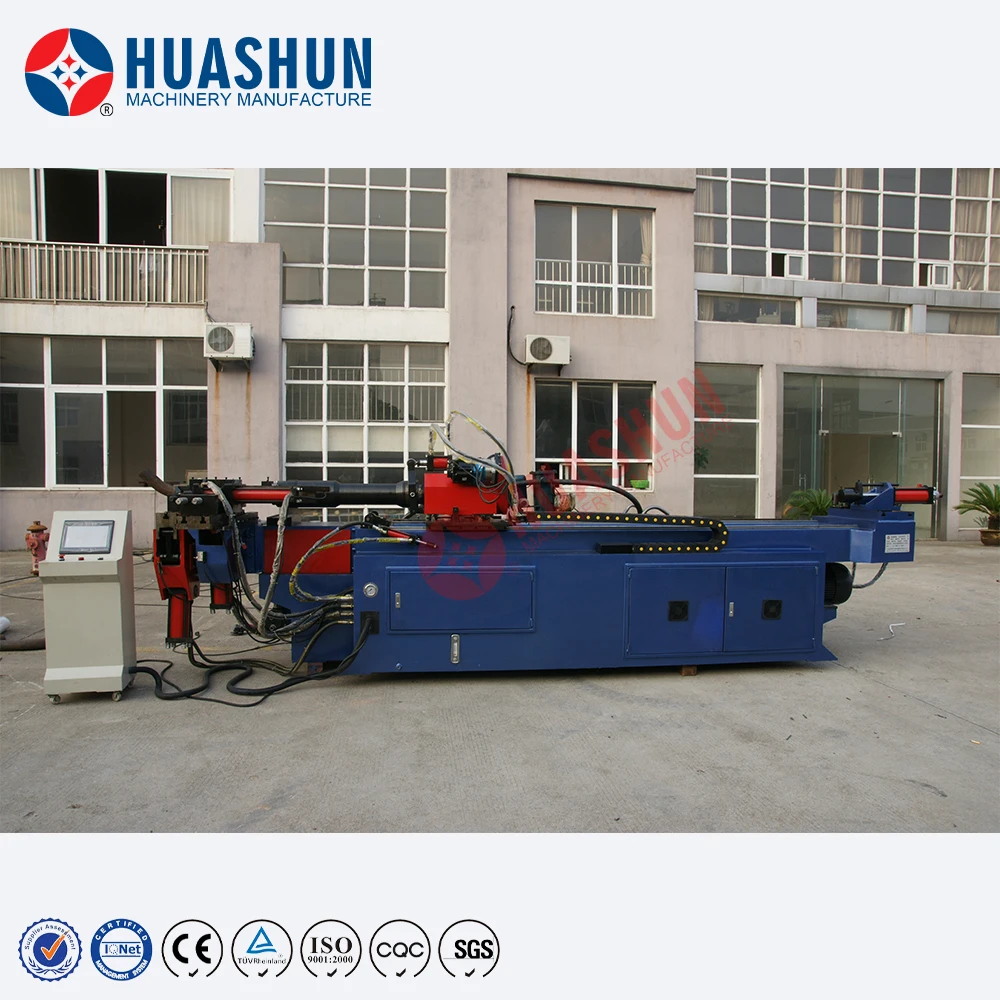

HS SB 50CNC 3A 1S Automatic Stainless Steel Metal Tube Bender China Supplier CNC Pipe Bending Machine
- Category: >>>
- Supplier: Zhangjiagang Huashun Machinery Manufacturing Co. Ltd.
Share on (62451789929):
Product Overview
Description
Science & Technology & Service -- Achieve Huashun
Huashun keeps on improving products and successfully develops complete series of pipe processing machines, ranging from micro-computer controlled SB & DB pipe bending machine, GY rolling machine, MC cutting machine, TM pipe-end forming machine, MC metal circular saw machine, EF chamfering machine, CH ARC strike machine, SX riveting machine and some other automatic machines.
Final Products
CNC Pipe Bending Machine Product Sample
Final Products Application
Widely used in: automobile, motorcycle, aerospace, bicycle, baby carriage, fitness and leisure equipment, steel furniture
manufacturing, air conditioning piping, food machinery, anti-theft doors and windows, exhaust pipe manufacturing, stainless steel pipe and other pipe manufacturing industries.
Cart
Fitness and gym equipment
Guardrail
Exhaust pipe manufacturing
Air conditioning piping
Beverage line
Furniture frame
ATV structure
Bicycle, electric vehicle frame
Main Products
Pipe Bending Machine HS-SB-89CNC-2A-1S.
1. Servo motor drives the bending arm to accelerate the movement speed, and obtain rapid acceleration and rapid deceleration, as well as large torque at the same time. It adopts precision, heavy-duty linear rolling bearings in the press touch, press touch boost system and centerline radius adjustment system;

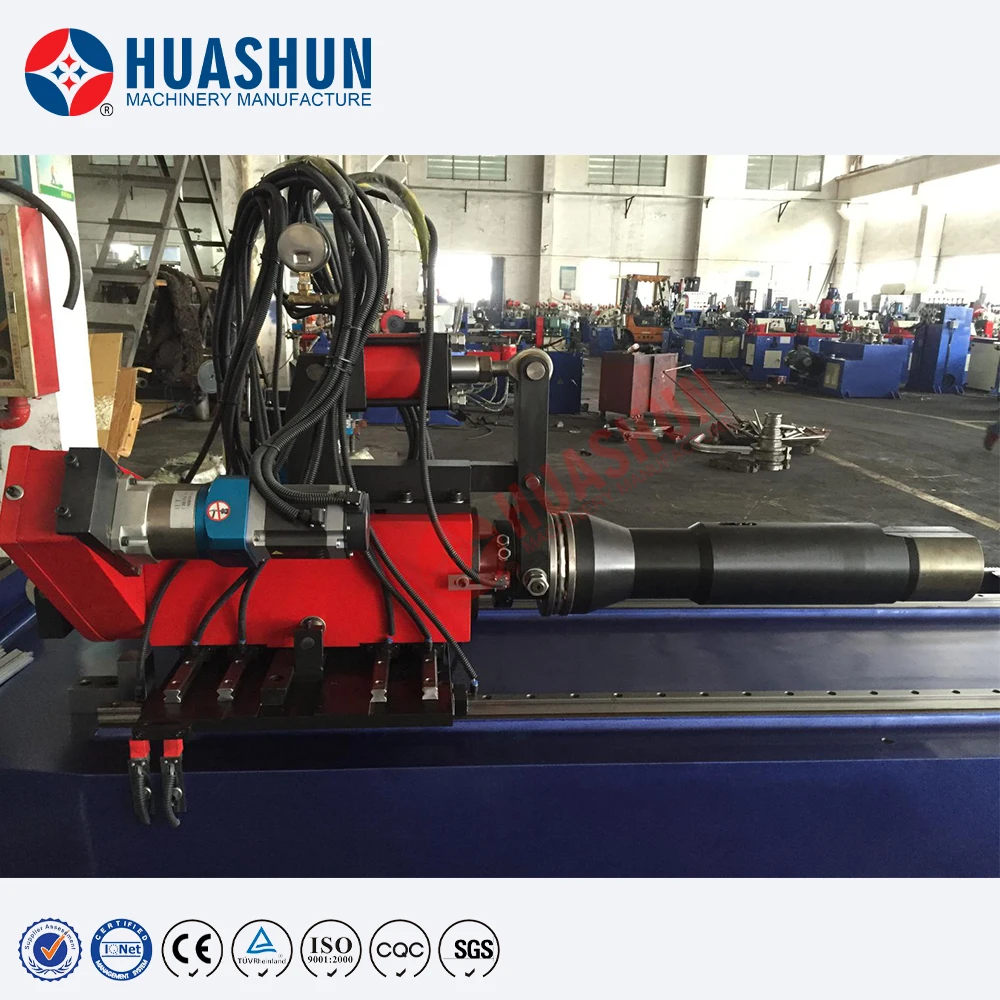

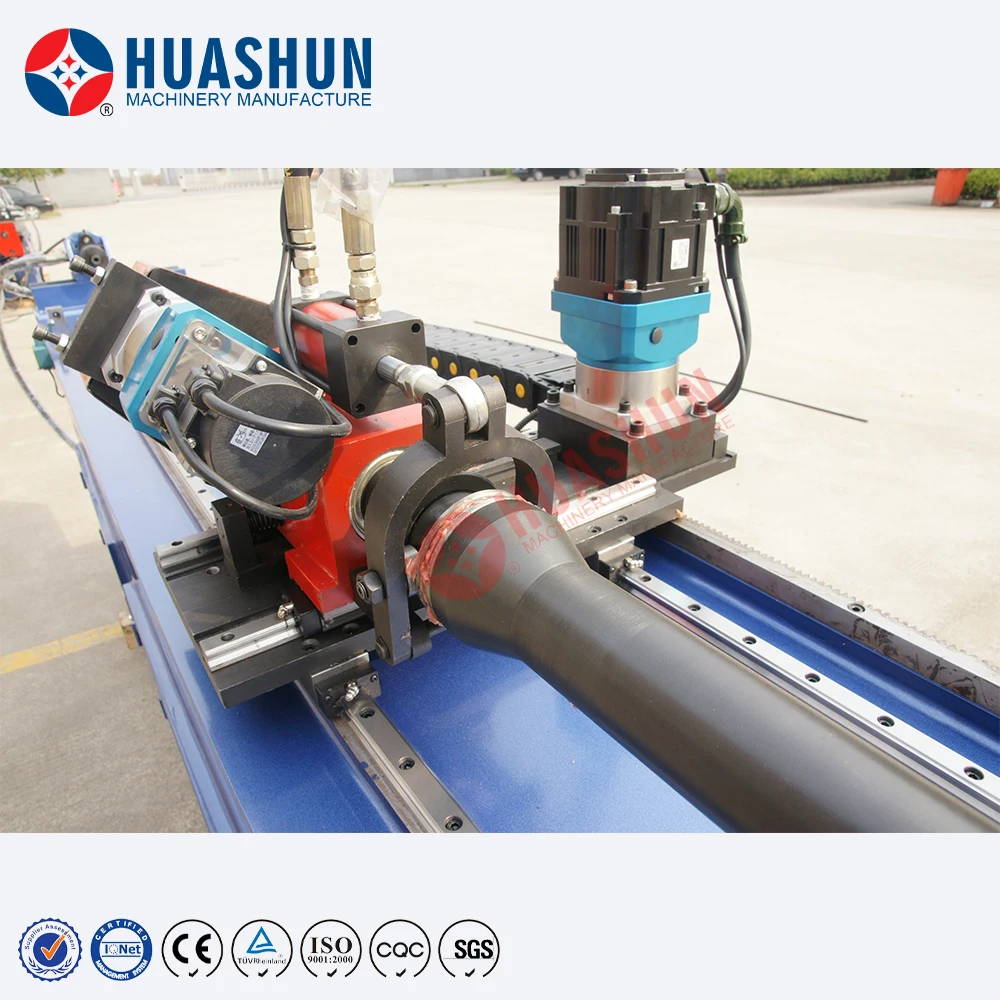

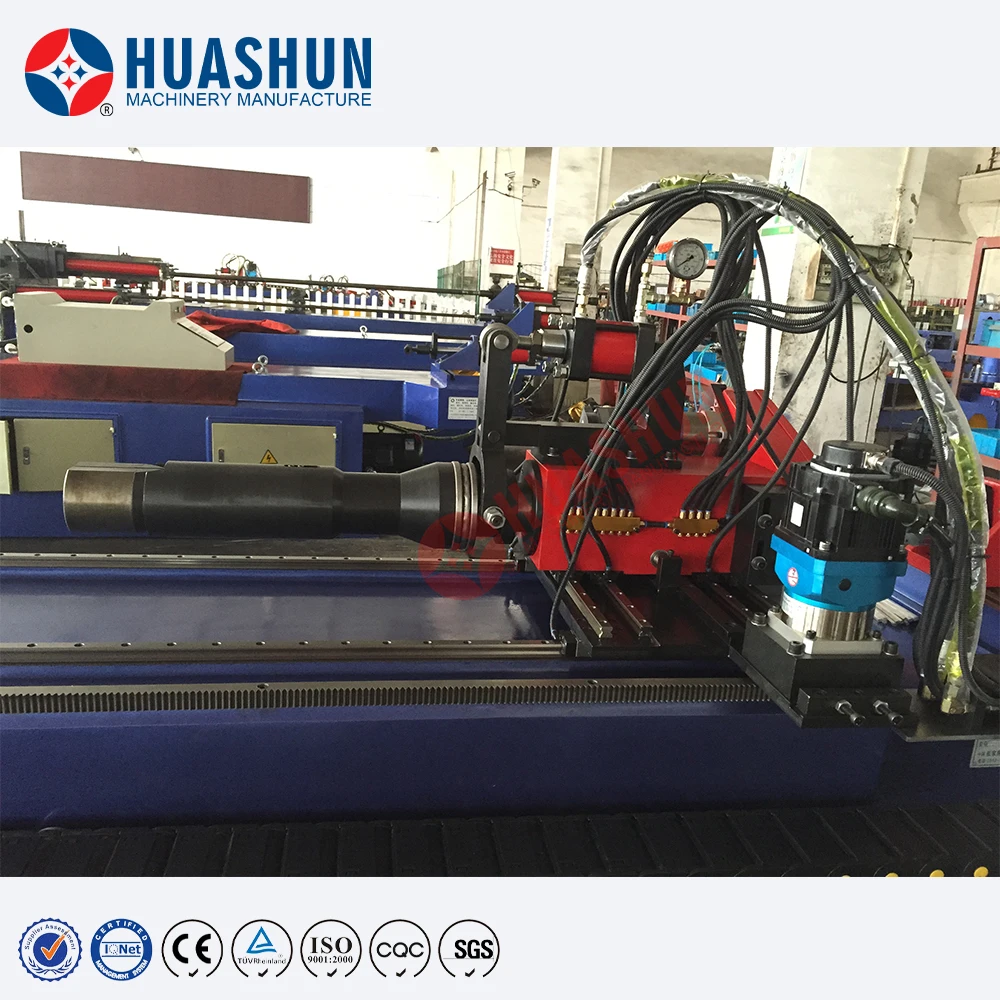

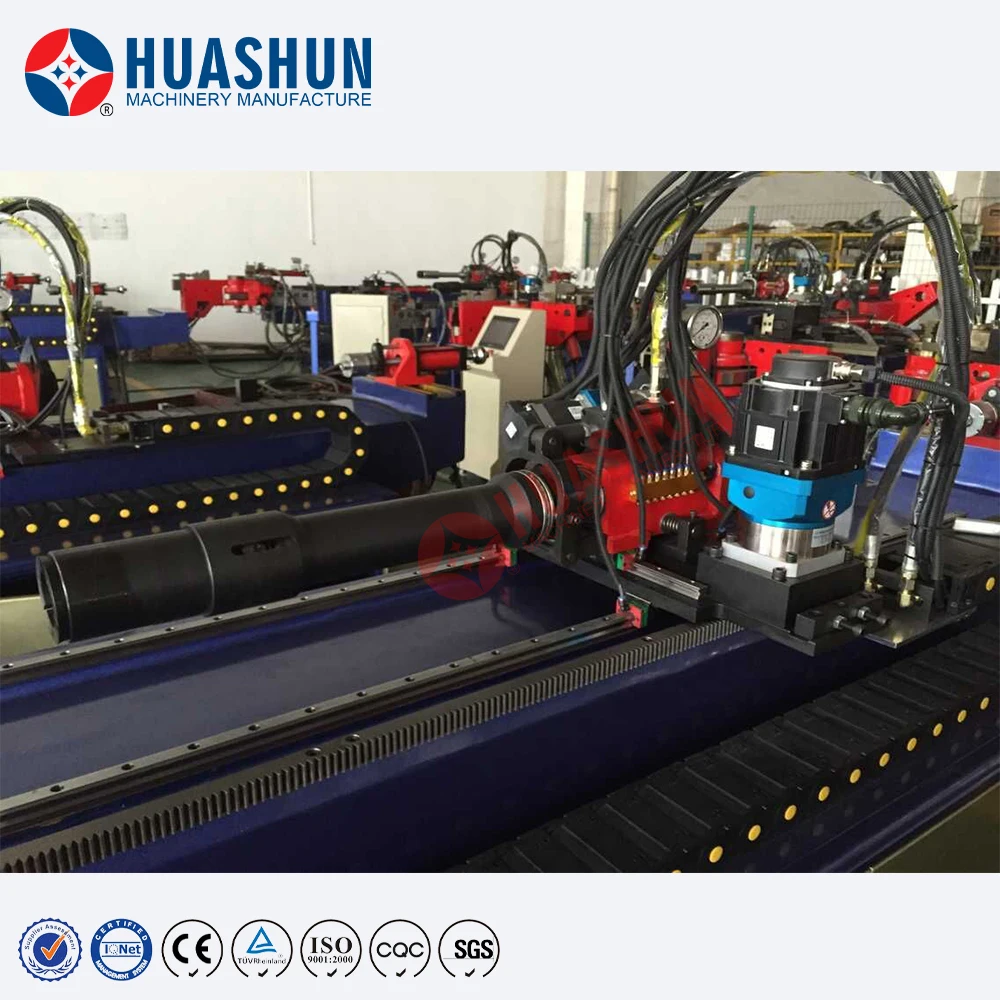

2. The trolley adopts directly driven rack and pinion and servo motor, which provides the system with high precision and high reliability;
3. Self-calibration pressure with automatic positioning can be set quickly;
4. Three-station platform: It can process multiple curvatures, multiple diameters, mixed bends and rectangular polygons;
5. Semi-automatic or automatic feeding table;
5. Semi-automatic or automatic feeding table;
6. The position-controlled pipe assist system can be applied to the application of small radius and complex elbows;
7. Power assisted mold replacement, making mold replacement simple and efficient.
Bending Mold

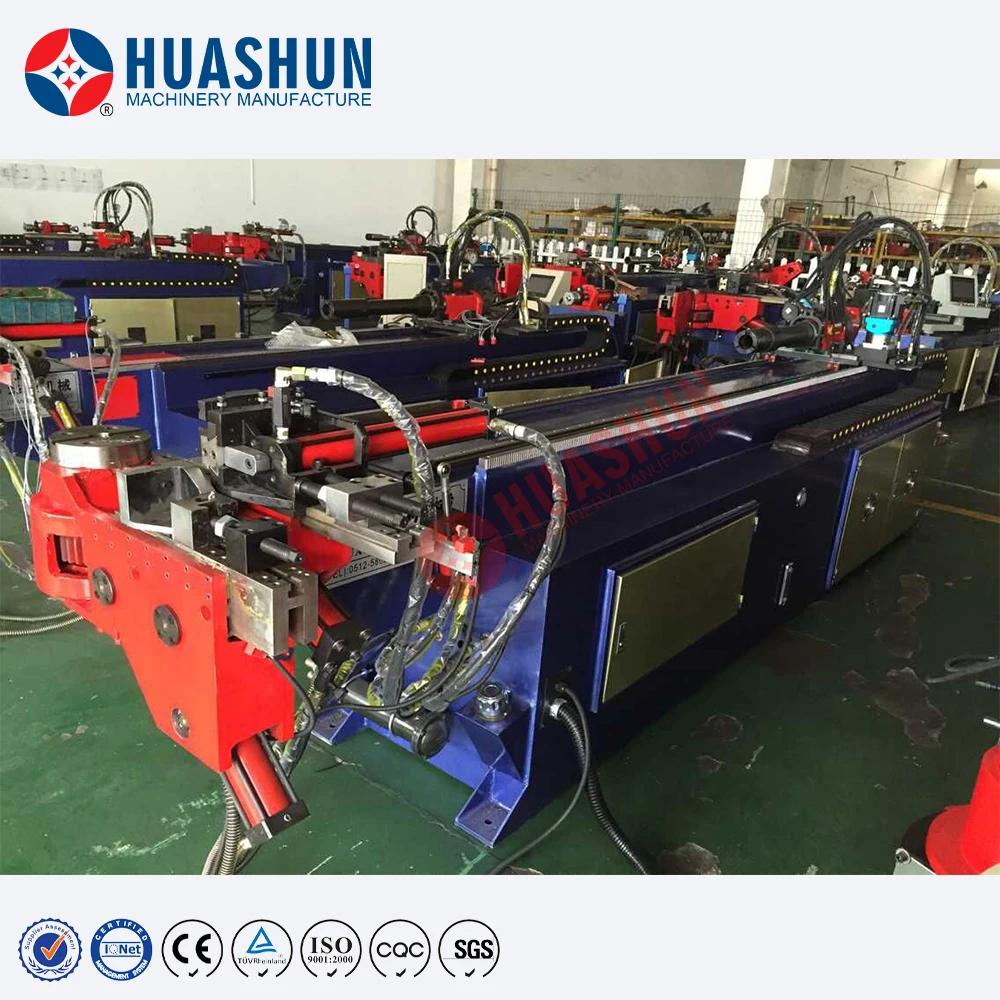

Machine Details
Machine Details.
* Industrial Computer offers easy access to auto and manual operating modes.
* System diagnostics and multiple language capability.
* Right bending direction.
* Fully hydraulic clamping on clamp die and pressure die.
* Direct acting hydraulic pressure die with adjustable speed valve.
* System diagnostics and multiple language capability.
* Right bending direction.
* Fully hydraulic clamping on clamp die and pressure die.
* Direct acting hydraulic pressure die with adjustable speed valve.
Machine Details.
* Maximum 10000 sets of program storage,20 or more bends for each program.
* With Independent programmable speeds Y, B, and C axes.
* Programmable material spring back settings for each bend angle.
* Automatic mandrel/machine lubrication
* Automatic release of tube prior to final bend.
* With Independent programmable speeds Y, B, and C axes.
* Programmable material spring back settings for each bend angle.
* Automatic mandrel/machine lubrication
* Automatic release of tube prior to final bend.
Machine Details.
* Bending Axis-Driven by Cylinder,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.
* Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
* Foot Pedal Cycle start.
* With Air Cooling System.
* One set of Tooling for Draw Bending.
* Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
* Foot Pedal Cycle start.
* With Air Cooling System.
* One set of Tooling for Draw Bending.
Machine Details.
* Wiper die Bracket.
* Operation and Maintenance Manual.
* Tool Box with Adjusted Tools.
* Electric: As required (3 phase 220V or 380V or 415V...)
Optional
* Anticipate Mandrel Extraction
* Machine effective length over mandrel
* Safety Mat
* Operation and Maintenance Manual.
* Tool Box with Adjusted Tools.
* Electric: As required (3 phase 220V or 380V or 415V...)
Optional
* Anticipate Mandrel Extraction
* Machine effective length over mandrel
* Safety Mat
Product Paramenters
Take model HS-SB-89CNC-2A-1S as the reference standard.
Name | Unit | Specification |
Max Tube Size(Carbon Steel) | mm | Φ89×6 |
R1.5D | mm | Φ76.2×3.5 |
Max Tube Size(Stainless Steel) | mm | Φ76.2×3.5 |
Max. One Time Feeding Length | mm | 3000 |
Through Effective Distance Over Mandrel | mm | 4750 (If no mandrel,can be infinitely long) |
Max Bending Radius | mm | 400 |
Max Bending Degree | ° | 190° |
Rotating Axis Speed | Deg/sec | 120 |
Feeding Axis Speed | Mm/S | 800 |
Bending Axis Speed | Deg/sec | 25 |
Rotating Axis Accuracy | ° | ±0.1 |
Feeding Axis Accuracy | mm | ±0.1 |
Bending Axis Accuracy | ° | ±0.1 |
Bending Unit | pc | 32 |
Max Storage Units | Group | 40000Can customized as per customer’s requirement |
Date Input | Coordinate ( X, Y, Z ) 、Working value ( Y, B, C ) | |
Max. Pressure | MPa | 16 |
Rotating Servo Motor Power | W | 1500 |
Feeding Servo Motor Power | W | 3500 |
Fuel tank capacity | L | 380 |
Appro. Weight | kg | 6200 |
Machine Dimensions | mm | 6400×1300×1450 |
