Screw conveyor uses revolving screw to move the conveyer material in fixed casing, the bearings of head and tail are moved to shell, hanger bearing adopts sleeve bearing, which have dustproof sealing device, bearing bush usually adopts powder metallurgy,convey concrete adopts felt bushing, hanger shaft and screw shaft are connected by slider.

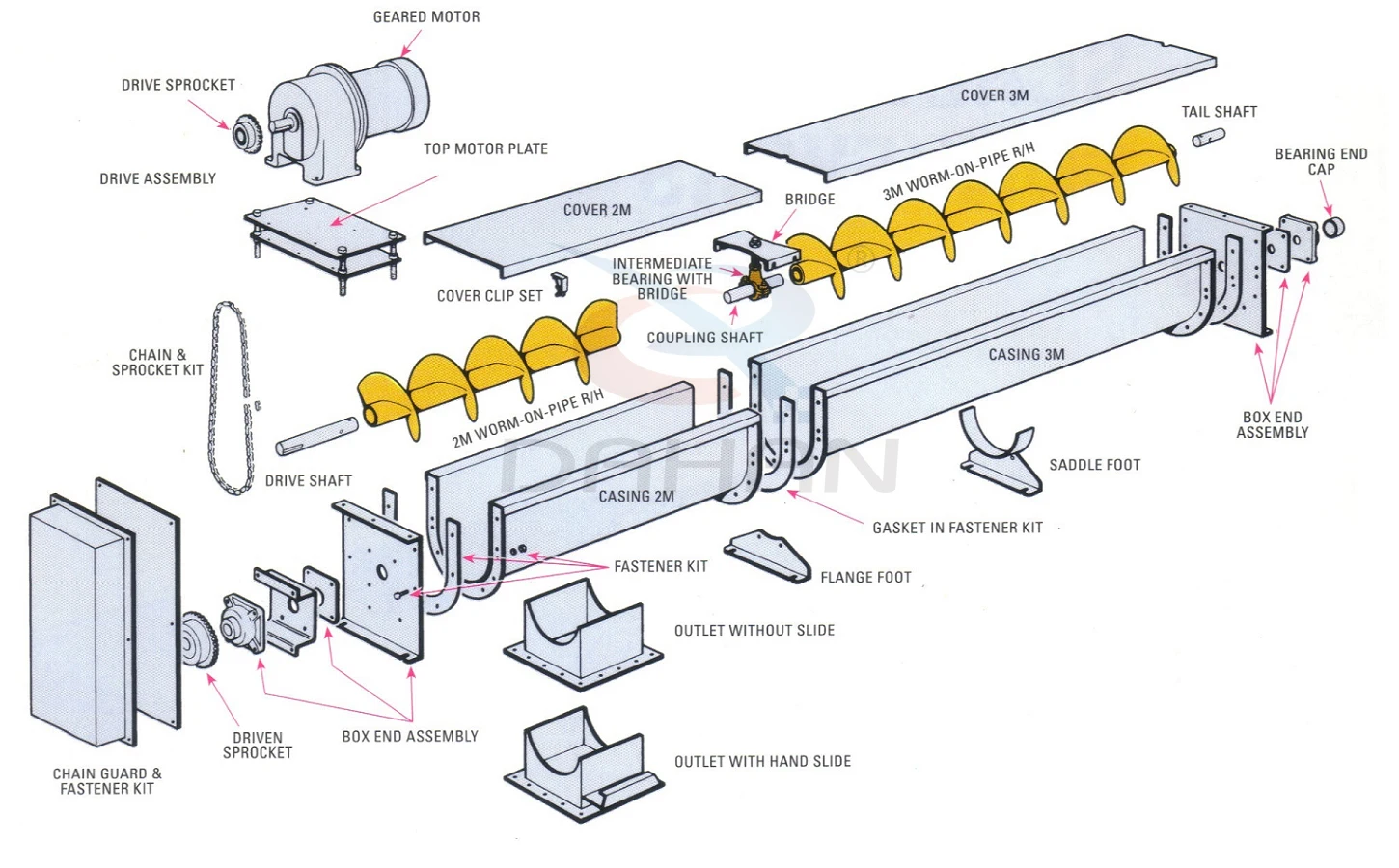

Product Structure
Model
LS114
LS133
LS159
LS219
LS245
LS273
LS315
LS400
LS500
LS600
Diameter
(mm)
114
133
159
219
245
273
315
400
500
600
Rated speed
(r/min)
84- 130
84-130
84-130
84-130
84-130
84-130
84-130
62-100
62-100
62-100
Reference capacity
(m³/h)
1
1.3
5
15
20
30
40
45
70
100
Motor power(Kw)
2.2-18.5
Admission biggest gradient(o)
<60
Contact Us
Features
Features: 1.The large bearing capacity, safe and reliable. 2.Strong adaptability, easy installation and maintenance, long service life. 3.The machine is small in size, high speed, ensure rapid delivery uniformity. 4.The discharge end is equipped with cleaning device, low noise, strong adaptability, in and out of the mouth position arranged flexibly. 5.Good sealing, shell made of seamless steel tube end use flange connection each other as a body, good rigidity. Applies:
Company Information
Our stock
Company Name: Xinxiang Dahan Vibrating Machinery Co., Ltd.
Our team
Packaging & Shipping
Packaging Details The Packed in standard export wooden case packing.If you have special requirements, please just inform us. Delivery time the manufacturing time:7-10 working days after payment
