Thermally conductive pads adhesive thermal gap filler sheet
- Category: >>>
- Supplier: Dongguan Leader Optronics Technology Co. Ltd.
Share on (62451981982):
Product Overview
Description

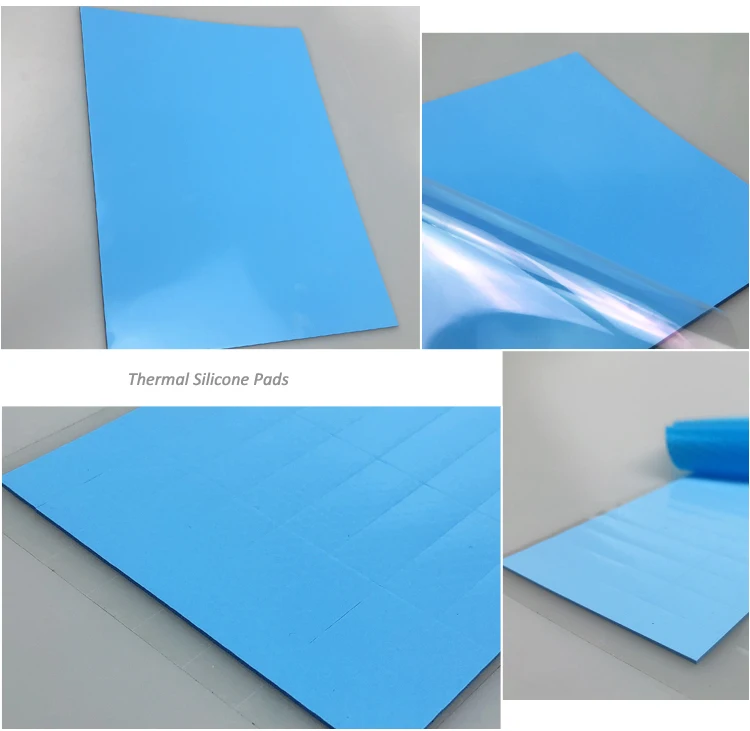

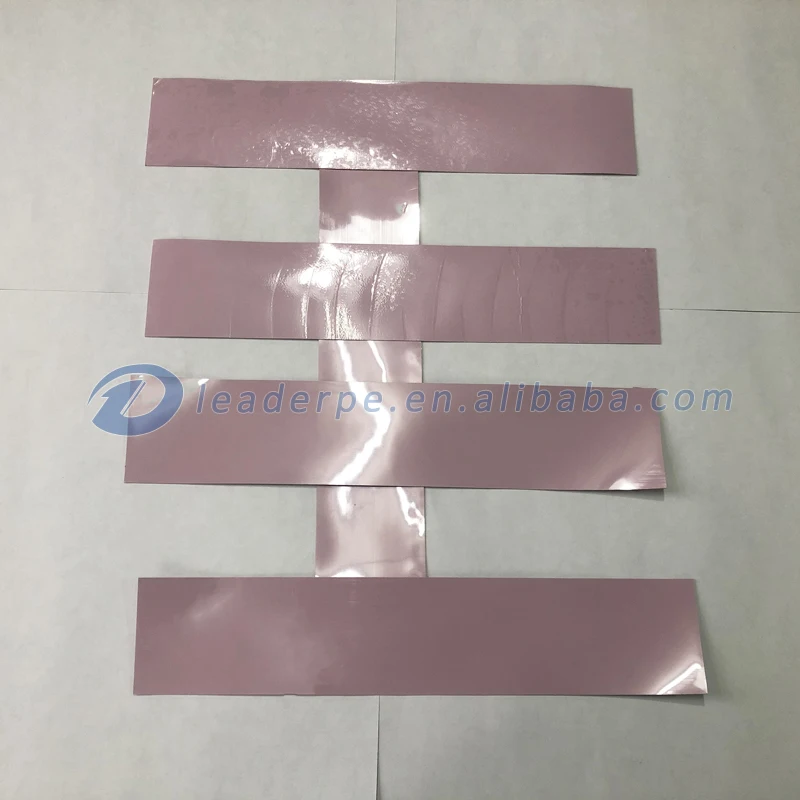

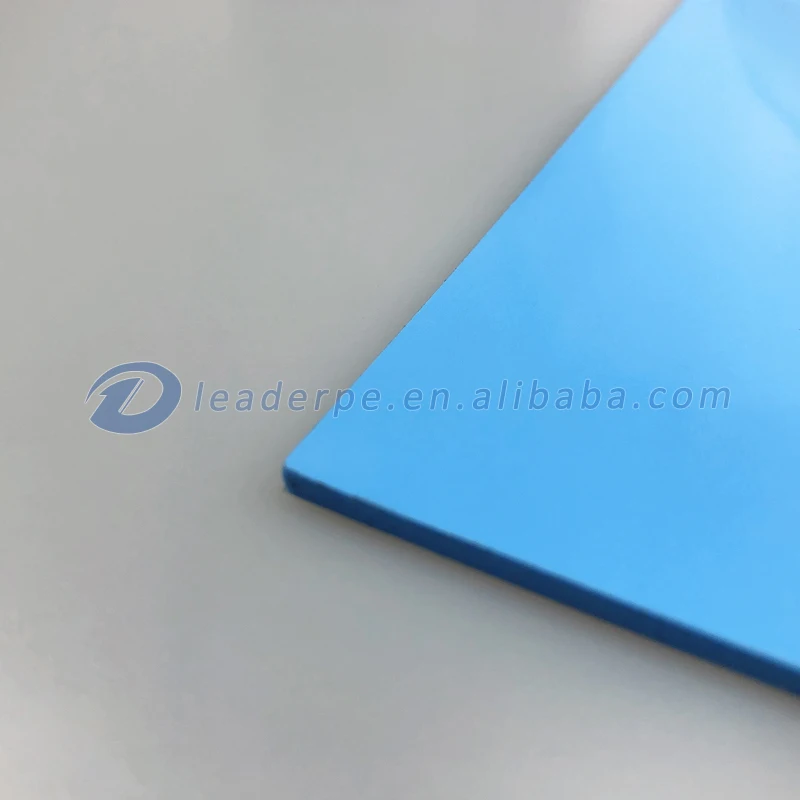

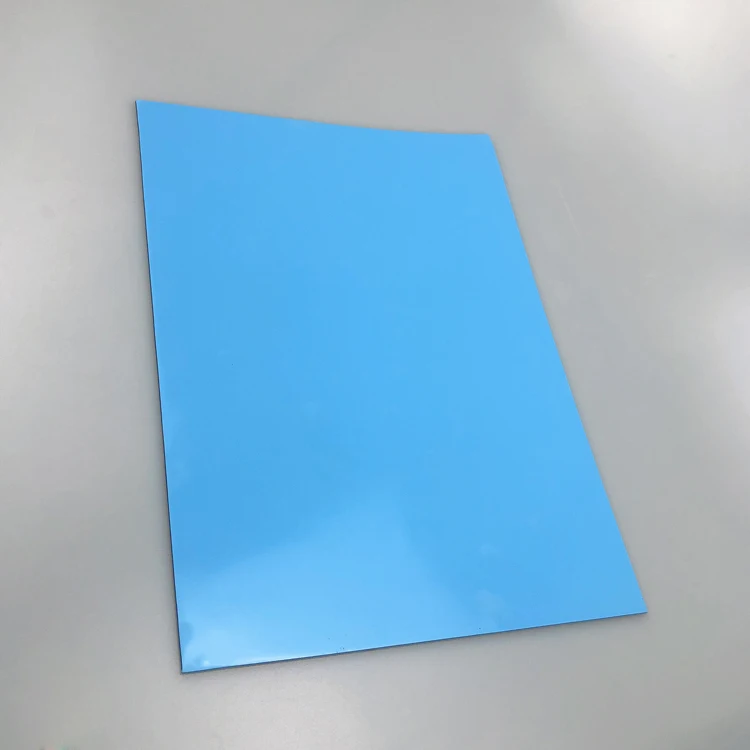

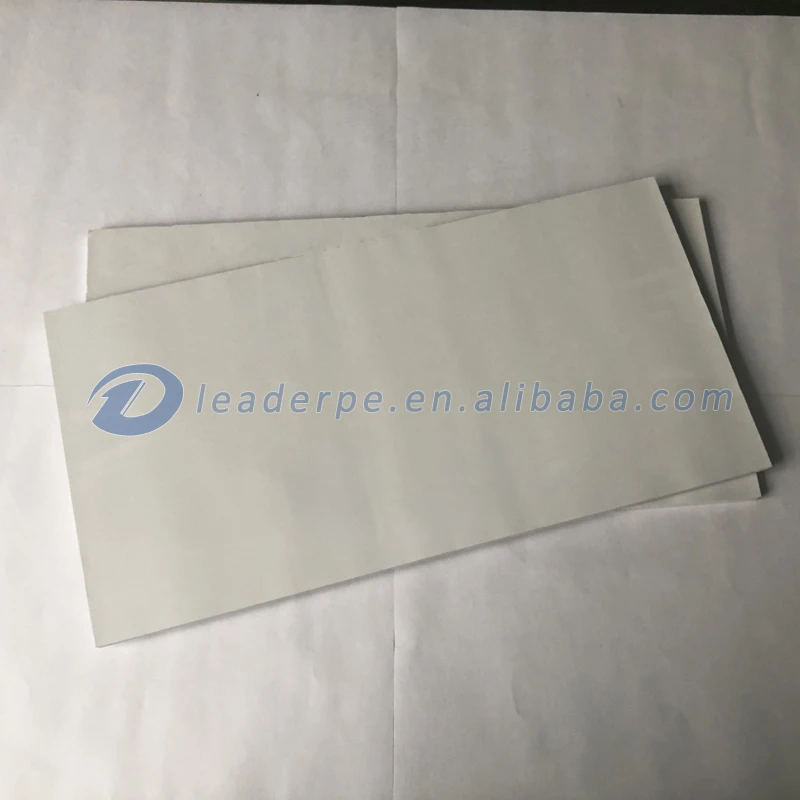

Thermally conductive pads adhesive thermal gap filler sheet
Soft thermal gap filler sheet sale
The thermal gap filler sheet is silicone based thermal pad which has been designed for both efficient heat transfer away from critical devices and ease of manufacturing. It can also be provided in a range of formats and thickness, such as sheets, rolls and die cut parts. The thermal gap filler sheet offers a good combination of low thermal impedance, good compressibility and a high dielectric breakdown voltage.
Advantages of thermal gap filler sheet
Thermal conductivity: 3.0w/m.k
High thermal performance at cost effective
Low stress application
Electrical Isolating
Thermal Pad Configurations

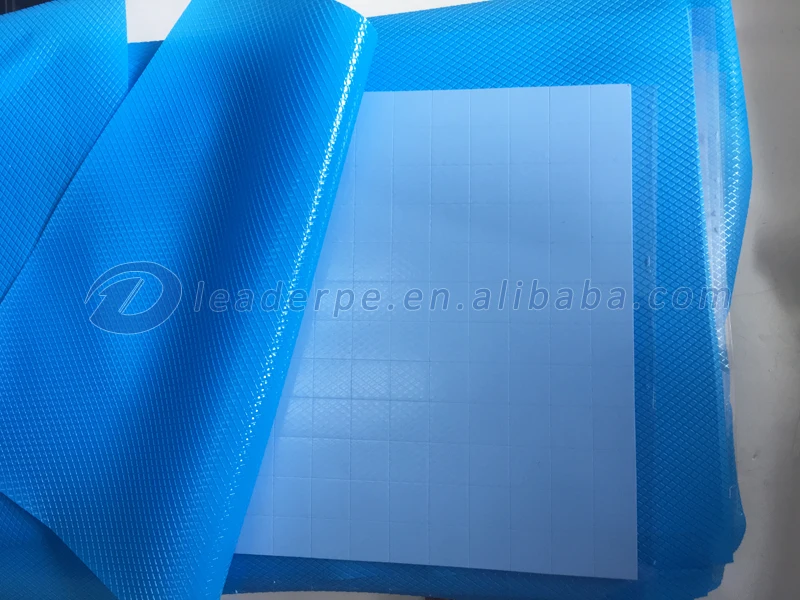

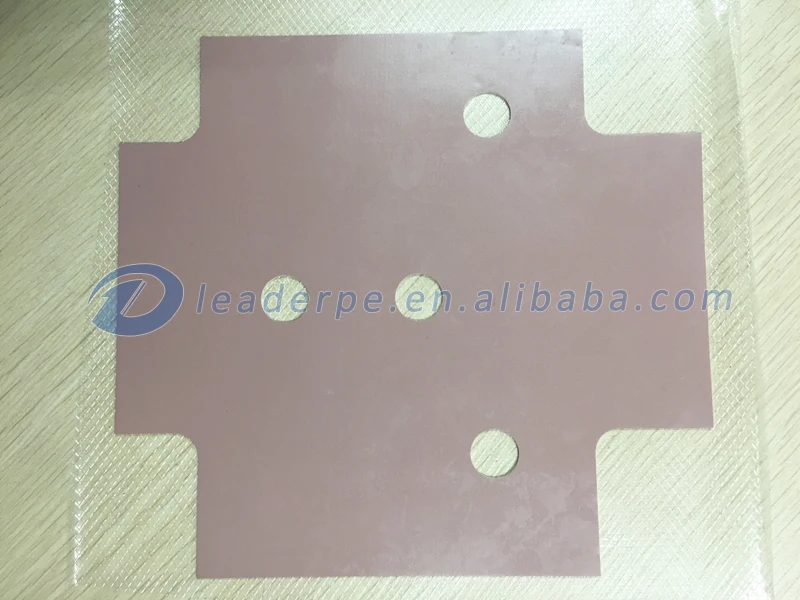

Sheet form, die-cut parts
Roll form available
LD8200 Thermal Pad Size Available:
200x400mm
Thickness available: 0.5-5.0mm, increment by 0.5mm
Get FREE Quotations Now!
Technical sheet of thermal gap filler sheet
| Metric Value | |||||||||
| Property | Test Method | Unit | LD8100 | LD8150 | LD8200 | LD8250 | LD8300 | LD8400 | LD8500 |
| Color | Visual | - | Light Grey | Dark & Grey | Red | Yellow | Blue | Light Blue | Light Green |
| Thickness | ASTM D374 | mm | 1.0~2.5 | 0.5~20.0 | 0.5~20.0 | 0.5~5.0 | 0.3~20 | 0.5~5.0 | 1.0~5.0 |
| Density | ASTM D792 | g/cc | 2 | 2.5 | 2.8 | 3.0 | 2.7 | 3.2 | 3.4 |
| Hardness | ASTM D2240 | Shore C | 15±5 | 25±5 | 25±5 | 25±5 | 30±5 | 40+/-5 | 45±5 |
| Tensile Strength | ASTM D412 | KN/m | 2.5 | 0.47 | 0.33 | 0.42 | 0.29 | 0.12 | 0.15 |
| Continuous Use Temp. | EN 344 | °C | -40-150 | -40-150 | -40-150 | -40-150 | -40-150 | -40-200 | -40-200 |
| Electrical | |||||||||
| Breakdown Voltage | ASTM D149 | Kv/mm | ≥6.3 | ≥5.2 | ≥6.0 | ≥5.3 | ≥4.8 | ≥6.0 | ≥4.0 |
| Volume Resistivity | ASTM D257 | Ω.cm | 6.2×1015 | 8.0×1015 | 1.0×1016 | 3.2×1016 | 3.2×1016 | 1.0×1012 | 1×1012 |
| Flame Rating | UL 94 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 |
| Thermal | |||||||||
| Thermal Conductivity | ASTM D5470 | W/m.k | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 |
Remark: Data for design engineer spec. reference only. Engineers are reminded to test the material in application.
Request FREE Smaples Now!
Application of thermal gap filler sheet
High power applications
LED Lighting
Mass storage drives
Between CPU and heat spreaders
Communication devices
OEM thermal gap filler sheet test equipment
OEM thermal conductive slicone manufacturer
Leader OPUS strives to provide the reliable thermal interface materials for customers. In order to meet today’s thermal management demands, spanning markets as diverse as home appliances to handheld technologies. We improve our R&D department with the aim to provide the great thermal gap filler sheet to effectively control the heat.
Customer by thermal gap filler sheet at factory price
Thermal Conductivity Material Silicone Certifications
Leader Thermal Pad Cooperation Partners
FAQ about thermal gap filler sheet
What's the thermal conductivity test method given on the data sheet?
All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.
How to Find a right thermal conductivity for my application?
It depends on the watts of power source, ability of heat dissipation.
Do you accept custom orders?
Yes, we products can be customized in dimension, shape, color, coated on side or two sides adhesive or coated fiberglass. Our design team will help on drawing, please contact us for more details.
