Truck mouned crane which is composed by the chassis, cargo compartment and crane, is used to load, unload and transport the goods. It replaces a lot of manual labor, improves the work efficiency. It is widely used in hoisting and transportation of goods or equipment in the fields of municipal street lamp construction, landscaping, highway, construction, coal mine, factories and mines.
General Specification | ||||

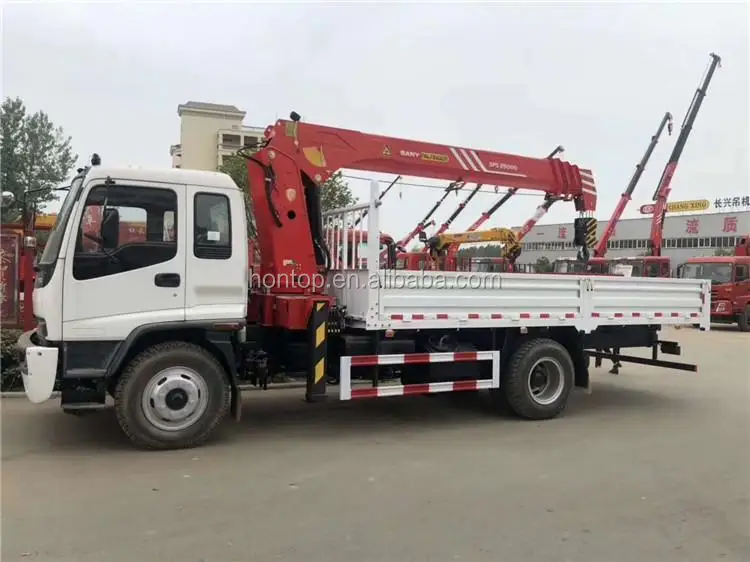

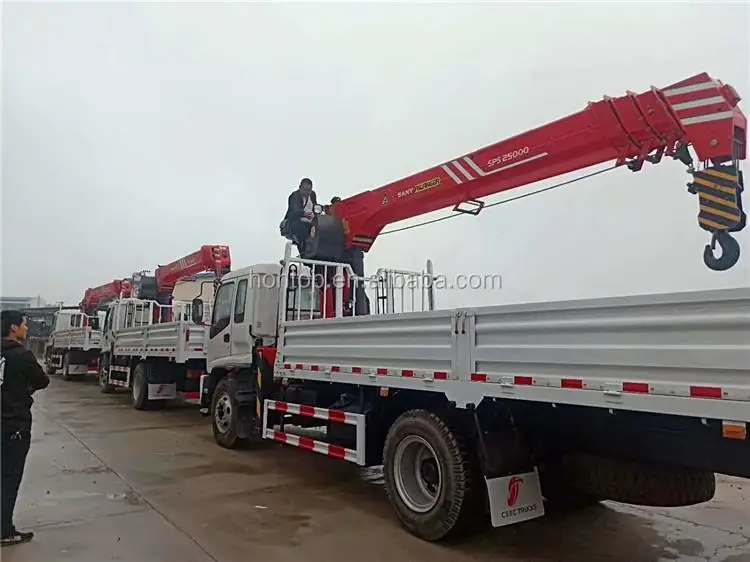

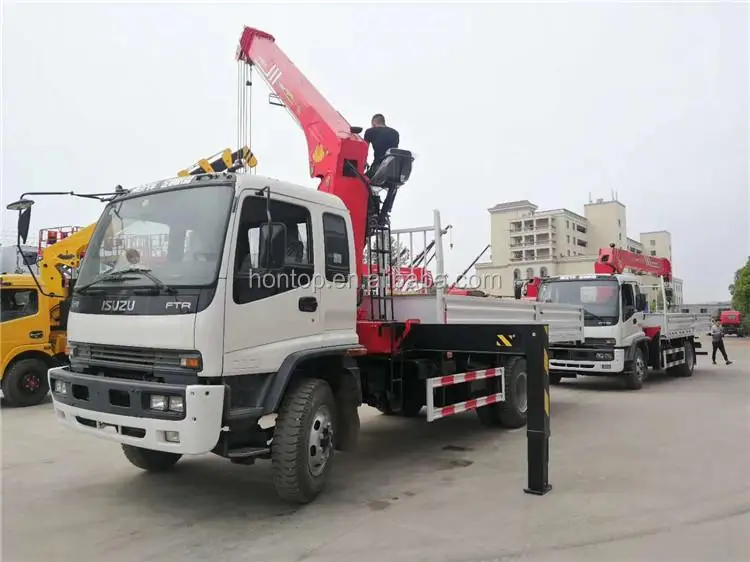

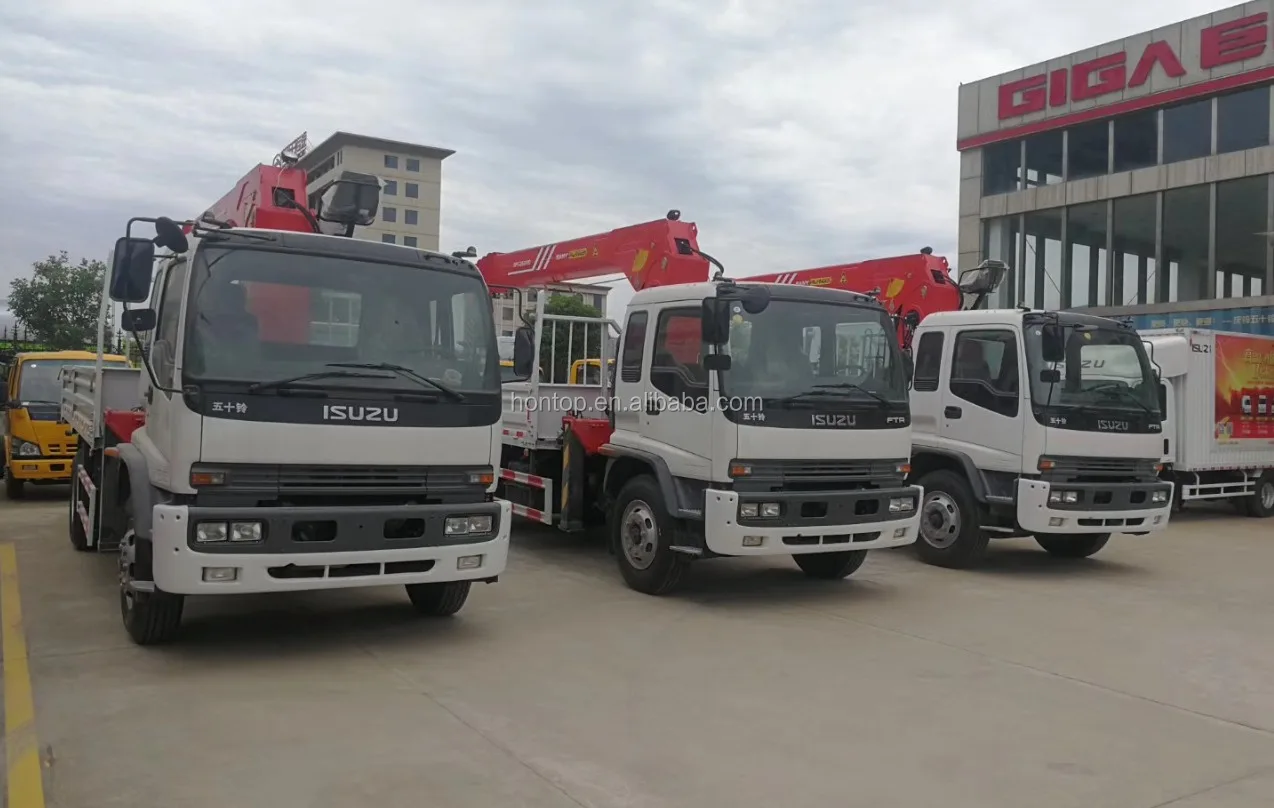

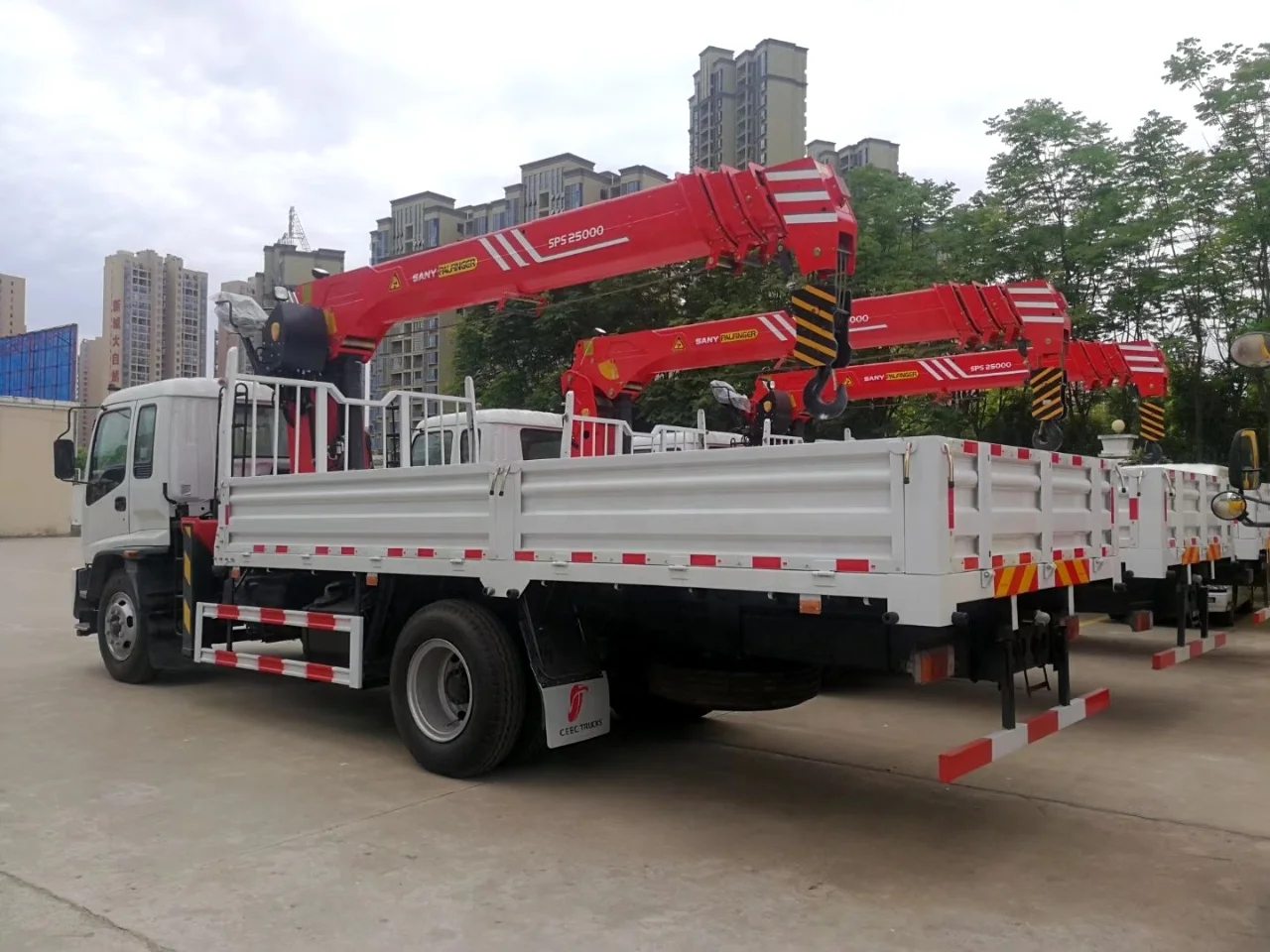

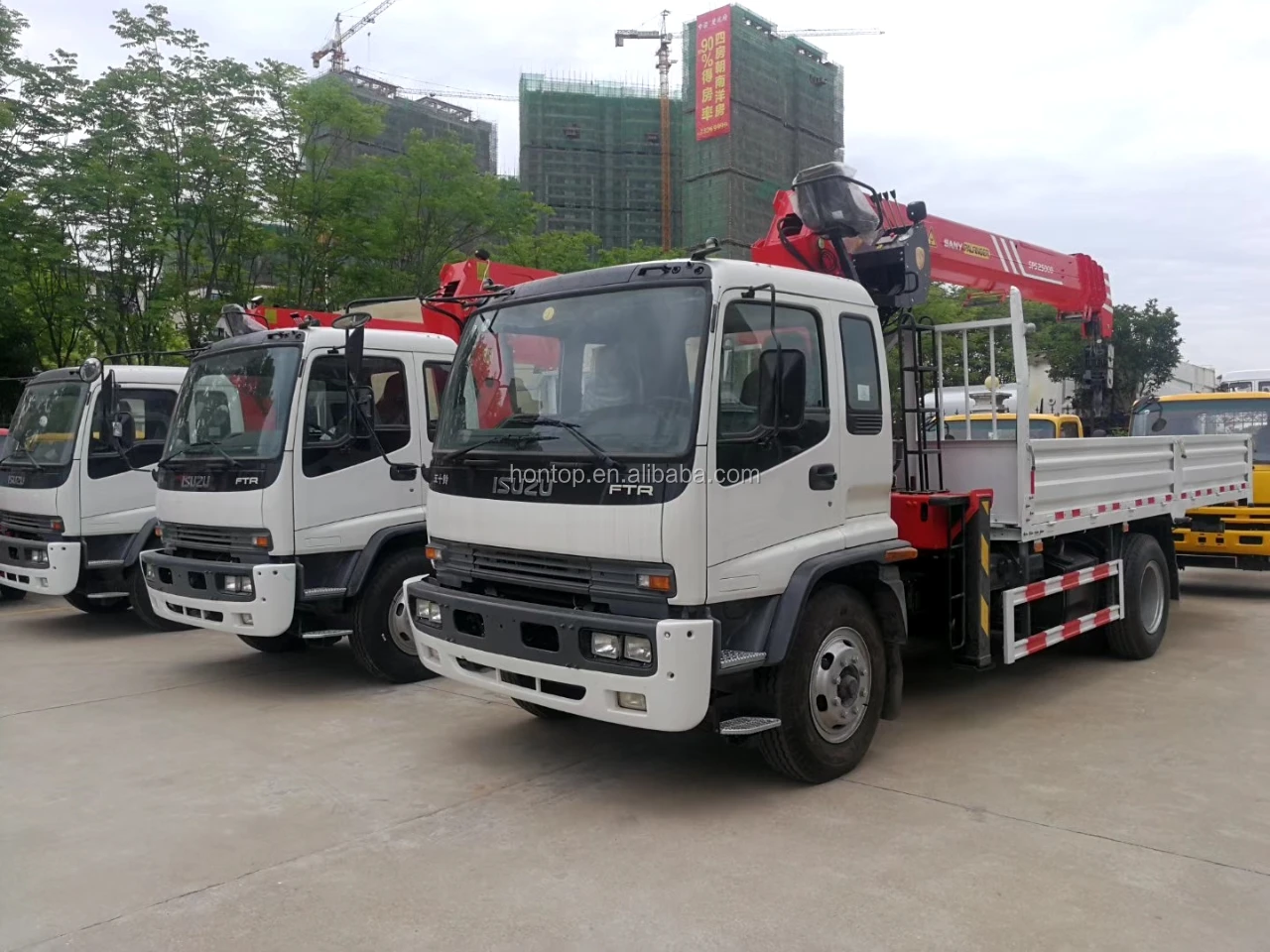

Name | ISU-ZU 8/10 tons mini hydraulic truck mounted crane loader | |||
Applicable crane | 8-10 T | |||
Gross weight | 18000kg | |||
Curb weight | 10550kg | |||
Dimension | 9000X2510X3850mm | |||
Cargo body dimension | 5700×2290×600mm | |||
Wheelbase | 4700mm | |||
Drive type | 4X2 | |||
Max speed | 95km/h | |||
Tire specification | 11.00R20 16PR | |||
Tire quantity | 6 | |||
Brake system | Oil brake | |||
Engine Specification | ||||
Engine manufacture | ISUZU | |||
Emission standard | Euro 5 | |||
Horse power | 240hp | |||
Displacement | 7790ml | |||
Crane Specification | ||||
Items | Sany 8-ton 4 section | XCMG 8- ton 4 section | Sany 10-ton 4 section | XCMG 10-ton 4 section |
Max lifting capacity(kg) | 8000 | 8000 | 10000 | 10000 |
Max lifting capacity at full extension(kg) | 800 | 1100 | 1300 | 1500 |
Working radius(m) | 14 | 11.5 | 14 | 12 |
Max lifting height(m) | 16.1 | 13.5 | 16.1 | 14 |
Crane weight(kg) | 3820 | 3315 | 3800 | 3765 |
Outrigger span(m) | 2280--5600 | 2280-5580 | 2280--5600 | 2280--5580 |
Rotation angle | 360 full rotation | 360 full rotation | 360 full rotation | 360 full rotation |
