Portable cnc plasma metal cutting machine
- Category: >>>
- Supplier: Shanghai TAYOR Welding Machine Co. Ltd.
Share on (62452075841):
Product Overview
Description
Product Description

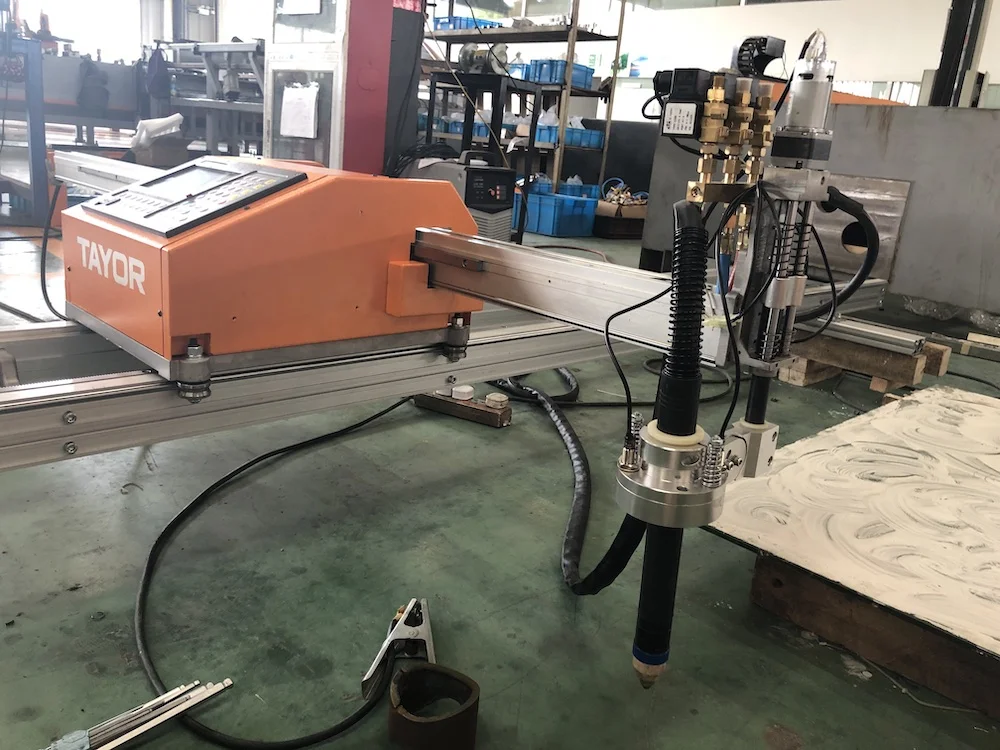

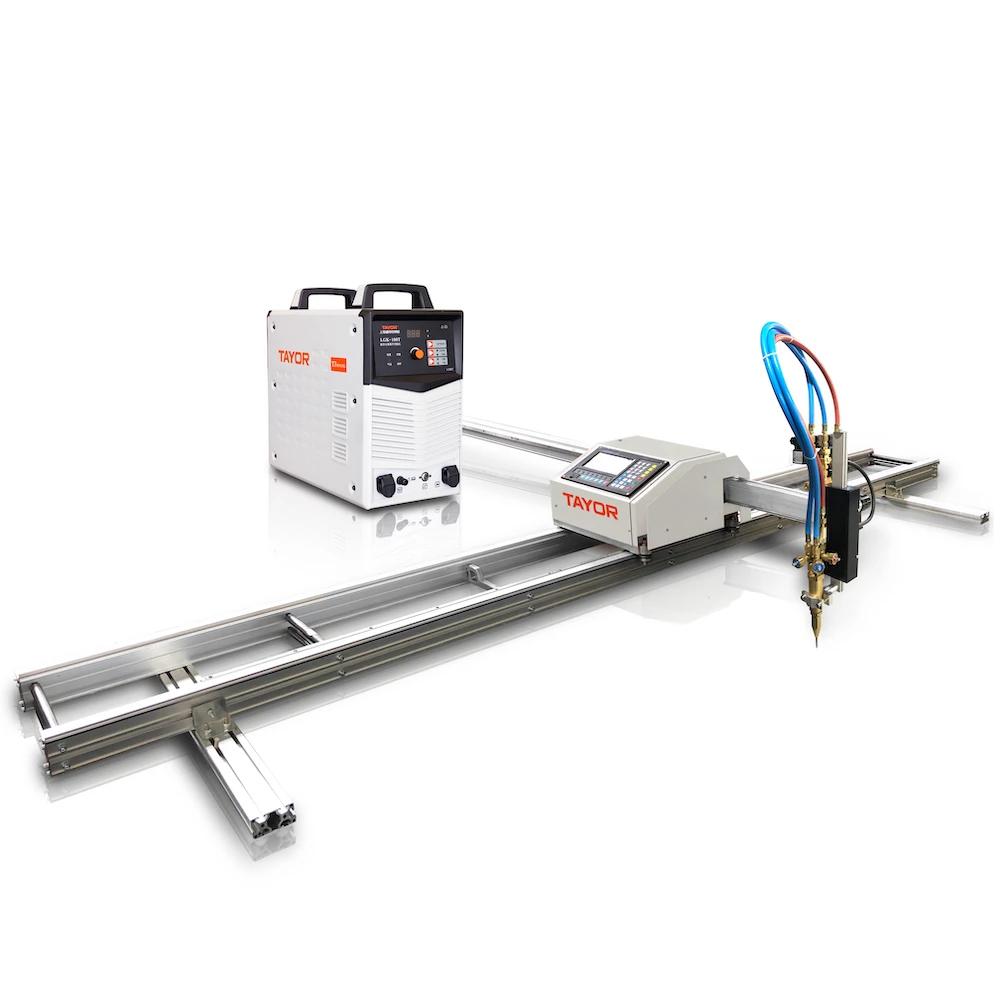

Portable cnc plasma metal cutting machine
light weight, small size and easy to operate
Product Detail
| Machine | portable plasma cutting machine |
| cutting model | plasma and oxyfuel |
| cutting material | mild steel, stainless steel, aluminium |
| Driving Motor | stepper |
| CNC Controller | Stepper Motor |
| Plasma Power | Hypertherm, Kjellberg, Victor, ESAB |
| Programming Software | Fastcam, SmartNest, Hypertherm |
| cutting size | customization |
| plasma cutting thickness | 1-20mm |
| flame cutting thickness | 4-100mm(standard) |
| Product Keywords | portable cnc plasma metal cutting machine,portable cnc plasma gas cutting machine,portable cnc plasma cutting machine |
CNCSG series CNC plasma and oxyfuel cutting machine
portable Cutting Machine can cut any complex plane drawing by both flame torch and plasma cutter.
The compact design and rational structure make it lightweight, small size and easy to move. It is usable both indoors and outdoors, it adopts humanistic positive man-machine conversation and operates easily
Cut box/Cut Max series
Portable CNC flame and plasma cutting machine
Machine Features
Flexible, space-saving Lightweight and durable aluminum alloy structure, easy to install Easy to operate Small investment, cost-effective Wear-resistant cable,Suitable for outdoor operation The system with 5 languages Equipped with CNC Power-full Controller
| Australia Fastcam nest software Installation and training manual International standard G code and M code Perfect compatibility of plasma power supply Safety protection cover The machine has the anti-splash shield |
Application
Small Machinery repair Workshop
Outdoor metal plate processing company
Metal Manufacturing Training School
DIY metal sheet fabrication
Need multi cutting shapes and small batch production
Technical Specification
Model | Cutbox -1530 | Cutbox -1560 | Cutmax -1530 | Cutmax -1560 |
Effective cutting area(mm) | 1500x3000 | 1500x6000 | 1500x3000 | 1500x6000 |
Cutting Mode | Flame Cutting | Plasma cutting (PRO C-100T) | ||
Cutting materials | Mild Steel | Mild steel, stainless steel, Aluminum | ||
Quality cutting thickness(mm) | 6-50mm | 16 (20) mm | ||
Cut off thickness(mm) | 6-120mm | 36mm | ||
Cutting Speed (mm/min) | 50-800 | 50-3000 | ||
Drive mode | Step Motor | Step Motor | ||
Idle running speed (mm/min) | Max: 3000 | |||
Precision | ±0.2mm/m | |||
Working environment | Input voltage: 220V 50-60 Hz Gas type: Propane \\ Acetylene \\LPG Fuel gas pressure: Max 0.7Mpa Oxygen pressure: Max 0.1Mpa | Input voltage Single phase 220V 50 HZ 3 phase 380V 50Hz Air Compressor: 0.8 Mpa | ||
Package size(mm) and weight (KG) | Machine: 720×500×408 38KG Rail(3meters): 3600×450×240 100KG Rail(6meters): 3600×450×380 140KG Power Source:640×350×525 40KG | |||

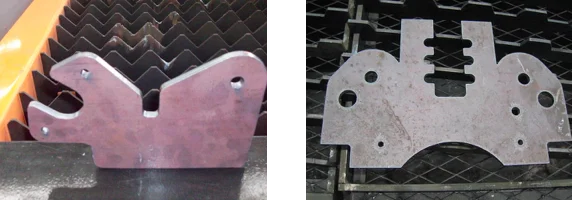

plasma cutting samples
