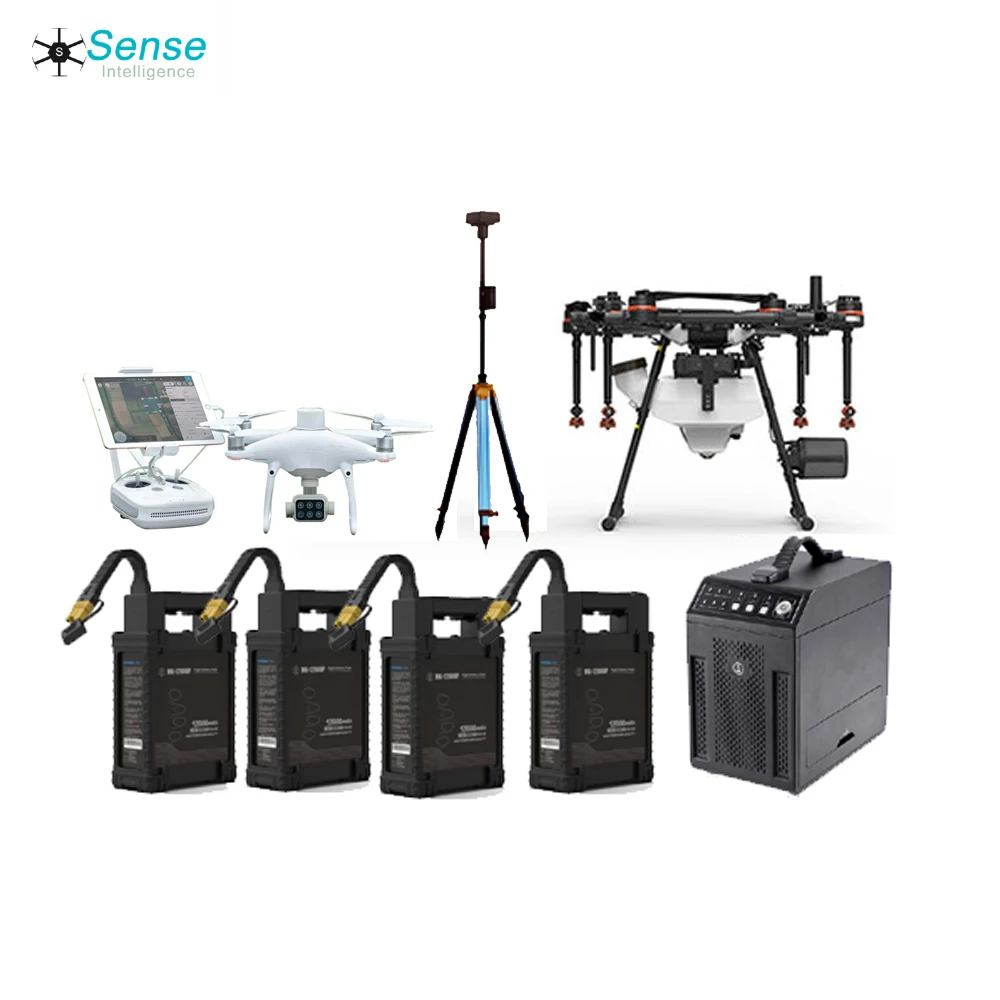

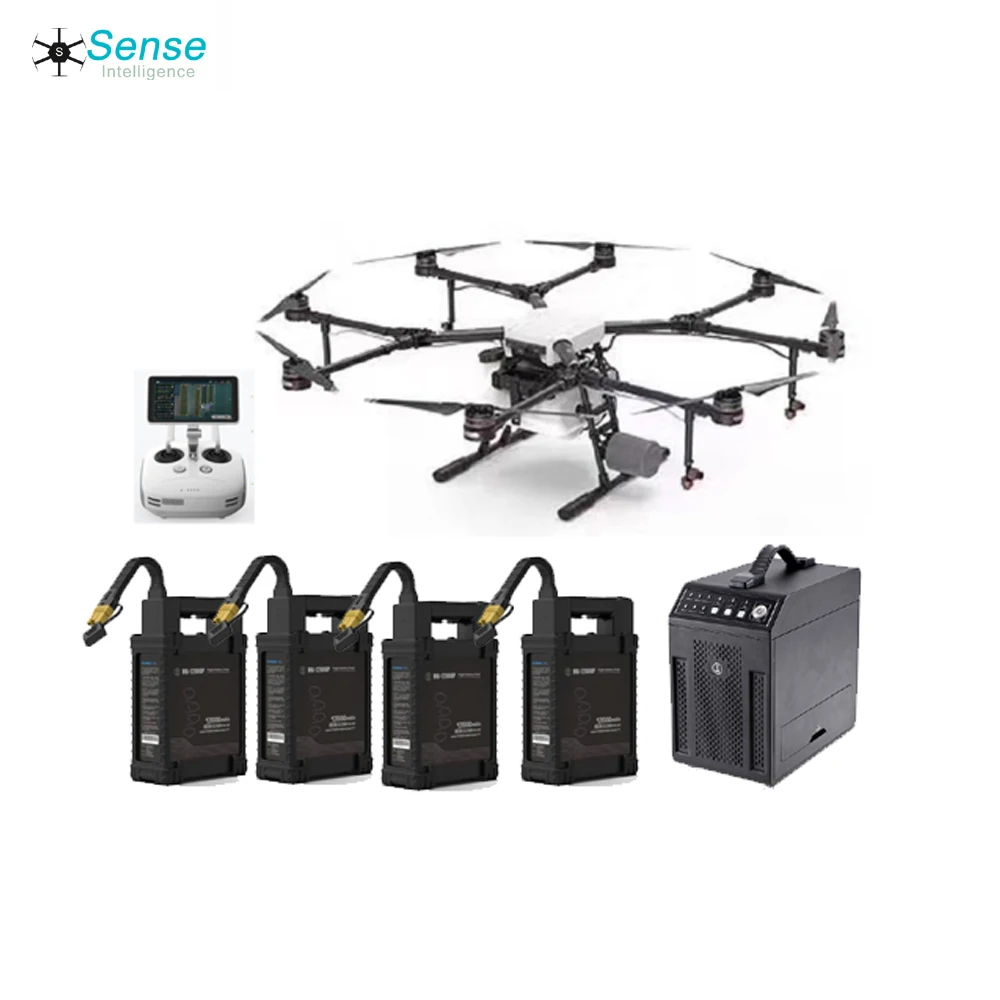

Promotion kit ! agras mg1p mg 1p agras mg 1p 10L drone agriculture sprayer uav with one charger four batteries
- Category: Farm Machinery >>>
- Supplier: Hubei Sense Intelligence Technology Co. Ltd.
Share on (62452102292):
Product Overview
Description
Contacts

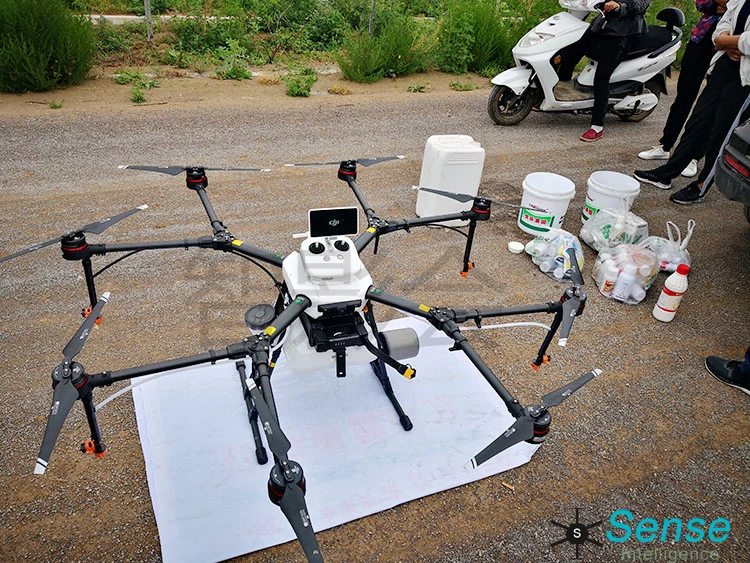

Agras MG-1P Agriculture Plant Protection UAV
Product Description
AIRCRAFT FRAME
Diagonal Wheelbase:
1500 mm
Frame Arm Length:
619 mm
Dimensions:
MG-1P: 1460×1460×578 mm (arms unfolded, without
propellers)
780×780×578 mm (arms folded)
MG-1P RTK: 1460×1460×616 mm (arms unfolded,
without propellers)
780×780×616 mm (arms folded)
FLIGHT PARAMETERS
Total Weight (without battery): 9.7 kg
Standard Takeoff Weight:
23.8 kg (MG-1P)
23.9 kg (MG-1P RTK)
Max Takeoff Weight:
24.8 kg (at sea level)
Max Thrust-to-Weight Ratio:
1.71 (with 23.8 kg takeoff weight)
Power Battery:
Designated DJI Battery (MG-12000P)
Max Power Consumption:
6400 W
Hovering Power Consumption:
3800 W (with 23.7 kg takeoff weight）
Hovering Time*:
20min (@12000 mAh & 13.7 kg takeoff weight)
9 min (@12000 mAh & 23.7 kg takeoff weight)
*Hovering time acquired at sea level, with wind speeds lower than 3m/s.
Max Operating Speed:
7 m/s
Max Flying Speed:
12 m/s（P & F mode, with GPS）,
15 m/s （A mode）
Max Service Ceiling Above Sea
Level:
2000 m
Recommended Operating
Temperature:
0 to 40°CAIRCRAFT RTK
Positioning System:
GPS+GLONASS (global) or GPS+Beidou (Asia-Pacific)
Frequency Point:
GPS L1&L2, GLONASS F1&F2
Asia-Pacific: GPS L1&L2, Beidou B1&B2
Positioning Accuracy:
Flat Surface: 1 cm + 1 ppm
Height:
2 cm + 1 ppm
Orientation Accuracy:
(0.2/R) °R is the distance between two antennas and the
unit is meter.
Velocity Measurement
Accuracy:
0.03 m/s
REMOTE CONTROLLER CHARGER
Model:
A14-057N1A
Voltage:
17.4 V
Rated Power:
57 W
BATTERY
Battery Model:
MG-12000P
Voltage:
44.4 V
Discharge Rate:
20 ℃
Protection Rating:
IP54
Capacity:
12,000 mAh
Weight:
4.0 kgHIGH-PRECISION RADAR MODULE
Model:
RD2412R
Working Frequency:
MIC & KCC: 24.05 GHz - 24.25 GHz
SRRC & CE & FCC: 24.00 GHz - 24.25 GHz
Equivalent Isotropic
Radiated Power (EIRP):
MIC/KCC/FCC/CE: 20dBm; SRRC: 13dBm
Radar Format:
FMCW
Operating Temperature:
-10 to 40°C
Accuracy Range
0.10 m
Radar Dimensions:
109×152 mm
Power Input:
DC 12 V – 30 V
Radar Weight:
406 g
Power Consumption:
12 W
Storage Temperature:
If storing < 3 months: -20 to 45°C;
If storing > 3 months: -0 to 28°C
Hold Altitude & Terrain
Follow:
Altitude Measurement Range: 1-30 m;
Hold Altitude Range: 1.5-3.5 m
Obstacle Sensory Range:
1.5-30 m
(Varies according to the material, position, shape,
and other properties of the obstacle)
Working Condition:
The aircraft’s relative altitude is greater than 1.5
m and flying speed is less than 7 m/s.
Safety Distance:
2.5 m
Obstacle Avoidance
Direction:
Forward and backward obstacle avoidance according to
flying directions
Protection Rating:
IP67SPRAY SYSTEM
LIQUID TANK
Volume:
10 L
Standard Operating Payload:
10 kg
Max Battery Size:
151×195×70 mm
NOZZLE
Model:
XR11001VS (0.379 L/min）
Recommend Model:
TX-VK8 (0.525L/min）
Quantity:
4
Droplet Size (XR11001VS):
130 - 250 μm (subject to working
environment and spraying speed）

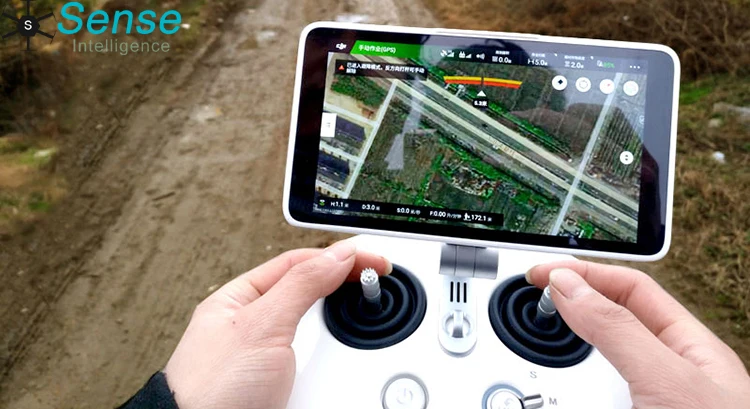

REMOTE CONTROLLER
Model:
GL300N
Operating Frequency:
2.400 - 2.483 GHz (Europe, Japan, South
Korea)
5.725 - 5.850 GHz (China, USA)
Max Transmission Range:
NCC/FCC: 5 km;
SRRC/CE/MIC/KCC: 3 km
EIRP:
2.4GHz: CE/MIC/KCC:<20 dBm;
5.8GHz: SRRC/NCC/FCC:<26 dBm;
Remote Controller Battery:
External Battery 4920mAh, 2s LiPo
Built-in Battery 320mAh, 2s LiPo
Output Power:
16W
Operating Temperature Range:
-10 to 40°C
Storage Temperature Range:
If storing < 3 months: -20 to 45°C
If storing > 3 months: 22 to 28°C
Charging Temperature Range:
5 to 40°CREMOTE CONTROLLER CHARGING HUB
Model:
WCH2
Output Voltage:
8.7V
Max Output Current:
6A
MG INTELLIGENT BATTERY CHARGER
Rated Input Voltage:
100-240 V
Max Input Current:
15A
Number of Batteries Available for
Simultaneous Charging:
2
Charging Mode:
CC/CV
Rated Output Voltage:
50.4 V
Total Output Power:
2400 W
Diagonal Wheelbase:
1500 mm
Frame Arm Length:
619 mm
Dimensions:
MG-1P: 1460×1460×578 mm (arms unfolded, without
propellers)
780×780×578 mm (arms folded)
MG-1P RTK: 1460×1460×616 mm (arms unfolded,
without propellers)
780×780×616 mm (arms folded)
FLIGHT PARAMETERS
Total Weight (without battery): 9.7 kg
Standard Takeoff Weight:
23.8 kg (MG-1P)
23.9 kg (MG-1P RTK)
Max Takeoff Weight:
24.8 kg (at sea level)
Max Thrust-to-Weight Ratio:
1.71 (with 23.8 kg takeoff weight)
Power Battery:
Designated DJI Battery (MG-12000P)
Max Power Consumption:
6400 W
Hovering Power Consumption:
3800 W (with 23.7 kg takeoff weight）
Hovering Time*:
20min (@12000 mAh & 13.7 kg takeoff weight)
9 min (@12000 mAh & 23.7 kg takeoff weight)
*Hovering time acquired at sea level, with wind speeds lower than 3m/s.
Max Operating Speed:
7 m/s
Max Flying Speed:
12 m/s（P & F mode, with GPS）,
15 m/s （A mode）
Max Service Ceiling Above Sea
Level:
2000 m
Recommended Operating
Temperature:
0 to 40°CAIRCRAFT RTK
Positioning System:
GPS+GLONASS (global) or GPS+Beidou (Asia-Pacific)
Frequency Point:
GPS L1&L2, GLONASS F1&F2
Asia-Pacific: GPS L1&L2, Beidou B1&B2
Positioning Accuracy:
Flat Surface: 1 cm + 1 ppm
Height:
2 cm + 1 ppm
Orientation Accuracy:
(0.2/R) °R is the distance between two antennas and the
unit is meter.
Velocity Measurement
Accuracy:
0.03 m/s
REMOTE CONTROLLER CHARGER
Model:
A14-057N1A
Voltage:
17.4 V
Rated Power:
57 W
BATTERY
Battery Model:
MG-12000P
Voltage:
44.4 V
Discharge Rate:
20 ℃
Protection Rating:
IP54
Capacity:
12,000 mAh
Weight:
4.0 kgHIGH-PRECISION RADAR MODULE
Model:
RD2412R
Working Frequency:
MIC & KCC: 24.05 GHz - 24.25 GHz
SRRC & CE & FCC: 24.00 GHz - 24.25 GHz
Equivalent Isotropic
Radiated Power (EIRP):
MIC/KCC/FCC/CE: 20dBm; SRRC: 13dBm
Radar Format:
FMCW
Operating Temperature:
-10 to 40°C
Accuracy Range
0.10 m
Radar Dimensions:
109×152 mm
Power Input:
DC 12 V – 30 V
Radar Weight:
406 g
Power Consumption:
12 W
Storage Temperature:
If storing < 3 months: -20 to 45°C;
If storing > 3 months: -0 to 28°C
Hold Altitude & Terrain
Follow:
Altitude Measurement Range: 1-30 m;
Hold Altitude Range: 1.5-3.5 m
Obstacle Sensory Range:
1.5-30 m
(Varies according to the material, position, shape,
and other properties of the obstacle)
Working Condition:
The aircraft’s relative altitude is greater than 1.5
m and flying speed is less than 7 m/s.
Safety Distance:
2.5 m
Obstacle Avoidance
Direction:
Forward and backward obstacle avoidance according to
flying directions
Protection Rating:
IP67SPRAY SYSTEM
LIQUID TANK
Volume:
10 L
Standard Operating Payload:
10 kg
Max Battery Size:
151×195×70 mm
NOZZLE
Model:
XR11001VS (0.379 L/min）
Recommend Model:
TX-VK8 (0.525L/min）
Quantity:
4
Droplet Size (XR11001VS):
130 - 250 μm (subject to working
environment and spraying speed）
REMOTE CONTROLLER
Model:
GL300N
Operating Frequency:
2.400 - 2.483 GHz (Europe, Japan, South
Korea)
5.725 - 5.850 GHz (China, USA)
Max Transmission Range:
NCC/FCC: 5 km;
SRRC/CE/MIC/KCC: 3 km
EIRP:
2.4GHz: CE/MIC/KCC:<20 dBm;
5.8GHz: SRRC/NCC/FCC:<26 dBm;
Remote Controller Battery:
External Battery 4920mAh, 2s LiPo
Built-in Battery 320mAh, 2s LiPo
Output Power:
16W
Operating Temperature Range:
-10 to 40°C
Storage Temperature Range:
If storing < 3 months: -20 to 45°C
If storing > 3 months: 22 to 28°C
Charging Temperature Range:
5 to 40°CREMOTE CONTROLLER CHARGING HUB
Model:
WCH2
Output Voltage:
8.7V
Max Output Current:
6A
MG INTELLIGENT BATTERY CHARGER
Rated Input Voltage:
100-240 V
Max Input Current:
15A
Number of Batteries Available for
Simultaneous Charging:
2
Charging Mode:
CC/CV
Rated Output Voltage:
50.4 V
Total Output Power:
2400 W
Flight performance
The MG-1P series plant protection machine features an eight-axis power redundancy design with adaptive power protection algorithms and robust control algorithms to maintain safe flight even if one of the axes fails during flight. The motor drive system supports dual backup communication mechanism, and automatically switches to the backup link when the signal link is abnormal, ensuring flight safety.
One control multi-machine
The MG-1P supports one control and multiple machines. One remote control can coordinate up to five MG-1P series plant protection machines to work at the same time, and the efficiency of single operation is doubled.
The new generation of intelligent remote control has a control range of up to 3KM, which supports the same distance HD image transmission and ensures safe operation. A new generation of smart remote control.
With the addition of 4G communication function, the battery and antenna are replaceable, making daily work more convenient.
FPV camera
The MG-1P series of plant protection machines can clearly display the front of the plant protection machine on the remote control through the 123° wide-angle lens, providing a real-world reference for remote obstacle-free flight during operation.
With the FPV camera, the plant protection machine can realize the flight management, and the flying hand can return the live image through the FPV, and easily set the A/B point or waypoint, eliminating the labor required in the past.

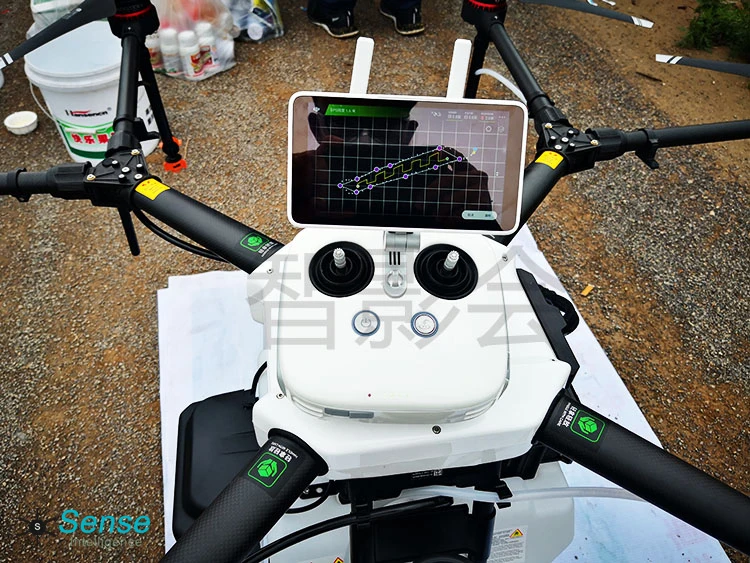

Walking or A/B point workman, the job planning is more time-saving and efficient.

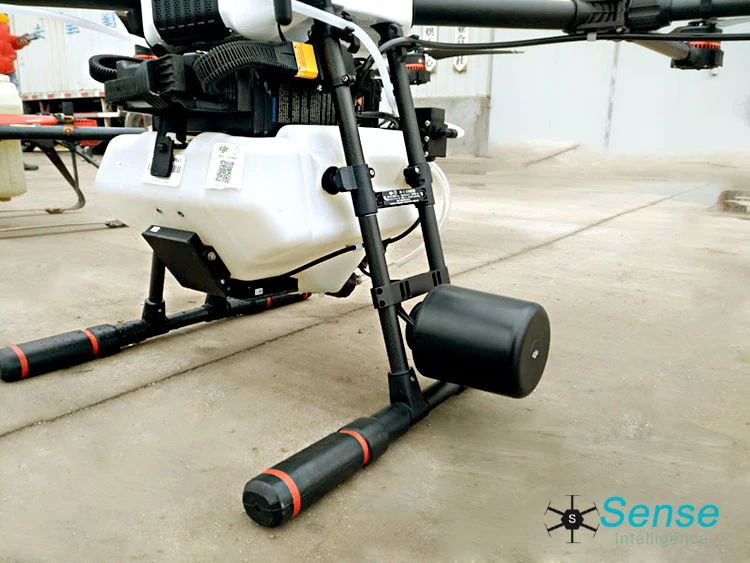

Second generation high precision radar
The second generation of high-precision radar combines the previous generation of three directional radars with an obstacle-avoidance radar, doubling the sensitivity and supporting omnidirectional detection [2], greatly improving obstacle perception and ground-flight capabilities.
The MG-1P can sense the cross-pull wire with a radius of 0.5 cm at the front 15 meters, which can effectively reduce the safety risks caused by common obstacles such as wires and tree bars during daily operation. Active sensing and obstacle avoidance can work around the clock.
Not affected by light and dust. The multi-point omnidirectional detection technology can sense the slope and flatness of the terrain, and adjust the flight height in time to meet the requirements of the imitation operation. While the performance is improved, the radar protection performance is also improved to IP67.
FAQ
If you have any questions, please feel free to contact us now.
Q1.Can I have a sample order for agriculture drone?
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by airplane. It usually takes 7-12 days to arrive. sea shipping is also optional.
Q5. How to proceed an order for drone?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.(we accpet the alibaba trade assurance order for your trust)
Fourthly We arrange the production and shipping.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.Provide after-sales service support and Agricultural technical support.
Q8.About the sample:
Small orders and sample orders are welcome.
Q9.About the shipment:
(1) Usually we ship your drone via sea or air express according to the order quantity.
(2) All shipments with Registered Tracking number or Bill and we will send you by e-mail timely.
Q1.Can I have a sample order for agriculture drone?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit for drone?
A: Low MOQ, 1pc for sample checking is available.
Q3.About Our Product Types:
Our main production include: Plant protestion Drone, Mapping Drone, Multi-function Drone, both Branded and manufactural. Small Unmanned Ground Vehicle, IOT Intelligent Agriculture, Field Monitoring System, and Relevant Serice provider.
Q2. Do you have any MOQ limit for drone?
A: Low MOQ, 1pc for sample checking is available.
Q3.About Our Product Types:
Our main production include: Plant protestion Drone, Mapping Drone, Multi-function Drone, both Branded and manufactural. Small Unmanned Ground Vehicle, IOT Intelligent Agriculture, Field Monitoring System, and Relevant Serice provider.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by airplane. It usually takes 7-12 days to arrive. sea shipping is also optional.
Q5. How to proceed an order for drone?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.(we accpet the alibaba trade assurance order for your trust)
Fourthly We arrange the production and shipping.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.Provide after-sales service support and Agricultural technical support.
Q8.About the sample:
Small orders and sample orders are welcome.
Q9.About the shipment:
(1) Usually we ship your drone via sea or air express according to the order quantity.
(2) All shipments with Registered Tracking number or Bill and we will send you by e-mail timely.
Payments&Shipping&Packing
Our Services
1. We supply one stop drone solutions and re-equip,to satisfy the need of industrial, agricultural security and rescue ect.
professional field;
2. We will reply you for your inquiry in 24 hours;
3. Our Q&C team will inspect every product quality strictly before delivery;
4. After delivery, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you;
5. We can provide UAS operators training and agricultural spraying technical guidance through network teaching by company professor.
professional field;
2. We will reply you for your inquiry in 24 hours;
3. Our Q&C team will inspect every product quality strictly before delivery;
4. After delivery, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you;
5. We can provide UAS operators training and agricultural spraying technical guidance through network teaching by company professor.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
