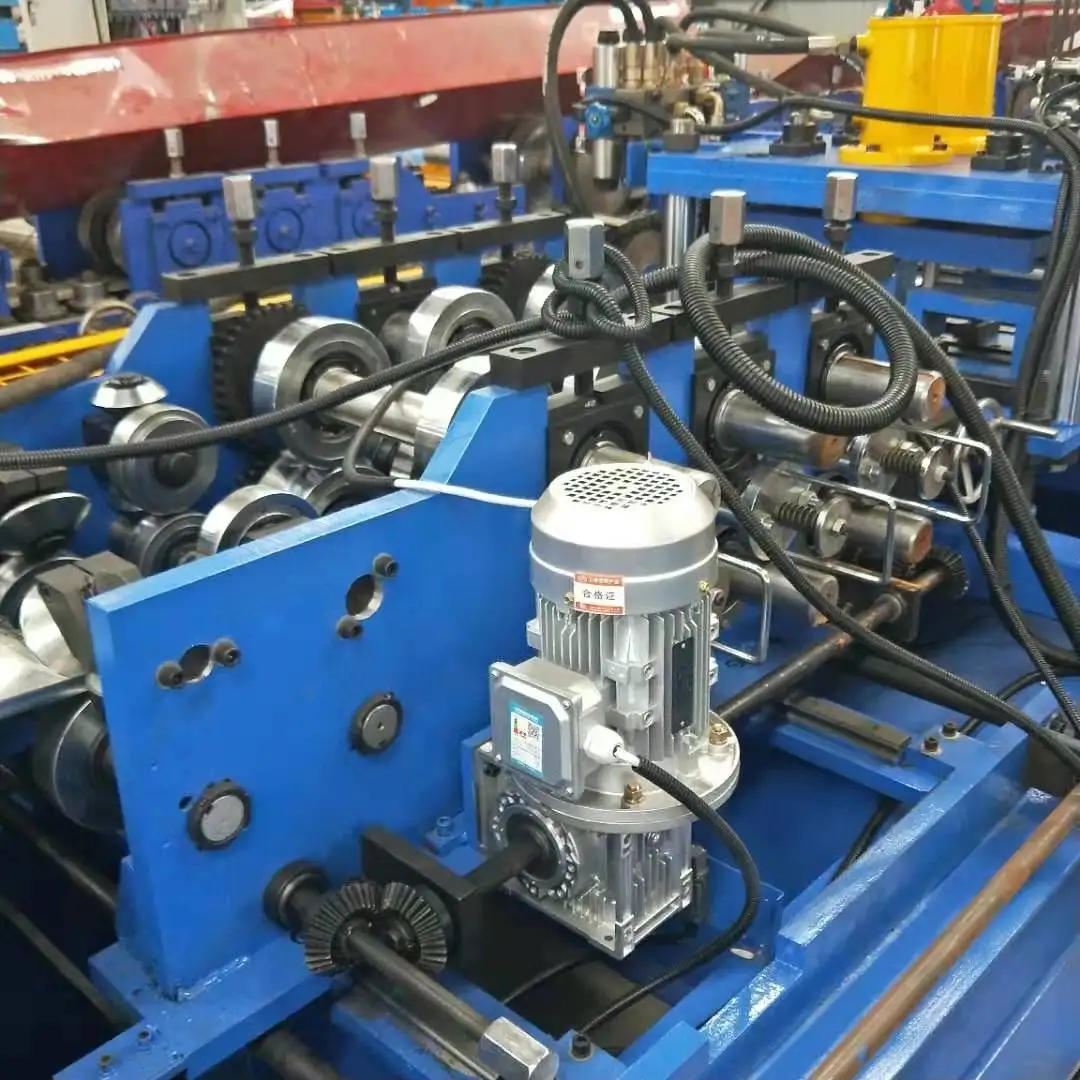

c z purlin roll forming machine
We are the first hydraulic driven roll forming machine manufacturer in north of China,and the most authoritative and professional hydraulic drive roll forming machine manufacturer in local.
Our goal
Advanced design concept and service concept.
We strive to provide high quality cold roll forming machine with affordable prices to our friends of all over the world.
We strive to provide high quality cold roll forming machine with affordable prices to our friends of all over the world.
technology research and development
Our company invests a lot of money every year in the training of personnel and the development of new machines.
Product Display
Hydraulic shearing adopts vertical punching shearing, with large shearing force and no burr.
It adopts the hydraulic driven and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment.
The shear adopts the vertical punching type, the overall frame structure, the slide positioning type.Shear strength is strong, convenient maintenance.
It adopts the hydraulic driven and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment.
The shear adopts the vertical punching type, the overall frame structure, the slide positioning type.Shear strength is strong, convenient maintenance.
Machine language can be set as your requirement.
Siemens: PLC and touchscreen
European drawing design concept. The verticality and straightness of the purlin can be maintained. It can ensure that the punching size is accurate. Easy to install and use.
Product Paramenters
Raw material | GI,GL, |
Thickness of coil sheet | 1-3 mm |

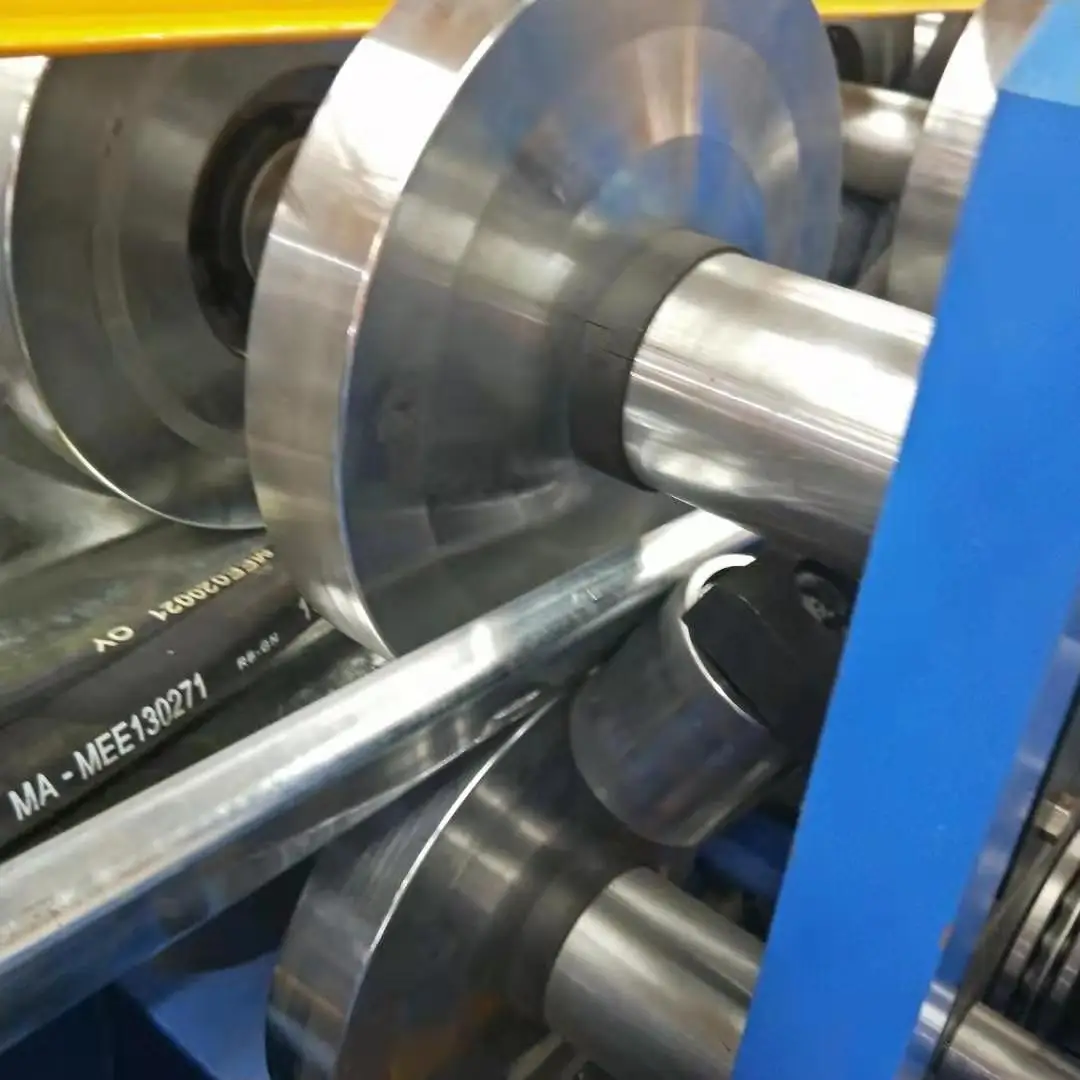

Roller material | adopt 45# steel,.And surface of rollers is grinded,polished and hard chromium plating with high precision.To ensure the smoothness of the chamfer, reduce the friction between the plate and rollers, and reduce the damage of the paint surface of the steel coil. |
Shaft material | Shafts of forming adopt 45# steel,after balance correction,are grinded,polished with high precision.Stainless steel dust shield is mounted on the outside of the bearings. |
Diameter of shaft | 80mm |
Main frame | 400 H beam |
Productivity | 25m/min |
Forming steps | 12 rows |
Middle panel | 16mm |
Hydraulic station power | 7.5 KW |
Material of cutting table | Cr 12 mould steel with quenched treatment |
Dimentision | 8500mm*1600mm*1510mm |
Main market show：
In the past 20 years, our machines have exported around the world. And received full recognition and praise from customers.
If you don't know how to download the roll forming machines,please tell me. Welcome to visit our workshop or visit our customers
workshop in your local market.
In the past 20 years, our machines have exported around the world. And received full recognition and praise from customers.
If you don't know how to download the roll forming machines,please tell me. Welcome to visit our workshop or visit our customers
workshop in your local market.
Our machines in Africa market
Our machines in Europe market
Our machines in Middle East market
Our machins in Latin Ameircan market
Our machines in Southeast market
Our machines in America market
Customer Photos
Customer feedback
Certifications
FAQ
Q: Are you manufacturer?
A: Yes, we are manufacturer .
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou airport: By air From Guangzhou to Beijing airport; By high speed train From Beijing Nan to Cangzhou Xi (1hour),then we can pick up you.
A: Yes, we are manufacturer .
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou airport: By air From Guangzhou to Beijing airport; By high speed train From Beijing Nan to Cangzhou Xi (1hour),then we can pick up you.
Please contact me for more details now!
