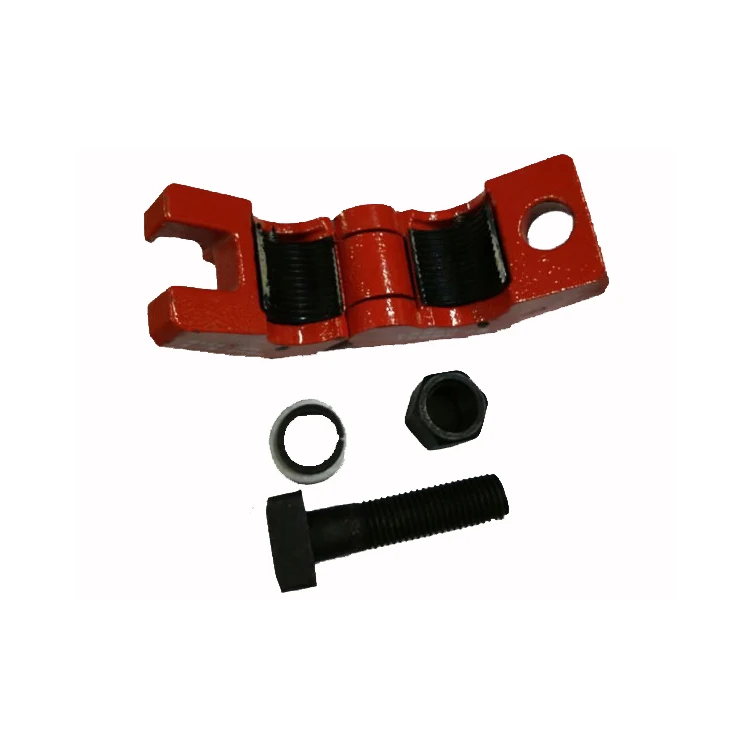

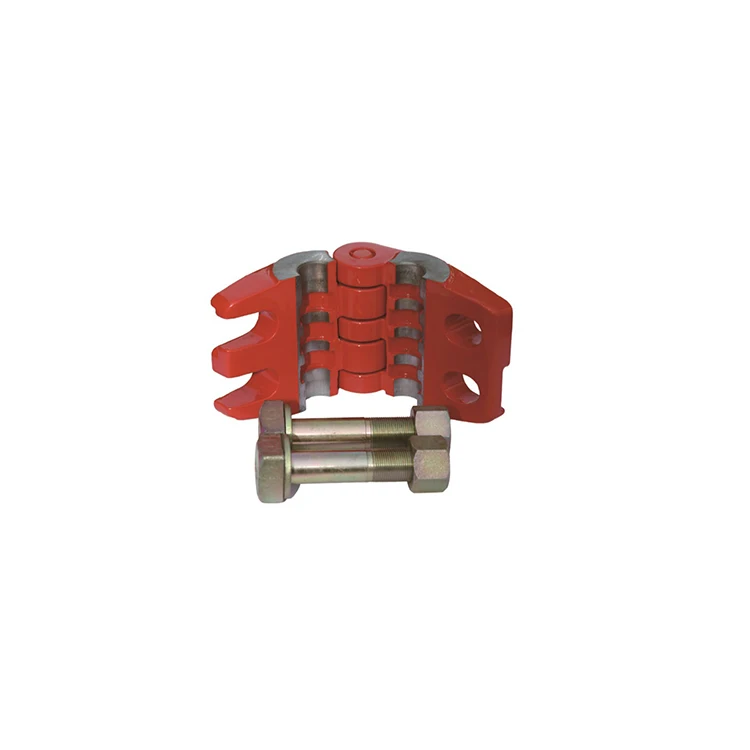

API 11B Two Bolts Polished Rod Clip Clamp

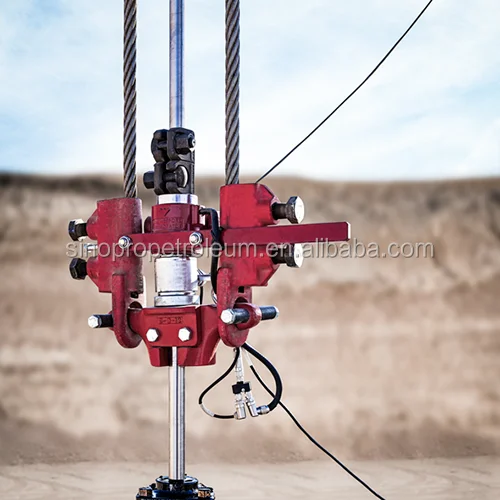

  The polished rod clamp is of butterfly structure, it is fixed on the polished rod as retaining device for the rope hanger. It makes the pumping unit horsehead connected with polished rod through rod eye lifting device, and then the polished rod append and support the load of sucker rod string. The polished rod clamp is an important part connecting oil pump and sucker rod, it is required not only reliable, have a certain capacity, but also can not cause damage for sucker rod.

API 11B Two Bolts Polished Rod Clip Clamp

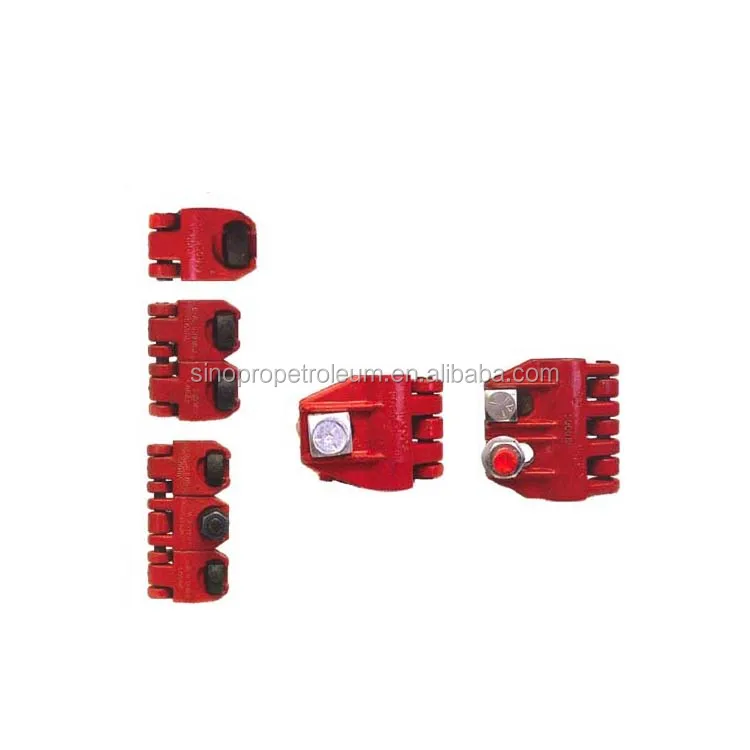

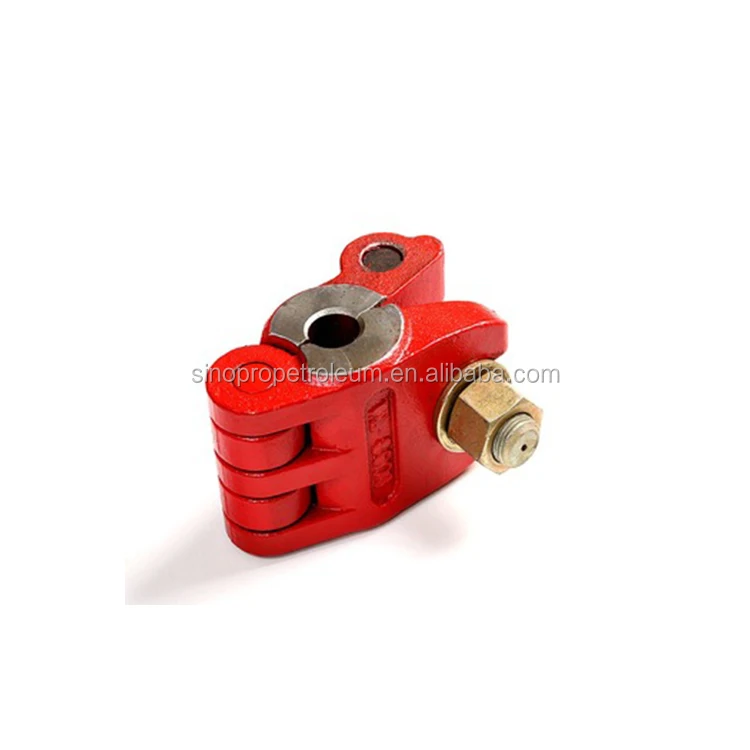

WL12000 single bolt polish rod clamp		Polished Rod Diameter	Working load	Tightening Torque	Weight
		22mm	78.5KN	3200N.m	5.6Kg
		25mm	100KN		5.5Kg
		25.4mm (1in)	100KN		5.5Kg
		28.6mm (1 1/8in)	118KN		5.5Kg
WL16000 two bolts polish rod clamp		Polished Rod Diameter	Working load	Tightening Torque	Weight
		25.4mm (1 in)	118KN	1545N.m	7.3 Kg
		28mm	157KN		7.2 Kg
		28.6mm (1 1/8in)	157KN		7.2 Kg
		31.8mm (1 1/4in)	157KN		7.1 Kg
		32mm	157KN		7.1 Kg
		38.1mm (1 1/2in)	178KN		9 Kg

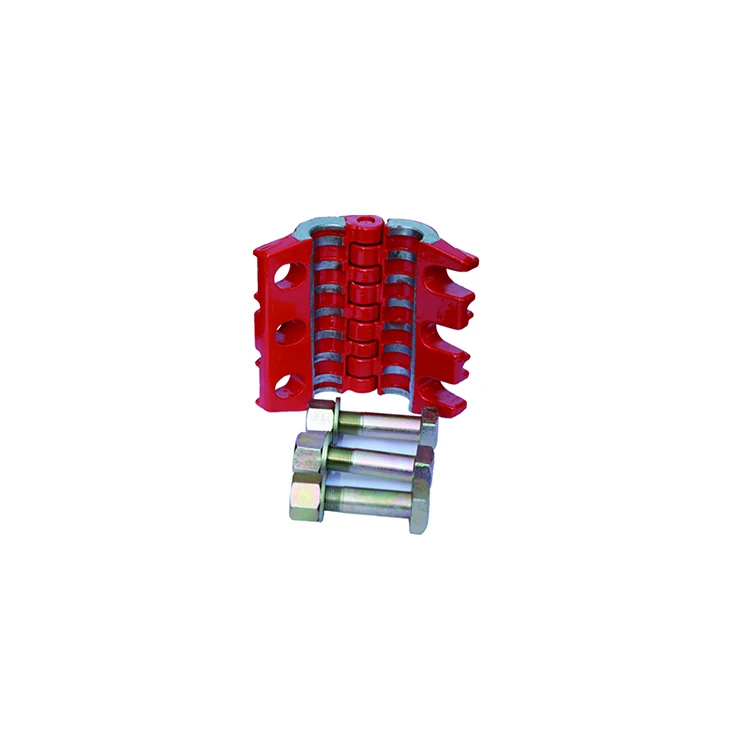

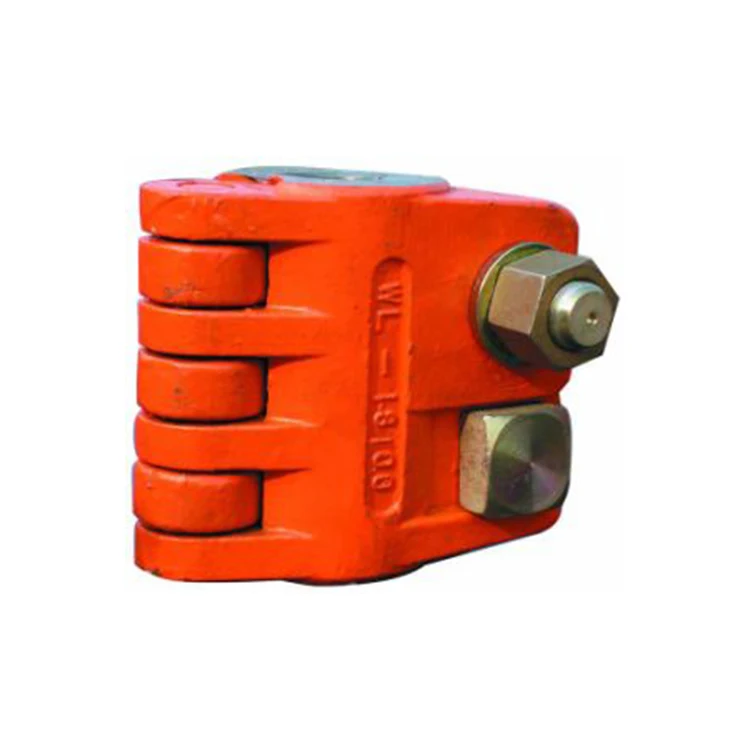

WL18100 three bolts polish rod clamp		Polished Rod Diameter	Working load	Tightening Torque	Weight
		31.8mm (1 1/4in)	178 KN	1977N.m	10.35Kg
		32mm	178 KN		10.35Kg
		38.1mm (1 1/2in)	178 KN		10.2Kg

Key Feature :

1. No dent, effectively reduce the damage to the polished rod and the packing of stuffing box

2. In accordance with the industry standards SY/T5029-2013 and API Spec 11B.

3. The product was awarded two utility model patent and one design patent.

4. Three models: can meet the requirements of different pump depths, polished rod sizes and loads.

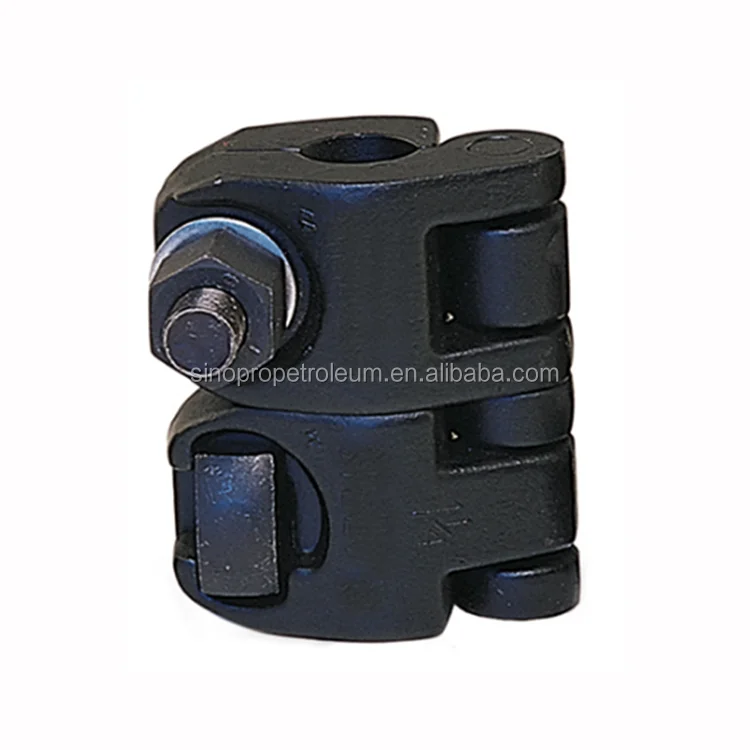

5. Can be used alone, can also be used with two same model and same load to increase the working load.
