BAY52 explosion proof tube ledT5 double tube explosion proof fluorescent lamp 2 * 18wT tube

Share on (62452277241):


Price:RUB 2,805.27 - RUB 3,032.72

Quantity:


Product Overview

Description

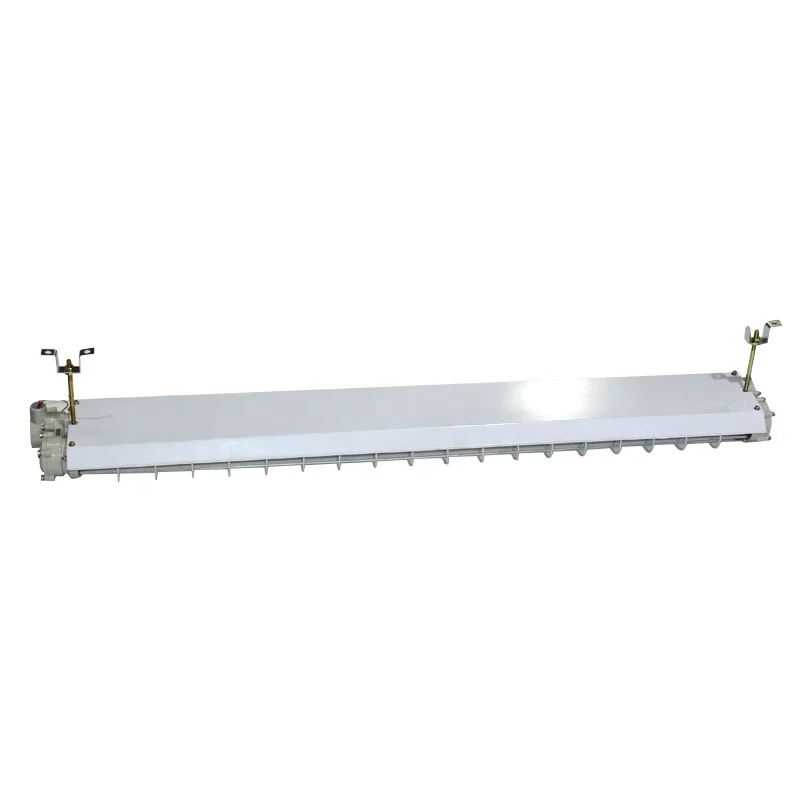

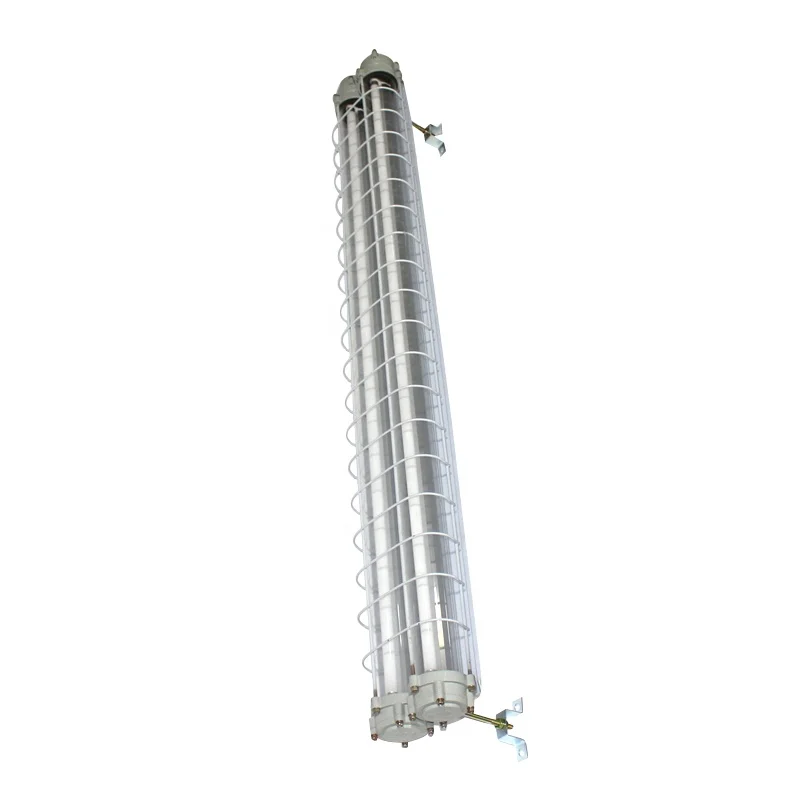

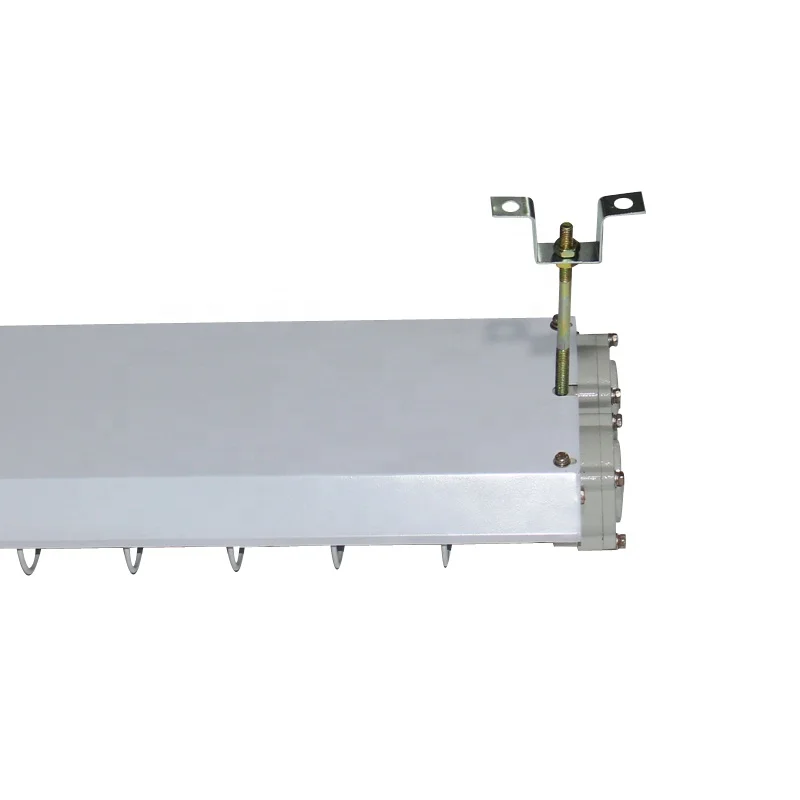

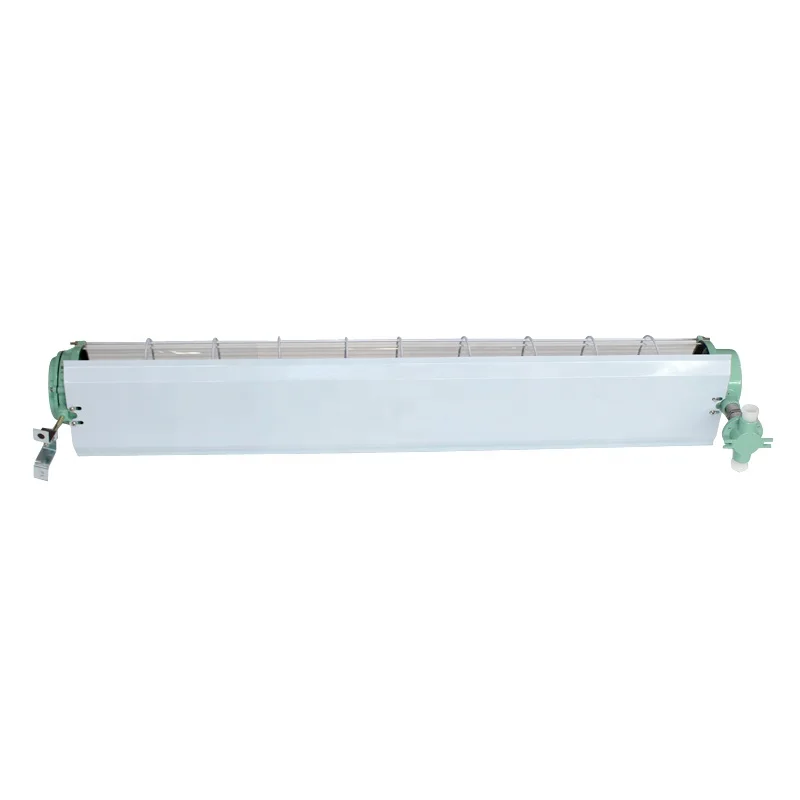

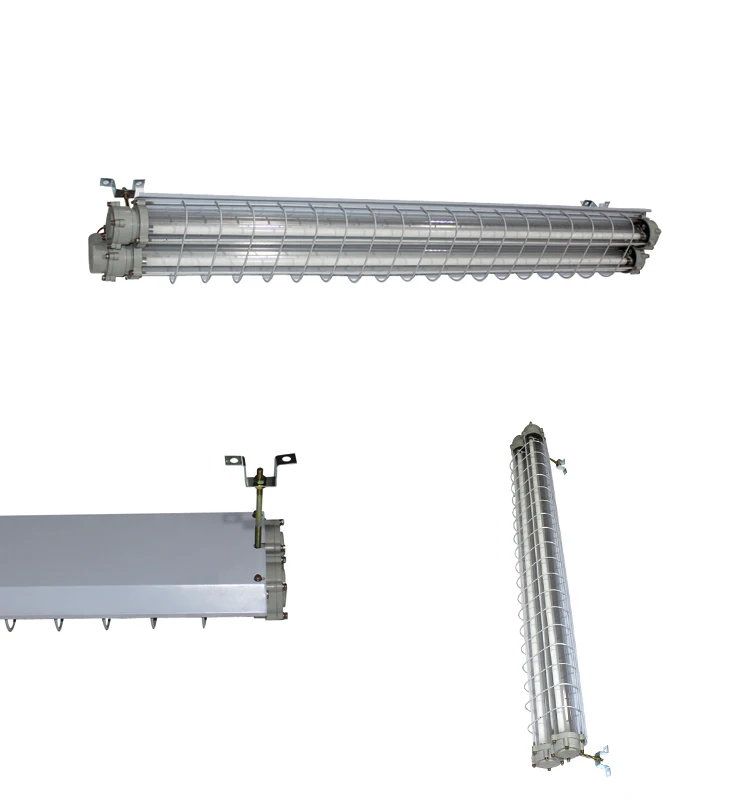

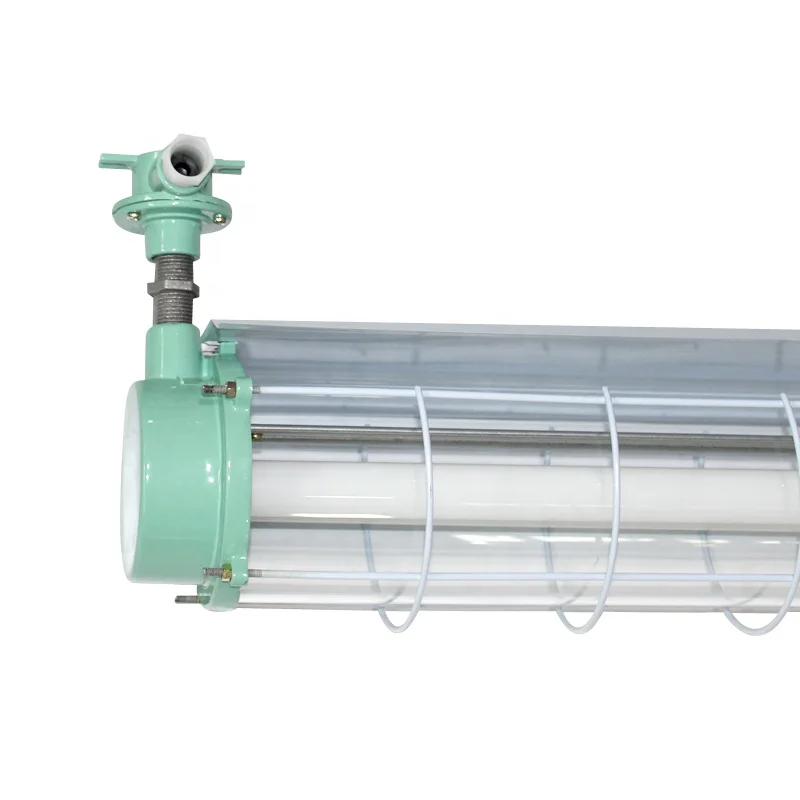

BAY52 explosion-proof lamp led double tube explosion-proof fluorescent lamp 2 * 18wT type tube

.jpg

Shape and installation dimensions

Booking notice
1 Select the corresponding product according to the product technical parameter table;
2 The light bulb is equipped with a light source when it leaves the factory;
3 Bracket type is suitable for seat, ceiling, wall and other installations;
4 If you have other special requirements, please contact sales.

Product Structural Characteristics:

1 The shell is made of aluminum alloy die-casting and high-pressure electrostatic spraying after shot blasting;
2 High-strength tempered glass transparent tube;
3 The exposed fastener is made of stainless steel with high corrosion resistance;
4 The lamp is equipped with a grille, which can reasonably adjust the light effect of the lamp and effectively reduce glare;
5 Equipped with well-known brand fluorescent tubes, long life and high light efficiency;
6 Modular plug-in design, just loosen the end cover and pull out the core to replace the lamp;
7 Fluorescent lamps with emergency devices automatically switch to emergency lighting when the power supply line loses power; 8 There are specially designed overcharge and overdischarge protection circuits in the emergency devices;
9 When equipped with compensation capacitors, the power factor can reach above 0.95;
10 Steel pipe or cable wiring.



Product Parameter:

ModelBAY52(C)
Explosion-proof signExdellC T6 Gb/DIP A20 TA,T1-T6
Rated voltage110-260VAC
Frequency Range50Hz
Rated power18W2*18W2*36W
Power Factor≥0.95
Power Efficiency≥0.88
Color rendering index≥80
Protection classIP66
Anticorrosive gradeWF2
Inlet threadG1/2 ''
Cable specificationsφ6-φ14mm
Installation methodCustomized
Working environment.-40-45℃
Life span≥50000H
Dimensions1277*153mm
