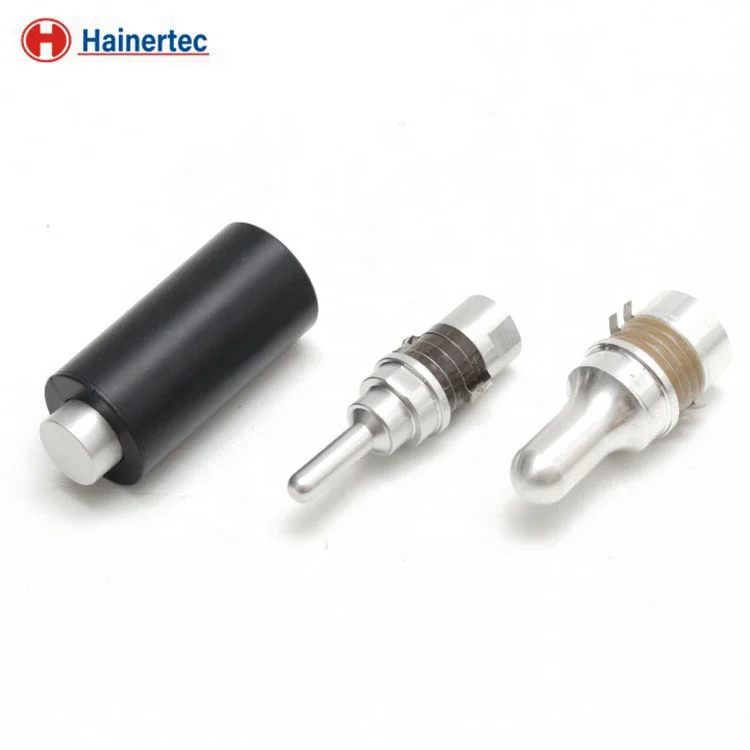

HNM 4AE 1550 Suzhou Hainertec ultrasonic medical scalpel surgery bistoury transducer
- Category: >>>
- Supplier: Hainertec (Suzhou) Co. Ltd.
Share on (62452306301):
Product Overview
Description
Products Description
When ultrasonic high-frequency vibration of a certain power ACTS on human tissues or organs, it will be produce mixed state effects such as temperature effect, mechanical effect, massage effect, biochemical effect, cavitation effect of tissue fluid and fragmentation effect. With the above mentioned ultrasonic effects, medical instruments or equipment of different uses can be developed, such as minimally invasive ultrasonic surgery hemostatic knife, bone knife, gravel knife, emulsifying knife, suction knife, focusing knife(HIFU), cutting knife, debridement knife, tooth cleaning knife, drug conduction instrument, therapeutic instrument, tissue recovery instrument and so on.
Technical paramaters of ultrasonic transducers of surgery bistoury
Model | Frequency | Capacitance | Impedance | Power | Resistance |
HNM-8SS-1655 | 55.50±0.30 | 3000±10% | ≤15 Ω | 100 | 100MΩ |
HNM-8AS-1655 | 55.50±0.30 | 3000±10% | ≤15 Ω | 100 | 100MΩ |
HNM-4AE-1560 | 58.0±0.30 | 3200±10% | ≤12 Ω | 100 | 100MΩ |
HNM-8SS-1660 | 60.0±0.30 | 2200±10% | ≤12 Ω | 100 | 100MΩ |
Noter: We can accept R&D and customzation
Technical paramater of ultrasonic transducer of broken stone knife.
Model | Frequency （KHz） | Capacitance (pF) | Impedance | Power | Resistance (2500VDC) |
HNM-8SE-2031 | 31±0.5 | 3000±10% | ≤25Ω | 100 | 100MΩ |
HNM-8SE-2032 | 32±0.5 | 3000±10% | ≤25Ω | 100 | 100MΩ |
Noter: The working frequency is about 25KHz after matching the work horn.
We provide basic drive circuit.
Technical parameters of ultrasonic transducer of debridement knife.
Model | Frequency (KHz) | Capacitance (pF) | Impedance (Ω) | Power (W) | Resistance (2500VDC) | Notes |
HNM-8SE-1625 | 25.0±1.0 | 4650±10% | ≤200Ω | 40 | 100MΩ | Equipped with tool rod frequency 25KHz |
HNM-8SE-2031 | 25.0±1.0 | 3000±10% | ≤200Ω | 40 | 100MΩ | |
HNM-8SE-1635 | 35.0±1.0 | 4650±10% | ≤200Ω | 35 | 100MΩ | |
HNM-8SE-1640 | 38.5±1.0 | 3200±10% | ≤200Ω | 40 | 100MΩ | |
HNM-8SE-1840 | 80038.5±1.0 | 800±10% | ≤200Ω | 40 | 100MΩ |
Note: Tool rod frequency is about 25KHz.
We can provide several optional horns, such as tapered, spherical, flat, horseshoe and so on.
We can provide different types of driving circuits with 24-48VDC or 110-220VAC input voltage.
Technical parameters of ultrasonic transducer for tooth-cleaning and oral cavity trastment.
Model | Frequency (KHz) | Capacitance (pF) | Impedance (Ω) | Power (W) | Resistance (2500VDC) | Notes |
HNM-8SE-1040Z | 40.0±1.0 | 1300±10% | ≤100Ω | 25 | 100MΩ | Teeth cleaning knife |
HNM-8SE-1040M | 40.0±1.0 | 1700±10% | ≤100Ω | 25 | 100MΩ | Teeth cleaning knife and bone knife |
Note: We can provide different type driving circuit with 24-48VDC or 110-220VAC input voltage.
Technical parameters of ultrasonic transducer for medical curing and medicine guiding.
Model | Frequency(KHz) | Capacitance (pF) | Impedance (Ω) | Power (W) | Resistance(2500VDC) | NoteS |
HNM-8AS-2535 | 35±Ω≤ | 1700±10% | ≤25 | 35 | 100MΩ | Medicine guiding |
HNM-4AE-1550 | 50.0±0.5 | 1700±10% | ≤30 | 15 | 100MΩ | medicine guiding and curing |
HNB-4AH-2560-D48 | 60.0±0.5 | 3000±10% | ≤120 | 20 | 100MΩ | medicine guiding and curing |
HNB-4P1-4525 | 100±10% | 1800±10% | ≤200 | 20 | 100MΩ | medicine guiding and curing |
HNB-4P5-4225 | 500±10% | 1800±10% | ≤25 | 20 | 100MΩ | medicine guiding and curing |
HNB-4P8-3625 | 800±10% | 2800±10% | ≤25 | 20 | 100MΩ | medicine guiding and curing |
HNB-4P1-3625 | 1000±10% | 3500±10% | ≤30 | 20 | 100MΩ | medicine guiding and curing |
HNB-4P3-3625 | 3000±10% | 10500±10% | ≤35 | 15 | 100MΩ | medicine guiding and curing |
HNB-8F4000-D20SR20 | 4000±10% | 6500±10% | ≤10 | 20 | 100MΩ | HIFU head |
HNB-4F250-D95SR20 | 250±10% | 11000±10% | ≤35 | 350 | 100MΩ | HIFU head |
HNB-4L2-2540-215 | 40±10% | 3200±10% | ≤100 | 20 | 100MΩ | Pregnancy texture therapy head |
HNB-4L2-2540-165 | 40±10% | 3200±10% | ≤100 | 10 | 100MΩ | Pregnancy texture therapy head |
HNT-8SE-1335 | 35.0±0.5 | 1500±10% | ≤20 | 300 | 100MΩ | Cataract emulsifying knife |
Note: We can provide different types of driving circuits with 24-48VDC or 110-220VAC input voltage. And we can accspt R&D and customization
Technical parameters of ultrasonic transducer for medical atomization and implantation surface coating
Model | Frequency (KHz) | Power (W) | Size D50 (um) | Max Flow (ml/min) | Sructure | Notes |
HNN-5P8-1585-M | 85.0±10% | 10 | 5±10% | 2 | The perforated plate | Atomization inhalation applications |
HNN-4SE-13120 | 120.0±10% | 15 | 26±10% | 8 | Keyhole type | Surface spraying applications |
HNN-4P1-25167 | 1670±10% | 28 | 8±10% | 5 | The patch type | Diffusion breathing applications |
Note: We can provide different types of driving circuits with 24-48VDC or 110-220VAC input voltage. And we can accspt R&D and customization.

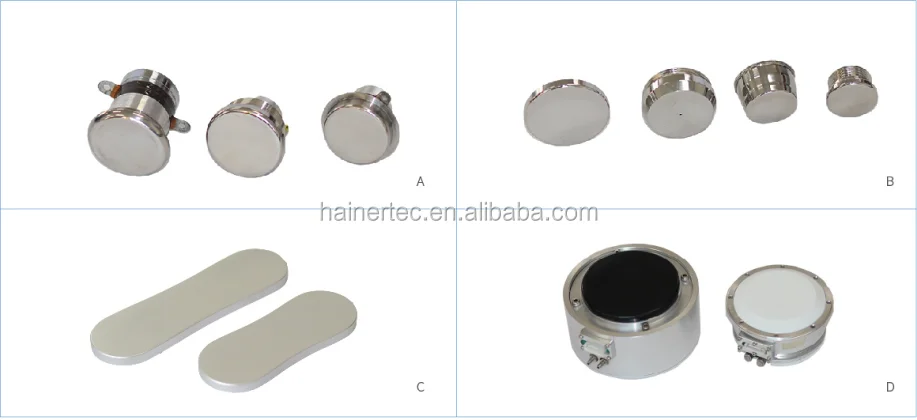

Details Images
Packing and Delivery
Company Profile
Hainertec (Suzhou) Co., Ltd. Was founded in 2004, focusing on ultrasonic technology, it is a collection R&D, design manufacture and sales of the technology-based enterprises.
The company is mainly engaged in the development and manufacture of ultrasonic devices, accessory parts and system equipment. The main products include Piezoelectric Ceramics, Ultrasonic transducers, Ultrasonic generators and Ultrasonic system equipment. These products are widely used in medical apparatus, biological instruments, precision spraying beauty and health care, biochemical environmental protection, biological extraction, ultrasonic catalysis, industrial screening, jet printer oscillator, ultrasonic cleaning household appliances, military industry and other fields.
The company has been cooperating with famous enterprises and university at home and abroad, and 60% of our products are exported to more than 60 countries and regions such as Europe, America, Australia, Middle East and southeast Asia.
The company has passed ISO9001 Quality System Certification. Also, it is a high-tech enterprise but also a postgraduate workstation and industry university research base, having obtained several patent at the same time.
