5HBFL fully automatic cold rolled ribbed steel wire production line
Product Description
wire drawing machine product description
About the machine:
A. the main feature of this unit is that it can produce cold-rolled ribbed bars, cold-drawn spirals, plain round bars, twisted Angle square bars and cold-rolled twisted bars.
B. all processes of this machine can be completed at one time, saving 40% of power, and only one to two people need to operate.
C.One set machine including:

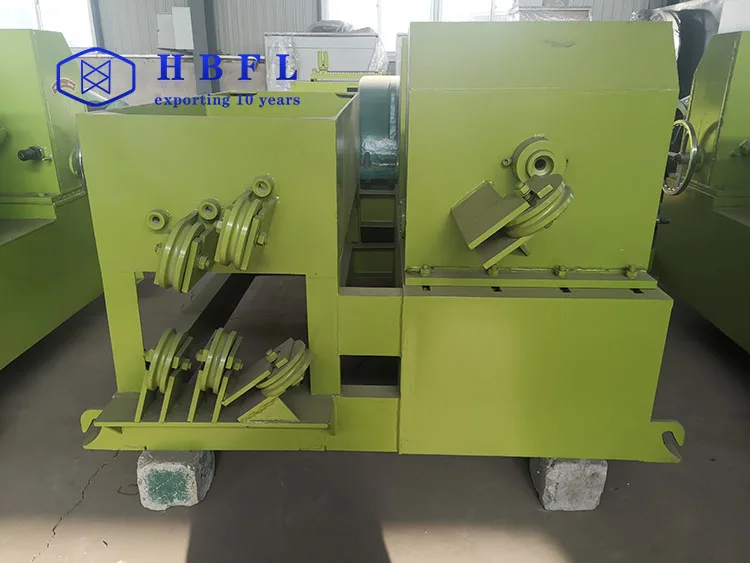

1. One phosphorus removal machine
2. One lubricating machine
3. Cold drawing reduction: a. First reduction b. Second reduction c. Third reduction
4. One main motor 22-90kw speed regulating motor
One set of model 5.650 wire drawing machine

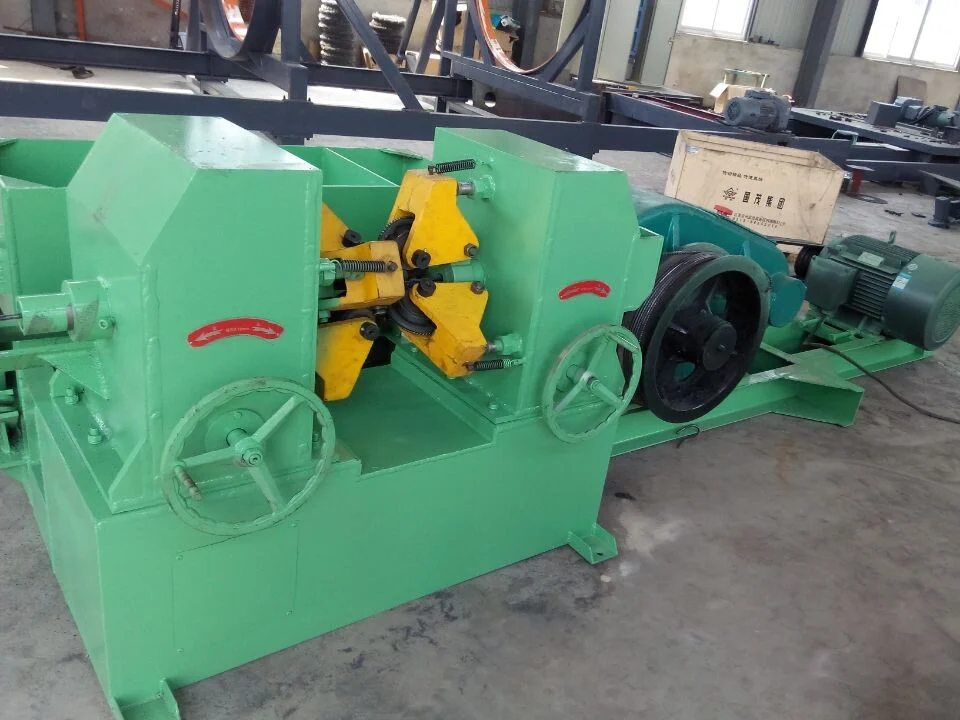

One rolling mill of model 6.150
7. One electric control cabinet
C.Production Process
Inspection of wire rod -- winding -- butt and tail welding -- phosphorus removal -- dry powder lubrication -- no reduction in diameter or 1 or 2 or 3 times reduction in diameter -- finished product

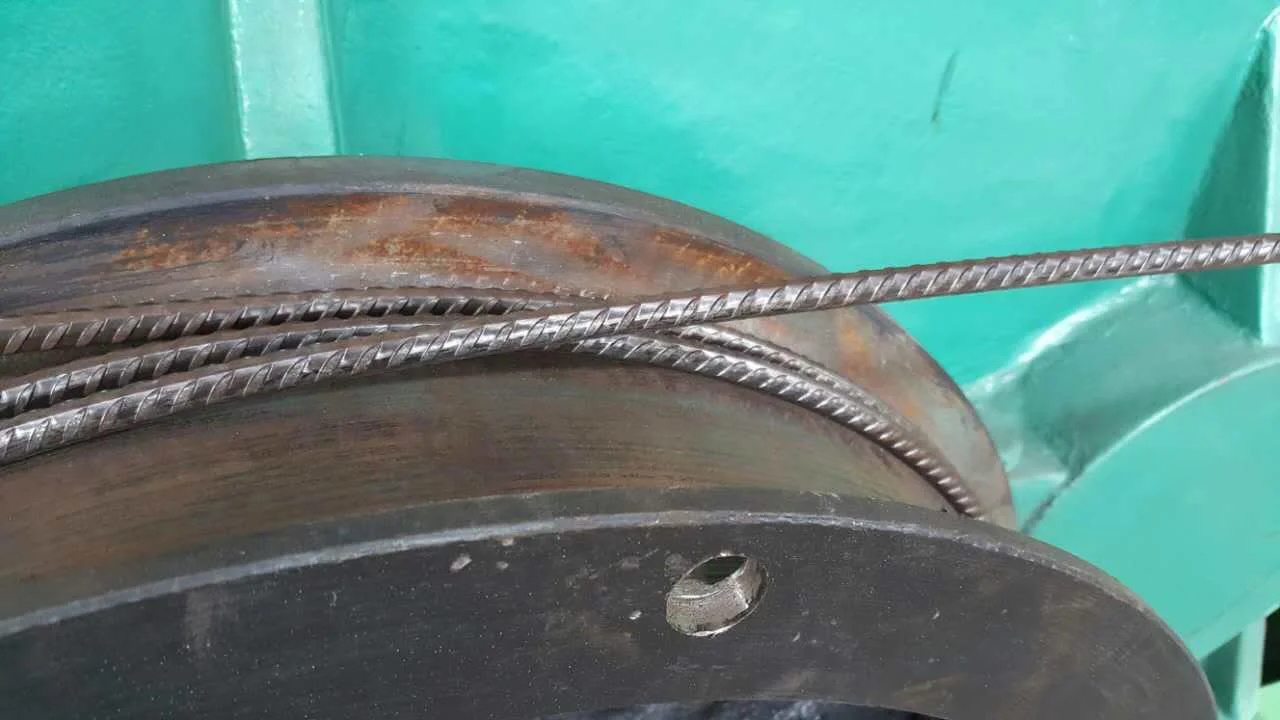

E.The finished products mainly include :(1) cold-rolled ribbed bar;(2) cold-drawn coil;(3) light garden silk
A. BASIC TECHNICAL PARAMETER
Drum diameter | 660 |
Max input wire rod thickness | 12mm |
The biggest difference | 2.5mm |
Machine speed | 120m/min |
The control mode | frequency conversion
|
Machine weight | 8 tons |
Machine size | 4.5*1.3*1.2+ |
Isntall length | 20m |
Machine area when working | 25m*4m |
Machine power | 92KW Mian motor 55 |

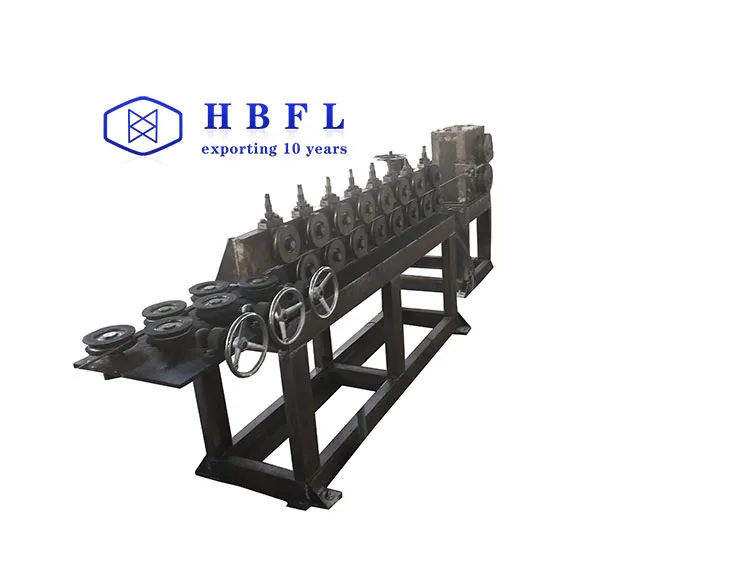

Straight and cut machine 8.Multi - wheel straightening cut off one machine 9. One feeding rack (9 meters)
Some parts of the straightening machine adopt maintenance-free bearing without refueling and maintenance, which is 5-8 times the service life of ordinary bearing 5-12 high-end steel bar straightening and cutting machine, especially suitable for 5-12mm hot rolled coil, straightening and cutting, less scratch, fast speed, in the domestic similar products of the high-end.Its main mechanical properties are as follows: Straightening principle: the machine adopts up and down two rows of continuous roller straightening method, basically no damage to the longitudinal rib of reinforcement, each set of straightening wheel can produce more than 1000 tons of reinforcement.(other manufacturers adopt the method of rotary die straightening, which is serious to the longitudinal rib, and the wear of straightening block will soon lead to the increase of production cost) Shear principle: the machine adopts variable frequency flying shear, shear instant, the reinforcement feeding does not stop, so the mechanical part of the friction on the surface of the reinforcement is small, further ensure the surface quality of the reinforcement. Electronic control part: frequency conversion speed control, easy to operate.
| |
Rod thickness | Φ 5-12 mm hot rolled plate screw HRB335, HRB400, HRB500, Φ 5-12 disc round and cold rolled plate screw |
speed | 0-120m/min |
Max length | 3000-12000mm |
Straightening accuracy | ≤3mm/m |
The length of the precision | ±5mm |
Rated power | 30KVA,380V-60HZ |
The total weight of equipment | 3T |
actual output | 12-25T |
pay-off rack | Horizontal alignment |
Richard wireframe | Bell shaped |

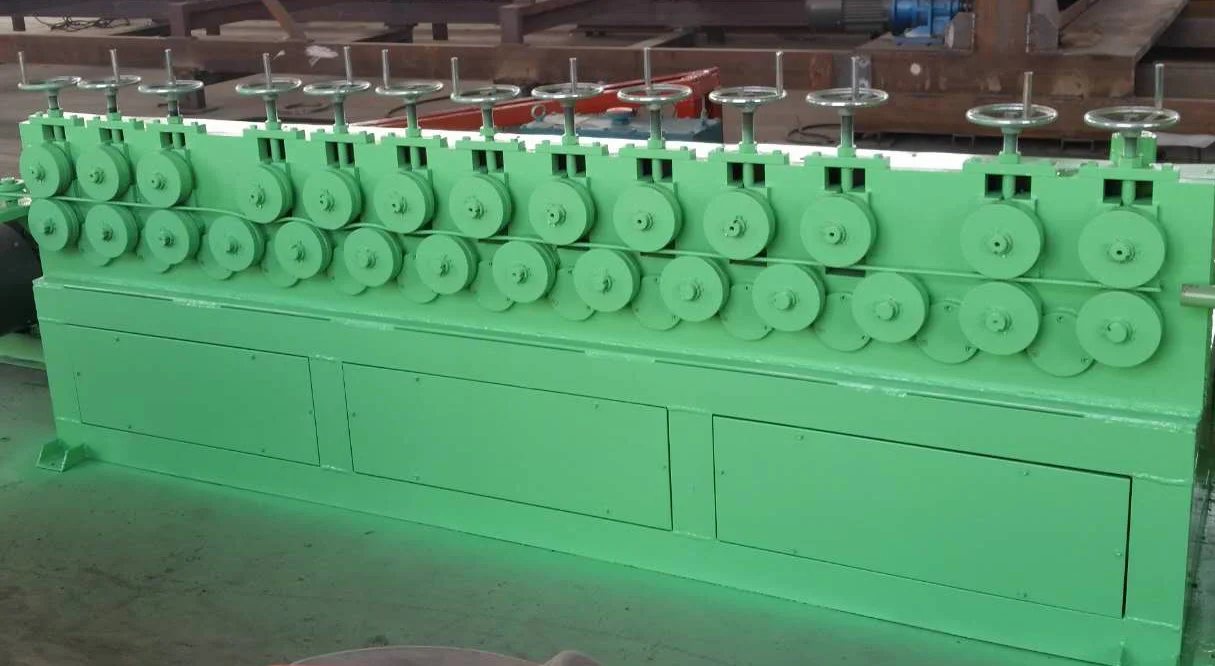

Straightening institutions | Two rows of straightening wheel continuous roller straightening, basically no damage to the longitudinal rib, the main body for the whole tooth structure, oil bath lubrication |
shutdown mechanism | Frequency conversion flying shear cut off |
Unloading frame | 12m |
electronic control system | frequency conversion |

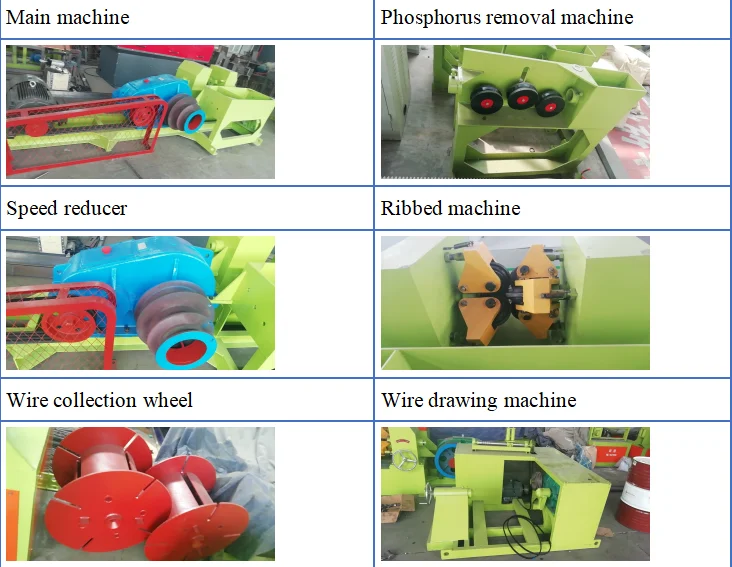

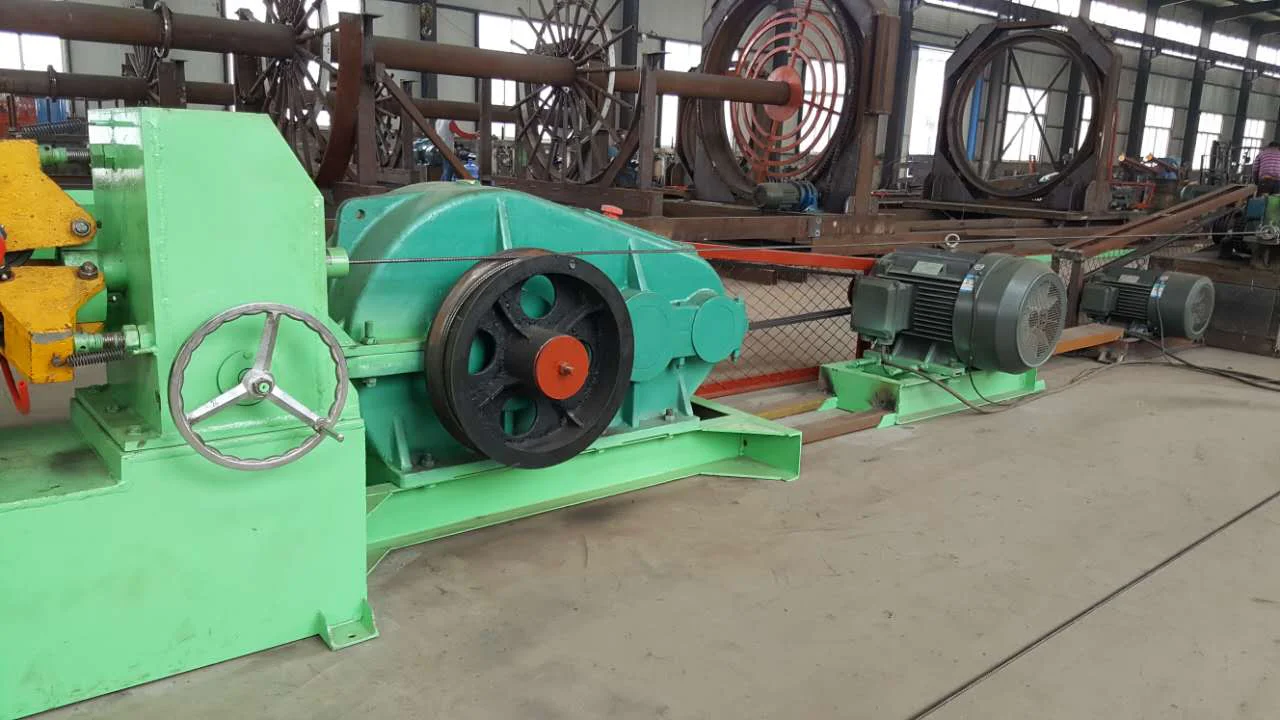

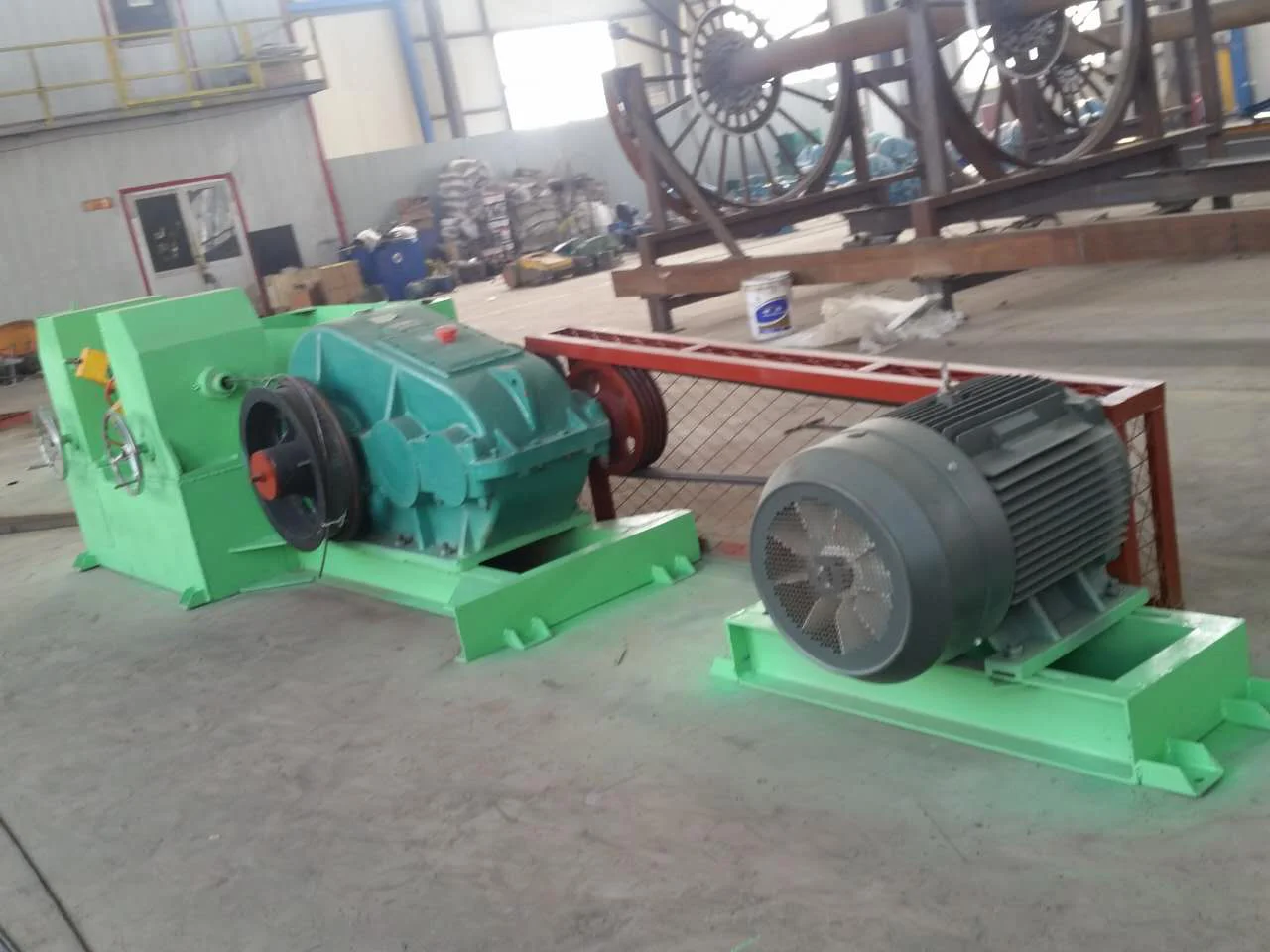

B.PICTURES OF THE PRODUCTION LINE
Related Products
Company Profile
Main country:
USA , Mexico , New zealand , Russia , Italy , Turkey , Philippines , Singapore,Kuwait,Thailand , Albania , Tanzania , India and Trinidad and Tobago , Australia Uzbekistan , Kazakhstan , Kuwait , Malaysia , cambodia , vietnam , Myanmar, Algeria , Kenya , South Africa , Swaziland , Mozambique , United Arab Emirates , Oman , Japan.
Packaging and logist
Q:what is the delivery time?
A:We have the machine in stock.
Q:how many workers need for the machine?
A:Only one.
Q:what is the voltage of the machine?
A:The voltage of the machine can be customized as your local.
Q:what is the width of the machine
A:2-6m width.
A:if you want to know more information to the machine, pls inform me,I will try my best to support you.
