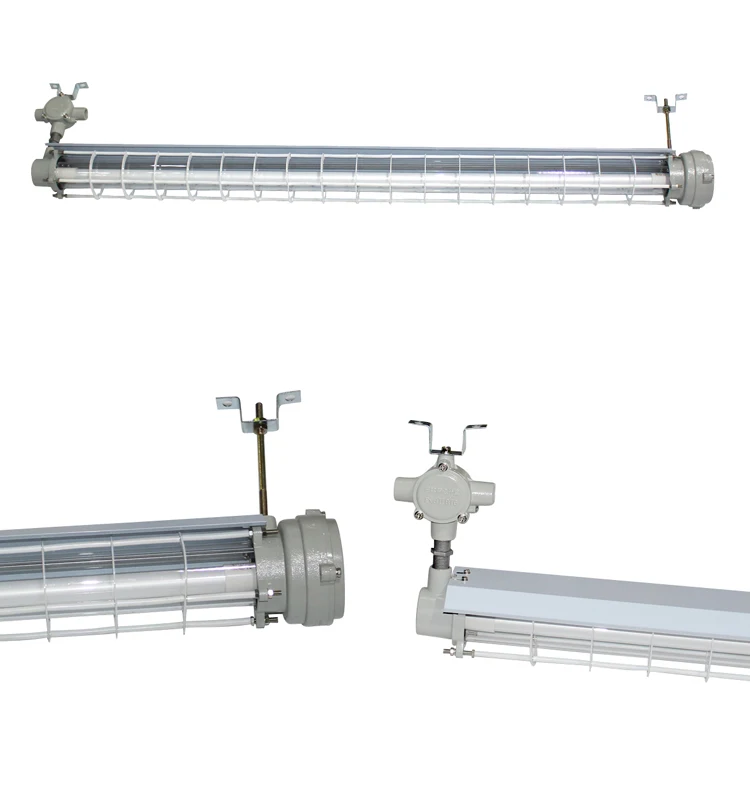

BAY52 double tube explosion-proof lamp Led1 * 18w 2 * 18W T5T8 explosion-proof fluorescent lamp manufacturers direct supply

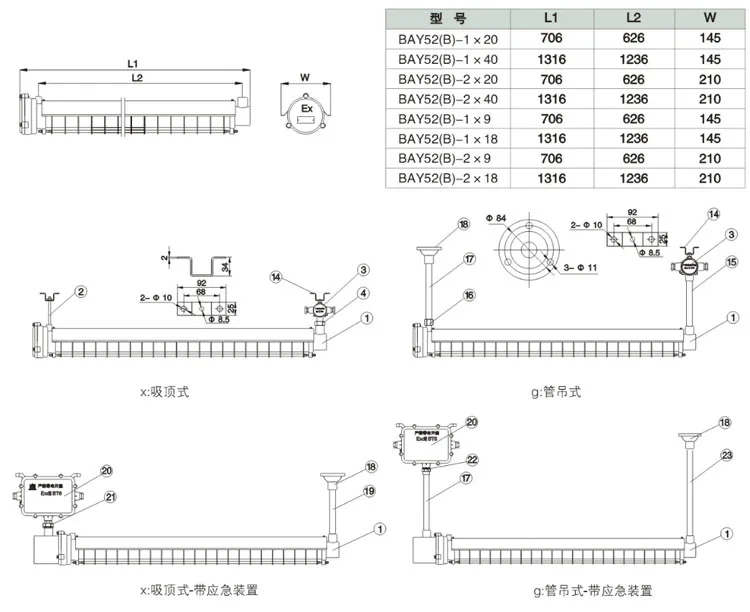

Shape and installation dimensions

Product Structural Characteristics:
1 The shell is made of aluminum alloy die-casting and high-pressure electrostatic spraying after shot blasting;
2 High-strength tempered glass transparent tube;
3 The exposed fastener is made of stainless steel with high corrosion resistance;
4 The lamp is equipped with a grille, which can reasonably adjust the light effect of the lamp and effectively reduce glare;
5 Equipped with well-known brand fluorescent tubes, long life and high light efficiency;
6 Modular plug-in design, just loosen the end cover and pull out the core to replace the lamp;
7 Fluorescent lamps with emergency devices automatically switch to emergency lighting when the power supply line loses power; 8 There are specially designed overcharge and overdischarge protection circuits in the emergency devices;
9 When equipped with compensation capacitors, the power factor can reach above 0.95;
10 Steel pipe or cable wiring.
Product Parameter:
| Model | BAY52(B) | ||
| Explosion-proof sign | ExdellB T6 Gb/DIP A20 TA,T1-T6 | ||
| Rated voltage | 110-260VAC | ||
| Frequency Range | 50Hz | ||
| Rated power | 18W | 2*18W | 2*36W |
| Power Factor | ≥0.95 | ||
| Power Efficiency | ≥0.88 | ||
| Color rendering index | ≥80 | ||
| Protection class | IP65 | ||
| Anticorrosive grade | WF2 | ||
| Inlet thread | G1/2 '' | ||
| Cable specifications | φ6-φ10mm | ||
| Installation method | Customized | ||
| Working environment | .-40-45℃ | ||
| Life span | ≥50000H | ||
| Dimensions | 1316*210mm | ||

New products from manufacturers at wholesale prices
