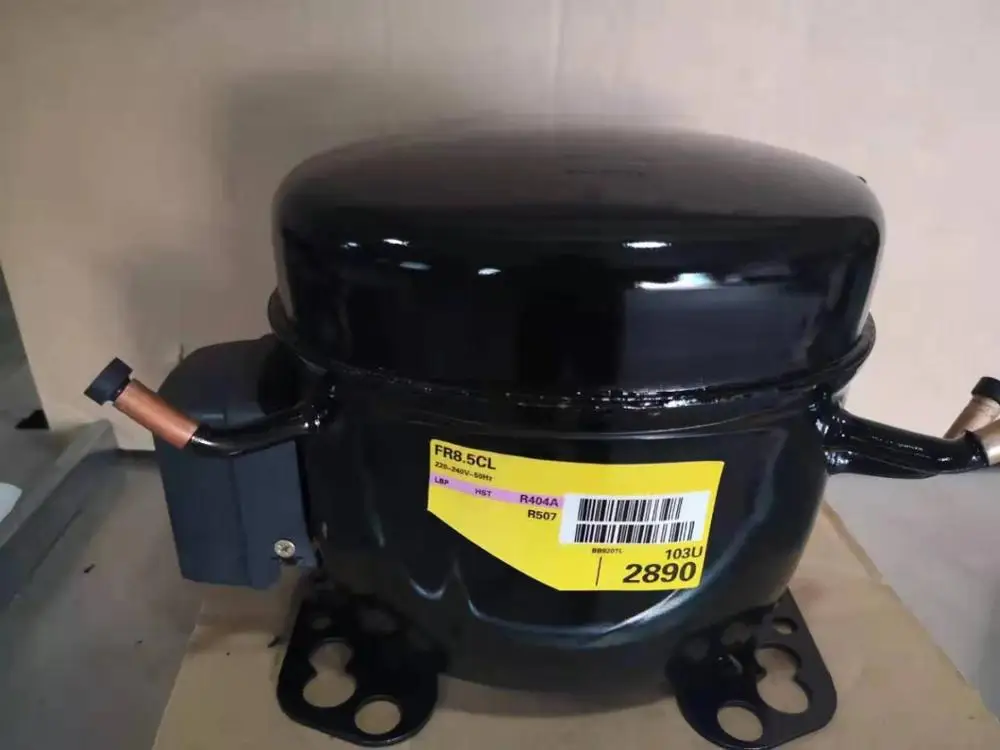

230V compressor Danfoss FR8.5CL 103U2890 made by Secop R404A R507 European supplier ready to ship original
- Category: >>>
- Supplier: Chongqing Sikepu Refrigeration Equipment Co. Ltd.
Share on (62452534140):
Product Overview
Description
230V COMPRESSOR DANFOSS FR8.5CL [103U2890] [195B0038] R-404A, R-507
Specification:
Number: 103U2890.41
Refrigerants: R404A, R-507
Power: 220-240V 50Hz
Cooling capacity range: 99 - 577 W
Kit includes:
Compressor: [103U2890]
Starting relay: [117U6010]
Cover: [103N2010]
Starting capacitor: 80 µF [117U5015]
Cord relief: [103N1010]
Mounting accessories: [118-1917]
| Gross weight | 11.15 Kg |
| Net weight | 11.15 Kg |
| Application energy level | Standard LBP |
| Applications | LBP |
| Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] | 11.9 Ohm |
| Base plate type | Universal |
| Brand technique | Reciprocating compressor |
| Capacity control | Fixed speed |
| Colour | Black |
| Compressor power supply [V/Ph/Hz] | 220-240/1/50 |
| Configuration code | Single |
| Cut in current HST [A] | 10.9 A |
| Cut in current LST [A] | 15.1 A |
| Description | FR8.5CL |
| Discharge connection angle [°] | 25 ° |
| Discharge connection comments | Al-cap |
| Discharge connection diameter [mm] | 6.2 mm |
| Discharge connection material | Cu-plated steel |
| Economizer | No |
| Free gas volume [cm3] | 1350 cm3 |
| Frequency [Hz] | 50 |
| Height from baseplate [mm] | 191 mm |
| High value of nominal voltage at 50Hz [V] | 240 V |
| High value of voltage range at 50Hz [V] | 255 V |
| Length [mm] | 243 mm |
| Liquid injection | No |
| Low value of nominal voltage at 50Hz [V] | 220 V |
| Low value of voltage range at 50Hz [V] | 187 V |
| LRA HST 60Hz [A] | 10.9 A |
| LRA HST [A] | 10.9 A |
| LRA LST [A] | 10.5 A |
| Main winding resistance for single-phase compressors [Ohm] | 7.1 Ohm |
| Model number | FR8.5CL |
| Motor type | CSIR |
| No. of phases (compressor) | 1 |
| Oil quantity [cm3] | 450 cm3 |
| Oil type | POE |
| Packing format | Industrial pack |
| Packing quantity | 80 |
| Process connection angle [°] | 30 ° |
| Process connection comments | Al-cap |
| Process connection diameter [mm] | 6.2 mm |
| Process connection material | Cu-plated steel |
| Refrigerant | R404A R507 |
| Refrigerant charge [kg] [Max] | 0.85 kg |
| RLA | 2.20 A |
| Rotational speed at 50Hz [rpm] | 3000 rpm |
| Segment usage | Refrigeration LT |
| Speed Platform | Fixed-speed |
| Start capacitor capacitance | 80 µF |
| Suction connection angle [°] | 30 ° |
| Suction connection comments | Al-cap |
| Suction connection diameter [mm] | 8.2 mm |
| Suction connection material | Cu-plated steel |
| Swept volume [cm3] | 7.95 cm3 |
| Technology | Reciprocating |
| Total height [mm] | 196 mm |
| Type | FR |
| Type designation | Compressor |
| Voltage 50Hz [V] | 220 V |
| Voltage 50Hz [V] [Max] | 240 V |
| Width [mm] | 156 mm |
| Winding temperature short term [°C] [Max] | 135 °C |
| Winding temperature stat [°C] [Max] | 125 °C |
