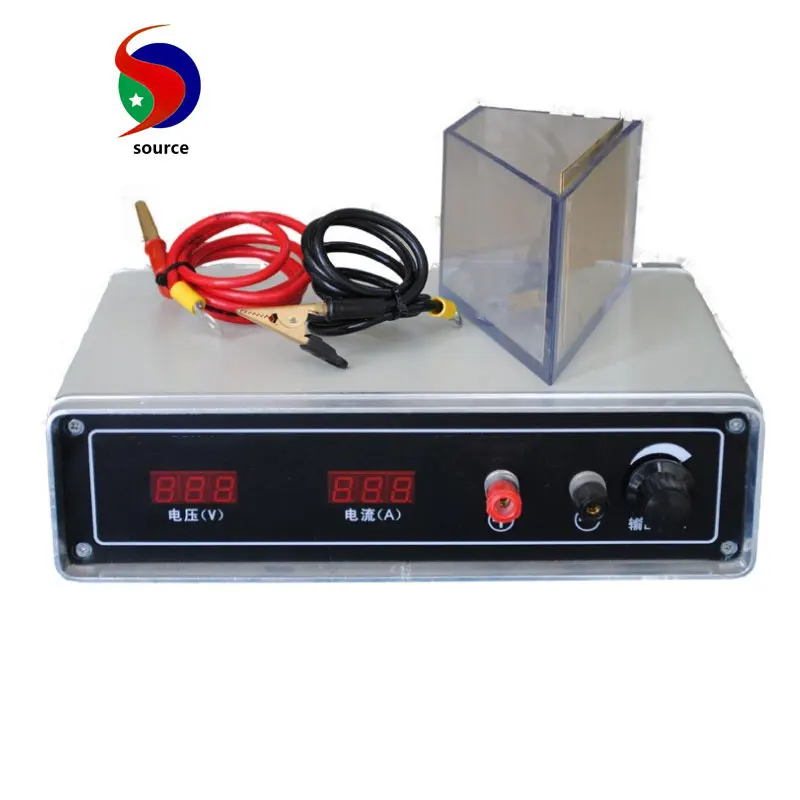

Electro plating rectifier 12V 5A for lab test

Product Overview

Description

We are professional and creative manufacturer. Our reliable quality of rectifiers will definitely satisfy your requirements.





 input voltage single phase 220vac,50hz

output voltage 0-12vdc

output current 0-5A



 1, Brief introduction of laboratory test power supply
In order to obtain a good coating in electroplating production, in addition to the selection of appropriate plating solution, reasonable process arrangement and strict operating conditions, good monitoring means must also be used in technology.
This test power supply is an ideal equipment for monitoring plating bath. It can observe the surface state of the coating, determine the bright range, flatness, toughness and even plating ability of the coating, especially for controlling the content of additives and the influence of impurities, as well as understanding the appropriate current range of the plating solution, etc. it has a good effect and is the necessary test equipment for controlling the plating quality and selecting the best scheme.
This test power supply is easy to operate, with high degree of automation and small volume of solution required. Through one test, the change of coating can be observed in a wide range of current density, and the approximate current density and other process conditions (temperature, pH value, etc.) of the coating with qualified appearance can be quickly determined. Therefore, it is widely used to study the influence of the main components and additives of the solution, and to find out the causes of the solution failure. It is a frequently used equipment in tank solution preparation, maintenance, modification and new process test.
The machine is small in size, light in weight and easy to carry.
2, Main performance
This machine adopts the advanced switch power technology, with the characteristics of high efficiency, high precision, high stability and low ripple.
3, Working conditions
1) power supply: 220V ± 10%, 50Hz;
2) ambient temperature: - 20 ℃ ~ 40 ℃;
3) the altitude shall not exceed 2000 m;
The relative humidity is less than 85%;
4) the equipment shall be placed in a dry and ventilated environment free from serious harmful gases, chemical deposited dust, dirt and other explosive and corrosive media.
4, How to use
1)Turn the voltage adjusting knob to the full counterclockwise position.
2) turn on the power, press the power switch, and then slowly adjust the voltage regulating knob until the voltage and current reach the required value.
5, Precautions
before starting the machine, turn the voltage regulating knob to the full counterclockwise position;
Because the machine adopts high frequency switching power supply, the shell may generate static electricity, so the grounding wire must be connected to the shell.
6, Packing list
1. One rectifier
2. Hull tank 276ml1
3. Conductor alligator clip 1 pair
4. user manual
5. portable bag
