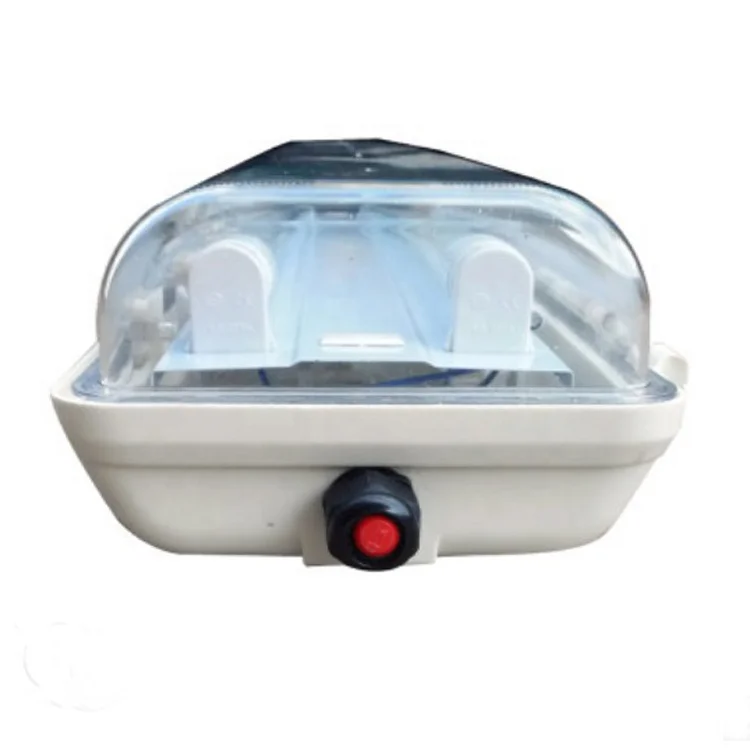

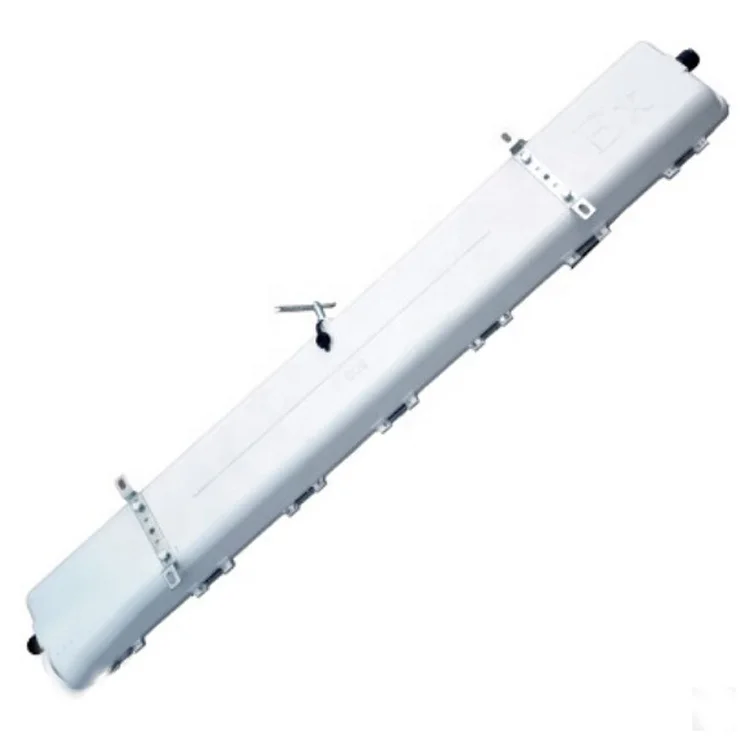

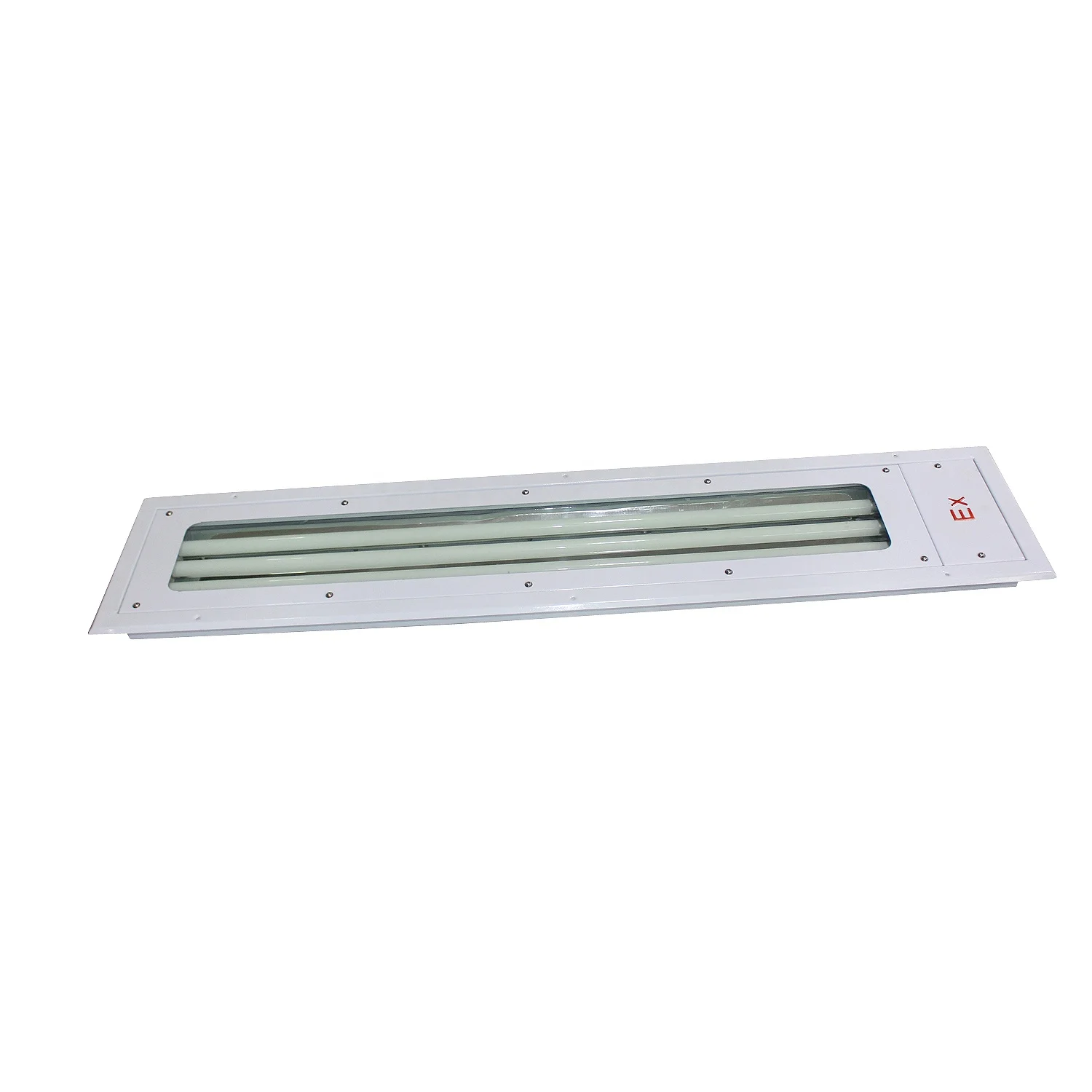

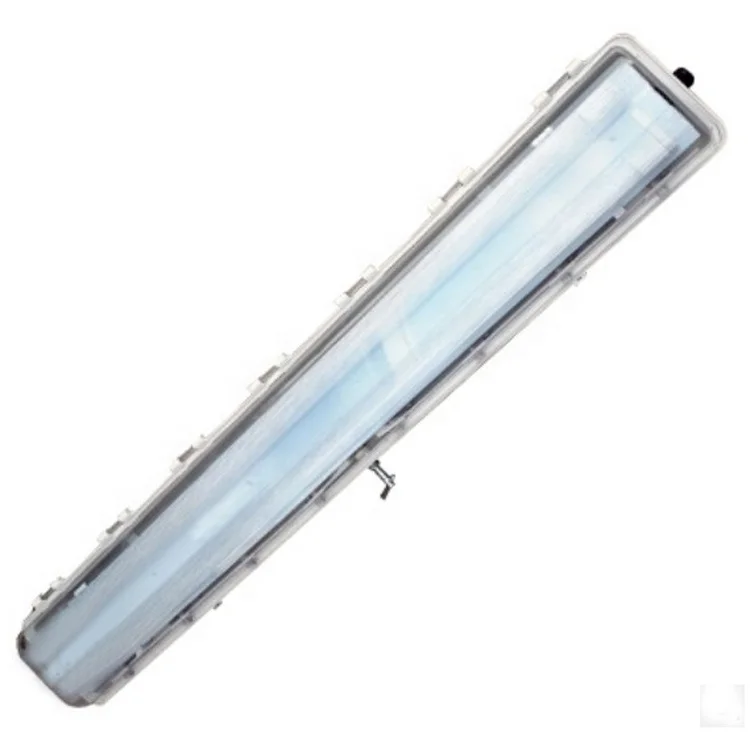

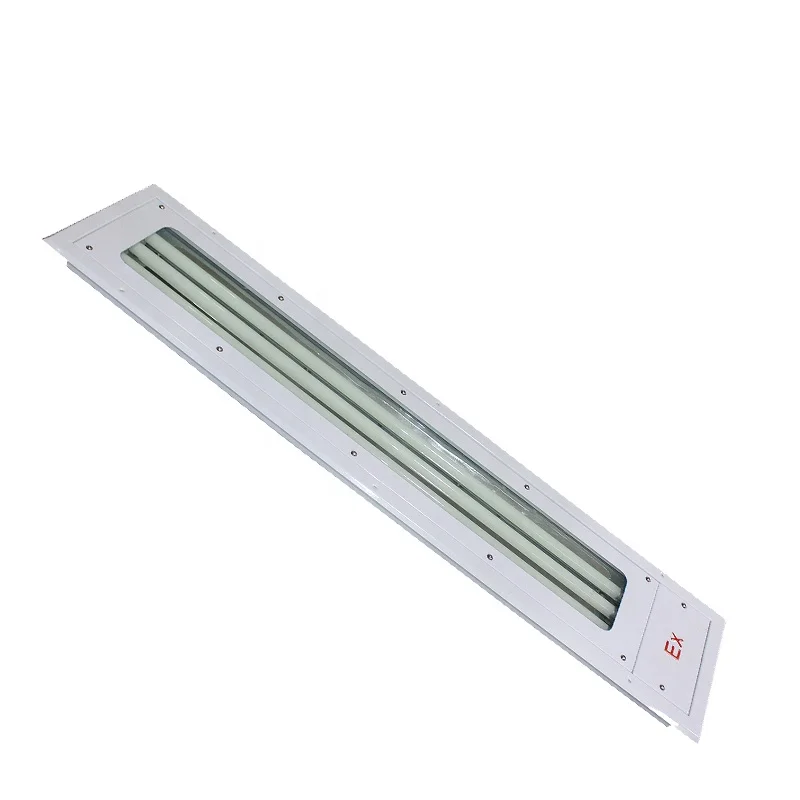

BAY51 Q explosion proof lamp ledIIC explosion proof all plastic fluorescent lamp 2 * 18W explosion proof fluorescent lamp

Product Overview

Description

BAY51-Q explosion-proof lamp ledIIC explosion-proof all plastic fluorescent lamp 2 * 18W explosion-proof fluorescent lamp

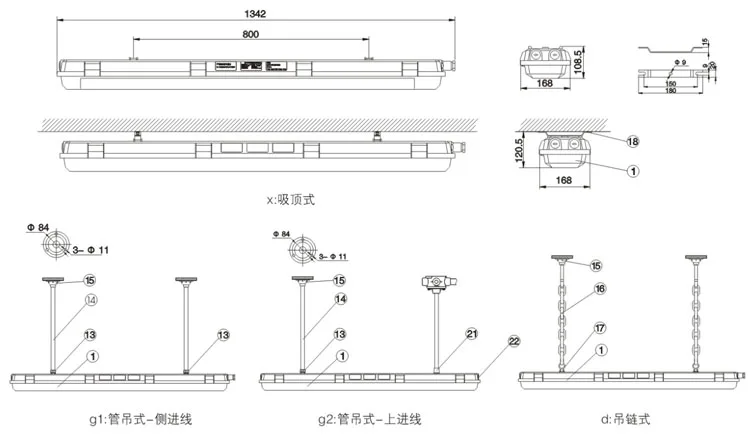

Shape and installation dimensions

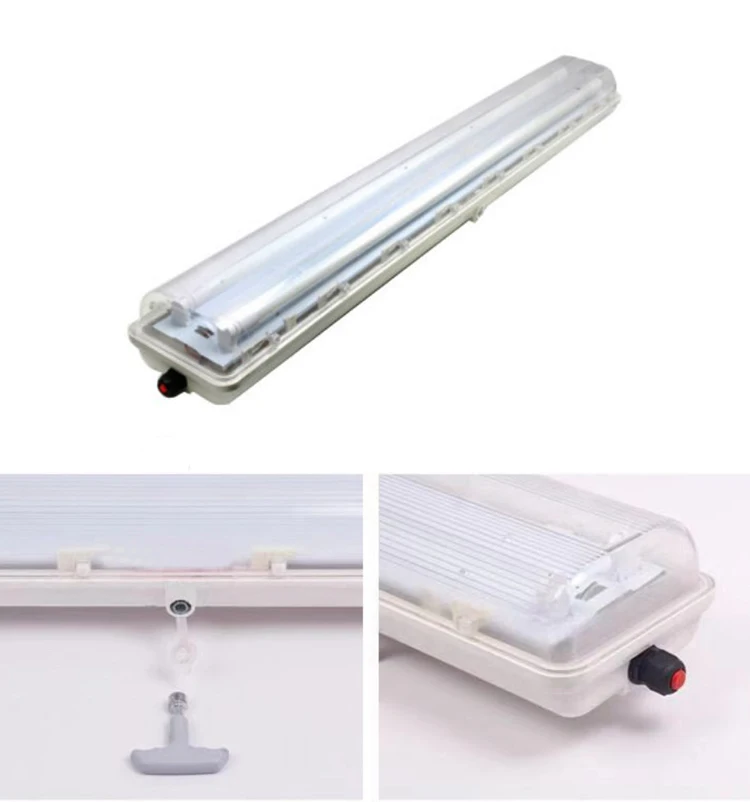

Product Structural Characteristics:



1 The shell is made of imported polycarbon alloy injection molding, with high strength, impact resistance, corrosion resistance, heat resistance and cold resistance;
2 The lampshade is made of polycarbonate injection molding, with high light transmittance and strong impact resistance;
3 The lamp adopts a unique double-tongue design sealing strip structure, which has strong waterproof and dustproof performance;
4 The unique double paraboloid design reflector makes the light efficiency of the lamp greatly improved;
5 The housing and the lampshade adopt a snap structure, which is easy to open and tightly combined
6 The use of clamp-type terminal blocks, convenient wiring, just open the lamp shade, you can directly connect;
7 Equipped with well-known brand fluorescent tubes, long life and high light efficiency;
8 Equipped with our company's special explosion-proof electronic ballast;
9 Built-in isolation switch, automatically cut off the power when the product is opened, improving the safety performance of the product;
10 Fluorescent lamps with emergency devices automatically switch to emergency lighting when the power supply line loses power;
11 There are specially designed overcharge and overdischarge protection circuits in the emergency device;
12 Steel pipe or cable wiring.

Product Parameter:

Model	BAY51-Q
Explosion-proof sign	ExdellC T5 Gb/DIP A20 TA,T1-T6
Rated voltage	110-260VAC
Frequency Range	50Hz
Rated power	18W	2*18W	2*36W
Power Factor	≥0.95
Power Efficiency	≥0.88
Color rendering index	≥80
Protection class	IP65
Anticorrosive grade	WF2
Inlet thread	G3/4 ''
Cable specifications	φ9-φ14mm
Installation method	Customized
Working environment	.-40-45℃
Life span	≥50000H
Dimensions	1342*168mm
