IPC EB5541 IPC EW5541 Original with logo heatmap 5MP Panoramic Network Fisheye Camera mini camera IPC EB5541P
- Category: >>>
- Supplier: Shenzhen Lin Wei Ke Xun Technology Co. Ltd.
Share on (62452718840):
Product Overview
Description
key features

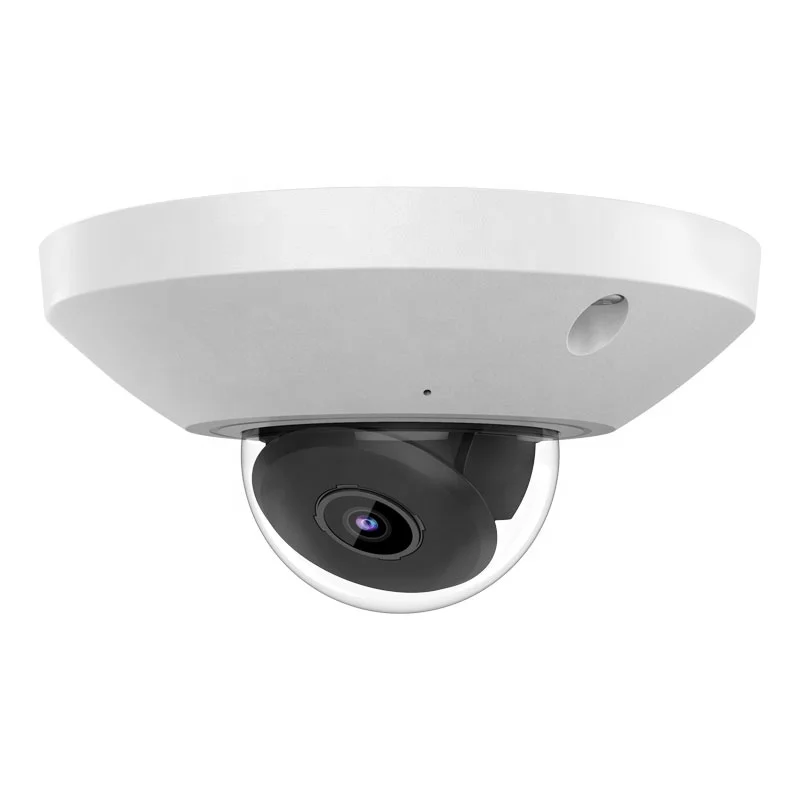

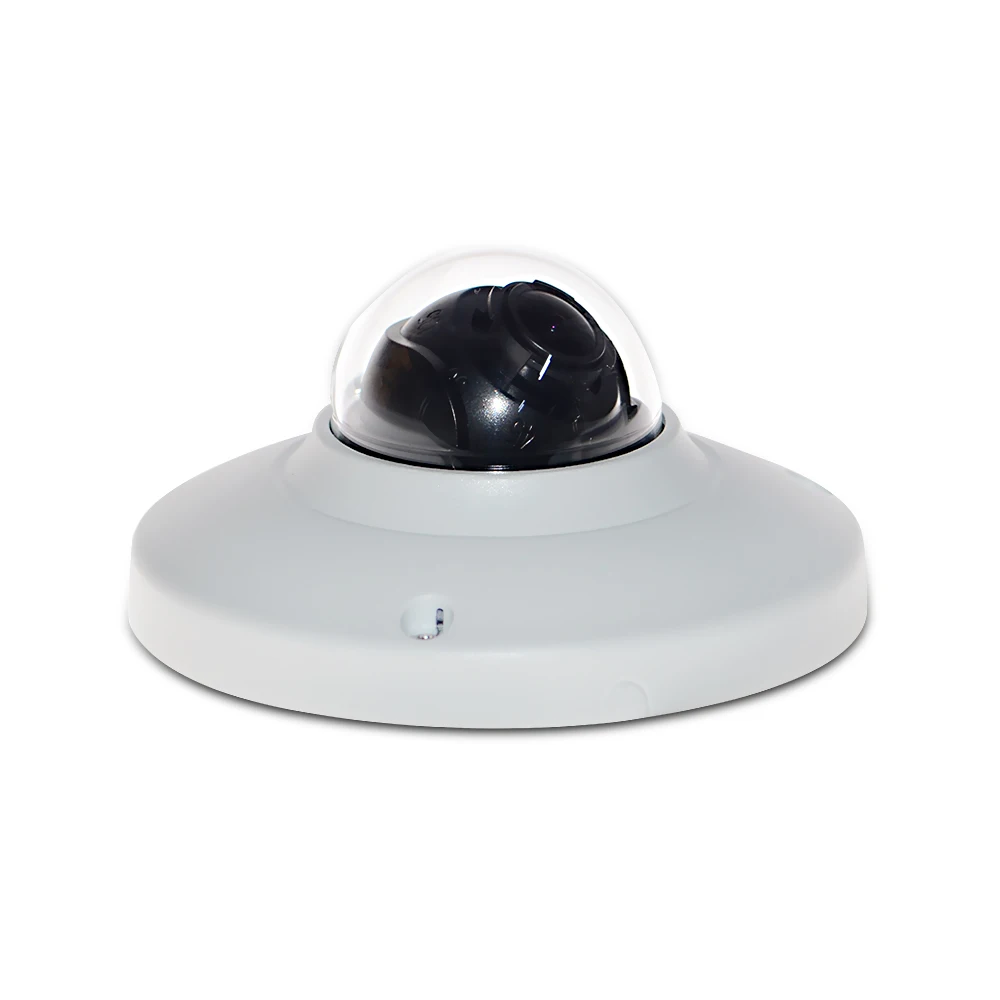

IPC-EB5541 Original with logo heatmap 5MP Panoramic Network Fisheye Camera IPC-EB5541
5MP Panoramic Network Fisheye Camera
1/2.7" 5Megapixel progressive scan CMOS
H.&H.264 triple-stream encoding
25fps@5MP(2592×1944) ,25/30fps@3MP(2048×1520)
Smart Detection supported
WDR(120dB), 3DNR,AWB,AGC,BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
1.4mm fixed lens
Built-in Mic
Micro SD memory, IP67, PoE
we will send the this camera with logo
Product Description
Camera | IPC-EB5541 ORIGINAL DHUA HOT SELL 5MP PANAROMIC NETWORK FISHEYE CAMERA IPC-EB5541 |
Image Sensor | 1/2.7" 5Megapixel progressive scan CMOS |
Effective Pixels | 2592(H)x1944(V) |
RAM/ROM | 512MB/32MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s |
Minimum Illumination | 0.02Lux/F1.6( Color,1/3s,30IRE) |
0.2Lux/1.6( Color,1/30s,30IRE) | |
0.05Lux/F1.6( B/W,1/3s,30IRE) | |
0.5Lux/1.6( B/W,1/30s,30IRE) | |
S/N Ratio | More than 50dB |
IR Distance | N/A |
IR On/Off Control | N/A |
IR LEDs | N/A |
Lens | |
Lens Type | Fixed |
Mount Type | Board-in |
Focal Length | 1.4mm |
Max. Aperture | F1.6 |
Angle of View | H: 180°, V: 180° |
Optical Zoom | N/A |
Focus Control | Fixed |
Close Focus Distance | N/A |
Pan/Tilt/Rotation | |
Pan/Tilt/Rotation Range | Pan:0˚~355˚; Tilt:0˚~75˚; Rotation:0˚~360˚ |
Intelligence | |
Advanced Intelligent Functions | Tripwire ,Intrusion,Heat map |
Video | |
Compression | H.+/H./H.264+/H.264 |
Streaming Capability | 3 Streams |
Resolution | 5M(2592×1944)/3M(2048×1536)/UXGA(1600×1200)/1.3M(1280×960)/D1(704×576/704×480)/CIF(352×288/352×240) |
Frame Rate | Main Stream:5M(1~25fps) |
Sub Stream: D1(1~25/30fps) | |
Bit Rate Control | CBR/VBR |
Bit Rate | H.264: 24~10240Kbps |
H.: 14~9984Kbps | |
Day/Night | Electronic |
BLC Mode | BLC / HLC / WDR |
White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control | Auto/Manual |
Noise Reduction | 3D DNR |
Motion Detetion | Off / On (4 Zone, Rectangle) |
Region of Interest | Off / On (4 Zone) |
Electronic Image Stabilization (EIS) | N/A |
Smart IR | N/A |
Defog | N/A |
Digital Zoom | 16x |
Flip | N/A |
Mirror | Off / On |
Privacy Masking | Off / On (4 Area, Rectangle) |
Audio | |
Compression | G.711a/ G.711Mu/ AAC/ G.726 |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; |
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; | |
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; | |
IGMP; SNMP | |
Interoperability | Open Network Video Interface, PSIA, CGI |
Streaming Method | Unicast / Multicast |
Max. User Access | 10 Users /20 Users |
Edge Storage | NAS |
Local PC for instant recording | |
Mirco SD card 128GB | |
Web Viewer | IE, Chrome, Firefox, Safari |
Management Software | Smart PSS, DSS, Easy4ip |
Smart Phone | IOS, Android |
Certifications | |
Certifications | CE (EN 60950:2000) |
UL:UL60950-1 | |
FCC: FCC Part 15 Subpart B | |
Interface | |
Video Interface | N/A |
Audio Interface | Built-in Mic |
RS485 | N/A |
Alarm | N/A |
Electrical | |
Power Supply | DC12V, PoE (802.3af)(Class 0) |
Power Consumption | <3.4W |
Environmental | |
Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Ingress Protection | IP67 |
Vandal Resistance | IK08 |
Construction | |
Casing | Metal IPC-EB5531 |

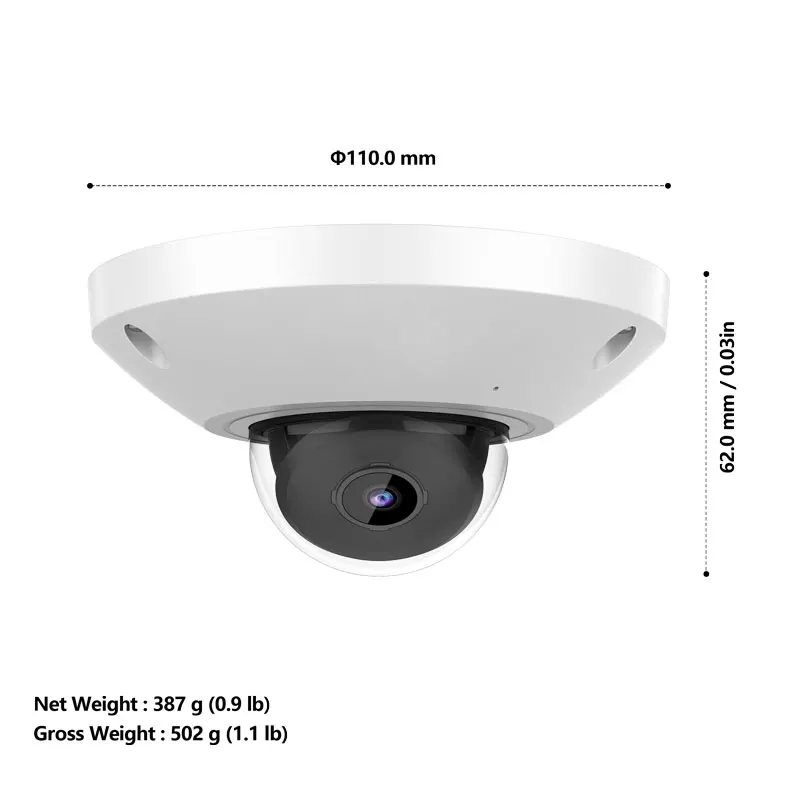

Dimensions | Φ110mm×56mm (4.33"×2.2") |
Net Weight | 0.38Kg (0.84lb) |
Gross Weight | 0.44Kg (0.97lb) |
HOT SALE
NVR2104HS-S2 | NVR4108-8P-4KS2 | NVR4116HS-4KS2 | NVR4232-16P-4KS2 |
NVR2108HS-S2 | NVR4104HS-P-4KS2 | NVR4208-4KS2 | NVR4416-16P-4KS2 |
NVR2104HS-P-4KS2 | NVR4108HS-8P-4KS2 | NVR4216-4KS2 | NVR5232-16P-4KS2E |
NVR2108HS-8P-4KS2 | NVR4116-4KS2 | NVR4208-8P-4KS2 | NVR5216-16P-4KS2E |
NVR4104-P-4KS2 | NVR4104HS-4KS2 | NVR4232-4KS2 | NVR5832-16P-4KS2 |
NVR4108-P-4KS2 | NVR4108HS-4KS2 | NVR4216-16P-4KS2 | NVR608-32-4KS2 |
Notice
Dear customers, choose us and you will definitely feel the value.If the same product we compete with Quality, if the same quality we compete with Price, if the same price we compete with Service, if the same service we compete with Consistency
We sell Dh and HIK vision all the network products,Please contact us freely.
What is IP camera how it works?
An Internet Protocol camera, or IP camera, is a type of digital video camera that receives control data and sends image data via
the Internet. They are commonly used for surveillance. Unlike analog closed-circuit television (CCTV) cameras, they require no
local recording device, but only a local area network
An Internet Protocol camera, or IP camera, is a type of digital video camera that receives control data and sends image data via
the Internet. They are commonly used for surveillance. Unlike analog closed-circuit television (CCTV) cameras, they require no
local recording device, but only a local area network
It is can multi-platform monitor anywhere,any country and anytime .
normally requires two connections to be made when it is installed: A network connection, in order to be able to communicate with
video recording and display equipment.
How to Choose the camera resolution
How to choose the camera lens
How the CCTV system work
