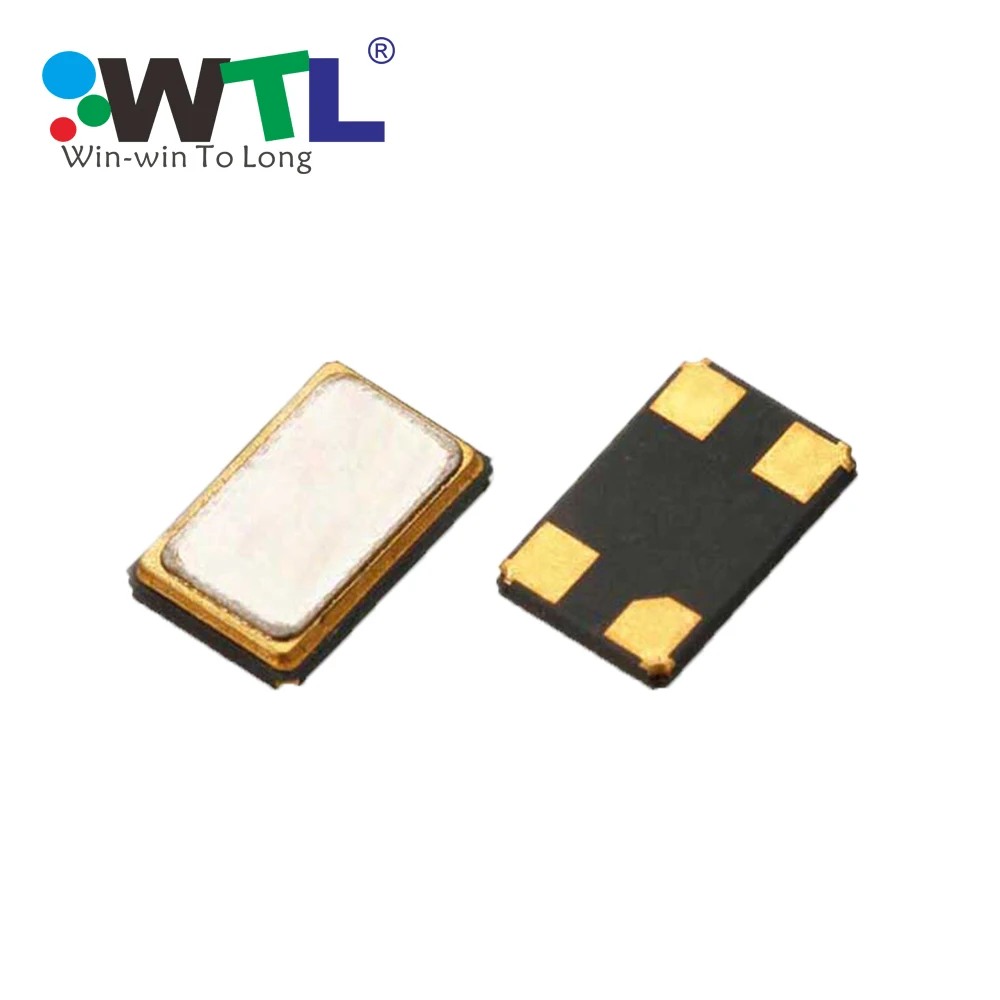

WTL 16MHz Quartz Crystal 16pF 30ppm 3.2*2.5mm SMD Xtal Resonator
- Category: Crystals, Oscillators and Resonators >>>
- Supplier: WTL International Limited
Share on (62452721075):
Product Overview
Description
Product Description
Product Attributes | ||
P/N | WTL2.08369ZX | |
Series | TX3 | |
Size / Dimension | 3.2x2.5 mm | |
Frequency | 16MHz | |
Load Capacitance(CL) | 16pF | |
Frequency Tolerance (at 25°C) | ± 20ppm | |
Frequency Stability Over Operating Temperature Characteristics | ± 30ppm | |
Operating Temperature Range | -20°C--+70°C | |
Operating Mode | Fundamental | |
Package / Case | 4-SMD, No Lead | |

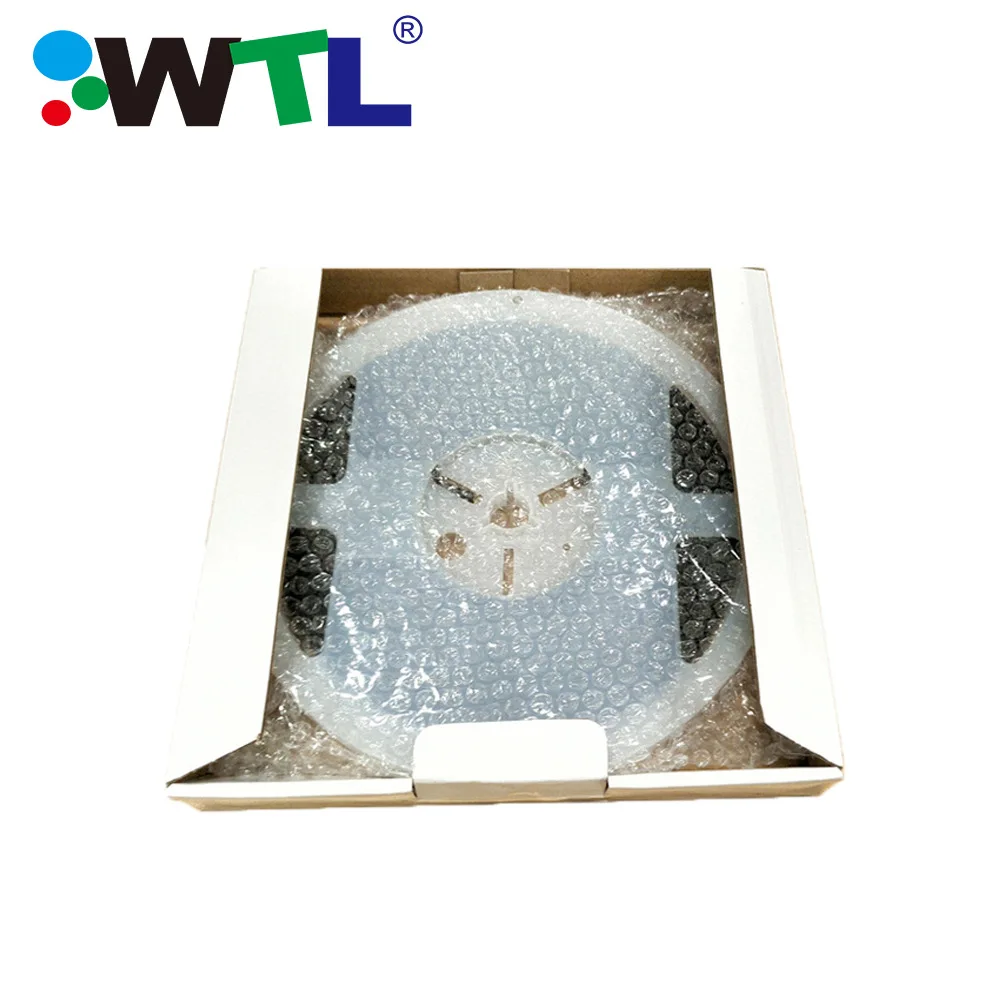

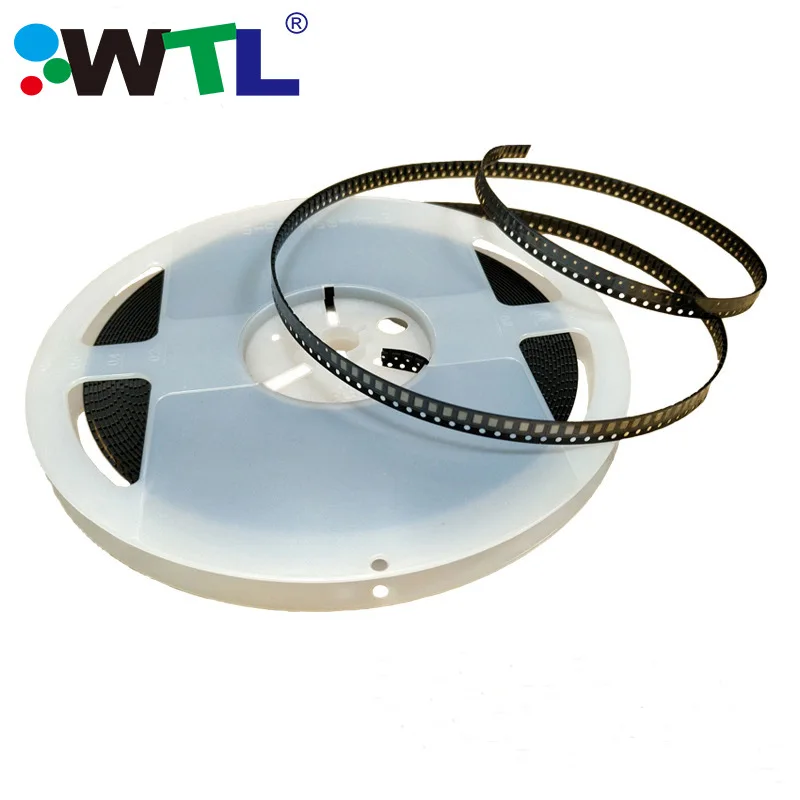

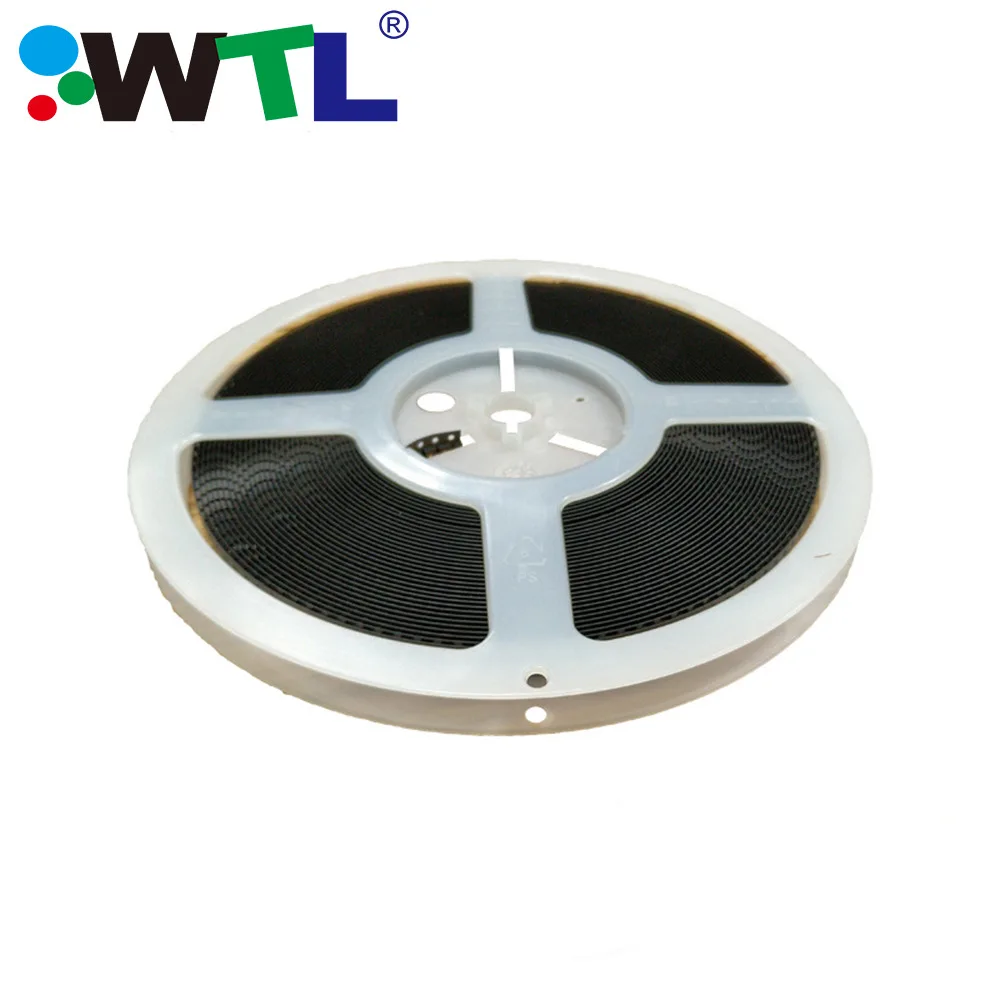

Packaging | Tape & Reel (TR) | |
Storage Temperature Range | -55 °C to + 125 °C | |
Shunt Capacitance (C0) | 5.0 pF Max | |
Driver Level | 10µW~100µW | |
Equivalent Series Resistance ESR | 60Ω Max | |
Aging @25°C 1st year (Max) | ± 3ppm/year | |
Shock Resistance | Drop test of 3 times on 2mm stainless plate from 75cm height | |

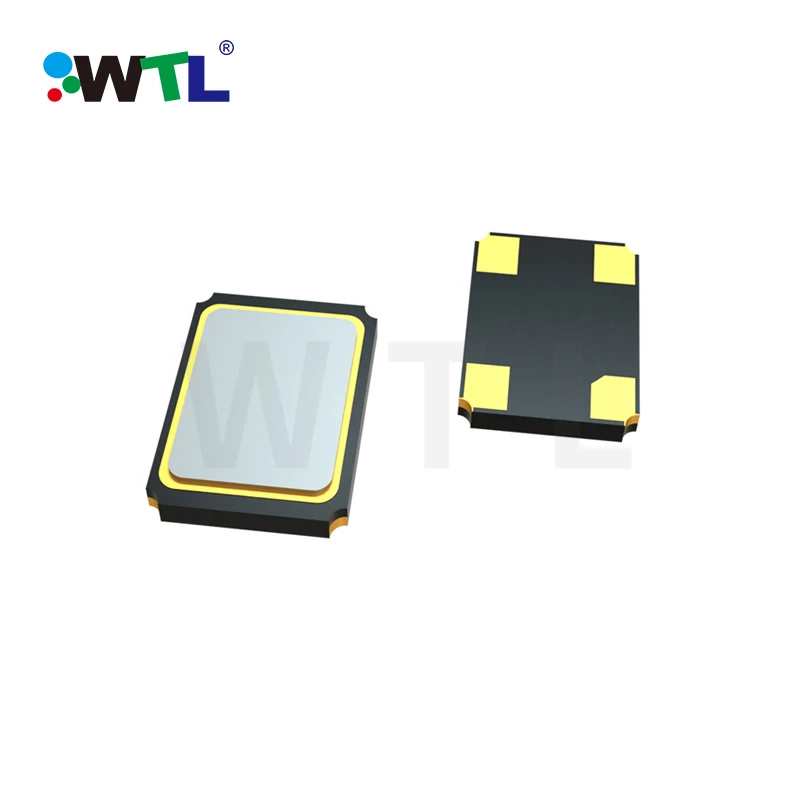

SMD Seam Sealed Crystals
3.2×2.5×0.7mm
Feature
●Size 3.2×2.5, UItra thin,thickness0.7mm
● High precision and high frequency stability
●Excellent heat resistance and environmental characteristics
●Designed for automatic mounting and reflow soldering
●RoHS Compliant /Pb Free
