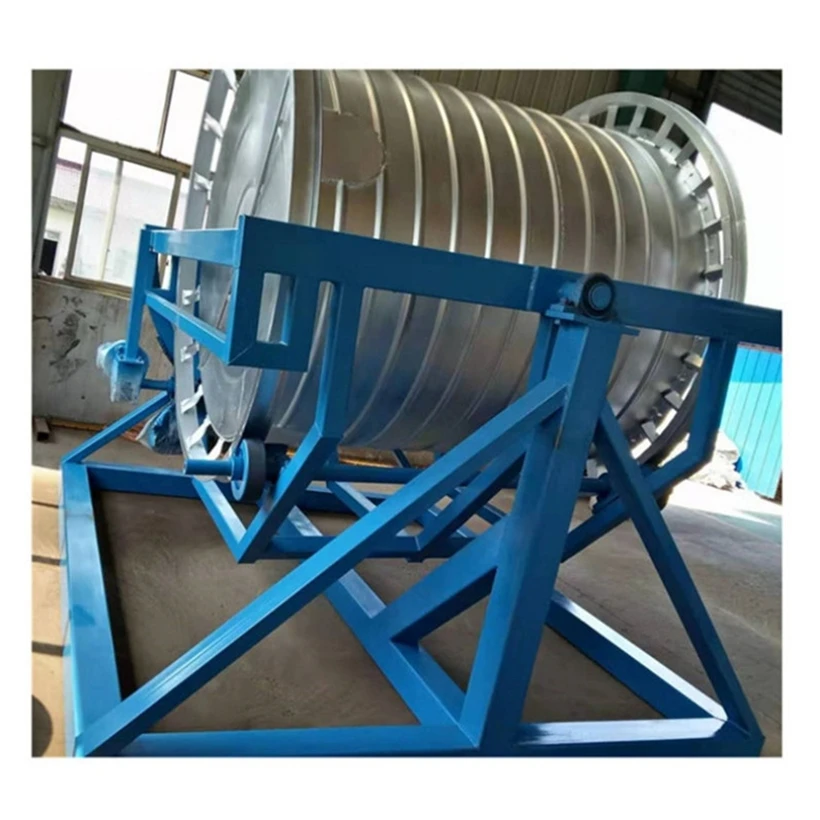

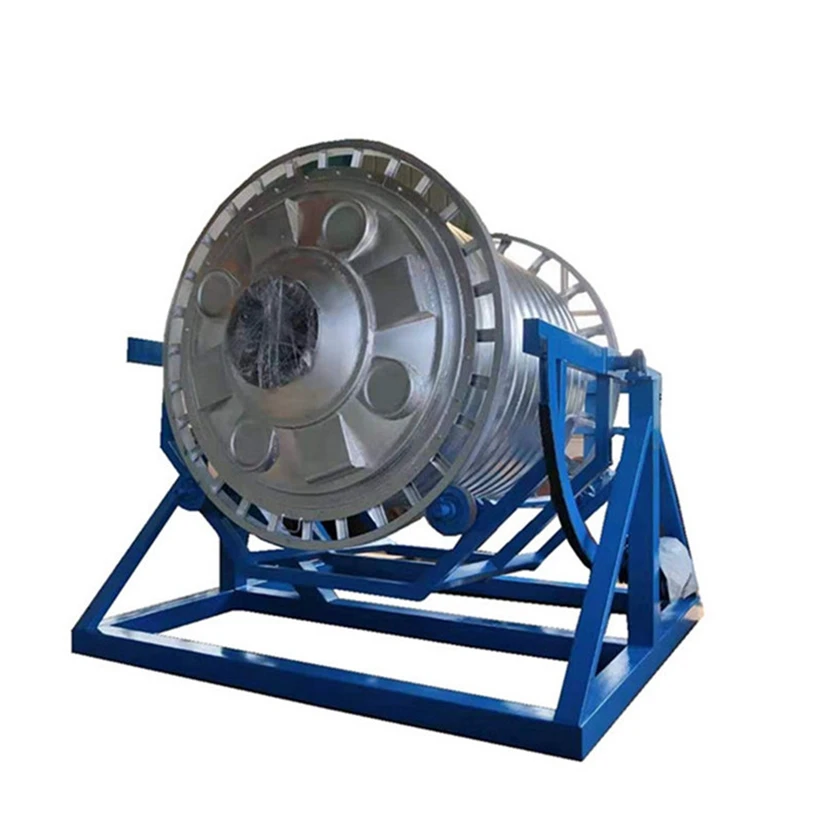

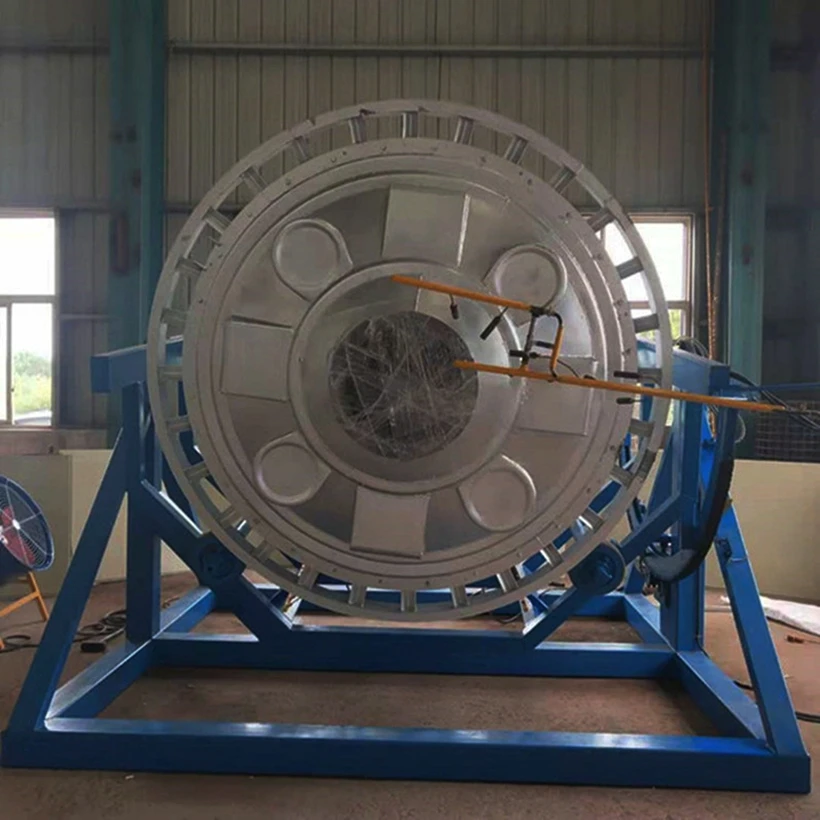

The pit-type open flame swinging machine abandoned the traditional swinging machine to realize swinging by connecting rod motor driving and hydraulic driving. The drive of the connecting rod is unstable, easily damaged, and the maintenance of the hydraulic cylinder is difficult. This machine uses a motor to drive the rack to achieve swing, which has the advantages of freely adjusting the angle, stable transmission and convenient maintenance. Available heat sources are natural gas, liquefied gas, etc.
Model No
Machining range: min / Max
Installed capacity
control mode
Pit size
Rotational power
Swing power
rotate
swing
L(m)
W(m)
H(m)
RCMY-1000
Φ660*750/Φ1100*1200
1.1kw
2.2kw
frequency conversion
frequency conversion
2
1.7
2
RCMY-3000
Φ1100*1200/Φ1600*2000
1.5kw
3.0kw
3
2.2
2
RCMY-5000
Φ1600*2000/Φ1900*2300
3.0kw
4.0kw
3.2
2.5
2.5
RCMY-10000
Φ2000*2400/Φ2500*3000
4.0kw
5.5kw
3.8
3.1
2.5
RCMY-30000
Φ2200*2500/Φ3200*4200
5.5kw
7.5kw
5.5
3.8
3.5
RCMY-50000
Φ2800*3650/Φ3300*6200
7.5kw
11kw
7.5
4
4
Open fire swing machine is suitable for producing a variety of large and medium hollow products, such as water tanks, water towers, tonnage barrels, medicinal tanks, etc.
Molding machine auxiliary equipment
Product name
Manufacturer's Direct Sale Open Fire Swing Molding Machine Water Tower Molding Rotary Molding Equipment
Features
Characteristics of Open-flame Swing Plastic Molding Machine
Open flame rocking forming machinery and equipment is low cost, small area, suitable for large and medium-sized hollow products, easy to operate, easy to maintain, is the ideal equipment for the introduction of rolling molding.
Basic process
1.a given quantity of plastic material,powder or liquid,islaid in one half of the mould
2.the mould is closed
3.the mould is rotated in the oven revolving on two axes.
4.plastic material melts,forming a coating layer on the mould internal surface.
5.the mould is removed from the oven and cooled off.
6.the mould is opened and the hollow item is extracted
Producable products
1.Military industry 2.Car class 3.Cleaning class 4.Lining 5.Traffic facilities 6.Container class 7.Common environment class 8.Toy pet 9.Water supplies
Process advantage
1.Low cost 2.Rotomolding machinery invests less than other plastic molding machines such as injection molding machines 3.Suitable for simultaneous production of multiple types of products 4.The surface of the product is straight and uniform in thickness 5.Suitable for large hollow products
6.products are not subject to high stress,little scraps are generated
