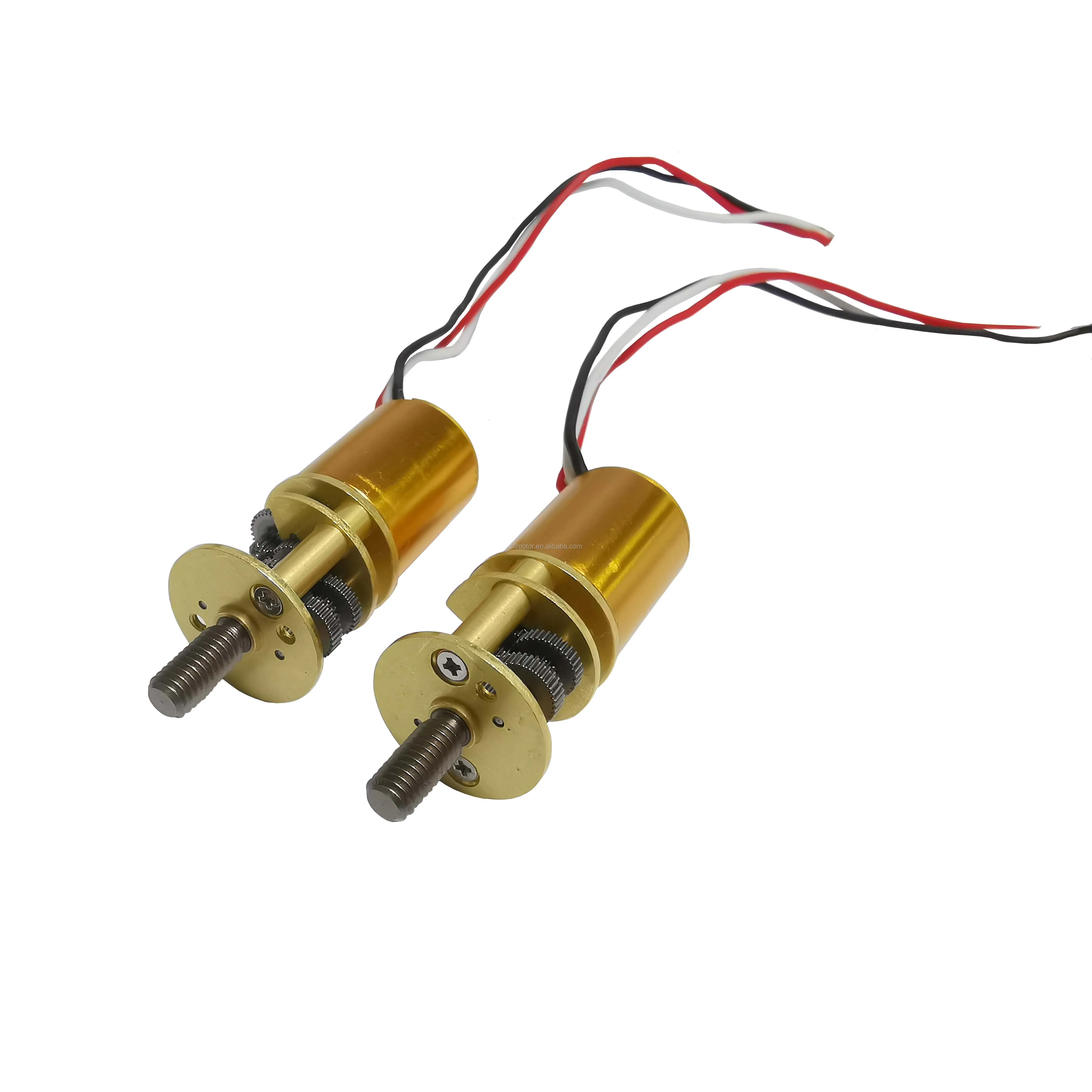

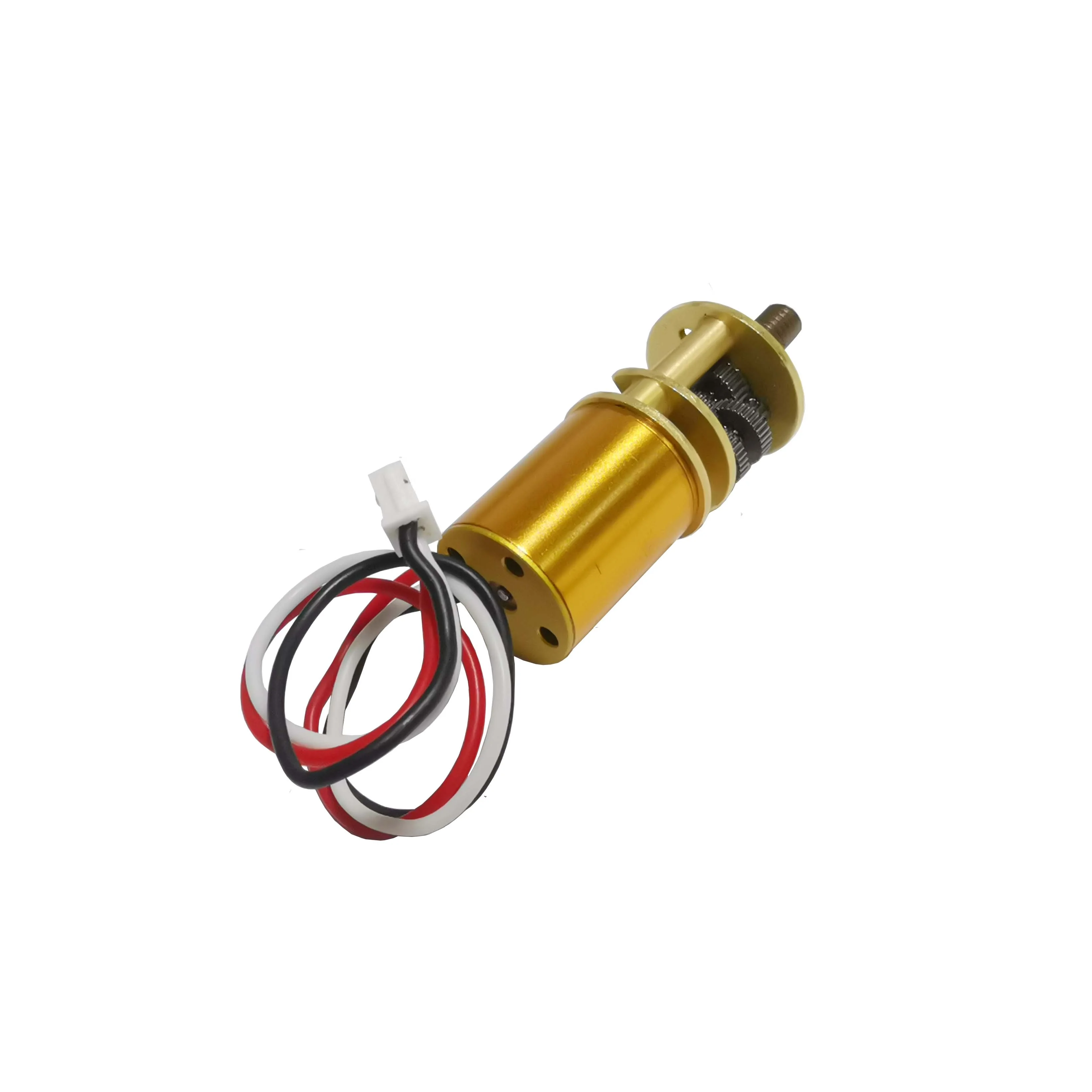

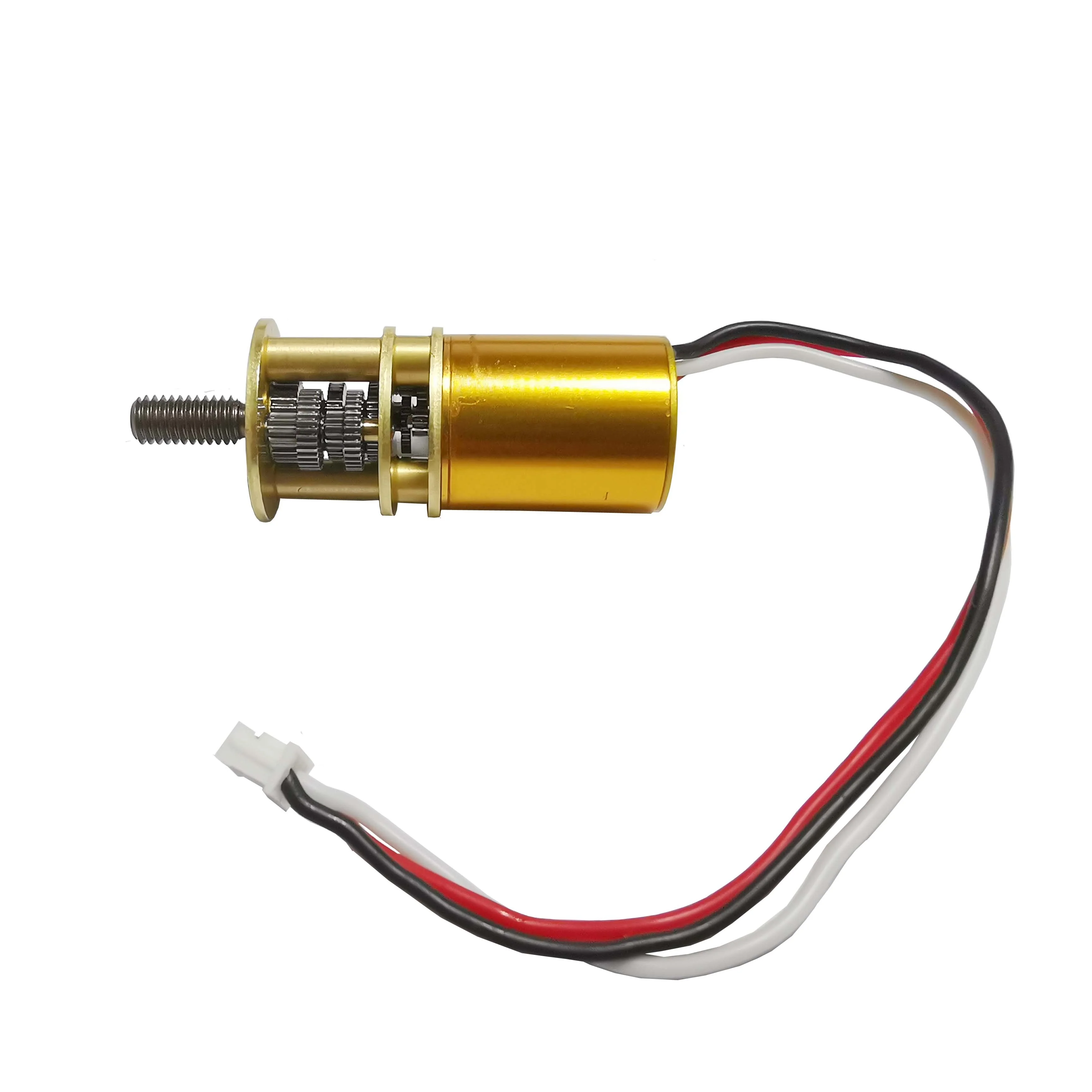

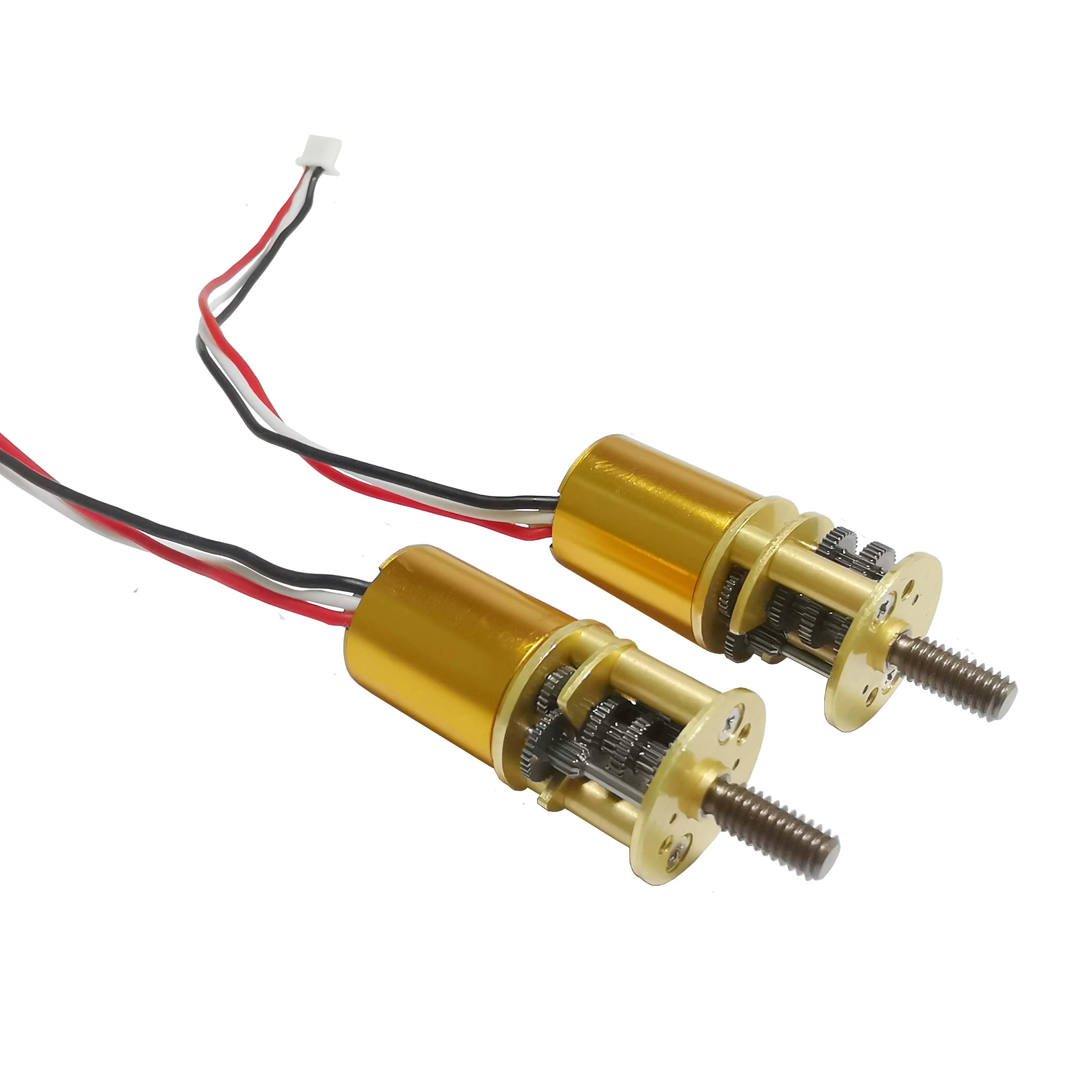

1215ZWW 12v low rpm speed dc brushless geared motor with dia14mm round shape gear box screw leap shaft
- Category: >>>
- Supplier: Shenzhen Shengfulai Motor Technology Co. Ltd.
Share on (62452795285):
Product Overview
Description
Product Description
Motor characteristic example:
| MODEL | VOLTAGE | NO LOAD | STALL | ||||
| OPERATING RANGE | Rated | SPEED | CURRENT | TORQUE | CURRENT | ||
| r/min | mA | mN.m | g.cm | mA | |||
| 14GA1000-1215ZWW | 1.5-12 | 5.0V | 20 | 168 | 500 | 150 | 780 |

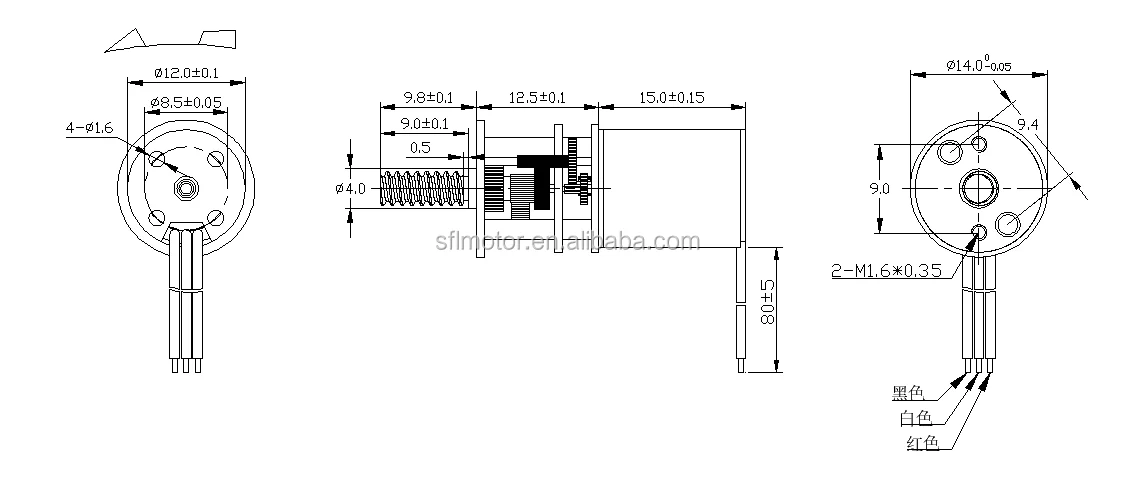

Appearance Size/mm
Production Process
Company Information
About us
- More than 50 sets automatic manufacturing equipment and detecting instruments.
- R&D engineer group with practised experience, and long-term customization
- Professional technical experience and reliable after-sale service
- Good cost control and high cost performance
- ISO9001 quality management system certification
- Up to 50,000 motors daily output
Our Services
Customization service as below are available
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: The sample fee is according to the stock and cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
