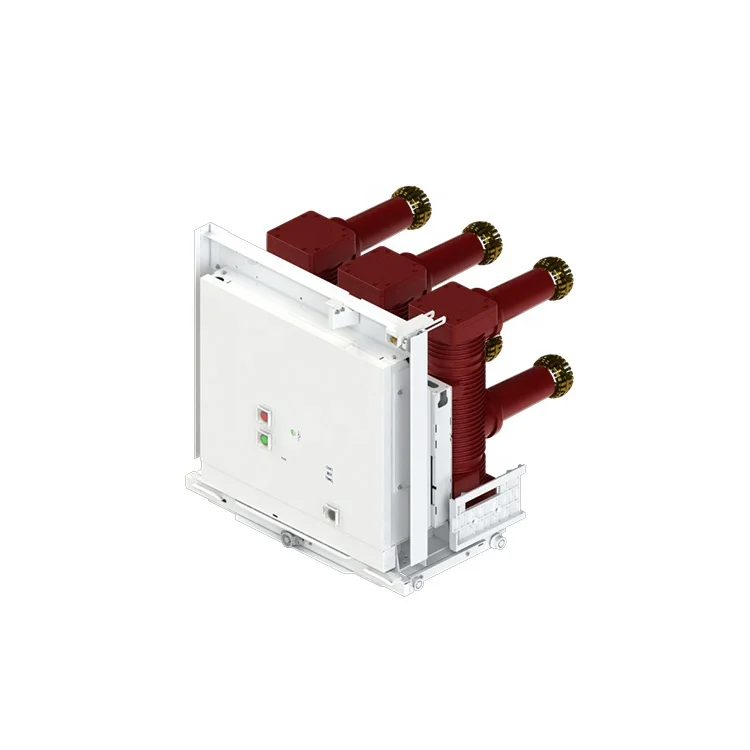

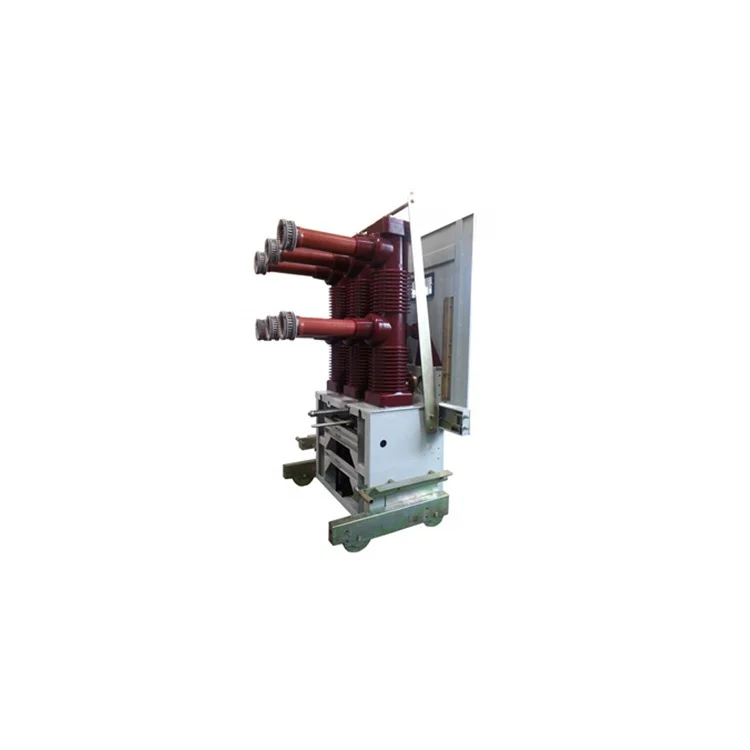

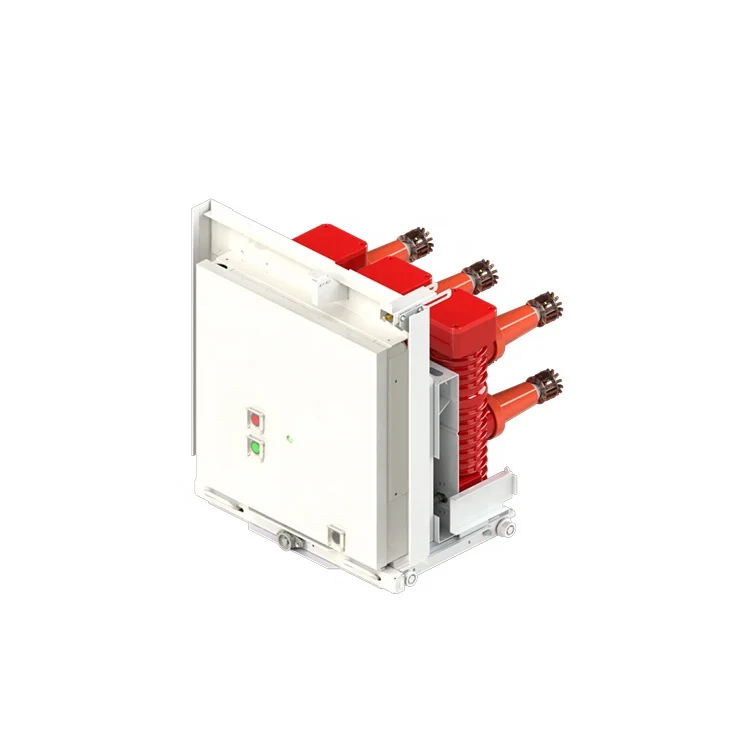

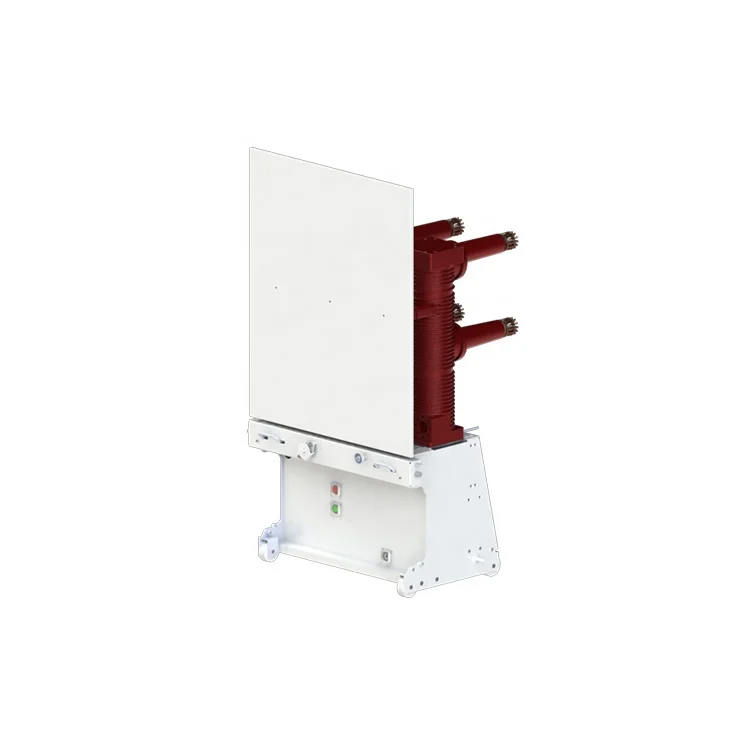

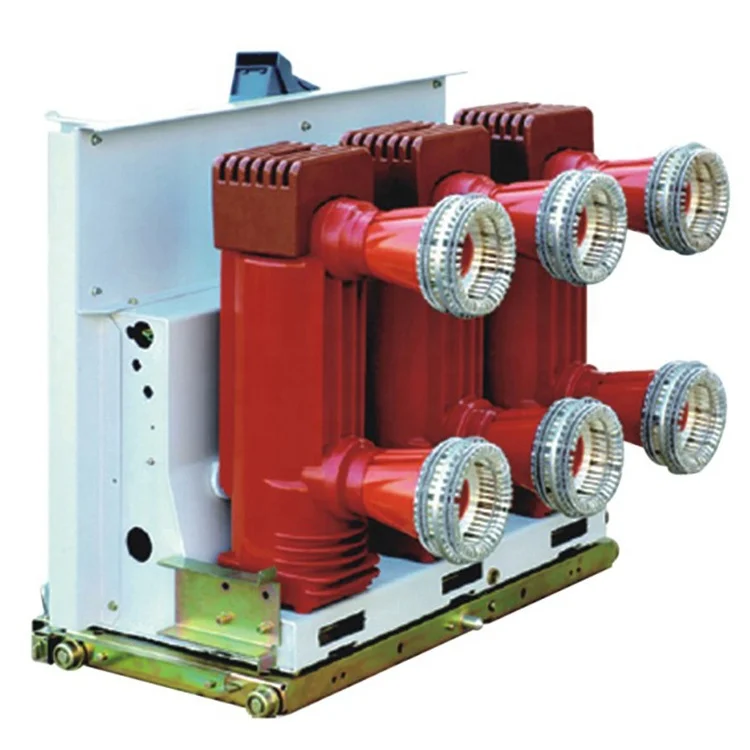

HM4 High Voltage HV SF6 Gas Insulated Circuit Breaker

Product Overview

Description

WENZHOU ROCKWILL T&D GROUP





General



HR4 type high voltage indoor SF6 gas circuit breaker with two installation way by drawable/Fixed. which is widely application for three-phase AC power system of rated voltage from 3.3kV up to 36kV at frequency 50/60Hz, especially using for power plant, transformer substation, petrol chemical industry, metallurgy, manufacturing industry, airport, residential area, etc..

Its high performance switchgear which will reduce over-voltage and harmonic impulse at max for by a normal or fault breaking or making.



Its easy for interchange for VD4,SF1,HD4 type switchgear like type KYN28 or AMS, ABB type ZS1 series, etc.

This circuit breaker is follow per standards like:

IEC62271-100 AC high voltage circuit breaker,

GB1984-2003 AC high voltage circuit breaker

JB3855 3.6-40.5Kv indoor AC High voltage circuit breaker

DL/T403 Specification of 12-40.5kV indoor High voltage vacuum circuit breaker.



Service environment

a) Air temperature: Maximum temperature: +40°C; Minimum temperature:-25°C



b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .



c) Altitude above sea level: Maximum installation altitude: 2500m



d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.



e) No frequent violent shake

Main technical specifications



No	Item	Unit	Parameter
1	Rated voltage	kV	12/17.5	24/36/40.5
2	Rated frequency	Hz	50/60
3	Rated current	A	630, ……4000A
4	1min Power frequency withstand voltage	kV	48	65/70/85
5	Lightning impulse withstand voltage	kV	75/95	125/200
6	Rated short circuit breaking current (peak)	kA	50/63/80/100
7	Rated active load and close circuit breaking current	A	63	50
8	Rated short breaking current	kA	20, …40
9	Rated short circuit making current (peak)	kA	50/63/80/100
10	Rated cable(line) charging breaking current	A	50 and 10
11	Rated capacitor bank switching current	A	400
12	Rated withstand current (peak)	kA	50/63/80/100
13	Short time withstand current (4s)	kA	20, …40
14	Mechanism life	times	10000

Note: For short circuit breaking current & rated current is optional by clients.
