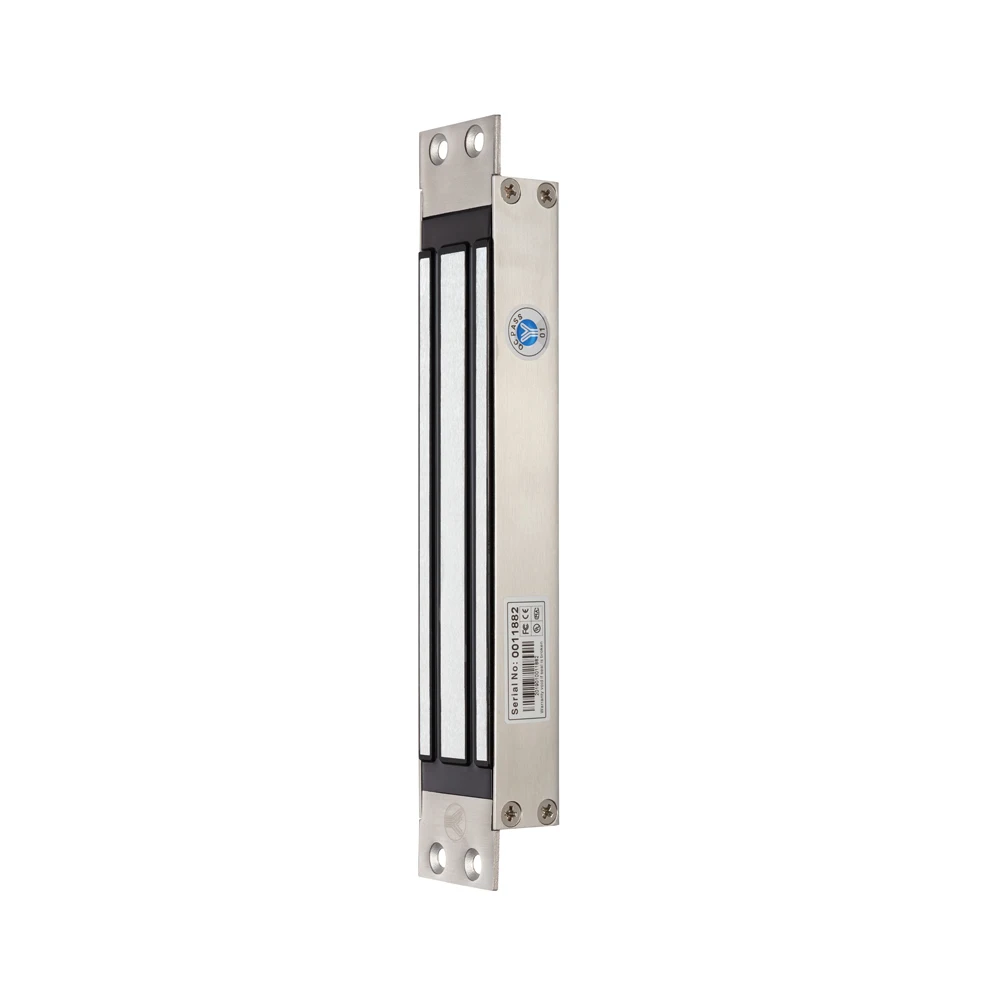

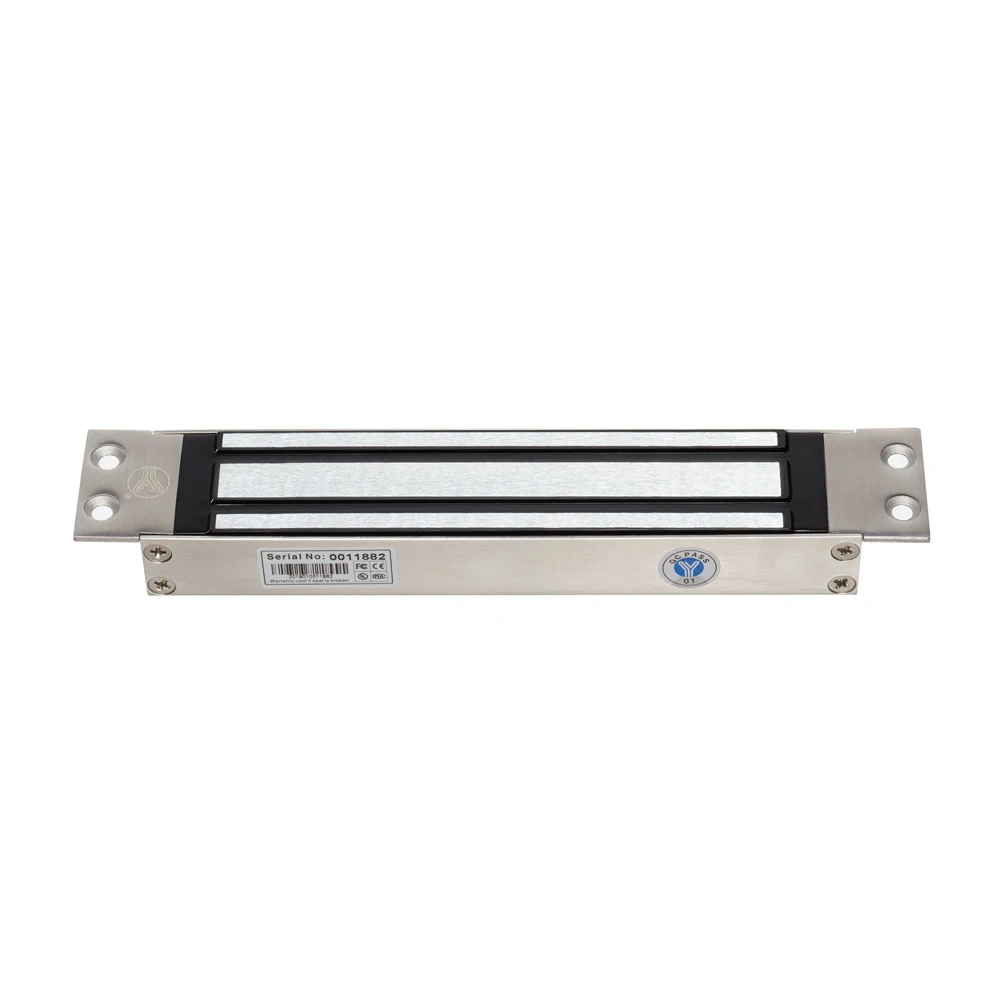

Single Door Magnetic Lock(mortise mount) YM 280M(SS304)
Single Door Magnetic Lock(mortise mount) YM-280M(SS304)
Single Door Magnetic Lock(mortise mount) YM-280M(SS304)
Single Door Magnetic Lock(mortise mount) YM-280M(SS304)
Single Door Magnetic Lock(mortise mount) YM-280M(SS304)
Single Door Magnetic Lock(mortise mount) YM-280M(SS304)

Single Door Magnetic Lock(mortise mount) YM 280M(SS304)

Share on (62452884657):


Price:$23.32 - $28.62

Quantity:


Product Overview

Description



Product Description


Product Application

YM-280M(SS304) single door electric lock is for glass door, wooden door, fireproof door, metal door. Mortise mount and easy to install . Accessories for in swing door,frameless glass door,narrow door frame door and so on are available. Lastly, holding force is 600lbs .

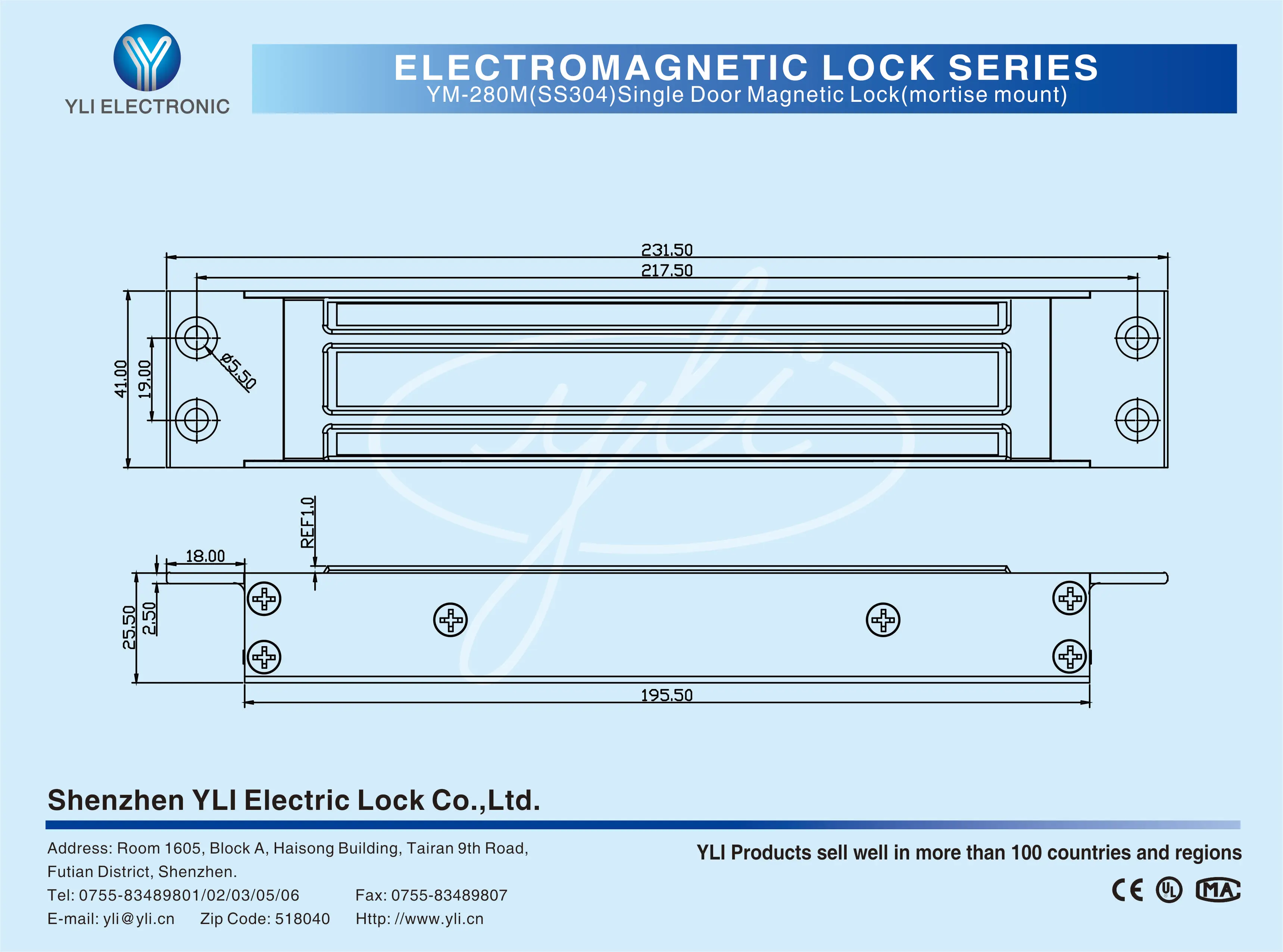

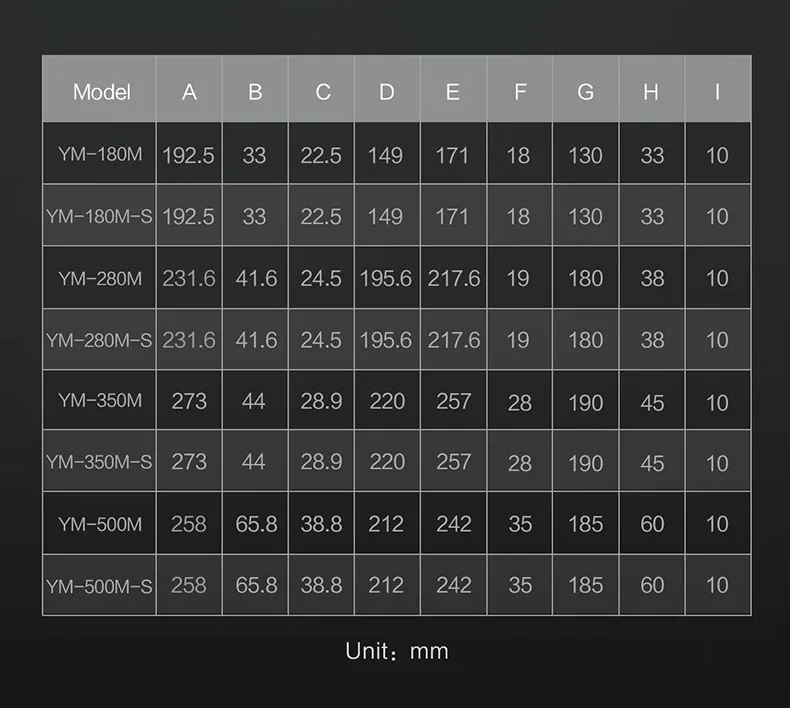

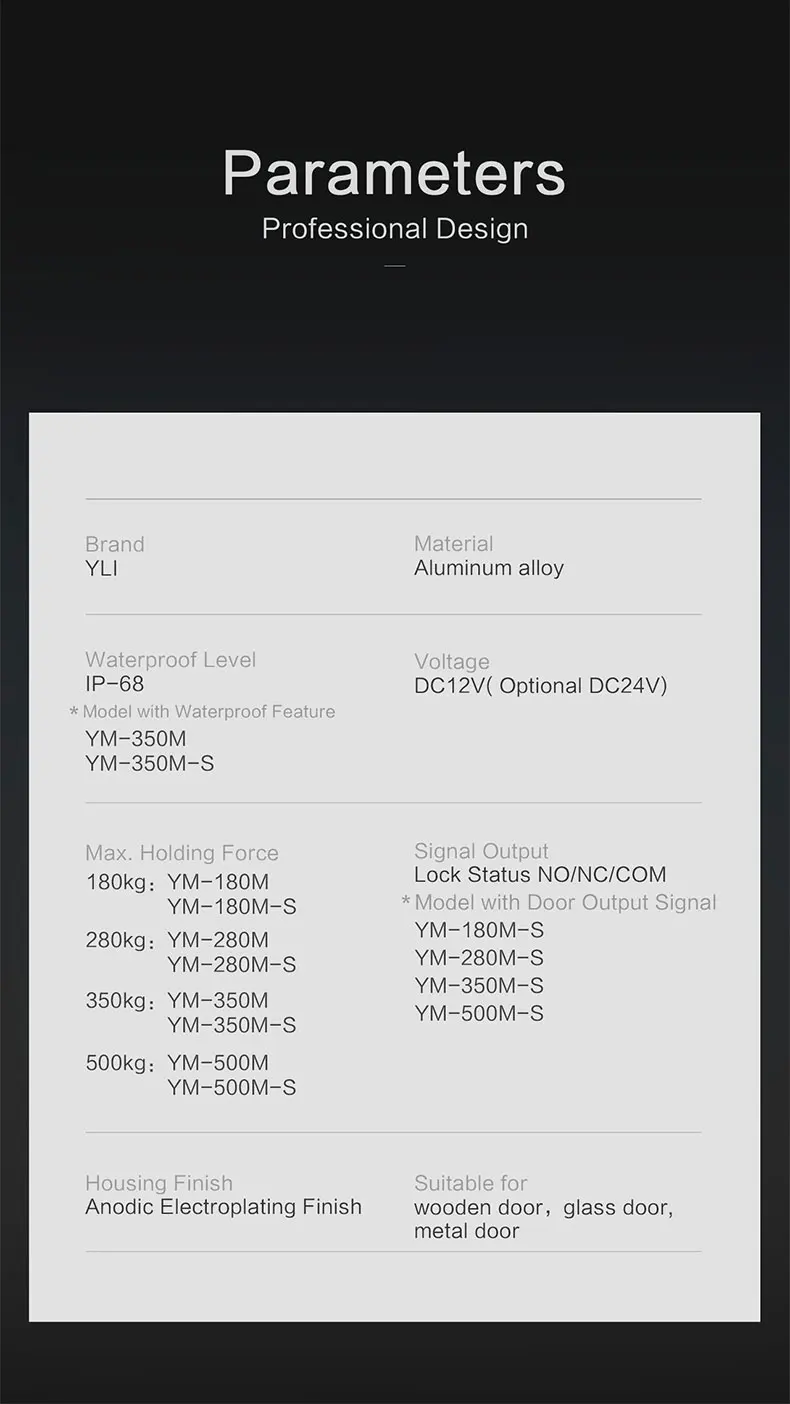

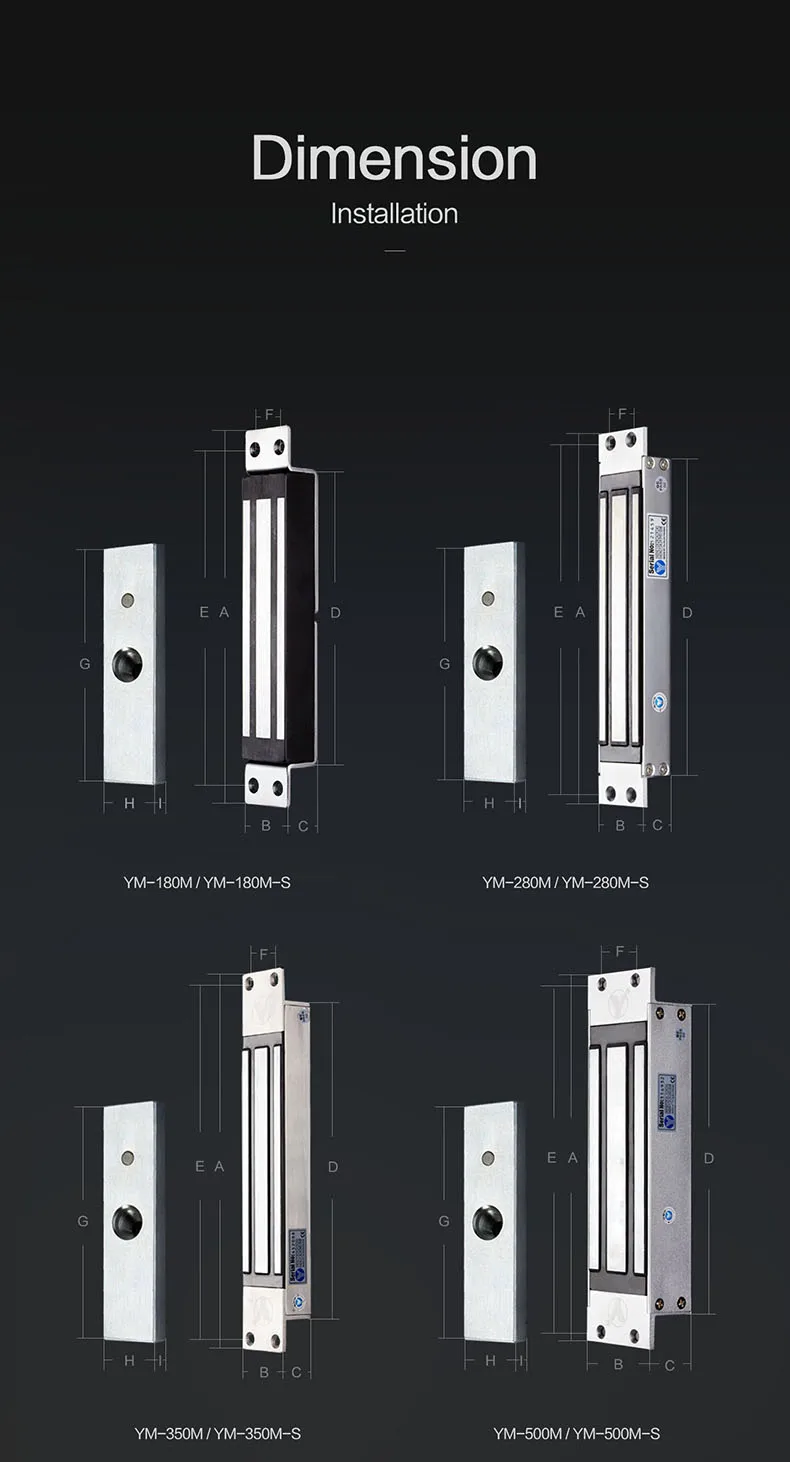

Size
231.5Lx41Wx26.5H(mm)
Armature Plate Dimension
180Lx38.8Wx13.2H(mm)
Holding Force
280kg(600Lbs)

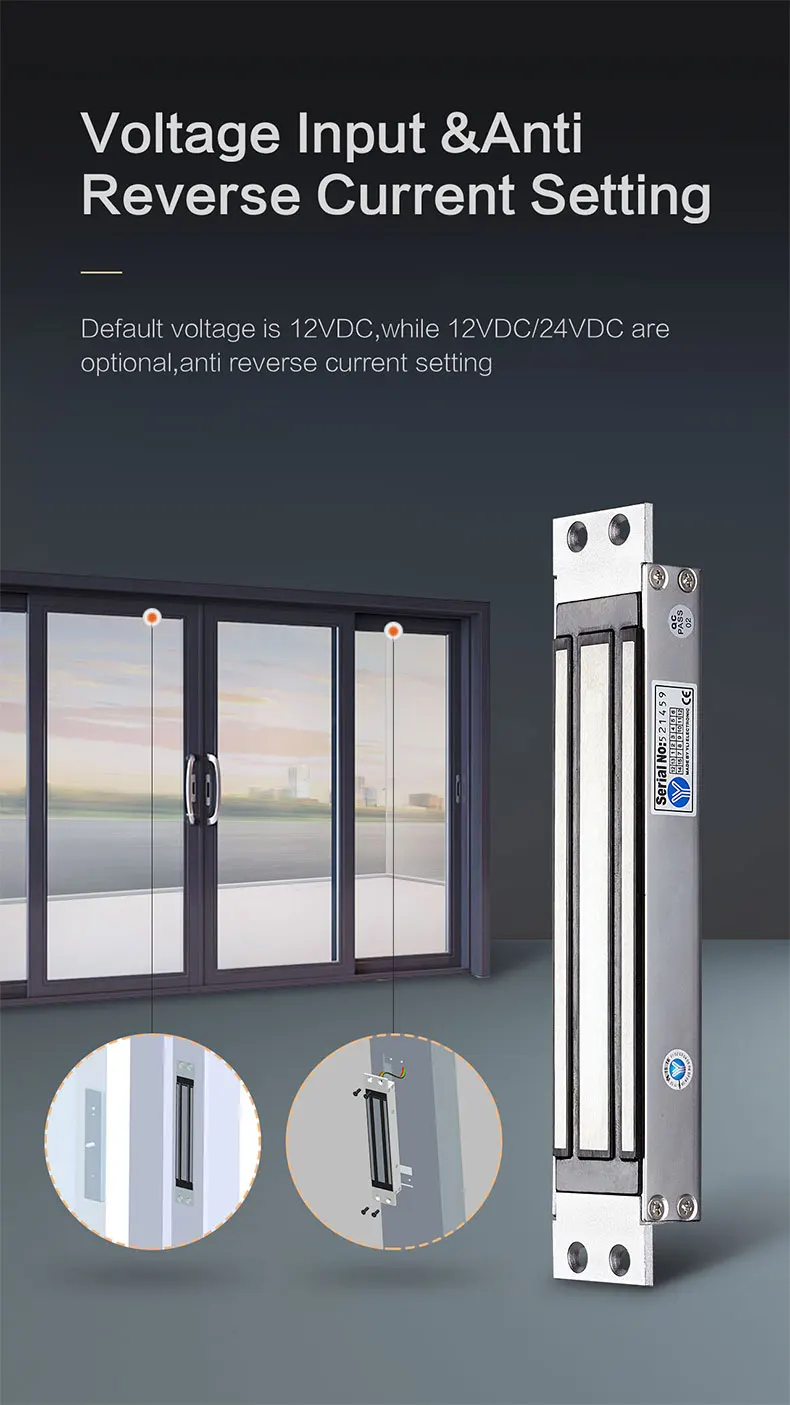

Input Voltage
DC12V (Adjustable DC24V)
Current
12V/500mA(±10%) ; 24V/250mA(±10%)
Suitable
Wooden door , Glass door ,Metal door , Fireproof door

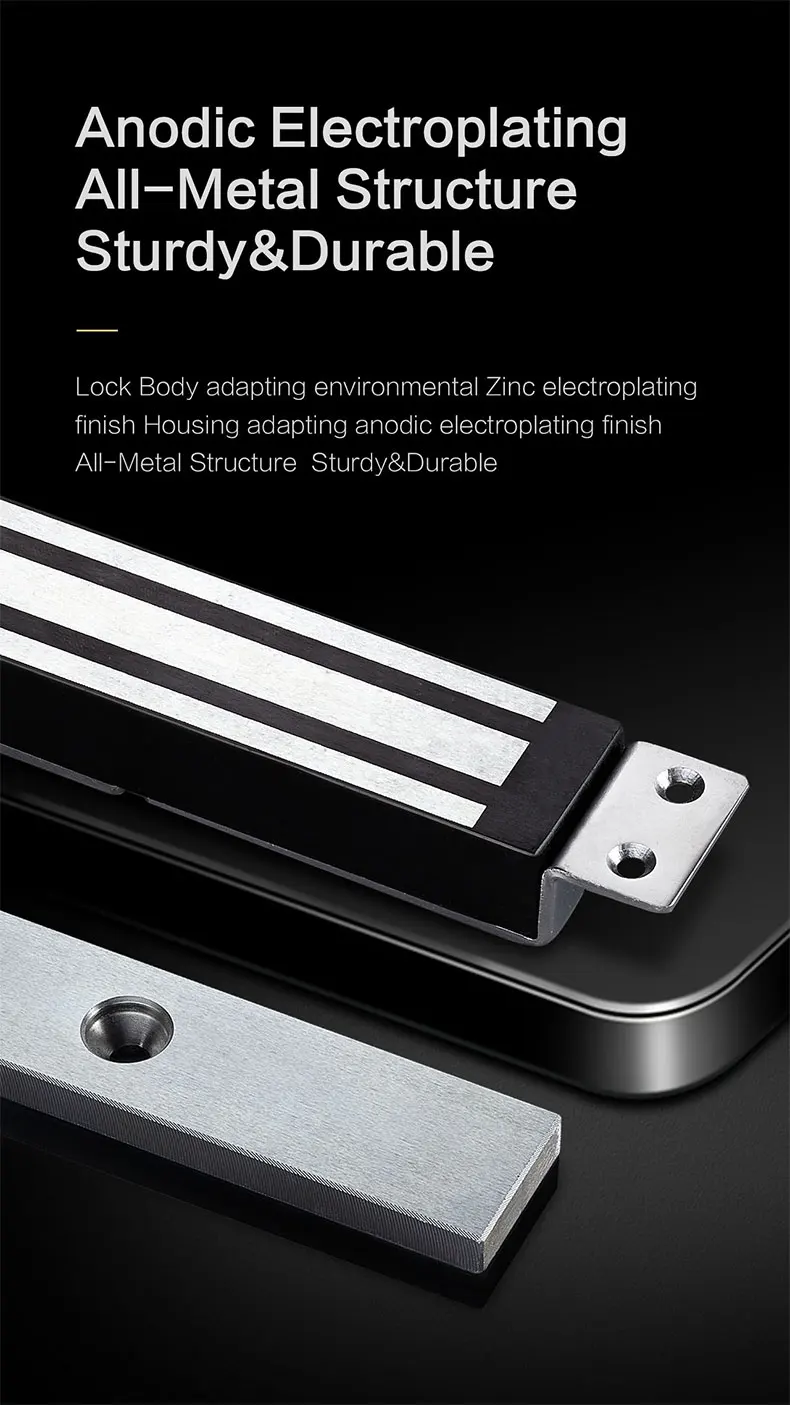

Cover Finish
Stainless Steel

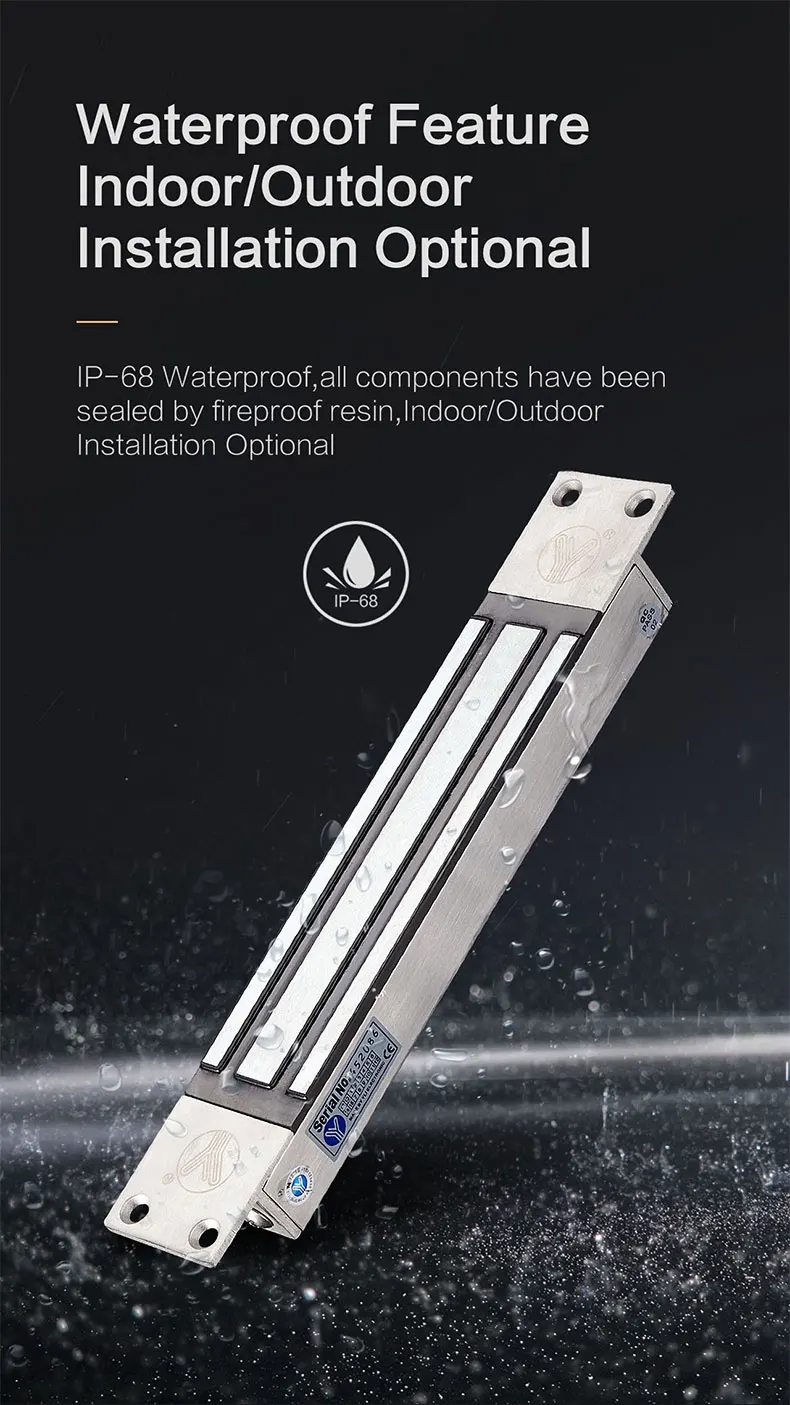

IP rate
IP-65
Operating Temp
-20℃~+55℃(-4—131°F)
Weight
1.2kg
