Supporting voltage 110V / 220V / 380V Peeling Coffee beans hulling

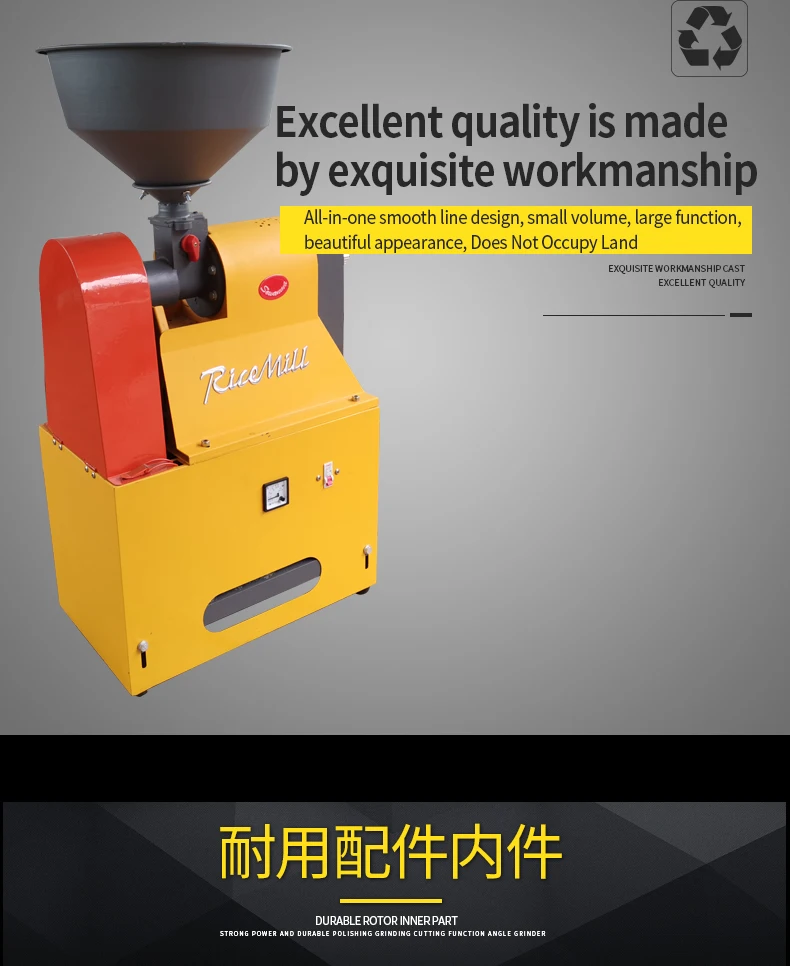

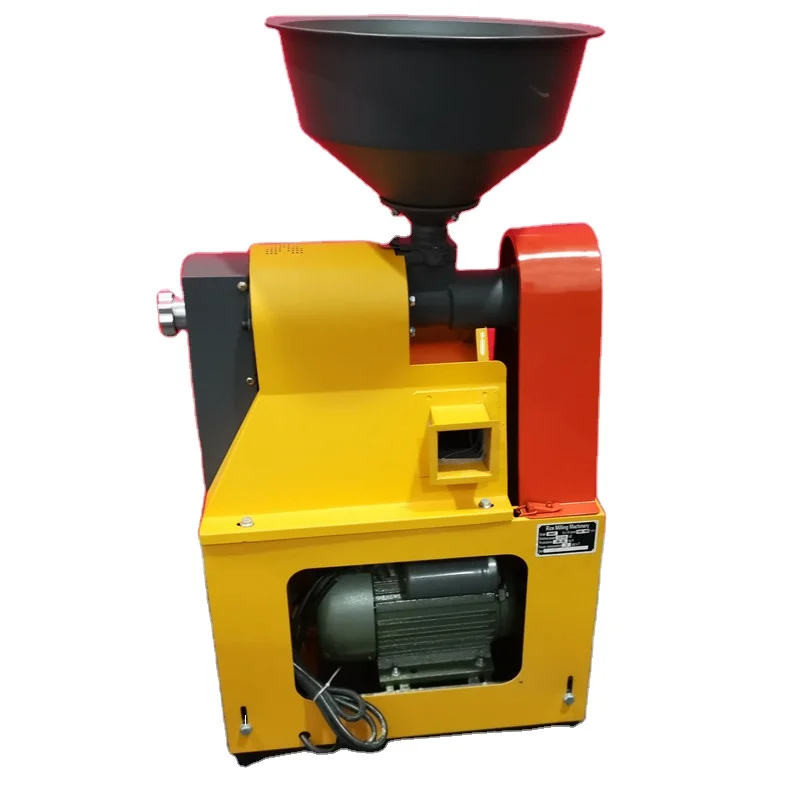

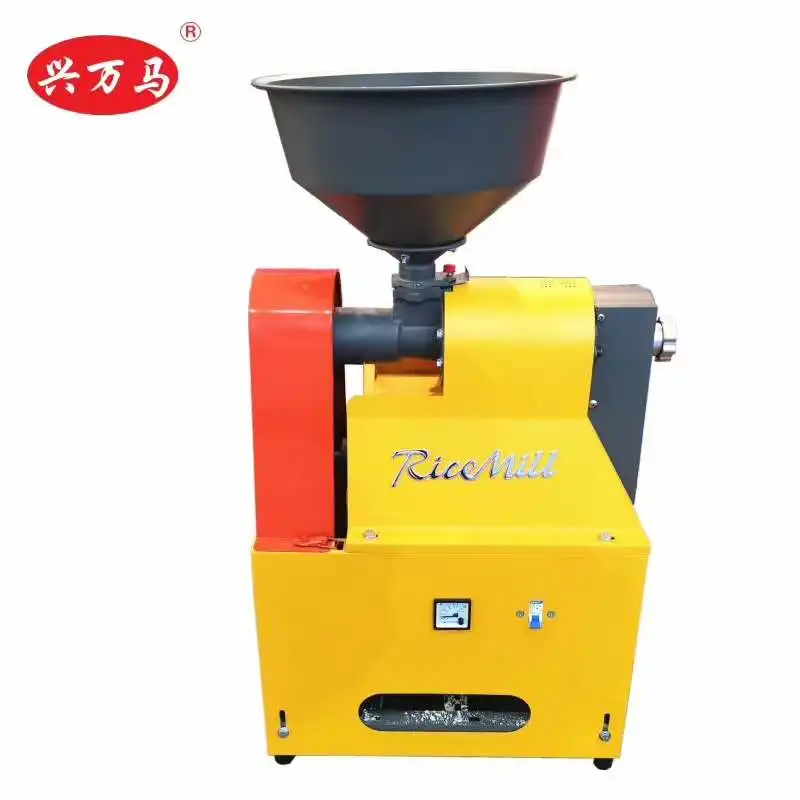

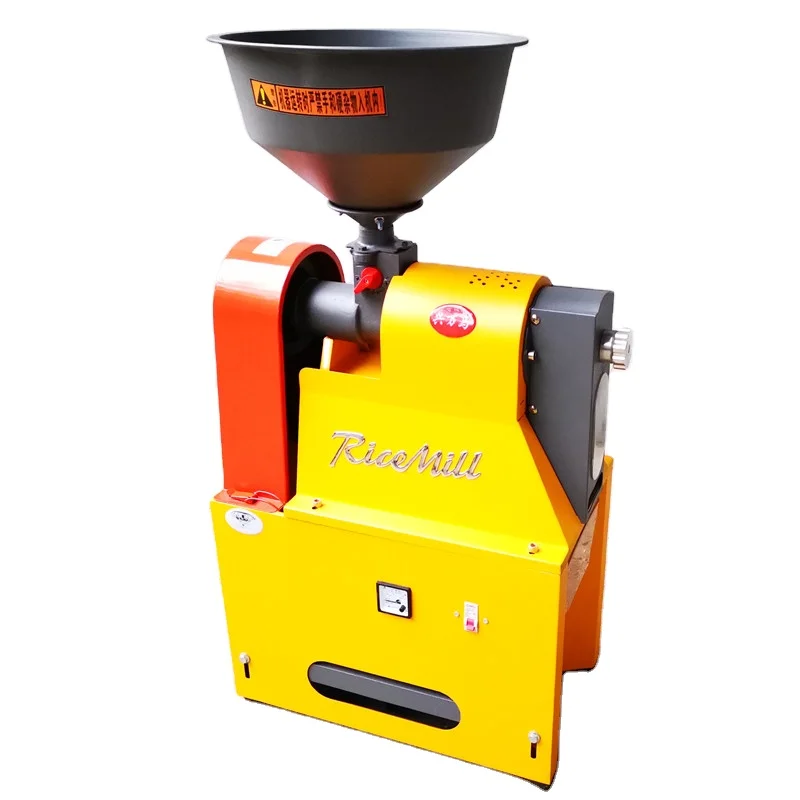

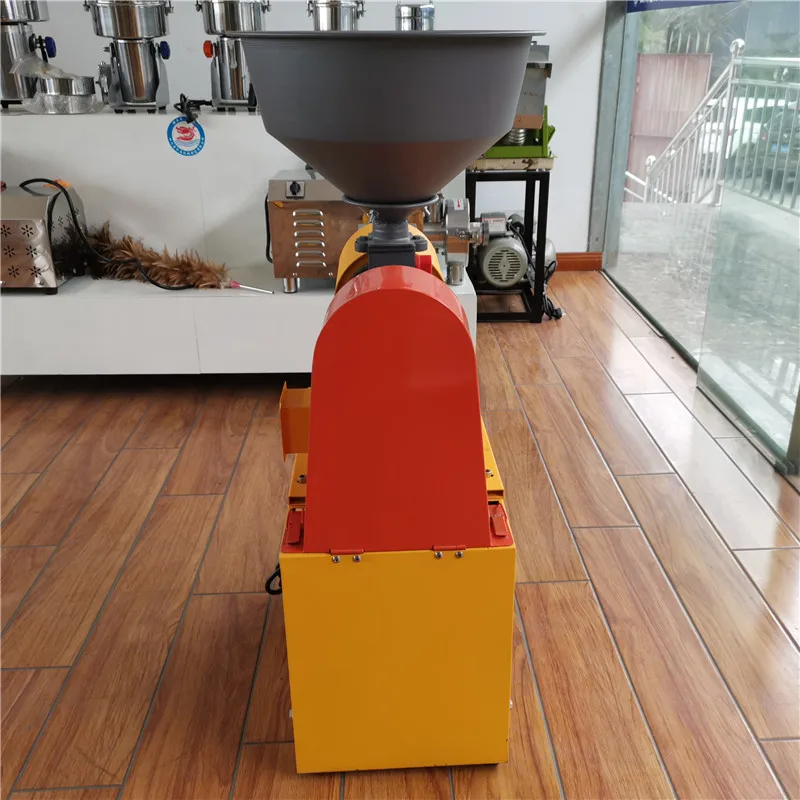

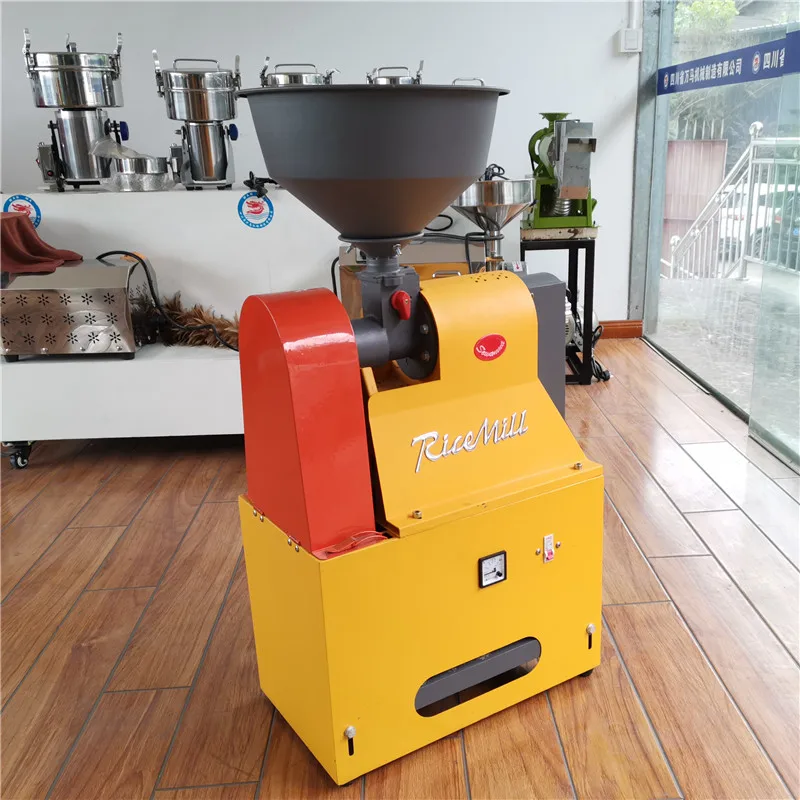

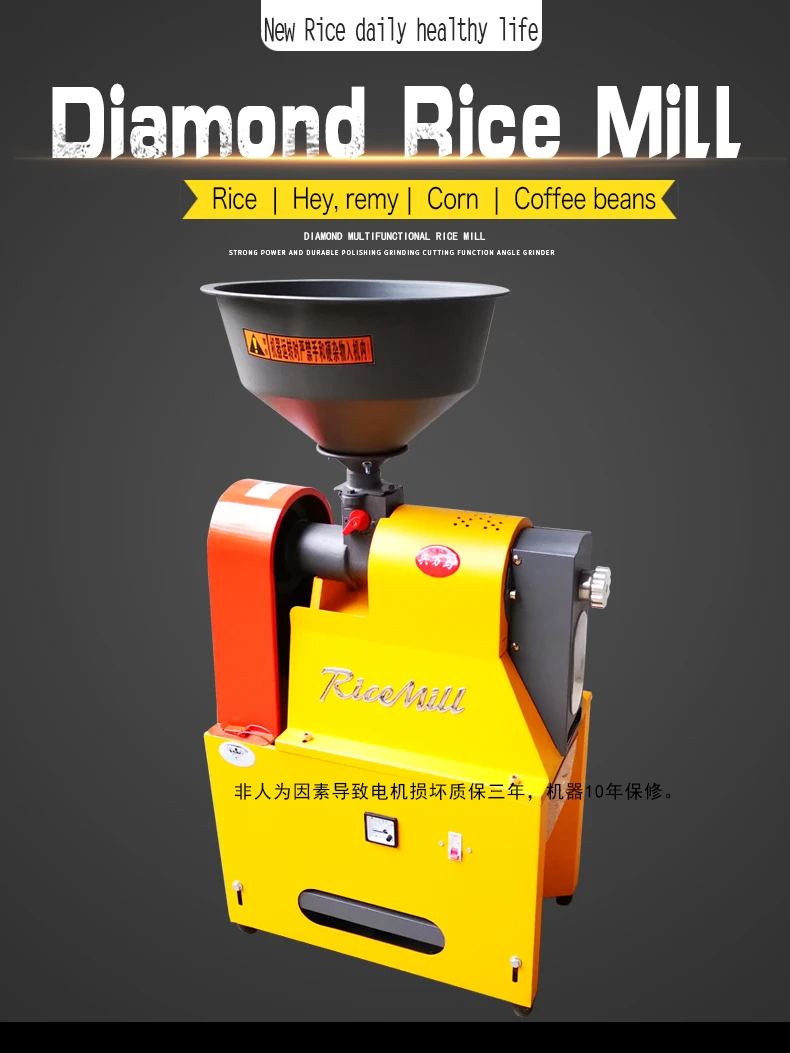

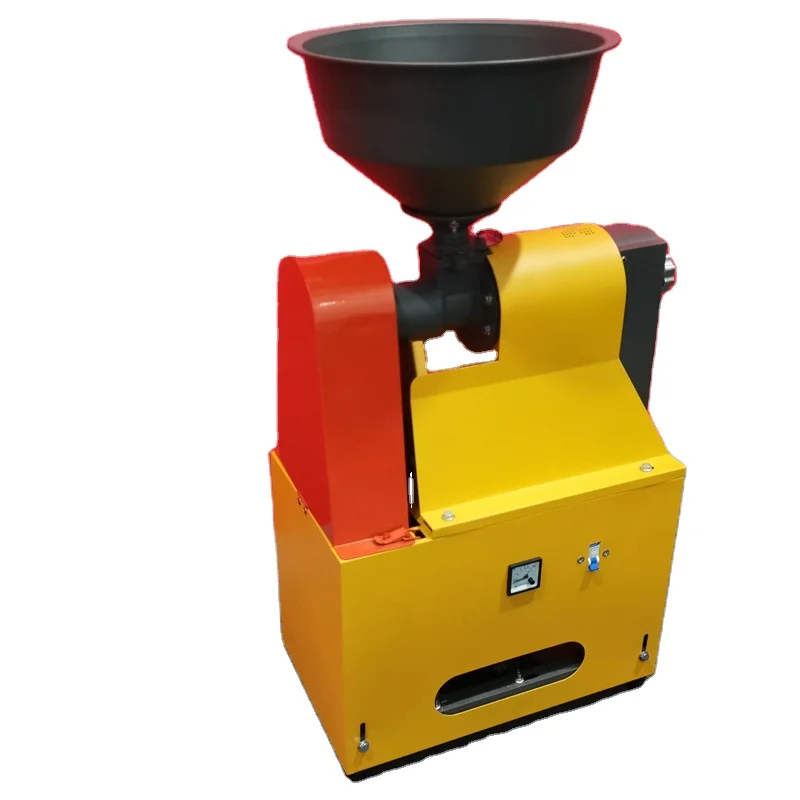

6NF4E Diamond 1st Generation Fresh Rice Corn Granules Coffee Sheller Rice Mill Factory

Overview:

The diamond 1st generation fresh rice machine (6NF4E) has a unique design, simple operation, strong competitiveness in the market, changed the shape of the homogeneous appearance, the sales area is unique, can effectively protect the interests of dealers, and install There is a circuit breaker, which can effectively prevent the occurrence of safety accidents during operation. The market has great potential and users like it.

Features:

1,Unique appearance, with patent protection;

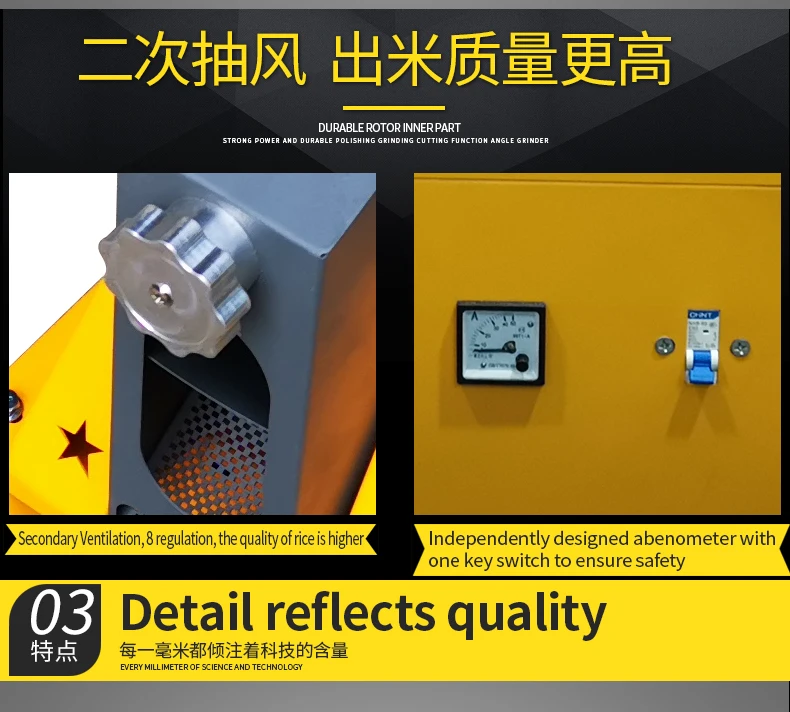

2,Adopt knob-type feed control valve, to achieve evenly feeding;

3,Equipped with a circuit breaker, the power will automatically shut down in case of short circuit;

4,Equipped with built-in flow screen, which is more convenient to collect broken rice;

5,Gear adjustment made of aluminum material, which is durable;

6,Installed with a 10kg capacity funnel,

7,Dust-free outlet

8,Applicable to: rice, corn, coffee beans and granular medicine

          Mini Combine Milling Machine Fully Auto Rice Mill Machinery

 PRODUCT DESCRIPTION

    1. Characteristics of Rice Mill

    Shelling or peeling rice, millet (millet) and granular materials. And to complete the separation of fruit and shell (skin) at one time.

    2. Applicable scope of rice milling machine

    Rice, millet (millet) and corn, wheat, soybean, mung bean, lentil, coffee and other granular materials, whose length does not exceed 20mm, the material whose diameter does not exceed 10mm can be unpacked Peeling,

    3. The type, material and purpose of the Wanma brand rice milling machine

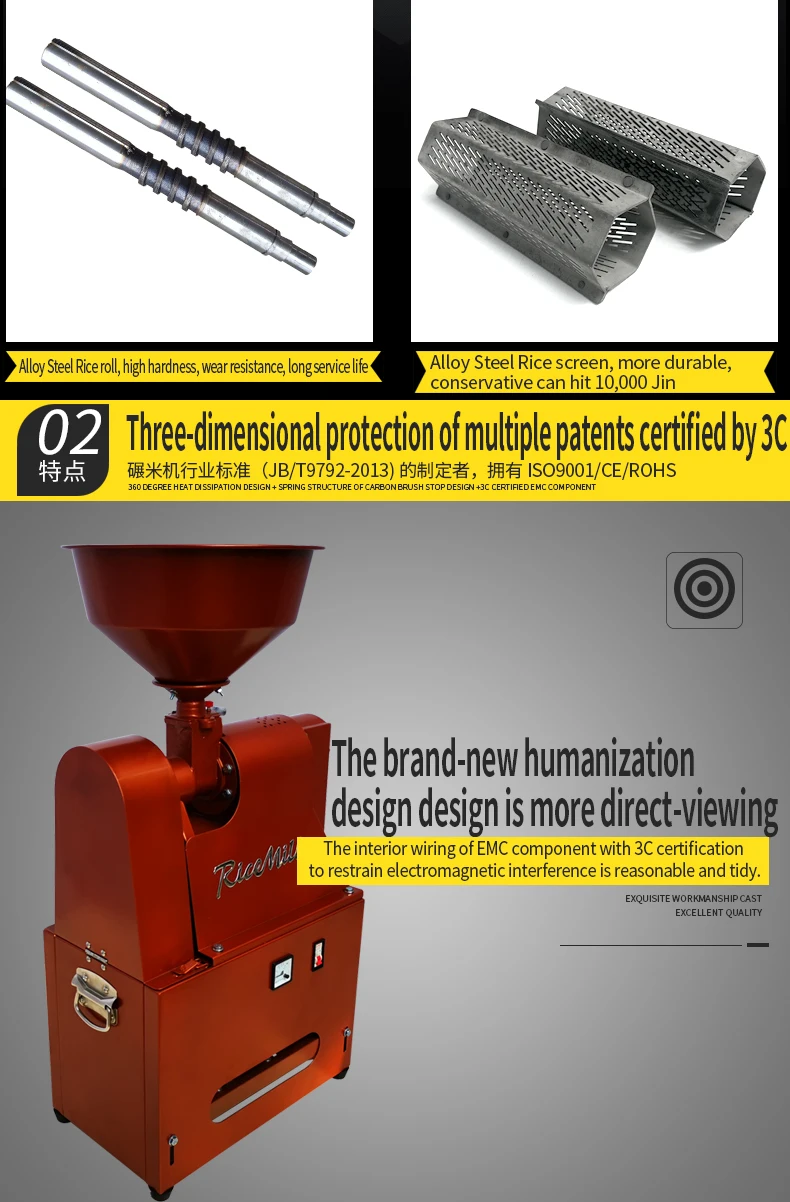

    3.1 No knife type (model 6N40/6NF4): The gray cast iron is used as the fuselage, the material standard is: HT100-HT200, the spindle (including the roller) adopts 440ASTM (American) material, the hardness after quenching and tempering reaches 35-55HRC, With tensile strength, extending the useful life, and the working part of the ribs using 35CrMo alloy steel plate, enhanced wear resistance, 304 stainless steel sieve used to achieve food grade, to protect personal safety.

    3.2 Screen type (Model 6N80A):Wearing parts name, rice sieve, roller, layering; rice sieve, beading for high-frequency quenching or stainless steel material, the rest of the material and adjust the knife type, the advantages of the model; no adjustment Intermittent, intermittent by the factory has been set up, easy to operate, simple maintenance, suitable for different groups of people.

    3.3 Adjust the blade type (Model: 6N80):Using gray cast iron as the body, the material standard is: HT100-HT200, sheet metal material is Q235, wearing parts name: rice sieve, roller, rice knife, including rice sieve For high frequency quenching or stainless steel, roller and knife are wear-resistant chilled cast iron or gray cast iron, this model can be applied to the above materials, can also be applied to large materials beyond this range; surface coating adopts Spraying process to achieve long-term non-discoloration and smooth light.

PRODUCT DETAILS
