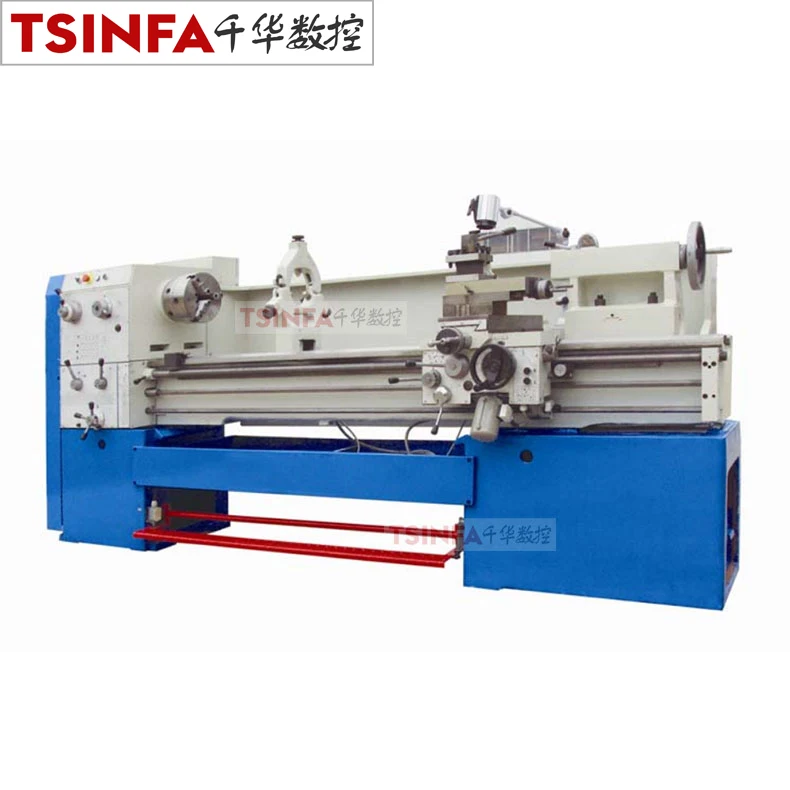

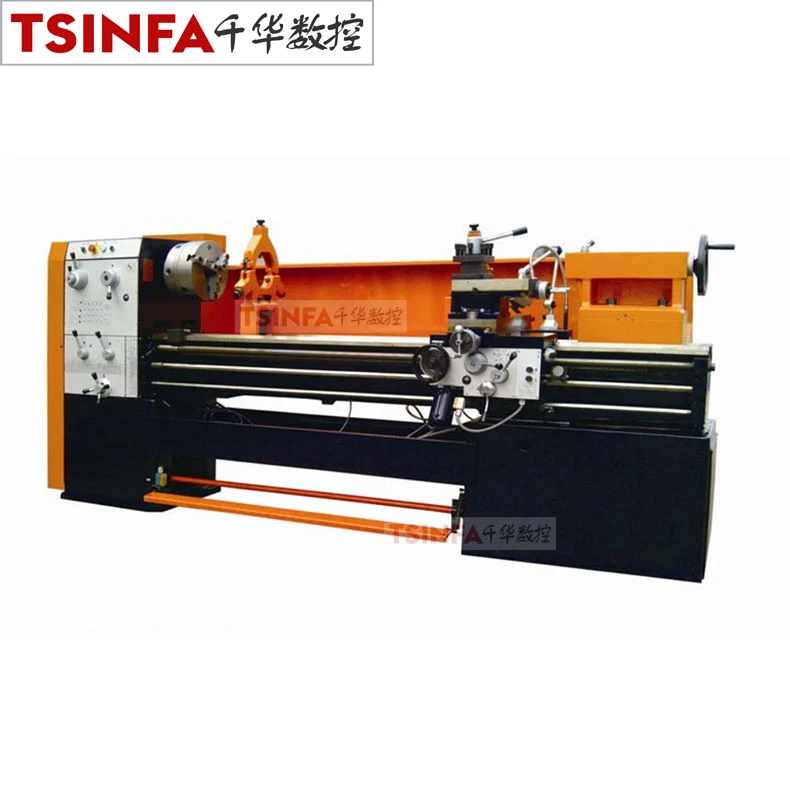

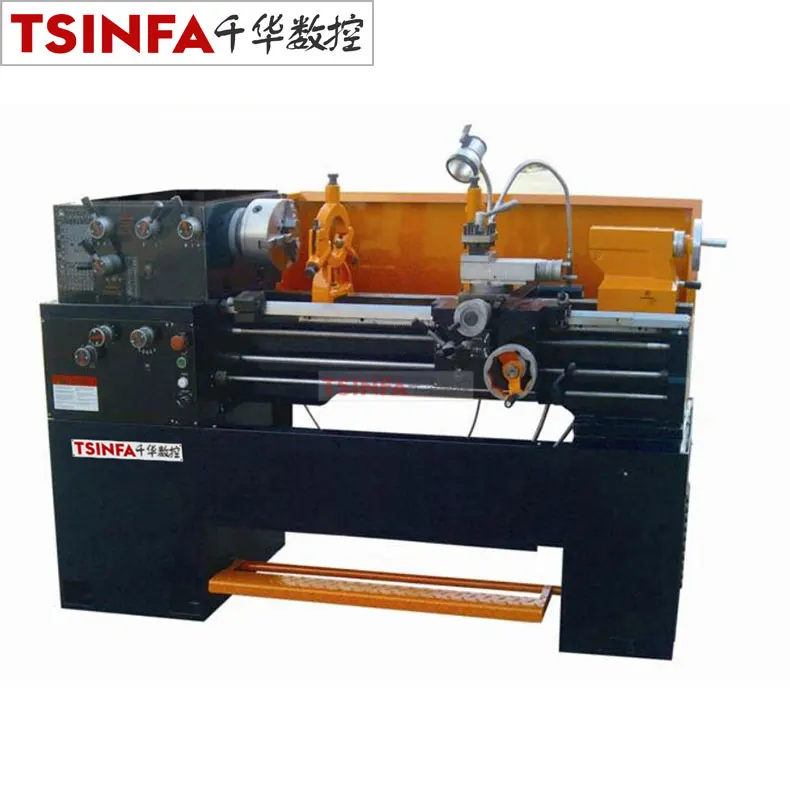

Wheel lathe LH6266C CH6266C China Factory conventional gap bed bench metal turning machines 330mm low cost factory lathe
- Category: >>>
- Supplier: Shandong Tsinfa CNC Equipment Co. Ltd.
Share on (62453201190):
Product Overview
Description
Recommend Products
Products Description
Application
Manual engine lathe(gap bed lathe machine), as a versatile horizontal lathe machine, is widely used in the batch processing of variety of shaft and disk part, like the turning inner and outer cylindrical surface, conical surface and other rotating surfaces,turning various metric, imperial, modulus and pitch thread, drilling and pulling oil groove, etc. One of the most important industrial machine tools.
Manual engine lathe(gap bed lathe machine), as a versatile horizontal lathe machine, is widely used in the batch processing of variety of shaft and disk part, like the turning inner and outer cylindrical surface, conical surface and other rotating surfaces,turning various metric, imperial, modulus and pitch thread, drilling and pulling oil groove, etc. One of the most important industrial machine tools.
Main Feature
1. The surface guide of the bedways is quenched by supersonic frequency and grinded precisely.
2. The headstock gears are quenched and grinded to ensure gear strength to reduce noise.
3. 66 metric, British threads and 33 modulus, pitch threads can be machined without the use of changeful-gears.
4. Large flat surface headstock structure, optional headstock clutch mechanism.
2. The headstock gears are quenched and grinded to ensure gear strength to reduce noise.
3. 66 metric, British threads and 33 modulus, pitch threads can be machined without the use of changeful-gears.
4. Large flat surface headstock structure, optional headstock clutch mechanism.
Product Paramenters
Model | LH6240C | LH6250C | LH6260C | LH6266C | ||||
CAPACITY | Max.swing over bed | 410mm | 500mm | 600mm | 660mm | |||
Max.swing over cross slide | 240mm | 325mm | 360mm | 420mm | ||||
Max.swing over gap | 540mm | 630mm | 730mm | 790mm | ||||
Effective length of gap | 260mm | |||||||
Center Distance | 1000\\1500\\2000\\3000mm | |||||||
Bed Width | 330mm | |||||||
HEADSTOCK | Spindle hole | 80mm | ||||||
Spindle nose | ISO-D8 | |||||||
Spindle taper | MT8 | |||||||
Spindle speed(Number) | (15steps)24-1600rpm | |||||||
FEEDS | Longitudinal feeds range | 66kinds 0.072-4.038mm/rev | ||||||
Cross metric feeds | 66kinds 0.036-2.019mm/rev | |||||||
Metric threads range | 66kinds 0.5-28mm | |||||||
Inch threads range | 66kinds 1-56inch | |||||||
Moudle threads range | 33kinds 0.5-3.5mπ | |||||||
Diametral threads range | 33kinds 8-56D.P | |||||||
CARRIAGE | Max.travel of top slide | 130mm | ||||||
Max.travel of cross slide | 300mm | |||||||
Max.size of toolshank | 25*25m2 | |||||||
TAILSTOCK | Dia.of tailstock sleeve | 65mm | ||||||
Taper of tailstock sleeve | MT5 | |||||||
Max.travel of tailstock | 130mm | |||||||
MOTOR | Main drive motor | 5.5KW | 7.5KW | |||||
Rapid traverse motor | 125W | |||||||
Coolant pump motor | 90W | |||||||
PACKING | Center Distance(1000mm) | 242*112*180cm | ||||||
Center Distance(1500mm) | 292*112*180cm | |||||||
Center Distance(2000mm) | 342*112*180cm | |||||||
Center Distance(3000mm) | 442*112*180cm | |||||||
N.W/G.W | Center Distance(1000mm) | 1600/1900kg | 1750/2000kg | 1850/2100kg | 1900/2150kg | |||
Center Distance(1500mm) | 1800/2100kg | 1900/2200kg | 2000/2300kg | 2050/2350kg | ||||
Center Distance(2000mm) | 1950/2300kg | 2050/2400kg | 2150/2500kg | 2200/2550kg | ||||
Center Distance(3000mm) | 2450/2900kg | 2550/3000kg | 2650/3100kg | 2700/3150kg | ||||

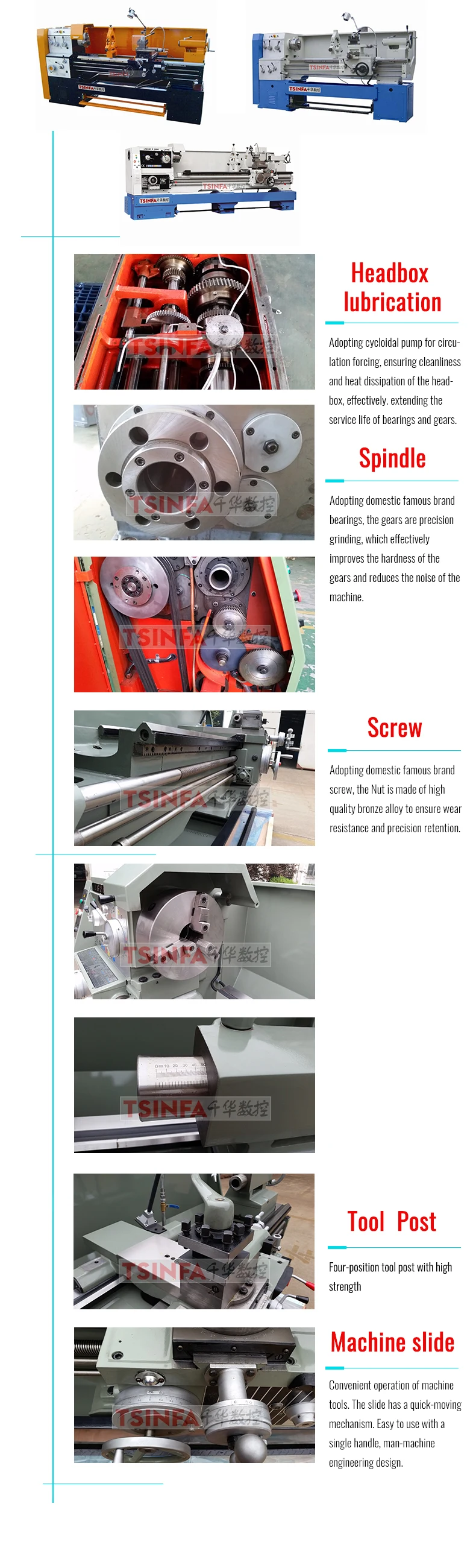

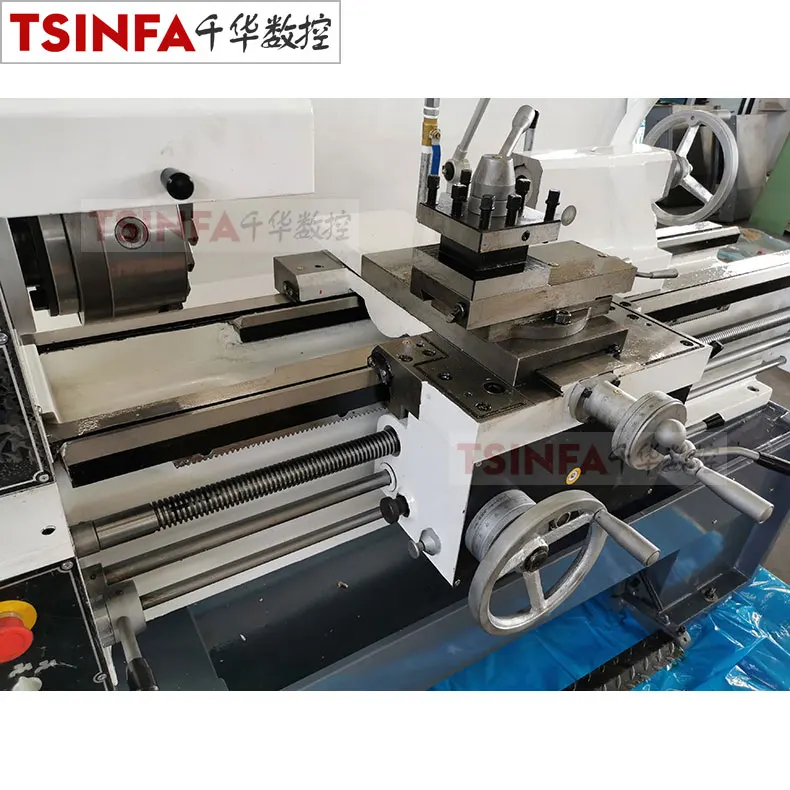

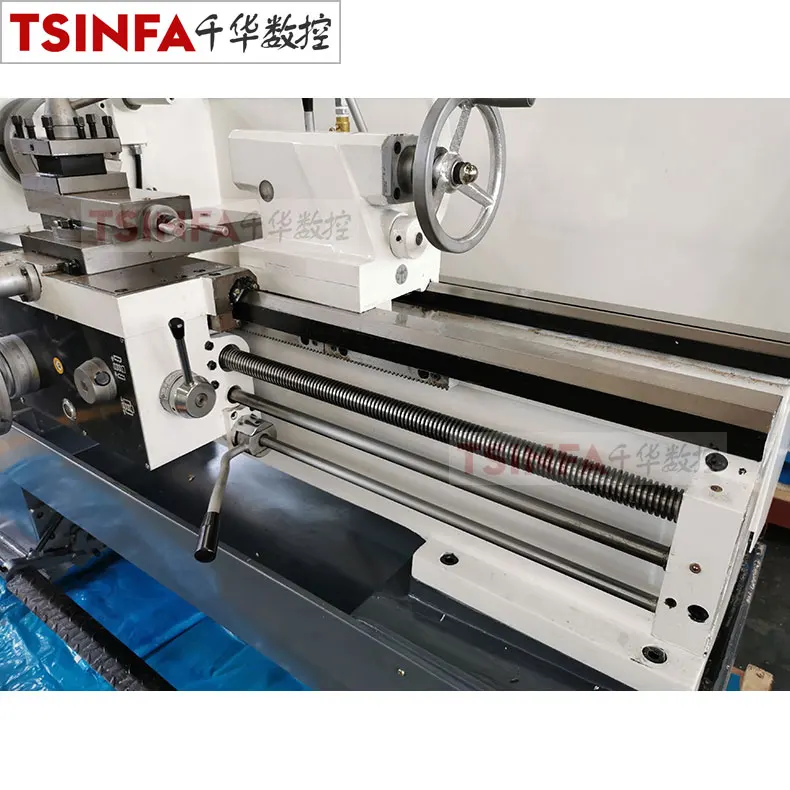

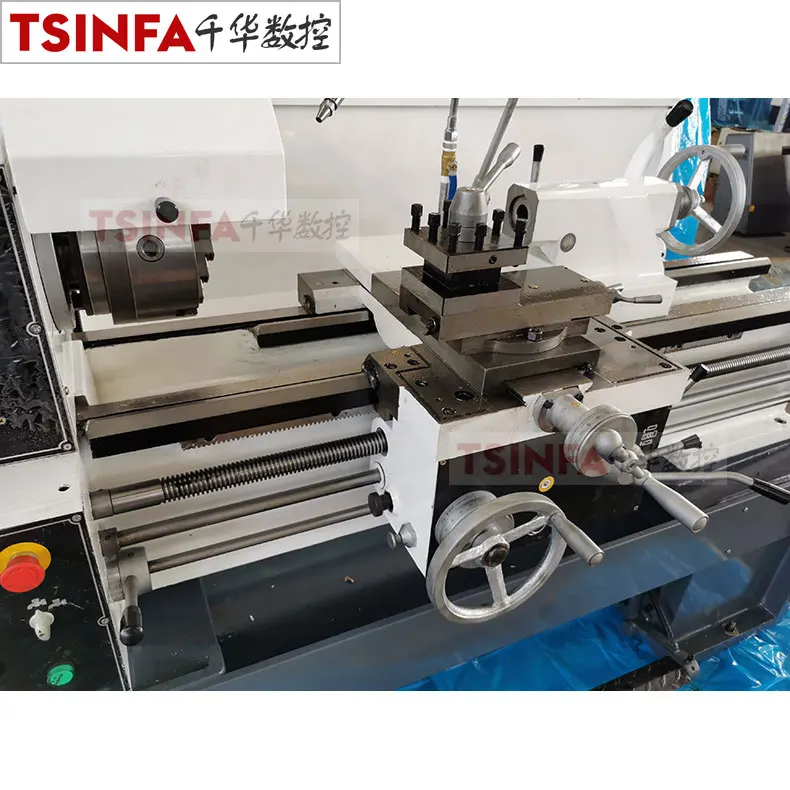

Details Images
333
Product packaging
Company Profile
Shandong Tsinfa CNC Equipment Co., Ltd specializes in high-end manufacturing and sales of CNC machine tools, machinery and agricultural machinery equipment design and research and development. the company under the jurisdiction of Industrial Park D Area, Tengzhou Shandong province.Our products cover precision CNC cylindrical grinding machines, face cylindrical grinders, CNC lathes, three-axis CNC machining centers, four-axis CNC machining centers, five-axis CNC machining centers, CNC Slotting machines,radial drilling machines, CNC cutting machines, boring machines, and ordinary lathes. Universal milling machine, agricultural mechanization equipment and so on. .Our mission is to lead in innovation as a machine tool supplier. Supply machine tools with the features of energy-saving, high-efficient and appropriate. To satisfy requirement for customer and to provide convenience for user, to create value forsociety and to seek happiness for employees are our pursuits. Driving customer success and value creation is the key of TSINFA, we stick to giving top priority to the interest of customers by innovation of product’s design and processing technology.
Our Team
We are a team that pursues quality and strives to constantly surpass ourselves. Each member is also a close partner, growing and developing together with the company. We respect the opportunities and challenges of each cooperation, keep improving and strive for perfection. Our sales team is fully responsible for every customer, and the after-sales team goes abroad to provide guidance and service for customers. The team adheres to the dedicated and professional design service thinking, so that customers can create greater economic benefits by calling our products.
Certifications
FAQ
Q:Your company's delivery time?
A:Universal milling machine is batch production, goods can be sent within 10-50days.
If your order more than 100 sets please contact our support team for confirmation.
Q:Your payment?
A:We usually accpet T/T (30% in advance and 70% before shipment) and L/C at sight.
Q:How do we get the training for the machines?
A:You can send your people to our factory and we will offer traing free of charge.
Q:How about the quality?
A:First we choose best material for the processing.
Being and after processing, we will inspect the finished parts by professional quality inspector.
Q:Your after-sales service?
A:1. Technician available for training and installation at customer’s company
2. 1 Year warrantee. We will sent damage fo the machine parts(non-human factors)for free.
3. Internet service by sending emails and videos, communicating online or calling.
A:Universal milling machine is batch production, goods can be sent within 10-50days.
If your order more than 100 sets please contact our support team for confirmation.
Q:Your payment?
A:We usually accpet T/T (30% in advance and 70% before shipment) and L/C at sight.
Q:How do we get the training for the machines?
A:You can send your people to our factory and we will offer traing free of charge.
Q:How about the quality?
A:First we choose best material for the processing.
Being and after processing, we will inspect the finished parts by professional quality inspector.
Q:Your after-sales service?
A:1. Technician available for training and installation at customer’s company
2. 1 Year warrantee. We will sent damage fo the machine parts(non-human factors)for free.
3. Internet service by sending emails and videos, communicating online or calling.
