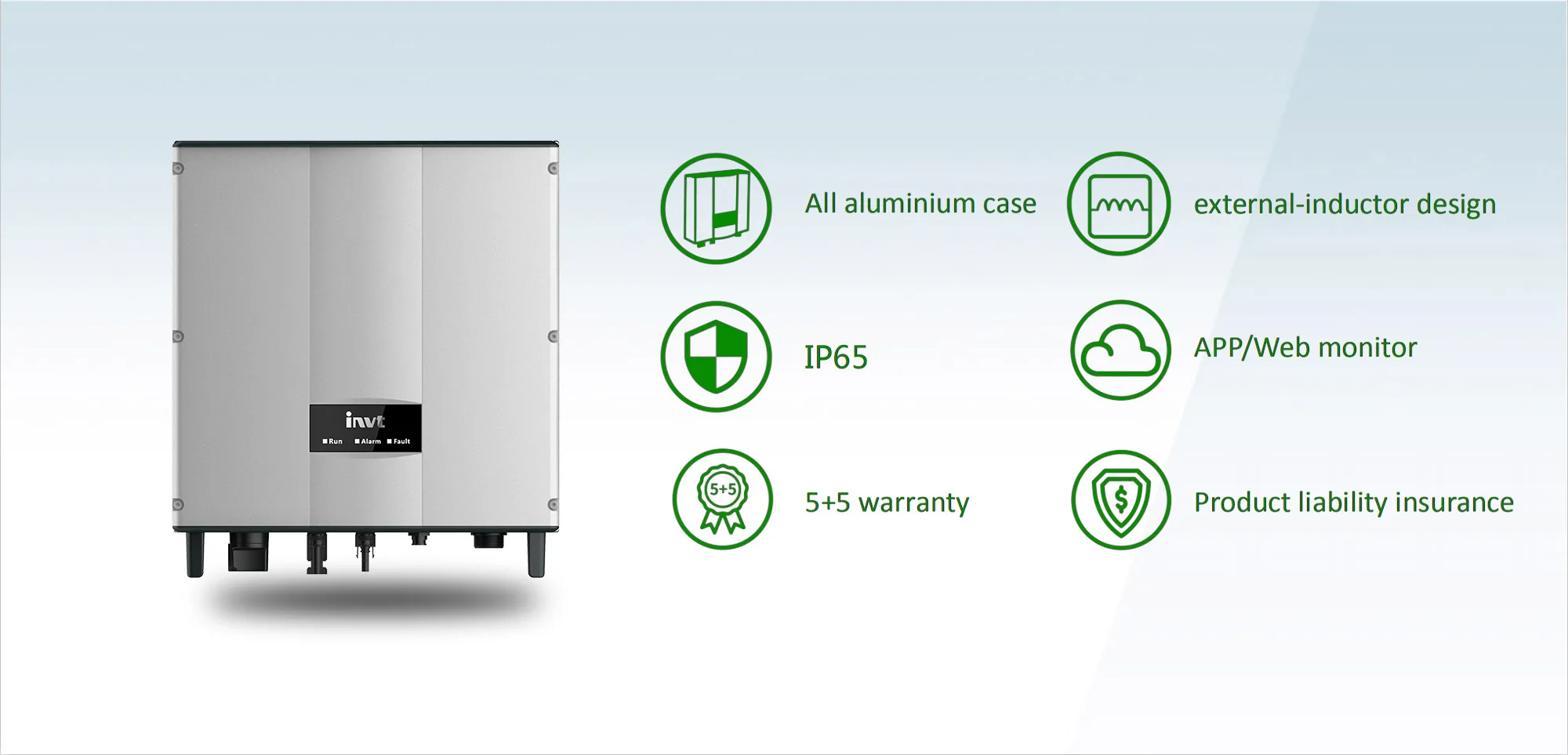

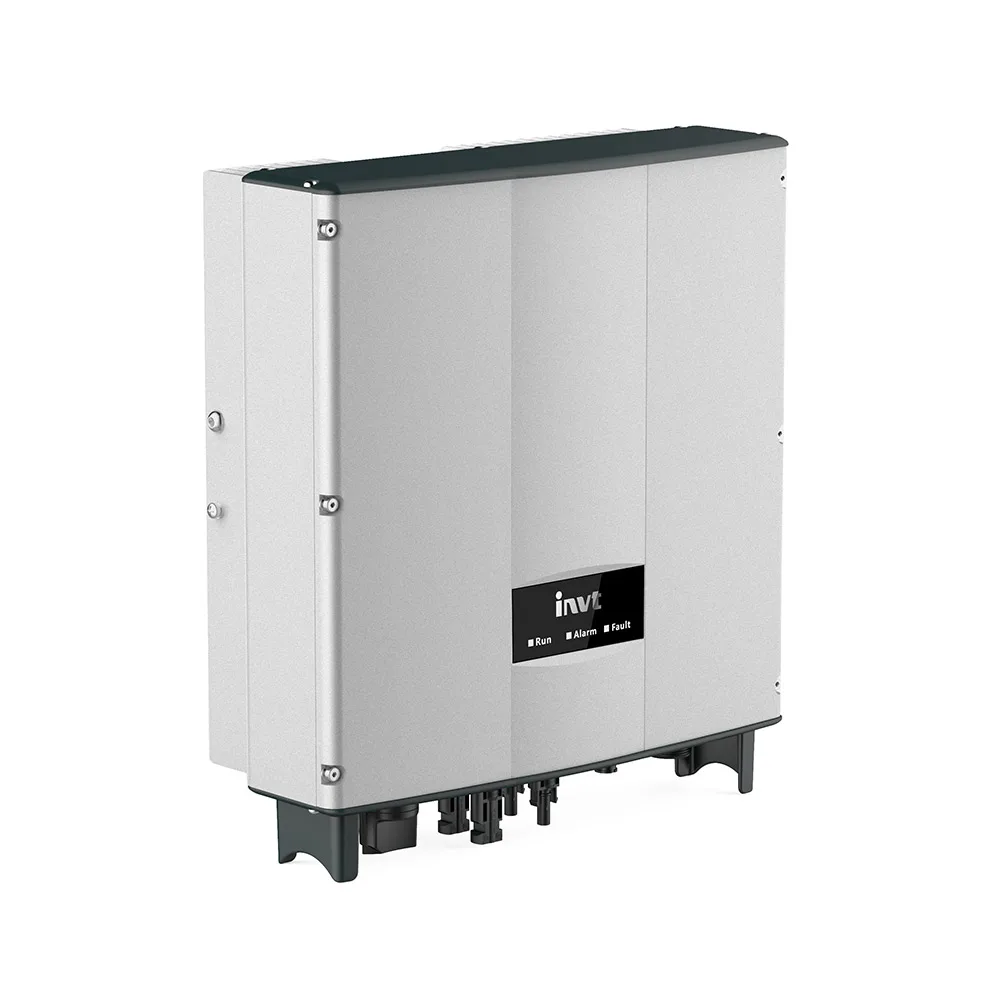

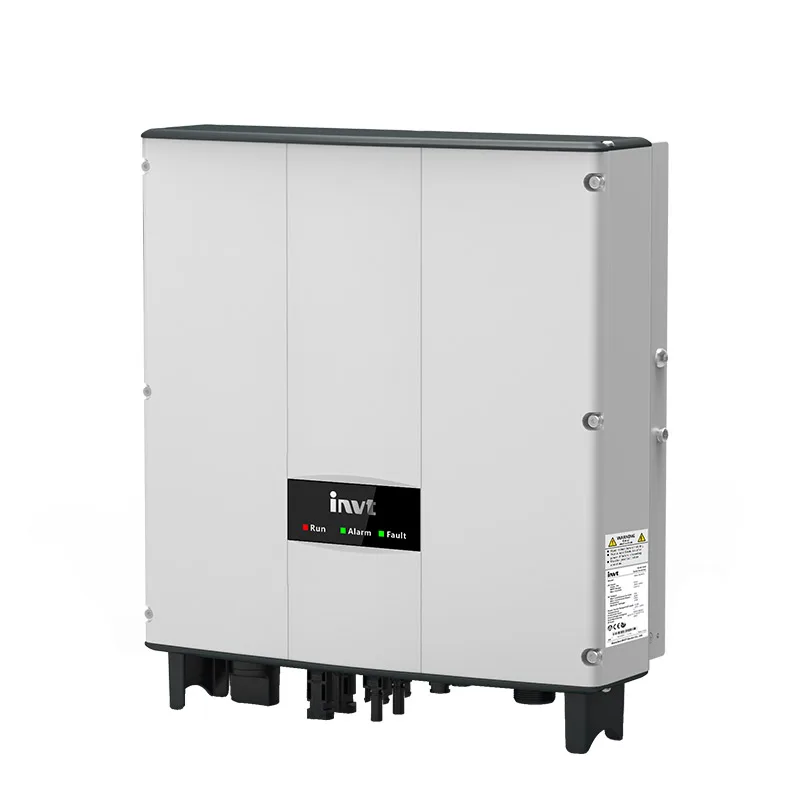

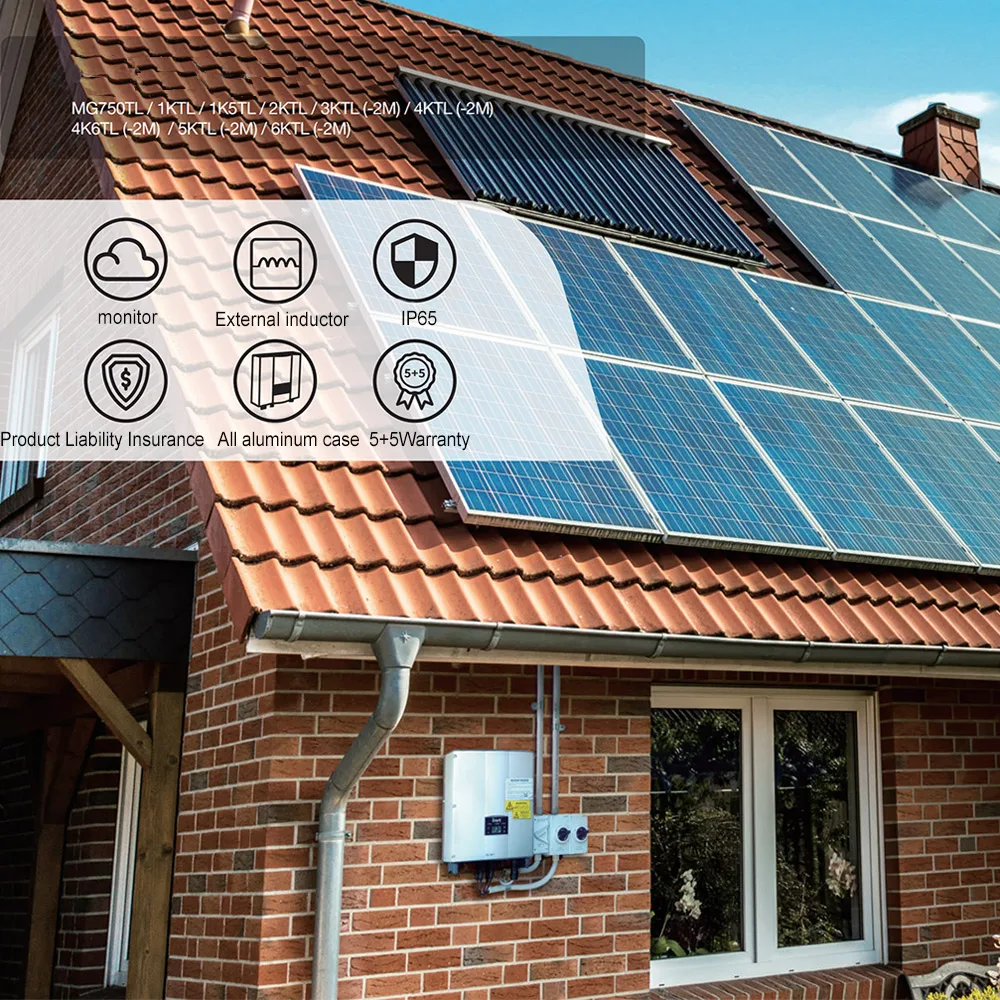

MG series single phase inverter is a new generation of PV string inverter which has been developed by INVT for residential users. MG series inverters have the advantages of compact size, light weight, easy installation and maintenance, and are above all cost efficient.
MG4KTR
MG5KTR
MG6KTR
DC Input Parameter
Maximum DC Input Power (W)
4800
5700
7200
Maximum DC Input Voltage (V)
900
Starting Voltage (V)/Lowest Working Voltage (V)
220/180
MPPT Range (V)
200-800
MPPT qty/The connectable group bunch number of every group of MPPT (A)
1/1
2/1
Maximum input current of every group of MPPT (A)×MPPT qty
12*1
12*1
10*2
DC switch
Matched with option
AC Output Parameter
Rated power (W)
4000
5000
6000
Maximum AC output current (A)
6.4
8
9.6
Power grid voltage range
3/PE,230/400,(320~460V);3/PE,220/380V,(320~460V)
Power grid frequency range
50Hz (47-51.5Hz)/60Hz (57-61.5Hz)
Power factor
-0.8~+0.8(adjustable)
Harmonic distortion
<3% (Rated power)
AC Output
Three-phase (L1,L2,L3, N, PE)/(L1, L2, L3,PE )
System
Cooling method
Natural heat dissipation
Highest efficiency
98.10%
98.10%
98.20%
European efficiency
97.50%
97.60%
97.70%
MPPT efficiency
99.90%
Level of protection
IP65
Electricity at night(W)
<0.5
Display and Communication
Display
LCD display, Support backlight display
LCD language
English, Chinese, German, Dutch
Operation method
integrated
Communication method
IRS485 (Standard), WIFI, Ethernet (Optional)
Mechanical Parameter
Volume (mm)
530*360*150
Weight (kg)
22Kg
Installation method
Wall mounted installation
Warranty
5 years

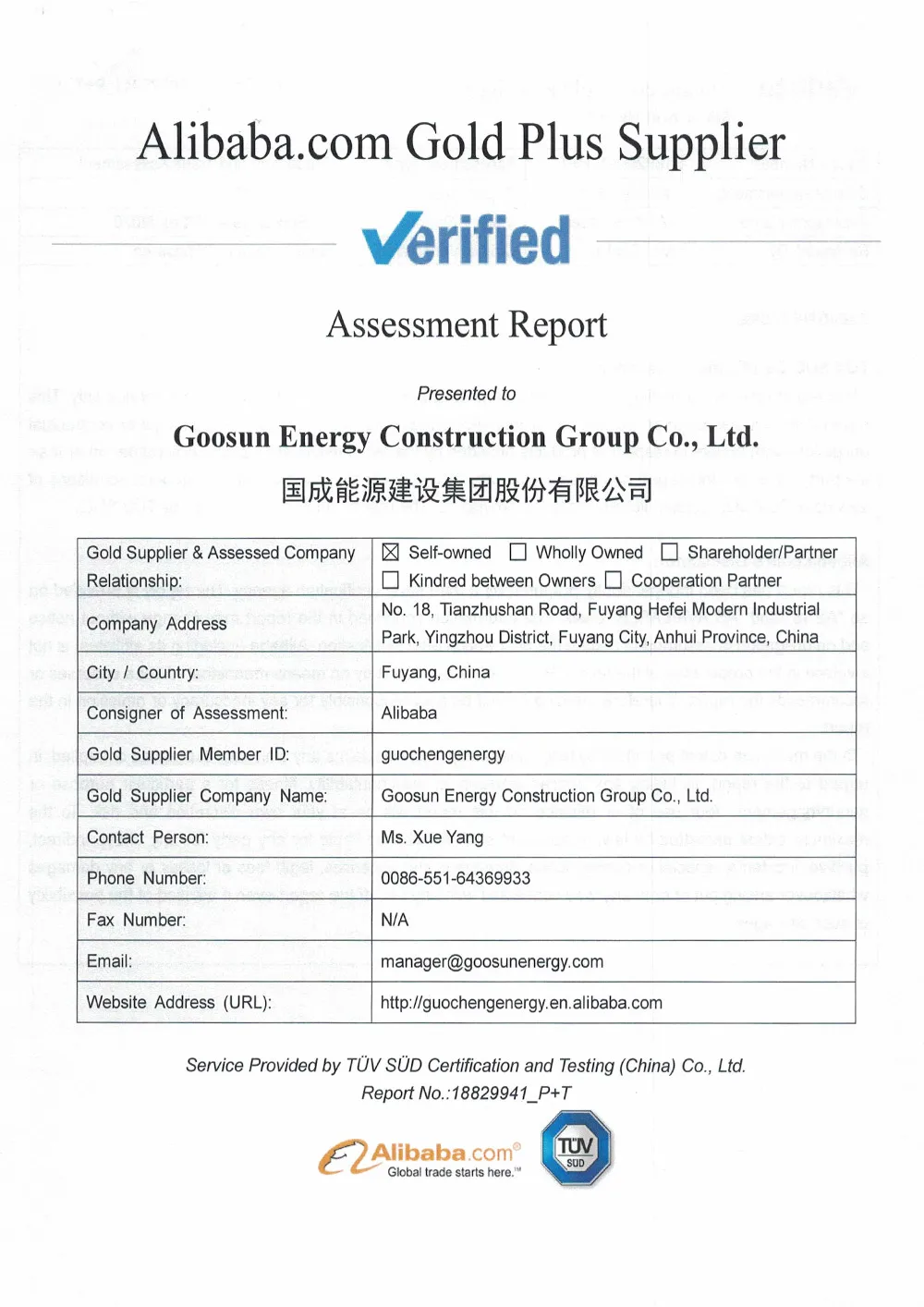

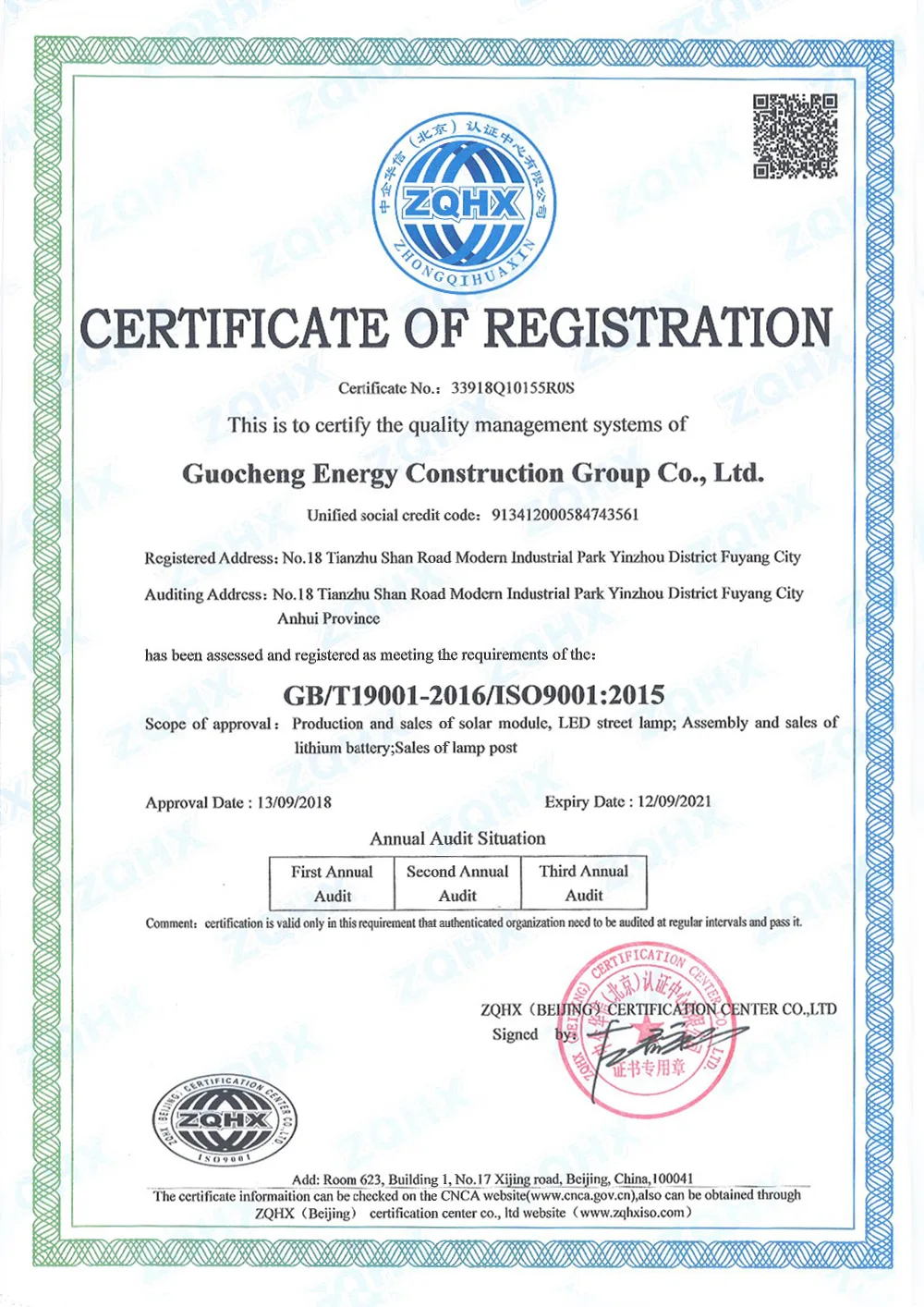

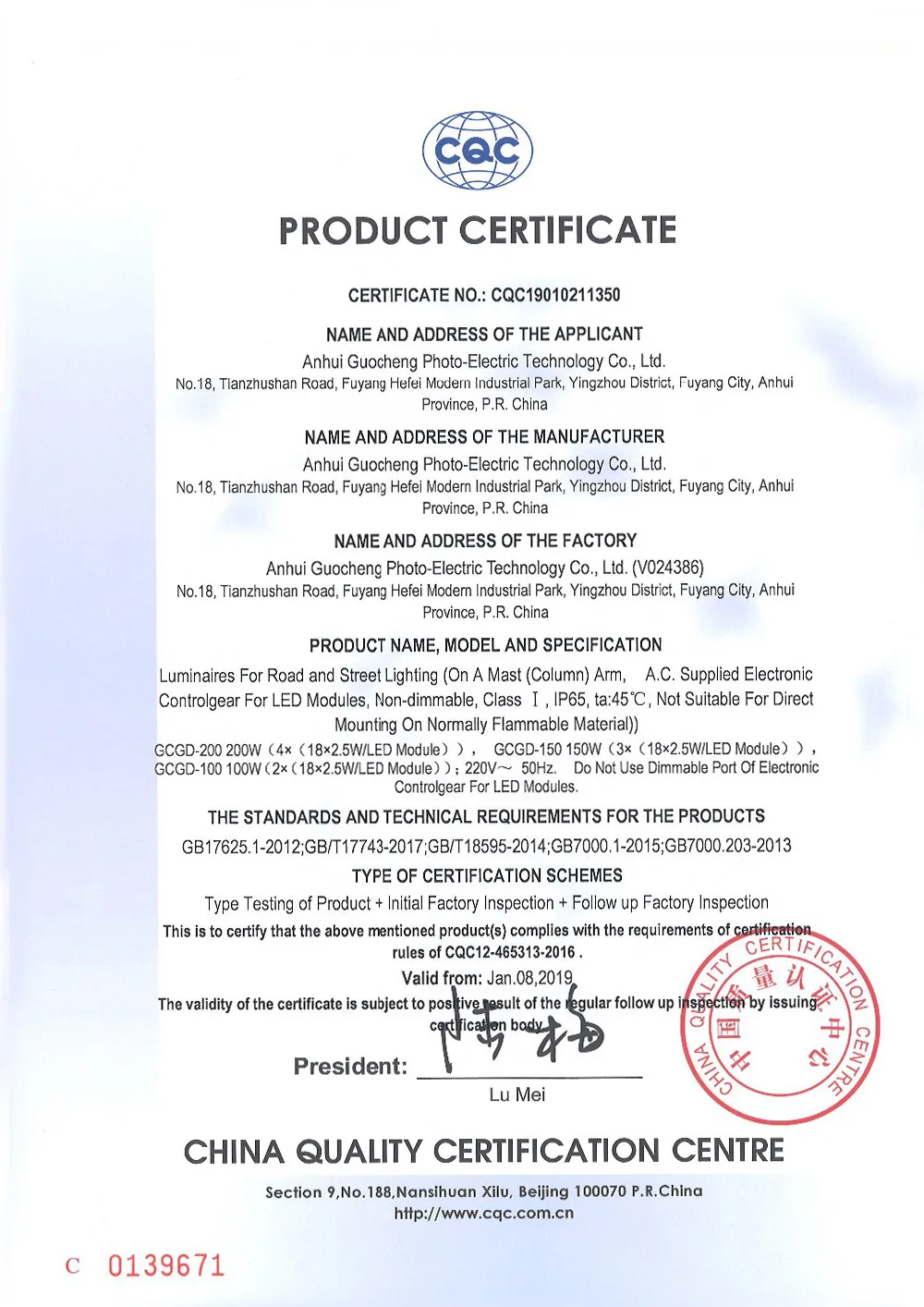

Certificate

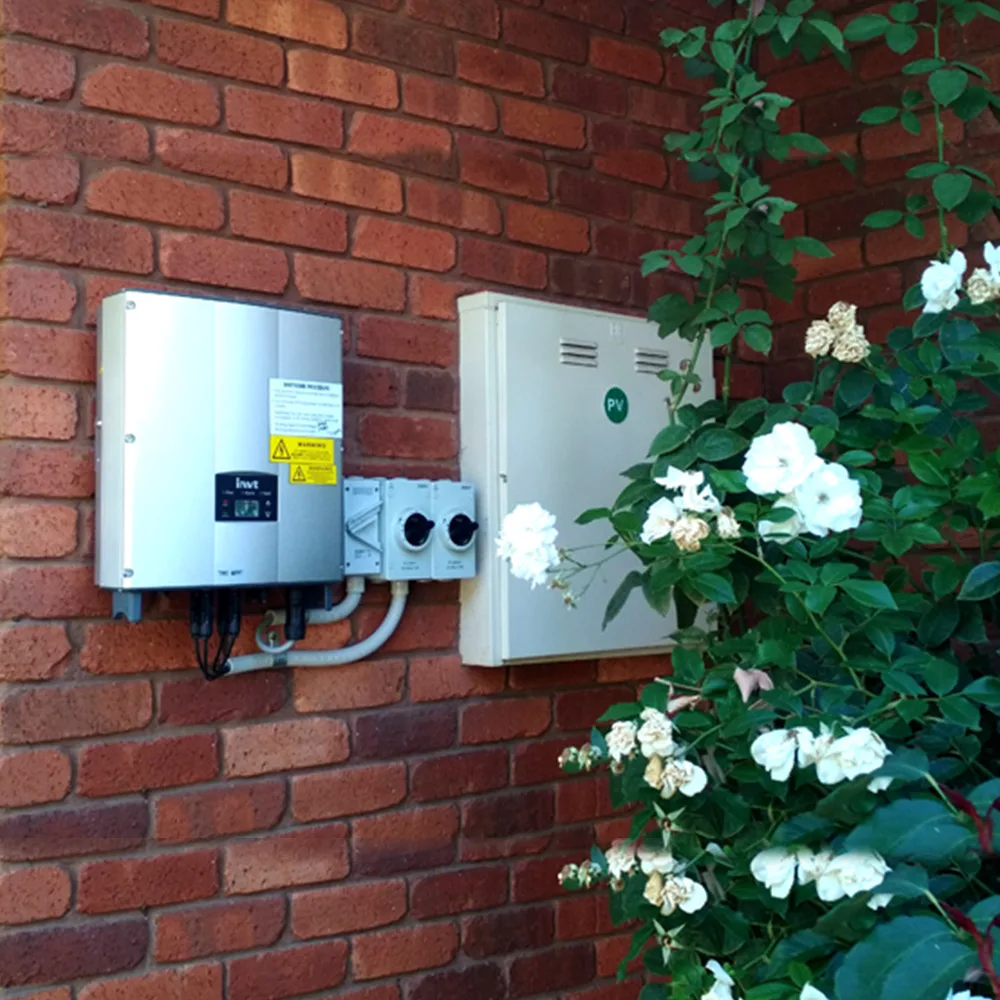

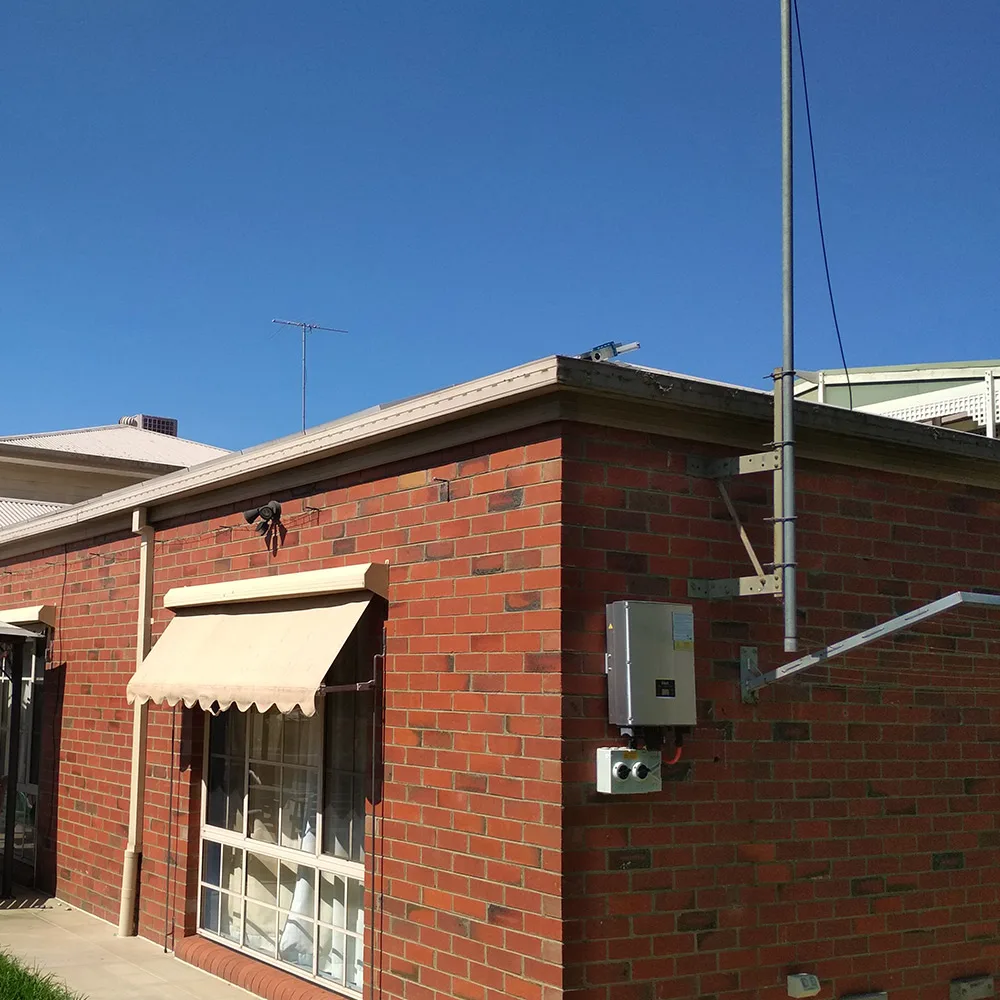

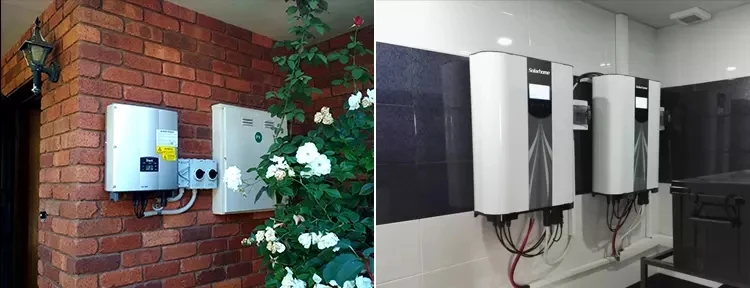

Project
10KW Grid Tie Solar Panel System In USA
10KW grid tie solar power system in Guatemala
10KW Grid Tie Solar Panel System In Argentina
10KW Hybrid Solar Power System In Netherland

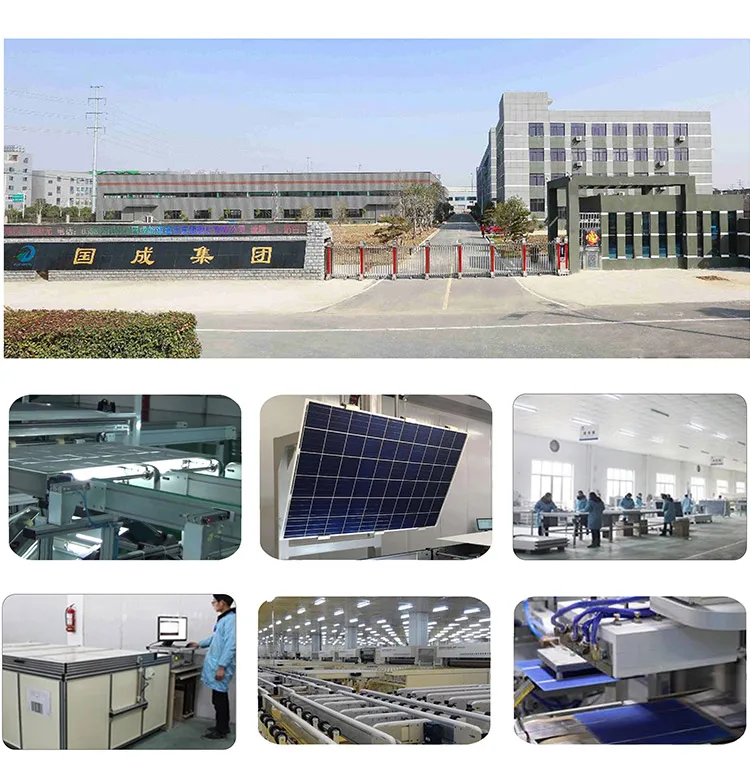

Company Introduction
