Products Description

Application

Manual engine lathe(gap bed lathe machine), as a versatile horizontal lathe machine, is widely used in the batch processing of variety of shaft and disk part, like the turning inner and outer cylindrical surface, conical surface and other rotating surfaces,turning various metric, imperial, modulus and pitch thread, drilling and pulling oil groove, etc. One of the most important industrial machine tools.
Main Feature
1.The surface of the bedways is supersonic frequency hardened and precision grinding

2.Headstock gears precisely ground and hardened to reduce noise

3.Integrated stand keep the machine in high work rigidity

4.Variable speed model for optional
Product Paramenters
Model
LH6241MV
CAPACITY
Max.swing over bed
410mm
Max.swing over cross slide
255mm
Max.swing over gap
580mm
Effective length of gap
190mm
Center Distance
1000\\1500mm
Bed Width
250mm
HEADSTOCK
Spindle hole
52mm
Spindle nose
ISO-D6
Spindle taper
MT6
Spindle speed(Number)
(16steps)45-1800rpm
FEEDS
Longitudinal metric feeds
17kinds 0.05-1.7mm/rev
Longitudinal inch feeds
17kinds 0.002-0.067inc/rev
Cross metric feeds
17kinds 0.025-0.85mm/rev
Cross inch feeds
17kinds 0.001-0.0335inc/rev
Metric threads range
39kinds 0.2-14mm
Inch threads range
45kinds 2-72T.P.I
Moudle threads range
18kinds 0.3-3.5M.P.
Diametral threads range
21kinds 8-44D.P.
CARRIAGE
Max.travel of top slide
140mm
Max.travel of cross slide
210mm
Max.size of toolshank
20*20m2
TAILSTOCK
Dia.of tailstock sleeve
50mm
Taper of tailstock sleeve
MT4
Max.travel of tailstock
120mm
MOTOR
Main drive motor
3or4KW
Coolant pump motor
90W
PACKING
Center Distance(1000mm)
205*90*170cm
Center Distance(1500mm)
255*90*170cm
WEIGHT
Center Distance(1000mm)
1150/1350kg
Center Distance(1500mm)
1350/1600kg

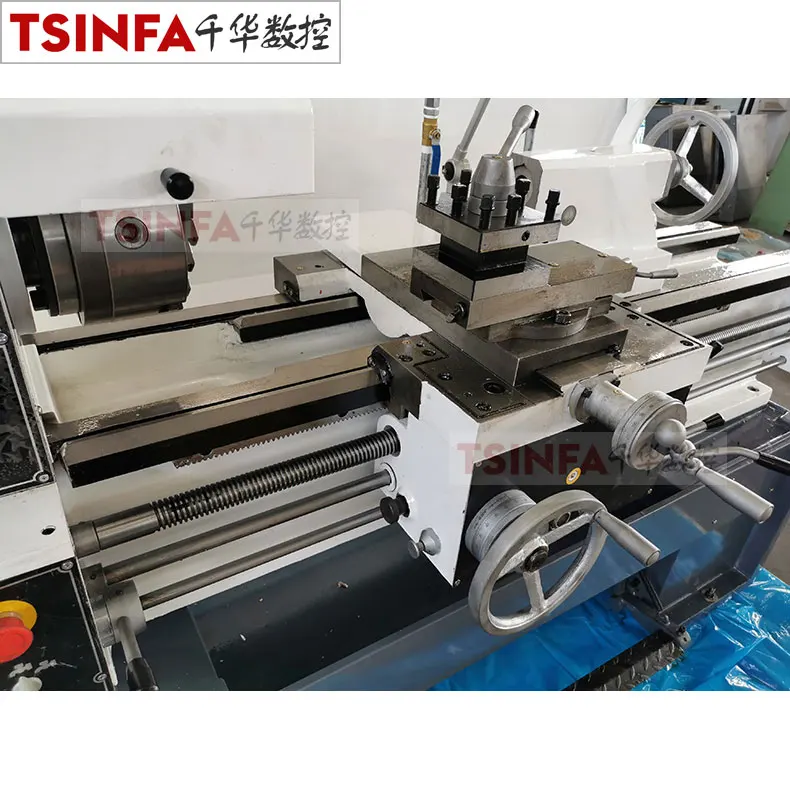

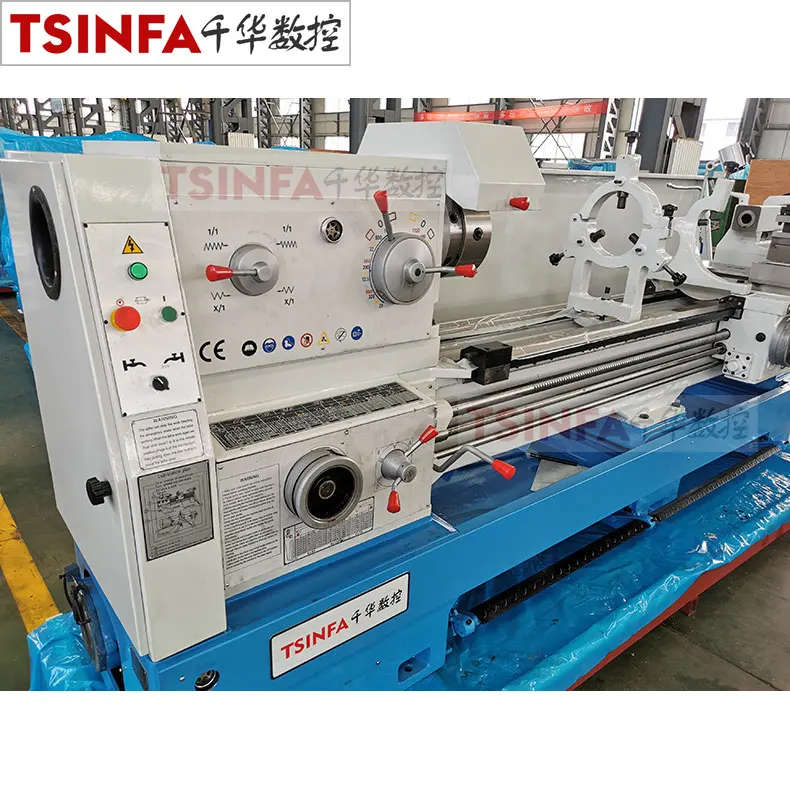

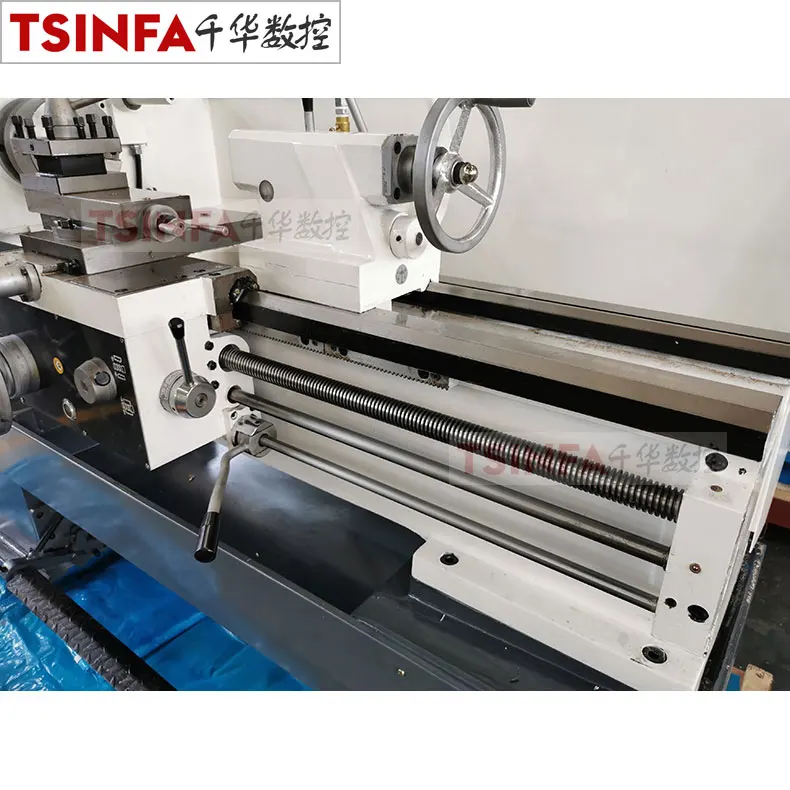

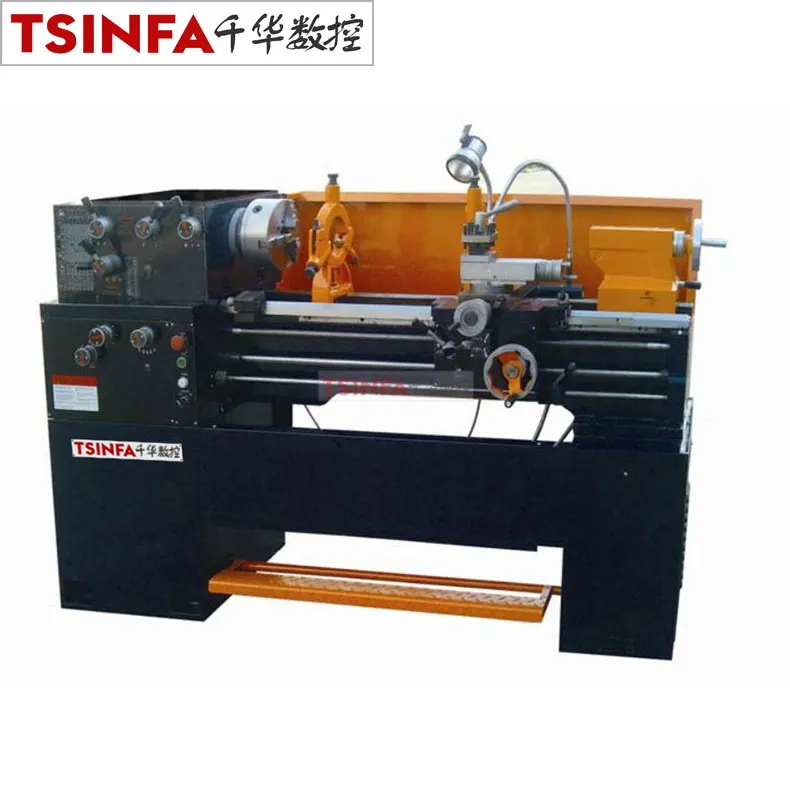

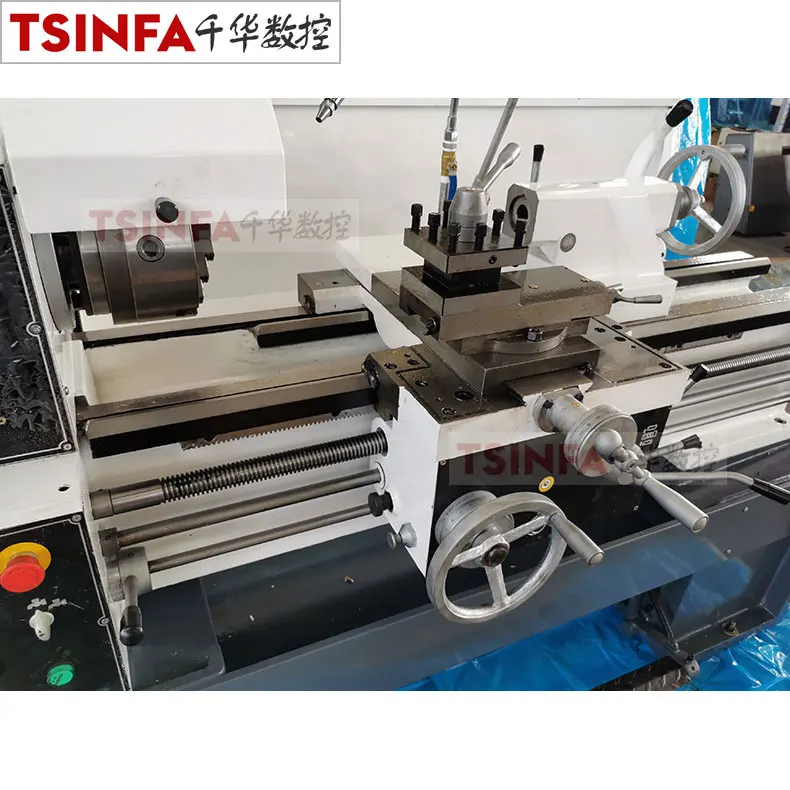

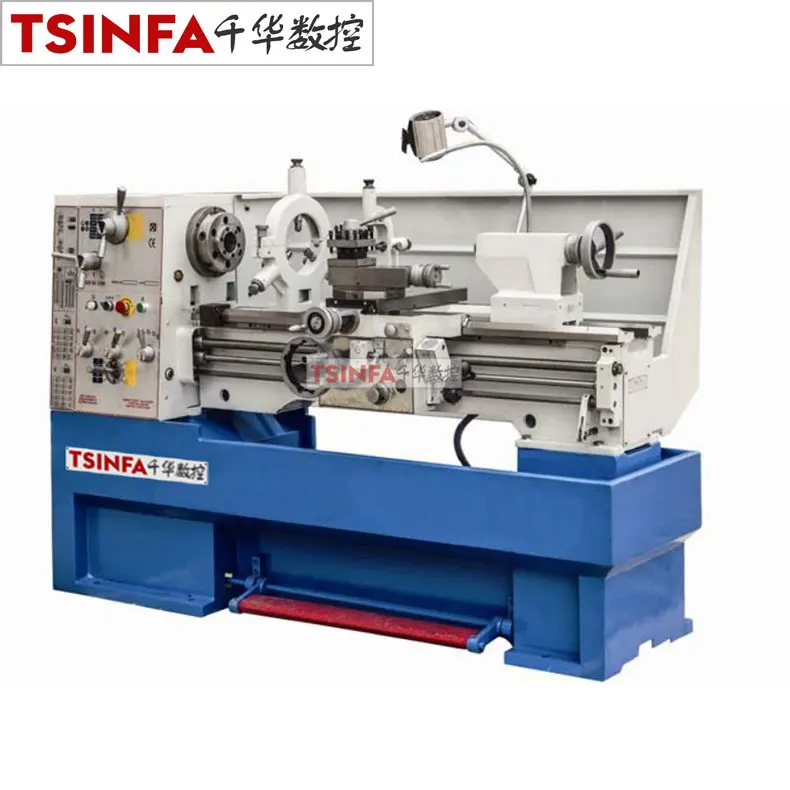

Details Images

333
Product packaging
Company Profile
Shandong Tsinfa CNC Equipment Co., Ltd specializes in high-end manufacturing and sales of CNC machine tools, machinery and agricultural machinery equipment design and research and development. the company under the jurisdiction of Industrial Park D Area, Tengzhou Shandong province.Our products cover precision CNC cylindrical grinding machines, face cylindrical grinders, CNC lathes, three-axis CNC machining centers, four-axis CNC machining centers, five-axis CNC machining centers, CNC Slotting machines, radial drilling machines, CNC cutting machines, boring machines, and ordinary lathes. Universal milling machine, agricultural mechanization equipment and so on. . Our mission is to lead in innovation as a machine tool supplier. Supply machine tools with the features of energy-saving, high-efficient and appropriate. To satisfy requirement for customer and to provide convenience for user, to create value forsociety and to seek happiness for employees are our pursuits. Driving customer success and value creation is the key of TSINFA, we stick to giving top priority to the interest of customers by innovation of product’s design and processing technology.
Our Team

We are a team that pursues quality and strives to constantly surpass ourselves. Each member is also a close partner, growing and developing together with the company. We respect the opportunities and challenges of each cooperation, keep improving and strive for perfection. Our sales team is fully responsible for every customer, and the after-sales team goes abroad to provide guidance and service for customers. The team adheres to the dedicated and professional design service thinking, so that customers can create greater economic benefits by calling our products.
Certifications
FAQ
Q:Your company's delivery time?
A:Universal milling machine is batch production, goods can be sent within 10-50days.
If your order more than 100 sets please contact our support team for confirmation.

Q:Your payment?
A:We usually accpet T/T (30% in advance and 70% before shipment) and L/C at sight.

Q:How do we get the training for the machines?
A:You can send your people to our factory and we will offer traing free of charge.

Q:How about the quality?
A:First we choose best material for the processing.
Being and after processing, we will inspect the finished parts by professional quality inspector.

Q:Your after-sales service?
A:1. Technician available for training and installation at customer’s company
2. 1 Year warrantee. We will sent damage fo the machine parts(non-human factors)for free.
3. Internet service by sending emails and videos, communicating online or calling.
