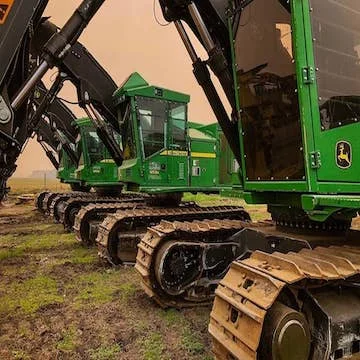

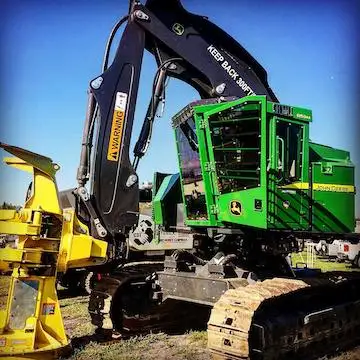

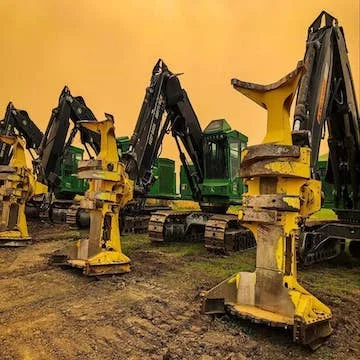

Product Overview
Description
DRIVELINE
| Engine Manufacturer | John Deere | |||
|---|---|---|---|---|
| Engine Model | PowerTech Plus 6090PSS | |||
| Rated Speed, rpm | 1900 | |||
| Engine Output, kW (hp) | 246 (330) | |||
| Engine Torque, Nm (lbf / ft) | 1392 (1027) | |||
| Carrier Rollers - Each Side | 2 | |||
| Track Rollers - Each Side | 9 | |||
| Track Shoe Width, mm (inches) | 610 (24) |
DIMENSIONS
| Base Carrier Length, m (ft/in) | 4.9 (16 ft 1 in) | |||
|---|---|---|---|---|
| Height Over Cab, mm (ft/in) | 3550 (11 ft 8 in) | |||
| Overall Width, mm (ft/in) | 3300 (10 ft 10 in) | |||
| Track Length On Ground, mm (ft/in) | 3830 (12 ft 7 in) | |||
| Tailswing Radius, mm (ft/in) | 3180 (10 ft 5 in) | |||
| Ground Clearance, mm (inches) | 756 (30) | |||
| Superstructure Width, mm (ft/in) | 3050 (10 ft ) | |||
| Track Gauge, mm (ft/in) | 2690 (8 ft 10 in) |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 1080 (285) | |||
|---|---|---|---|---|
| Alternator Output, Amp | 100 x 2 |
PERFORMANCE
| Travel Speed, kph (mph) | 4.2 (2.6) | |||
|---|---|---|---|---|
| Tractive Force, kN (lbf) | 322 (72300) | |||
| Lift Capacity - Maximum Reach, kg (lbs) | 7970 (17570) | |||
| Reference Harvesting Head | FR24B | |||
| Felling Diameter, mm (inches) | 622 (24.5) | |||
| Reference Head Saw Type | Disc | |||
| Reference Head Type | Felling | |||
| Cutting Radius - Maximum, mm (ft/in) | 8880 (29 ft 1 in) | |||
| Cutting Radius - Minimum, mm (ft/in) | 4870 (15 ft 11 in) | |||
| Cutting Swath Horizontal, mm (ft/in) | 4010 (13 ft 2 in) | |||
| System Voltage, V | 24 | |||
| Pump Type | Var. axial-piston | |||
| Pump Flow, lt/min (gallons (US) / min) | 532 (141) |
WEIGHTS
| Operating Weight, kg (lbs) | 33094 (72970)
|
|---|
