Product Overview

Description

Product description:

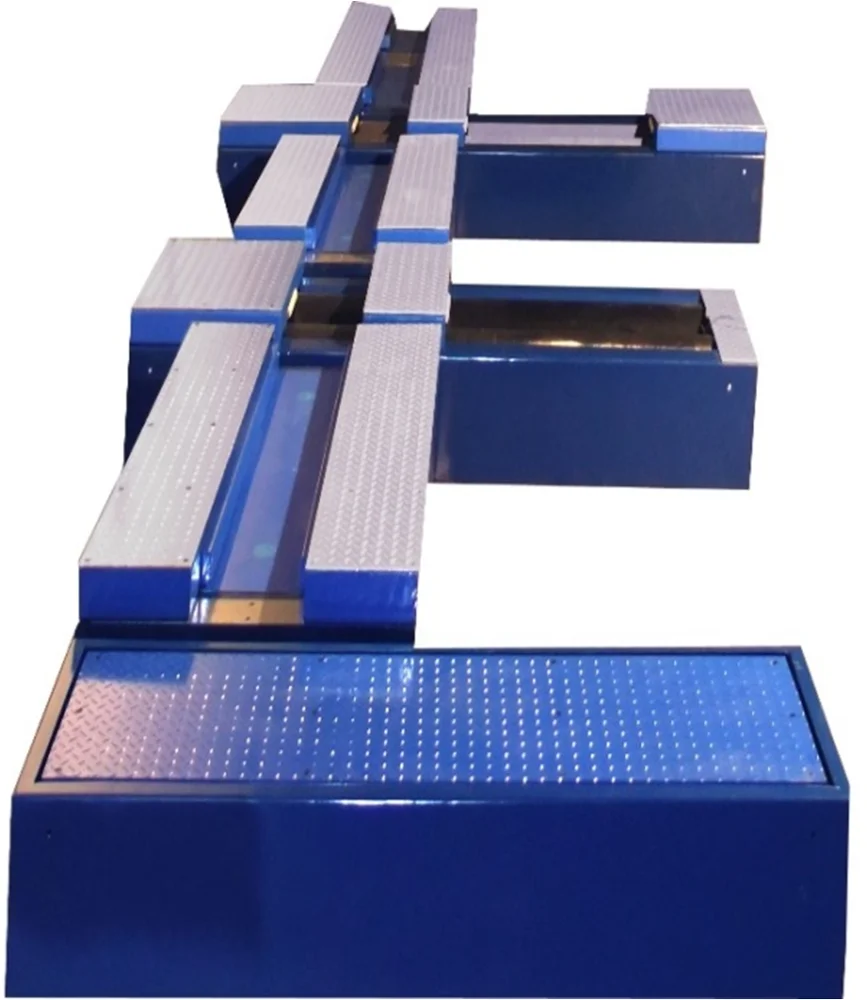

Compound Motorcycle Tester consists of motorcycle brake tester, motorcycle axle weight tester, speedometer tester,Wheel Alignment data of motorcycle and clamping device.
Include device calibration tools. It is able to test motorcycle brake forces axle weight, speedometer and Wheel Alignment data of motorcycle. Which can updated to combined with headlight tester, exhaust gas analyzer and noise lever tester , formed a whole motorcycle safety performance test line
Main properties and features:
1.the main body is wholly welded, with high intension , no need to fix the main body on the ground with ground bolts and it is easy to adjust and install
2.reasonable design, precise test and easy operation
3.CTMT-750 mixer can test all types of motorcycles, including two wheeled, three wheeled, and motorcycle with sidecar
4.Three service positions can test simultaneously, high work efficiency
5. built-in motor, sensor and bearing adopts are famous-brand products with high quality, which won the ISO9000 certification
6.Brake using high transfer efficiency reduction machine, high precision, long service life and low noise
7.Drum mixer speed machine adopts advanced don't move, frequency converter to adjust, add and subtract faster with low noise
8.wheel eccentricity tester adopts differential transformer sensor and test precisely
9.Axle load tester has reasonable and simple construction, easy to calibrate and well perform in repeated operation



Max. axle load(kg) 750
Tread(mm) 900—1700
Applied wheel Tread(inside/outside)(mm) 500(inside)/1500(outside)
Motor power(kw) 10
Air pressure(Mpa) Air pressure 0.5-0.8
Braking tester Roller diameter(mm) 2-180×300 2-180×1000
Roller center distance(mm) 310
Braking force test range(N) 0-3000
Indication error ±3%
Speedometer tester Roller diameter(mm) 2-176.6×300 2-176.6×1000
Roller center distance(mm) 310
Test scope(km/ h) 0-80
Indication error ±1%
Axle weight tester Test scope(kg) 0-750
Indication error ±2%
Wheel Alignment data of motorcycle Test scope(mm) ±15
Indication error(mm) ±0.2
