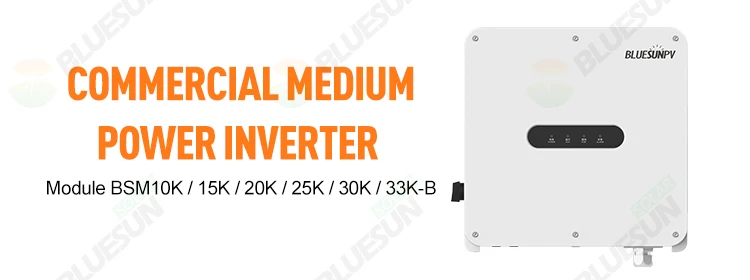

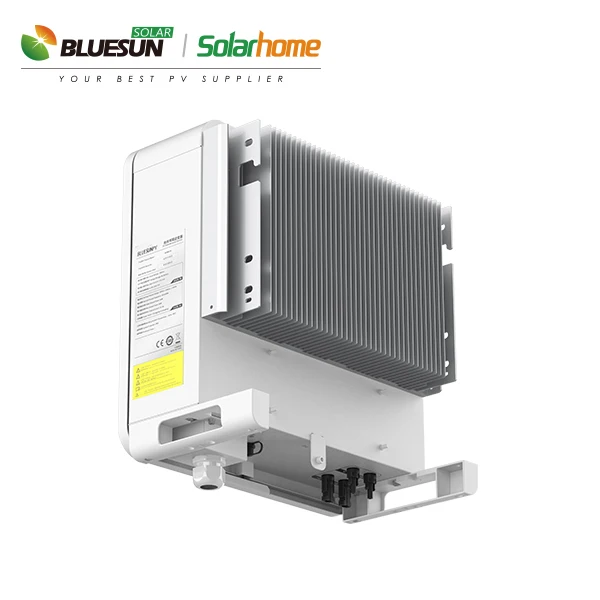

Bluesun 10kw power inverter BSM10K B 3P 10kW power solar inverter three phase
- Category: >>>
- Supplier: Bluesun Solar Co. Ltd.Bluesun Ltd.
Share on (62453661870):
Product Overview
Description
Product Description
High Power
Max DC voltage 1100v, max power 33kw
High Efficiency
Max efficiency 99.0%
High Reliability
Double channels MPPT
Lightning protection
Provide full range of lightning protection , reliable under/over voltage protection
Compact Structure
Easy for installation and maintenance
Friendly to environment
Provide clear and green energy ,
Photovoltaic power generation, save electricity costs
Model | BSM10K-B | BSM15K-B | BSM20K-B | BSM25K-B | BSM30K-B | BSM33K-B | ||||||||
DC Input | Max. DC Voltage | 1100V | ||||||||||||
MPPT Voltage Range | 250V- 1000V | |||||||||||||
Max. Input Current of Each MPPT | 13A | 26A/13A | 26A | 39A | ||||||||||
Number of DC Inputs | 2 | 3 | 4 | 6 | ||||||||||
MPPT Number | 2 | |||||||||||||
AC Output | Rated Output Power | 10kW | 15kW | 20kW | 25kW | 30kW | 33kW | |||||||
Max. Active Power (cos0s1) | 11kw | 16.5kW | 22KW | 27.5kW | 33kW | 36.3kW | ||||||||
Rated Output Voltage | 400V (Three Phase) | |||||||||||||
Operating Voltage Range | 400V±20% | |||||||||||||
Rated Output Current | 14A | 22A | 29A | 36A | 43.3A | 47.6A | ||||||||
Max. Output Current | 16A | 24A | 32A | 39.7A | 47.6A | |||||||||
Rated Grid Frequency | 50 Hz/60Hz | |||||||||||||
Powr Factor | 0.8(Leading) ~0.8(Lagging) | |||||||||||||
THD | <3% | |||||||||||||
System Parameters | Max. Efficiency | 98.60% | 98.61% | 98.63% | 98.94% | 99.00% | 98.80% | |||||||
European Efficiency | 98.30% | 98.26% | 98.50% | 98.26% | ||||||||||
Protection Level | IP65 | |||||||||||||
Operating Temperature Range | -40℃~+60℃ | |||||||||||||
Cooling System | Natural Cooling | Smart Air Cooled | ||||||||||||
Standby Power Consumption | <1W | |||||||||||||
Topology Structure | Transformerless | |||||||||||||
Operating Altitude | 5000m (Derating above 4000m) | |||||||||||||
Display | LED Indicator+ APP | |||||||||||||
Communication | RS485 / WiFi / GPRS | |||||||||||||
Certification | IEC62109, IEC61000, IEC62116, IEC61727, EN50549, CQC, CGC | |||||||||||||

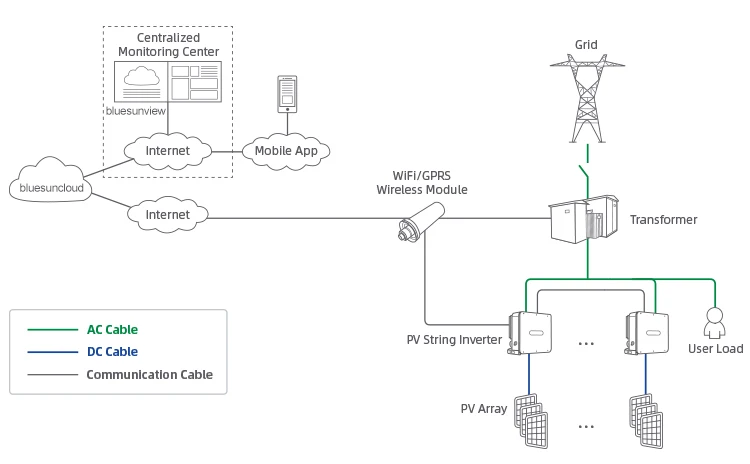

Monitoring System
High precision& intelligent detection

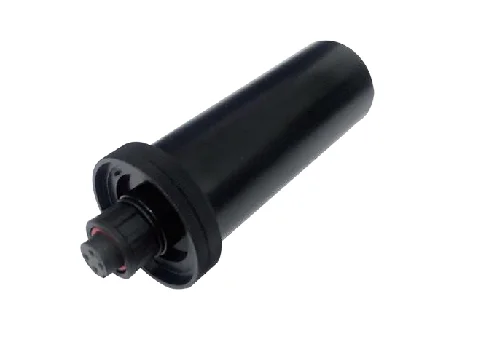

1. Communication RS485/wifi/GPRS
2. Support mobile phone APP connection, monitoring and parameter settings
3. Cooperation with cloud platform and can check the inverter status

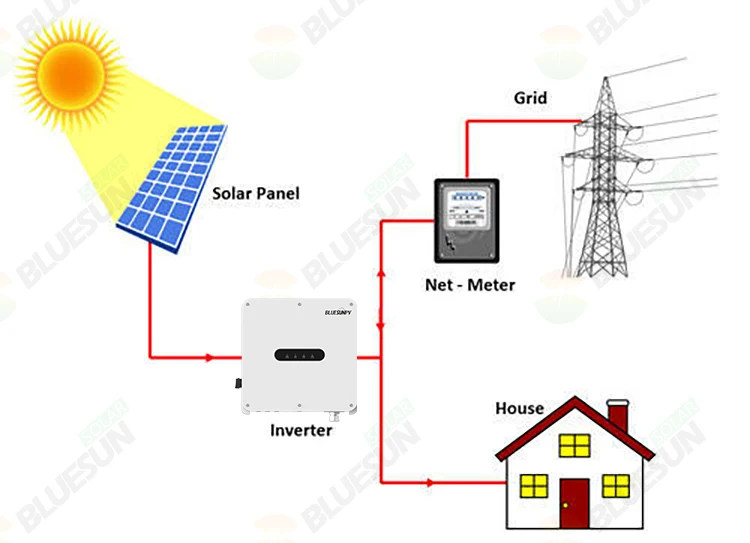

For small household

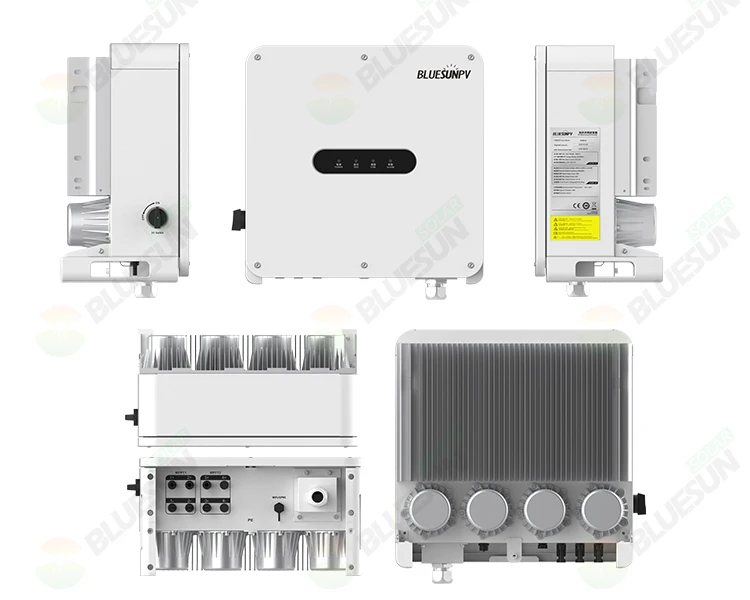

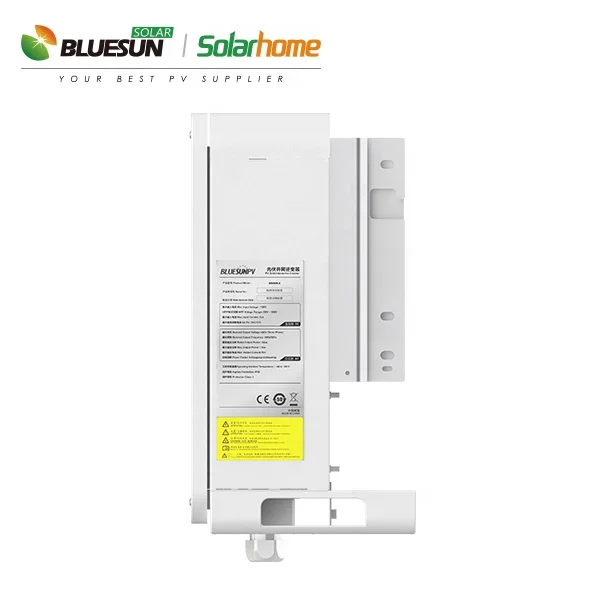

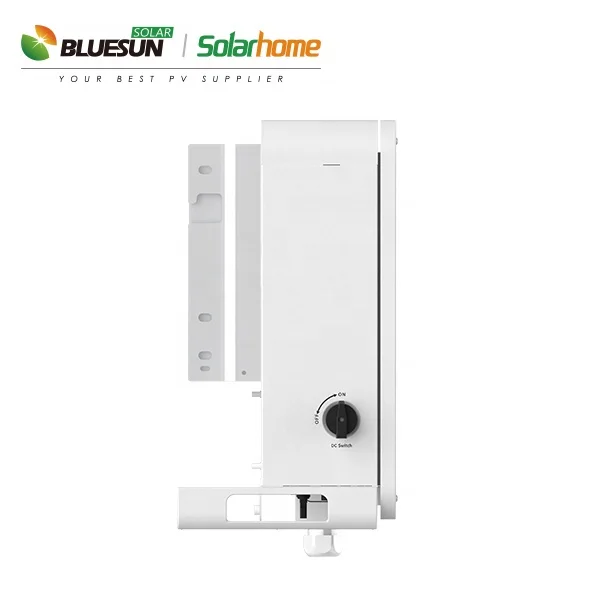

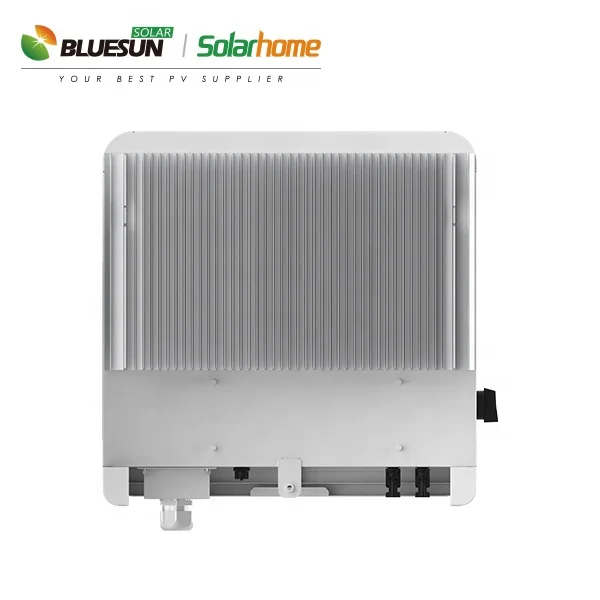

Detailed Images
Payment
Payment Term | T/T | EXW | |||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount

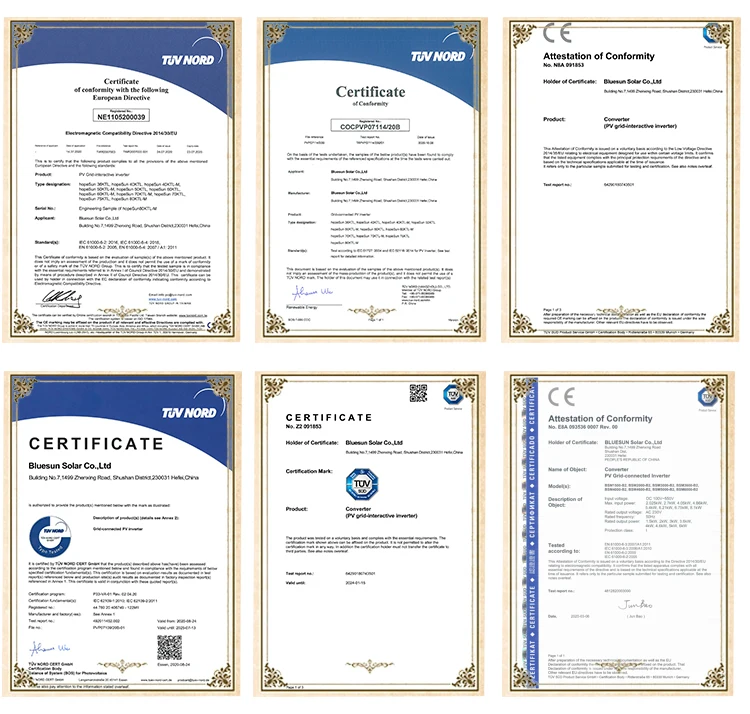

Certifications

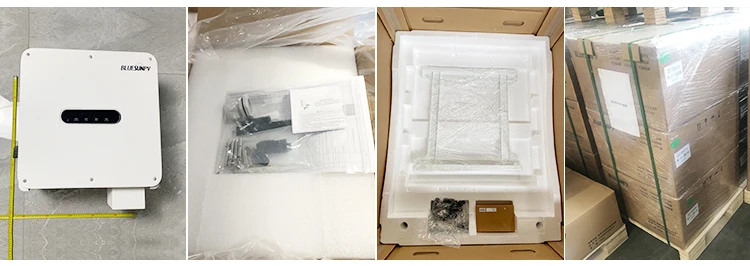

Packing&Delivery
Project
12MW Dalian Roof-top PV project in China
CNNC 2.8MW PV project in Weihai, China
Ukraine 15MW solar plant
String photovoltaic project in Shandong Province, China
Roof-top PV project in Anhui Province, China
50 KW String inverter project in China
China 500 KW solar project

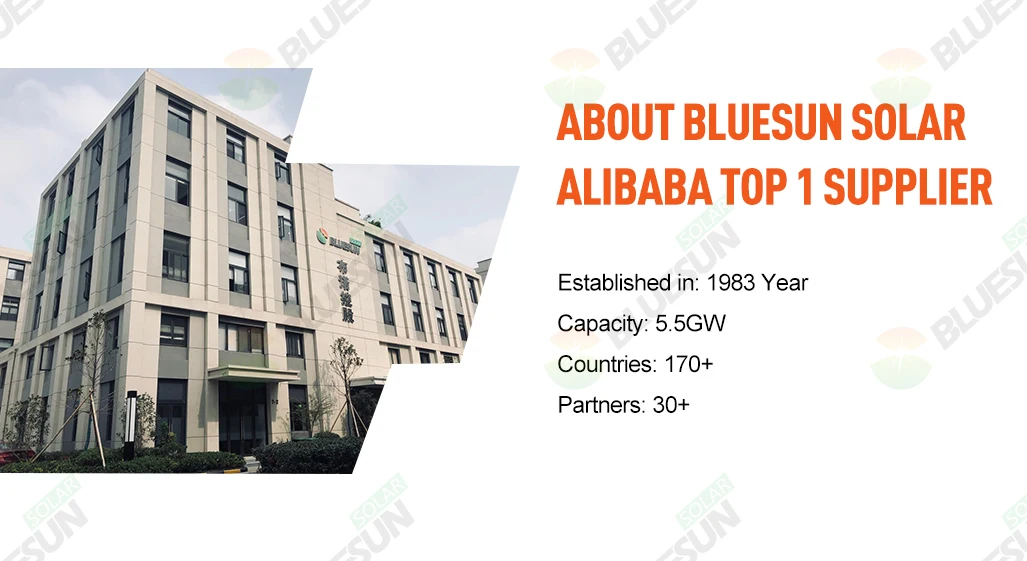

Our Company
